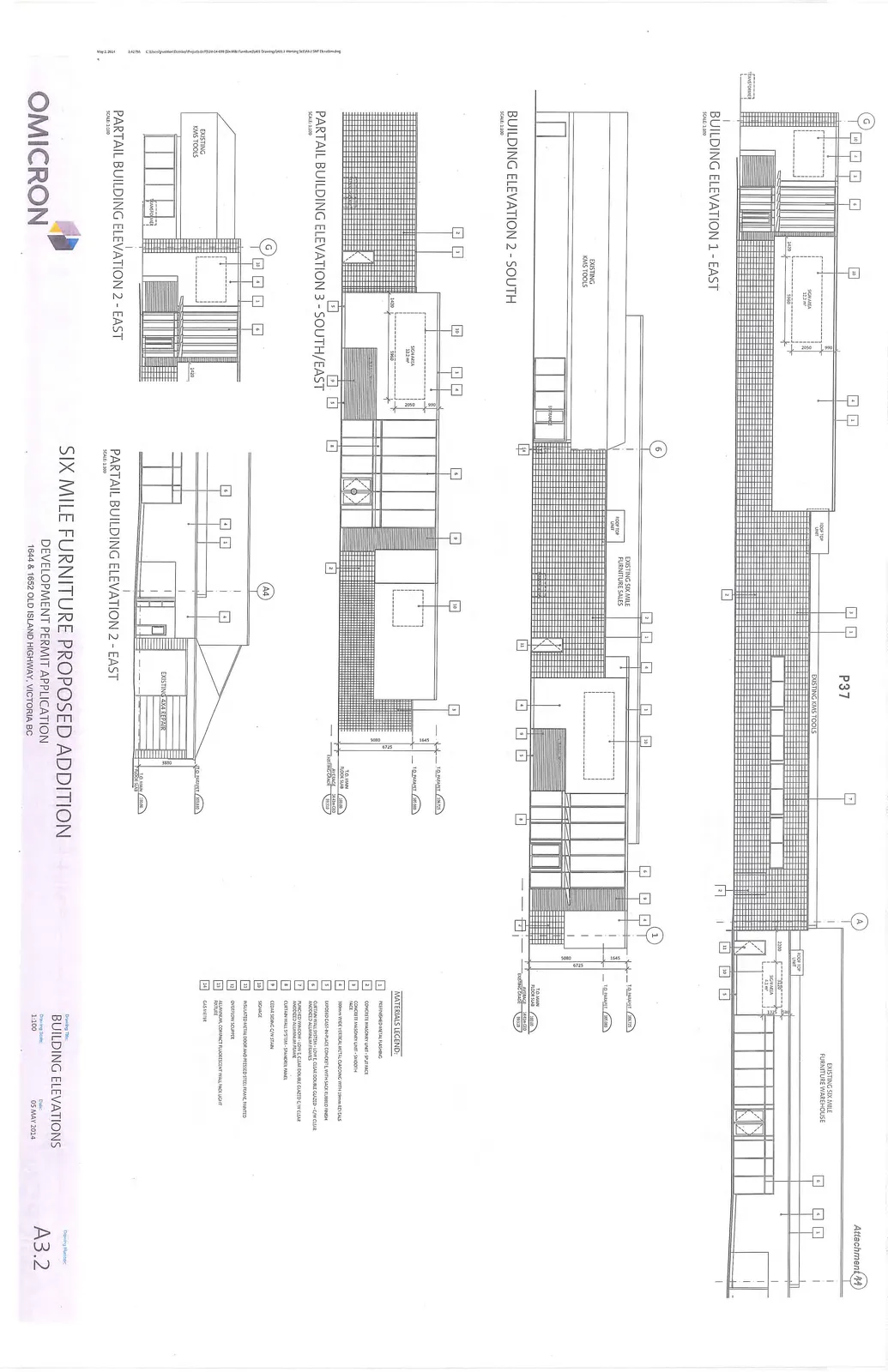

Attachment 11 - Building Elevations (Drawing A3.2)

SIX MILE FURNITURE PROPOSED ADDITION

DEVELOPMENT PERMIT APPLICATION 1644 & 1652 OLD ISLAND HIGHWAY, VICTORIA BC

BUILDING ELEVATIONS

Drawing No: A3.2 Scale: 1:100 Date: 05 MAY 2014

BUILDING ELEVATION 1 - EAST

Scale: 1:100

• EXISTING KMS TOOLS
• SIGN AREA: 12.2 m²
• ROOF TOP UNIT
• EXISTING SIX MILE FURNITURE WAREHOUSE

BUILDING ELEVATION 2 - SOUTH

Scale: 1:100

• EXISTING KMS TOOLS
• ROOF TOP UNIT
• EXISTING SIX MILE FURNITURE SALES
• T.O. PARAPET: 106.715
• T.O. PARAPET: 105.580
• T.O. MAIN FLOOR SLAB: 100.00
• AVERAGE EXISTING GRADE: 98.922

PARTIAL BUILDING ELEVATION 3 - SOUTH/EAST

Scale: 1:100

• SIGN AREA: 12.2 m²
• T.O. PARAPET: 106.715
• T.O. PARAPET: 105.580
• T.O. MAIN FLOOR SLAB: 100.00
• AVERAGE EXISTING GRADE: 98.922

PARTIAL BUILDING ELEVATION 2 - EAST (Detail G)

Scale: 1:100

• EXISTING KMS TOOLS

PARTIAL BUILDING ELEVATION 2 - EAST (Detail A4)

Scale: 1:100

• EXISTING 4X4 REPAIR
• T.O. PARAPET: 105.580
• T.O. MAIN FLOOR SLAB: 100.00

MATERIALS LEGEND

1. PREFINISHED METAL FLASHING
2. CONCRETE MASONRY UNIT - SPLIT FACE
3. CONCRETE MASONRY UNIT - SMOOTH FACE
4. 300mm WIDE VERTICAL METAL CLADDING WITH 13mm REVEALS
5. EXPOSED CAST-IN-PLACE CONCRETE WITH SACK RUBBED FINISH
6. CURTAIN WALL SYSTEM - LOW-E CLEAR DOUBLE GLAZED - C/W CLEAR ANODIZED ALUMINUM FRAMES
7. PUNCHED WINDOW - LOW-E CLEAR DOUBLE GLAZED C/W CLEAR ANODIZED ALUMINUM FRAME
8. CURTAIN WALL SYSTEM - SPANDREL PANEL
9. CEDAR SIDING C/W STAIN
10. SIGNAGE
11. INSULATED METAL DOOR AND PRESSED STEEL FRAME, PAINTED
12. OVERFLOW SCUPPER
13. ALUMINUM, COMPACT FLUORESCENT WALL PACK LIGHT FIXTURE
14. GAS METER
