Attachment 14 - Landscape Plan (Drawing L1)

July 2, 2014Page 431 section

Detailed layout of proposed plantings, bioswales, and rain gardens.

1 CALL TO ORDER

SIX MILE FURNITURE PROPOSED ADDITION

DEVELOPMENT PERMIT APPLICATION

Address: 1644 & 1652 OLD ISLAND HIGHWAY, VICTORIA BC Drawing Title: Landscape Plan Drawing Number: L1 Date: 05 May 2014 Scale: 1:250

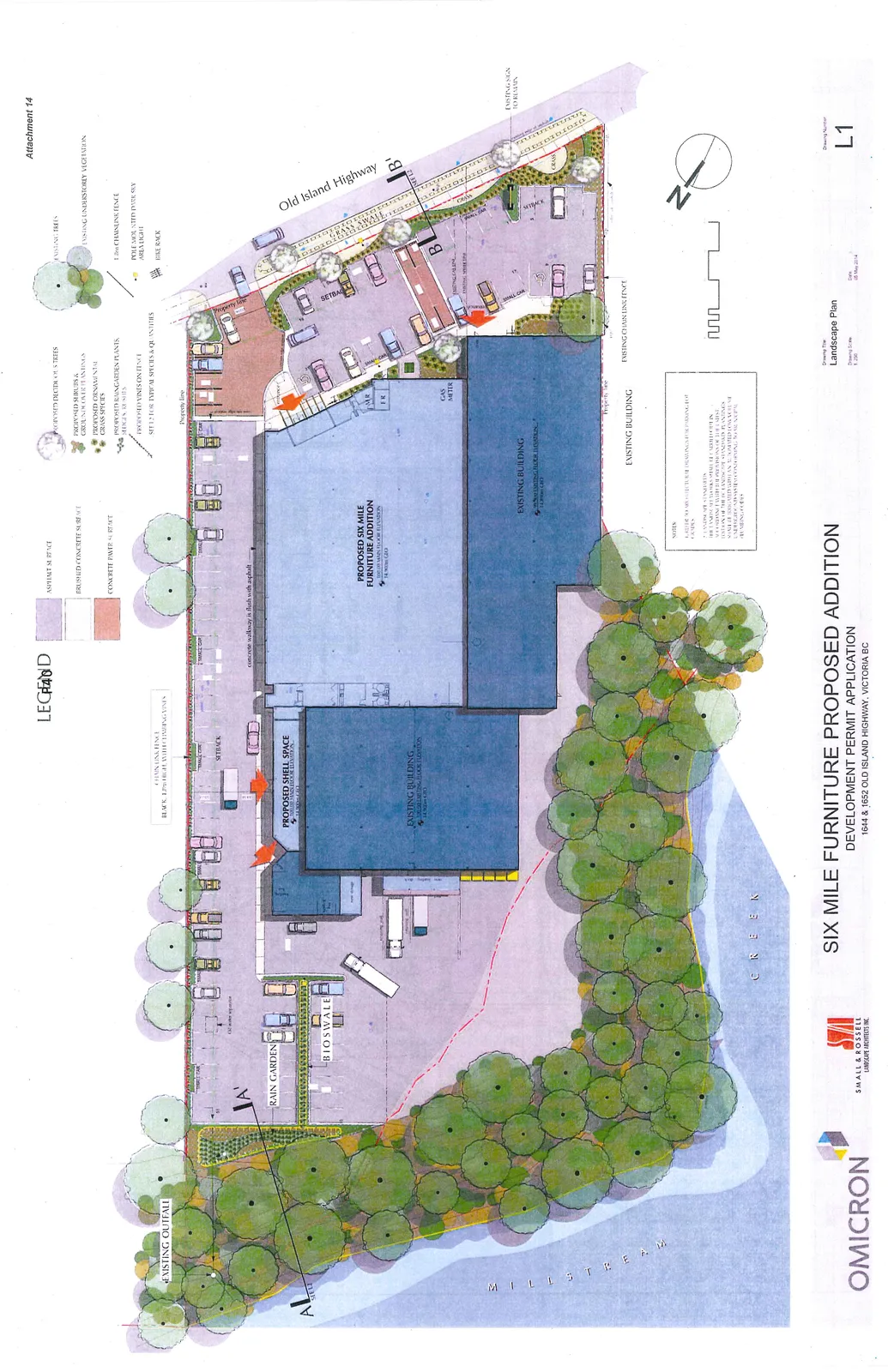

Detailed Landscape Plan for the Six Mile Furniture Proposed Addition, showing building footprints, parking layout, landscaping details, and proximity to Millstream Creek and Old Island Highway.
Detailed Landscape Plan for the Six Mile Furniture Proposed Addition, showing building footprints, parking layout, landscaping details, and proximity to Millstream Creek and Old Island Highway.

LEGEND

Symbol Description
Purple hatch ASPHALT SURFACE
Light grey hatch BRUSHED CONCRETE SURFACE
Reddish hatch CONCRETE PAVER SURFACE
Green branched circle PROPOSED DECIDUOUS TREES
Small green circle clusters PROPOSED SHRUBS & GROUNDCOVER PLANTINGS
Green grass icon PROPOSED ORNAMENTAL GRASS SPECIES
Blue/green circle icon PROPOSED RAINGARDEN PLANTS, SEDGES, RUSHES
Green leaf icon PROPOSED VINES ON FENCE
Large textured green circle EXISTING TREES
Light green shaded area EXISTING UNDERSTOREY VEGETATION
Dashed line 1.8m CHAINLINK FENCE
Dot with circle POLE MOUNTED DARK SKY AREA LIGHT
Rectangular bar icon BIKE RACK

NOTES

  1. REFER TO ARCHITECTURAL DRAWINGS FOR PARKING LOT GRADES.
  2. LANDSCAPE STANDARDS: THE LANDSCAPE WORKS SHALL BE CARRIED OUT IN ACCORDANCE WITH THE PROVISIONS OF THE LATEST EDITION OF THE BCSLA/BCNTA STANDARD. PLANTINGS SHALL BE IRRIGATED WITH AN AUTOMATED LOW VOLUME LANDSCAPE SYSTEM CONFORMING TO MUNICIPAL PLUMBING CODES.

Site Plan Details

  • Proposed Shell Space: 100.00 MAIN FLOOR ELEVATION, 14,000 GFA
  • Proposed Six Mile Furniture Addition: 100.00 MAIN FLOOR ELEVATION, 14,300 GFA
  • Existing Building (Central): 100.00 MAIN FLOOR ELEVATION, 14,000 GFA
  • Existing Building (East): 100.00 MAIN FLOOR ELEVATION, 11,000 GFA
  • Infrastructure & Features:
    • Rain Garden and Bioswale areas for stormwater management.
    • Millstream Creek located along the western/southern boundary.
    • Asphalt parking areas with concrete walkways.
    • Chain link fence (black, 1.8m high) with climbing vines.
    • Existing outfall at the north-western edge.
    • Existing sign to remain near Old Island Highway.
    • Setback lines indicated around property boundaries.
    • Gas meter location and utility points (ER, AR) marked.
    • "Grass Swale / Rain Garden" situated along the Old Island Highway frontage.
