Attachment 15 - Landscape Cross Sections (Drawing L2)
July 2, 2014Page 441 section

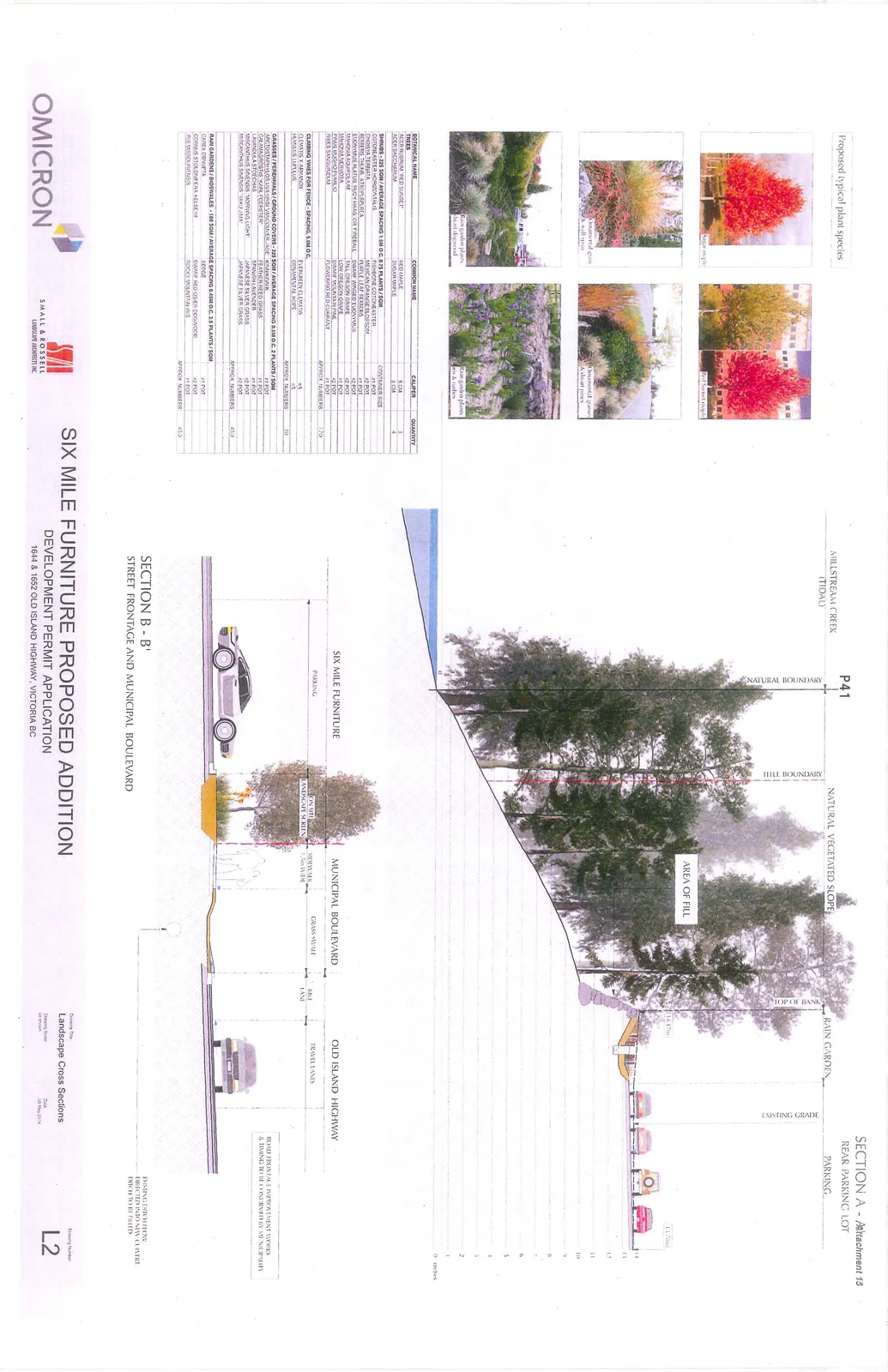

Cross-sections showing site grading and the relationship between the development and Millstream Creek.
SIX MILE FURNITURE PROPOSED ADDITION
DEVELOPMENT PERMIT APPLICATION
1644 & 1652 OLD ISLAND HIGHWAY, VICTORIA BC
Proposed typical plant species
Plant List
| BOTANICAL NAME | COMMON NAME | CALIPER | QUANTITY |
|---|---|---|---|
| TREES | |||
| ACER RUBRUM 'RED SUNSET' | RED MAPLE | 5 CM | 3 |
| ACER SACCHARUM | SUGAR MAPLE | 5 CM | 4 |
| SHRUBS - 225 SQM / AVERAGE SPACING 1.5M O.C. 0.75 PLANTS / SQM | CONTAINER SIZE | ||
| COTONEASTER HORIZONTALIS | FISHBONE COTONEASTER | #1 POT | |
| CHOISYA TERNATA | MEXICAN ORANGE BLOSSOM | #2 POT | |
| BERBERIS THUNB. 'ATROPURPUREA' | PURPLE LEAF BERBERIS | #2 POT | |
| EUONYMUS ALATUS 'RUDY HAAG' OR FIREBALL | DWARF WINGED EUONYMUS | #2 POT | |
| MAHONIA AQUIFOLIUM | TALL OREGON GRAPE | #1 POT | |
| MAHONIA NERVOSA | LOW OREGON GRAPE | #1 POT | |
| PINUS MUGO PUMILIO | DWARF MOUNTAIN PINE | #2 POT | |
| RIBES SANGUINEUM | FLOWERING RED CURRANT | #2 POT | |
| APPROX. NUMBERS | 170 | ||
| CLIMBING VINES FOR FENCE - SPACING 1.5M O.C. | |||
| CLEMATIS ARMANDII | EVERGREEN CLEMATIS | #5 | |
| HUMULUS LUPULUS | ORNAMENTAL HOPS | #5 | |
| APPROX. NUMBERS | 30 | ||
| GRASSES / PERENNIALS / GROUND COVERS - 225 SQM / AVERAGE SPACING 0.3M O.C. 2 PLANTS / SQM | |||
| ARCTOSTAPHYLOS UVA-URSI 'VANCOUVER JADE' | KINNIKINNIK | #1 POT | |
| CALAMAGROSTIS 'KARL FOERSTER' | FEATHER REED GRASS | #1 POT | |
| LAVANDULA STOECHAS | SPANISH LAVENDER | #1 POT | |
| MISCANTHUS SINENSIS 'MORNING LIGHT' | JAPANESE SILVER GRASS | #2 POT | |
| MISCANTHUS SINENSIS 'YAKU JIMA' | JAPANESE SILVER GRASS | #2 POT | |
| APPROX. NUMBERS | 450 | ||
| RAIN GARDENS / BIOSWALES - 180 SQM / AVERAGE SPACING 0.45M O.C. 2.5 PLANTS / SQM | |||
| CAREX OBNUPTA | SEDGE | #1 POT | |
| CORNUS STOLONIFERA 'KELSEYI' | DWARF RED OSIER DOGWOOD | #2 POT | |
| IRIS MISSOURIENSIS | ROCKY MOUNTAIN IRIS | #1 POT | |
| APPROX. NUMBERS | 450 |
SECTION A - REAR PARKING LOT
Diagram Labels:
- MILLSTREAM CREEK (TIDAL)
- NATURAL BOUNDARY
- HILL BOUNDARY
- NATURAL VEGETATED SLOPE
- AREA OF FILL
- TOP OF BANK (Elevation: 14.17m)
- RAIN GARDEN
- EXISTING GRADE
- PARKING (Elevation: 13.78m)
SECTION B - B' STREET FRONTAGE AND MUNICIPAL BOULEVARD
Diagram Labels:
- SIX MILE FURNITURE PARKING
- ON SITE LANDSCAPE SCREEN
- SIDEWALK 1.5m WIDE
- MUNICIPAL BOULEVARD
- GRASS SWALE
- BIKE LANE
- OLD ISLAND HIGHWAY TRAVEL LANES
Notes:
- ROAD FRONTAGE IMPROVEMENT WORKS & TIMING TO BE CONFIRMED BY MUNICIPALITY
- EXISTING DITCH FLOW DIRECTED INTO NEW CULVERT. DITCH TO BE FILLED.
Drawing Details:
- Drawing Title: Landscape Cross Sections
- Date: 05 May 2014
- Drawing Number: L2
Page 44
Extracted from: 2014 07 02 Council Agenda
