Appendix: View Royal Park Garden Plot Phasing Layout

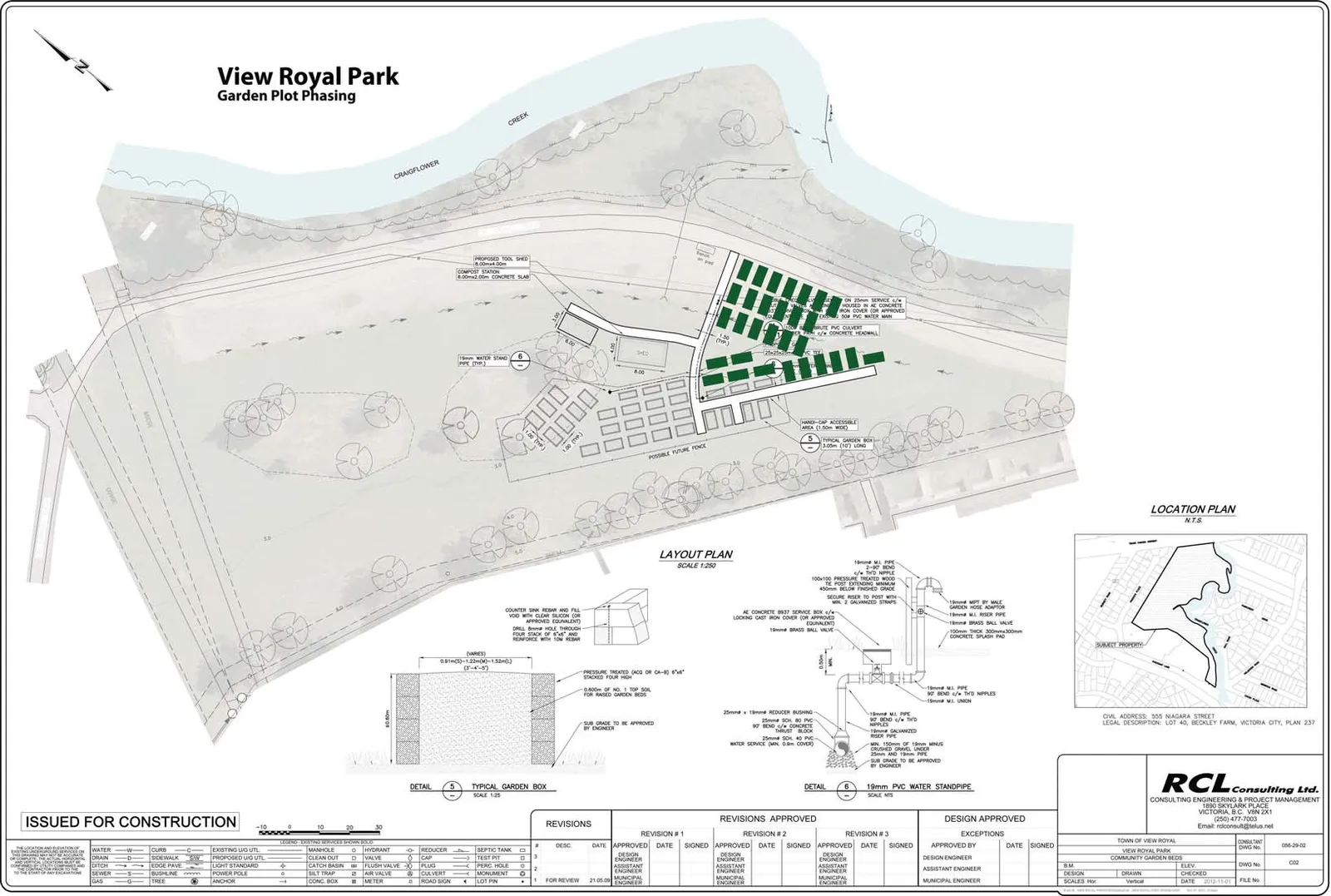

View Royal Park - Garden Plot Phasing

Layout Plan (Scale 1:250)

The plan details the phasing and infrastructure for garden plots near Craigflower Creek. Key elements include:

• Proposed Tool Shed: 3.00m x 4.20m concrete slab.
• Compost Station: 6.00m x 2.00m concrete slab.
• Garden Plots: Arranged in rows, with a designated handicap accessible area (1.80m wide).
• Water Infrastructure: 19mm water standpipes (Typ.) located throughout the plot area.
• Fencing: Location for a "Possible Future Fence" is indicated.
• Water Service: Ex. 25mm service c/w housed in AC concrete box cover (or approved) c/w PVC water main.
• Drainage: 450mm DIA PVC culvert c/w concrete headwall.

---

Detail 5: Typical Garden Box (Scale 1:25)

Construction Notes:

• Dimensions: 0.60m height; width/length variable from 0.91m (3'-0") to 1.20m–1.50m (4'-0" to 5'-0").
• Materials: Pressure treated (ACQ or CA-B) 4" x 4" stacked four high.
• Fill: 0.50m of No. 1 top soil for raised garden beds.
• Fastening: Counter sink rebar and fill void with clear silicon (or approved equivalent). Drill 32mm hole through four stack of 4" x 4" and reinforce with 15m rebar.
• Base: Sub grade to be approved by engineer.

---

Detail 6: 19mm PVC Water Standpipe (Scale NTS)

Assembly Components:

• 19mm M.I. pipe and 2-90° bends.
• 150x150 pressure treated wood 4"x4" post extending 300mm minimum below finished grade.
• Secure riser to post with minimum 2 galvanized straps.
• 19mm MPT by male garden hose adapter.
• 19mm M.I. riser pipe.
• 19mm brass ball valve.
• 100mm thick 300mm x 300mm concrete splash pad.
• 19mm M.I. pipe 90° bend w/ 1/2" nipples.
• 19mm M.I. union.
• 25mm x 19mm reducer bushing.
• 25mm SCH 80 PVC 90° bend w/ concrete thrust block.
• 25mm SCH 40 PVC water service (min. 0.6m cover).
• 19mm M.I. pipe 1/2" nipple.
• 19mm M.I. gate valve and riser pipe.
• AC concrete/cast service box c/w locking cast iron cover (or approved equivalent).
• Minimum 150mm of 19mm minus crushed gravel under and 150mm above valve.
• Sub grade to be approved by engineer.

---

Location Plan (N.T.S.)

• Civil Address: 535 Niagara Street
• Legal Description: Lot 40, Beckley Farm, Victoria City, Plan 237

---

Revisions Approved

Design Approved

---

Legend & General Information

ISSUED FOR CONSTRUCTION

Utility Symbols:

• Water: W
• Drain: D
• Ditch: ---
• Sewer: S
• Gas: G
• Curb: C
• Sidewalk: S/W
• Edge Pave: ---
• Bus Lane: ---
• Tree: (Tree Symbol)
• Existing U/G Utl: (Dashed line)
• Proposed U/G Utl: (Solid line)
• Light Standard: L/S
• Power Pole: P/P
• Anchor: (Anchor symbol)
• Manhole: MH
• Clean Out: CO
• Catch Basin: CB
• Silt Trap: ST
• Conc. Box: CB
• Hydrant: HYD
• Valve: V
• Flush Valve: FV
• Air Valve: AV
• Meter: M
• Reducer: R
• Cap: C
• Plug: P
• Culvert: CULV
• Road Sign: RS
• Septic Tank: ST
• Test Pit: TP
• Weephole: WH
• Monument: MON
• Lot Pin: LP

Project Metadata:

• Client: Town of View Royal
• Project: View Royal Park Community Garden Beds
• Drawing Title: Layout Plan & Details
• DWG/Ref No: 595-28-02
• DWG No: C02
• Date: 2021/05/31
• Scale: As Shown
