Building 2 Elevations - Eagle's Nest Residences (Sheet A303)

Material Palette

1. RUNNING BOND STANDARD SIZE BRICKS IN WHITE WITH WHITE MORTAR, LIMA BY VANDERSANDEN OR SIMILAR
2. 4" HORIZONTAL GROOVE FIBRE-CEMENT PANEL, PRE-FINISHED IN COLOUR A, B, C, OR D, HARDI PLANK SMOOTH OR ARTISAN SHIPLAP OR SIMILAR
3. FLUSH JOINTED SMOOTH FINISH FIBRE-CEMENT PANEL, PRE-FINISHED IN COLOUR A, B, C, OR D WITH MATCHING TRIMS, HARDI PANEL SMOOTH OR SIMILAR
4. 2' X 5' SPACED BOARD AND BATTEN INSTALLATION SMOOTH-FINISH FIBRE-CEMENT PANEL, PRE-FINISHED IN COLOUR A, B, C, OR D WITH MATCHING TRIMS, HARDI PANEL SMOOTH OR SIMILAR
5. VERTICAL 4" V-GROOVE WOOD-LOOK METAL CLADDING, SMOOTH FINISH, PRE-FINISHED IN 'DARK ASH', LUX OR SIMILAR
6. FASCIA: ALUMINUM COMPOSITE PANEL, PRE-FINISHED IN BLACK
7. SOFFIT, MAIN ROOF: 4" V-GROOVE WOOD-LOOK METAL SOFFIT, SMOOTH FINISH, PRE-FINISHED IN 'DARK ASH', LUX OR SIMILAR*
   SOFFIT, SECONDARY CANOPIES & U/S OF BALCONIES: ALUMINUM COMPOSITE PANEL, PRE-FINISHED IN COLOUR D OR E
8. TEMPERED AND LAMINATED GLASS GUARDRAIL WITH ANODIZED ALUMINUM CAP RAIL
9. CANOPY: ALUMINUM COMPOSITE PANEL, PRE-FINISHED IN BLACK
10. COLUMNS: ALUMINUM COMPOSITE PANEL, PRE-FINISHED IN BLACK
11. METAL SCREENS: WATER JET CUT, POWDER COATED STEEL
12. VINYL WINDOWS, PRE-FINISHED IN BLACK
13. EXTRUDED ALUMINUM STORE FRONT GLAZING C/W DOORS, PRE-FINISHED IN BLACK
14. VINYL SWING DOOR WITH GLASS PANEL, PRE-FINISHED IN BLACK
15. VINYL SWING DOORS WITH GLASS PANEL AND TOP LITE, PRE-FINISHED IN BLACK
16. WIDE PLANK WOOD-LOOK DOORS WITH SIDE AND TOP LITES, VINYL FRAME, PRE-FINISHED IN BLACK
17. WOOD PERGOLA STAINED TO MATCH 5 METAL CLADDING
18. PRE-FABRICATED ALUMINUM CLAD PLANTERS, PRE-FINISHED IN COLOUR C
19. WOOD TRIM, BLACK
20. STEEL KNIFE EDGE TRIM, PRE-FINISHED IN BLACK
21. ARCHITECTURAL EXPOSED CONCRETE WALL
22. SBS MEMBRANE ROOFING IN LIGHT GREY
23. PAINTED METAL DOOR, PRE-FINISHED IN COLOUR B

• COLOUR TO MATCH 5 METAL CLADDING ** FLASHING TO COLOUR MATCH MATERIALS ALUMINUM FLASHING, PRE-FINISHED IN COLOURS A, B, C, D, & E

Building 2 Elevations

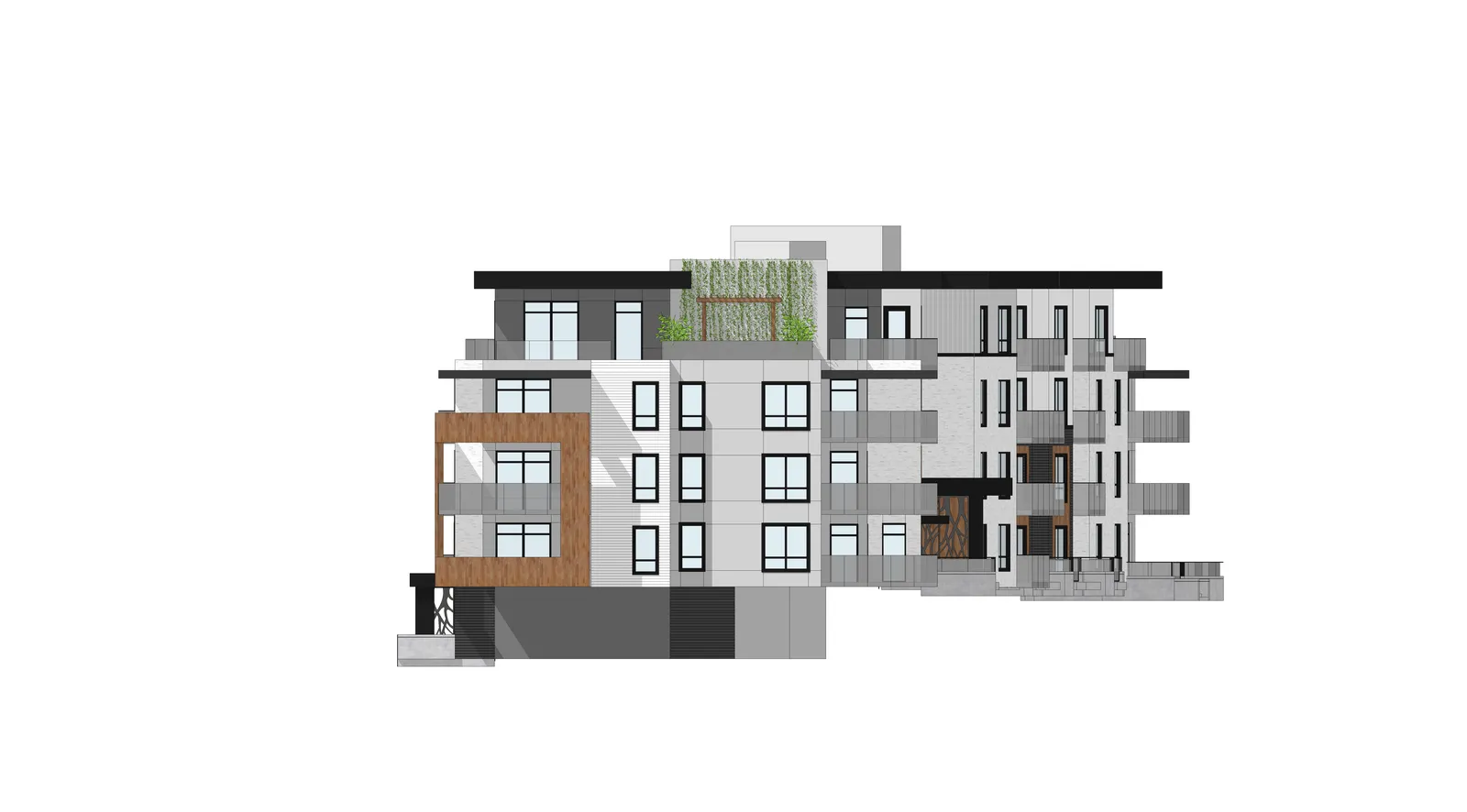

1 Building 2 - East Elevation

Scale: 1:100

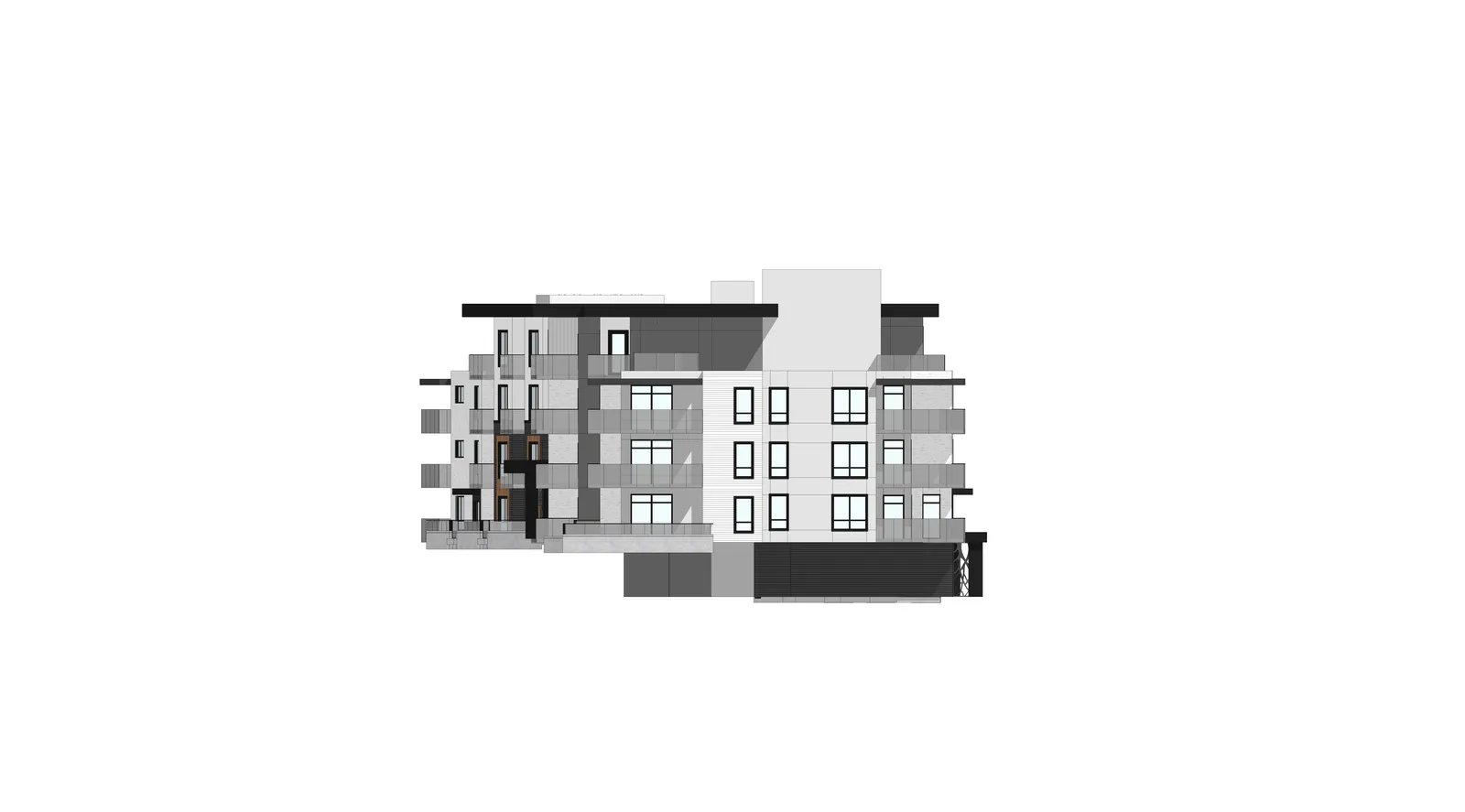

2 Building 2 - West Elevation

Scale: 1:100 ROOFTOP MECHANICAL CONCEALED BEHIND

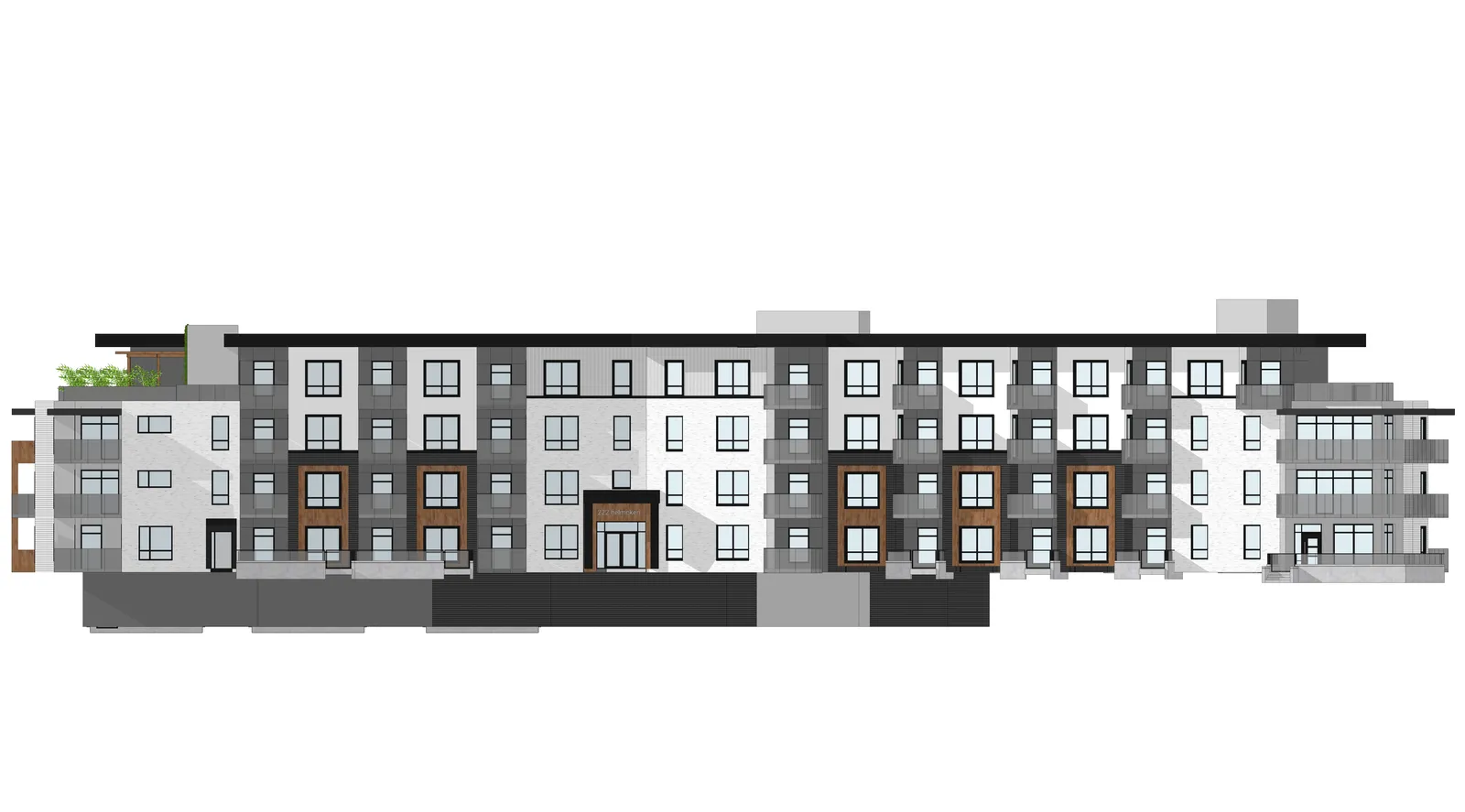

3 Building 2 - South Elevation

Scale: 1:100

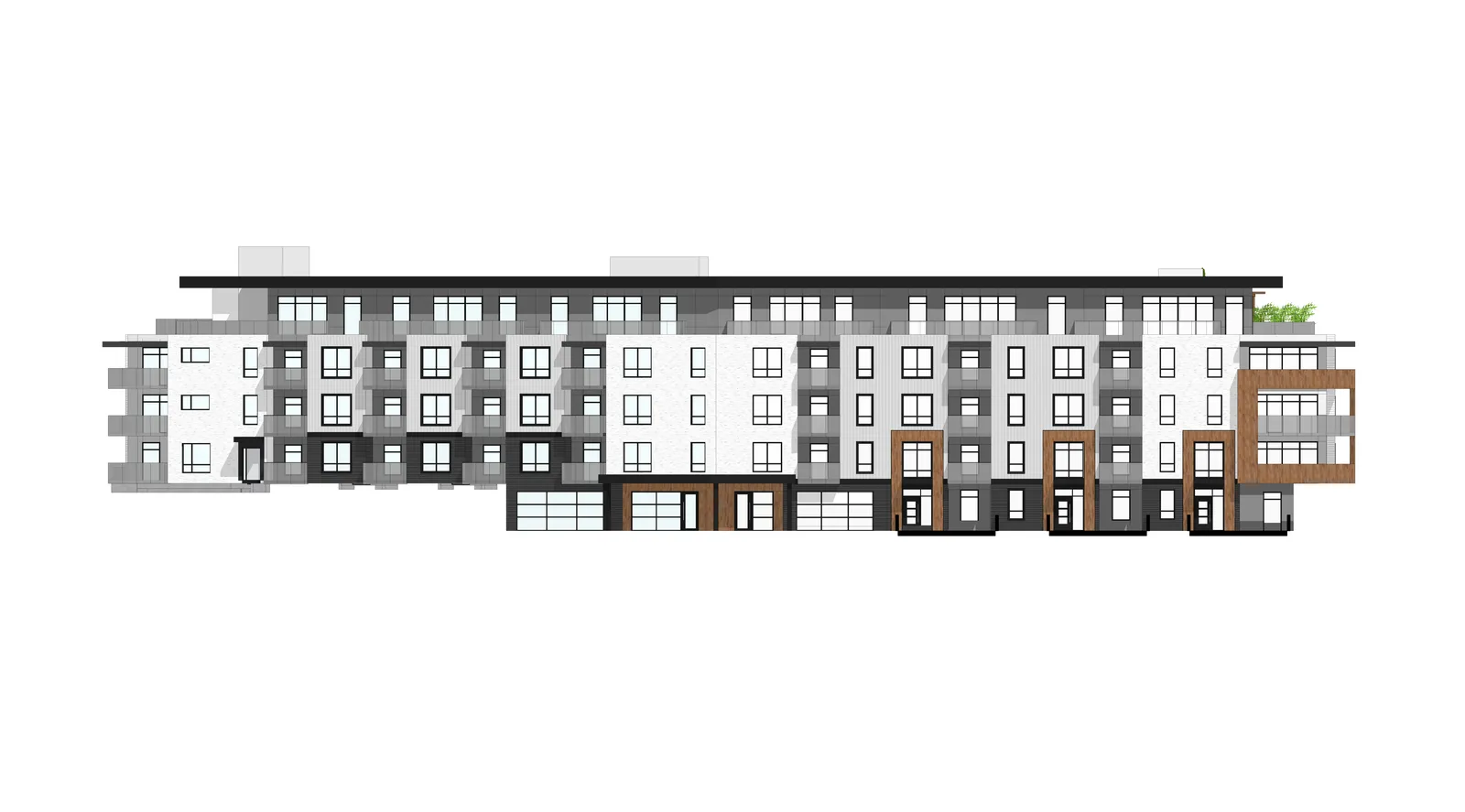

4 Building 2 - North Elevation

Scale: 1:100

Project Information

Project: Eagle's Nest Residences
Address: 3 Helmcken Road, Victoria, BC
Drawing: Building 2 Elevations
Date: 29 OCT 21
Scale: As noted
Drawn by: JLY
Checked by: JLY
Project Number: 2152
Drawing Number: A303

Note: All dimensions are shown in millimeters.
