Building 3 Elevations - Eagle's Nest Residences (Sheet A304)

April 5, 2022Page 571 section

Architectural elevation drawings for Building 3 of the Eagle's Nest Residences development, showing north, south, east, and west views.

1 CALL TO ORDER
3 Helmcken RoadEagle's Nest ResidencesdHKarchitectsBuilding 3Oct 29, 2021

Eagle's Nest Residences - Building 3 Elevations

Project Information

Field Details
Project Name Eagle's Nest Residences
Address 3 Helmcken Road, Victoria, BC
Drawing Title Building 3 Elevations
Sheet Number A304
Project Number 2152
Date 29 OCT 21
Scale As noted (1:100)
Drawn By JLY
Checked By JLY

Note: All dimensions are shown in millimeters.

Material Palette

  1. RUNNING BOND STANDARD SIZE BRICKS IN WHITE WITH WHITE MORTAR, LIMA BY VANDERSANDEN OR SIMILAR
  2. 4" HORIZONTAL GROOVE FIBRE-CEMENT PANEL, PRE-FINISHED IN COLOUR A, B, C, OR D, HARDI PLANK SMOOTH OR ARTISAN SHIPLAP OR SIMILAR
  3. FLUSH JOINTED SMOOTH FINISH FIBRE-CEMENT PANEL, PRE-FINISHED IN COLOUR A, B, C, OR D WITH MATCHING TRIMS, HARDI PANEL SMOOTH OR SIMILAR
  4. 2' X 5' SPACED BOARD AND BATTEN INSTALLATION SMOOTH-FINISH FIBRE-CEMENT PANEL, PRE-FINISHED IN COLOUR A, B, C, OR D WITH MATCHING TRIMS, HARDI PANEL SMOOTH OR SIMILAR
  5. VERTICAL 4" V-GROOVE WOOD-LOOK METAL CLADDING, SMOOTH FINISH, PRE-FINISHED IN 'DARK ASH', LUX OR SIMILAR
  6. FASCIA: ALUMINUM COMPOSITE PANEL, PRE-FINISHED IN BLACK
  7. SOFFIT, MAIN ROOF: 4" V-GROOVE WOOD-LOOK METAL SOFFIT, SMOOTH FINISH, PRE-FINISHED IN 'DARK ASH', LUX OR SIMILAR*
  8. SOFFIT, SECONDARY CANOPIES & U/S OF BALCONIES: ALUMINUM COMPOSITE PANEL, PRE-FINISHED IN COLOUR D OR E
  9. TEMPERED AND LAMINATED GLASS GUARDRAIL WITH ANODIZED ALUMINUM CAP RAIL
  10. CANOPY: ALUMINUM COMPOSITE PANEL, PRE-FINISHED IN BLACK
  11. COLUMNS: ALUMINUM COMPOSITE PANEL, PRE-FINISHED IN BLACK
  12. METAL SCREENS: WATER JET CUT, POWDER COATED STEEL
  13. VINYL WINDOWS, PRE-FINISHED IN BLACK
  14. EXTRUDED ALUMINUM STORE FRONT GLAZING C/W DOORS, PRE-FINISHED IN BLACK
  15. VINYL SWING DOOR WITH GLASS PANEL, PRE-FINISHED IN BLACK
  16. VINYL SWING DOORS WITH GLASS PANEL AND TOP LITE, PRE-FINISHED IN BLACK
  17. WIDE PLANK WOOD-LOOK DOORS WITH SIDE AND TOP LITES, VINYL FRAME, PRE-FINISHED IN BLACK
  18. WOOD PERGOLA STAINED TO MATCH 5 METAL CLADDING
  19. PRE-FABRICATED ALUMINUM CLAD PLANTERS, PRE-FINISHED IN COLOUR C
  20. WOOD TRIM, BLACK
  21. STEEL KNIFE EDGE TRIM, PRE-FINISHED IN BLACK
  22. ARCHITECTURAL EXPOSED CONCRETE WALL
  23. SBS MEMBRANE ROOFING IN LIGHT GREY
  24. PAINTED METAL DOOR, PRE-FINISHED IN COLOUR B

* COLOUR TO MATCH 5 METAL CLADDING ** FLASHING TO COLOUR MATCH MATERIALS: ALUMINUM FLASHING, PRE-FINISHED IN COLOURS A, B, C, D, & E

Building Elevations

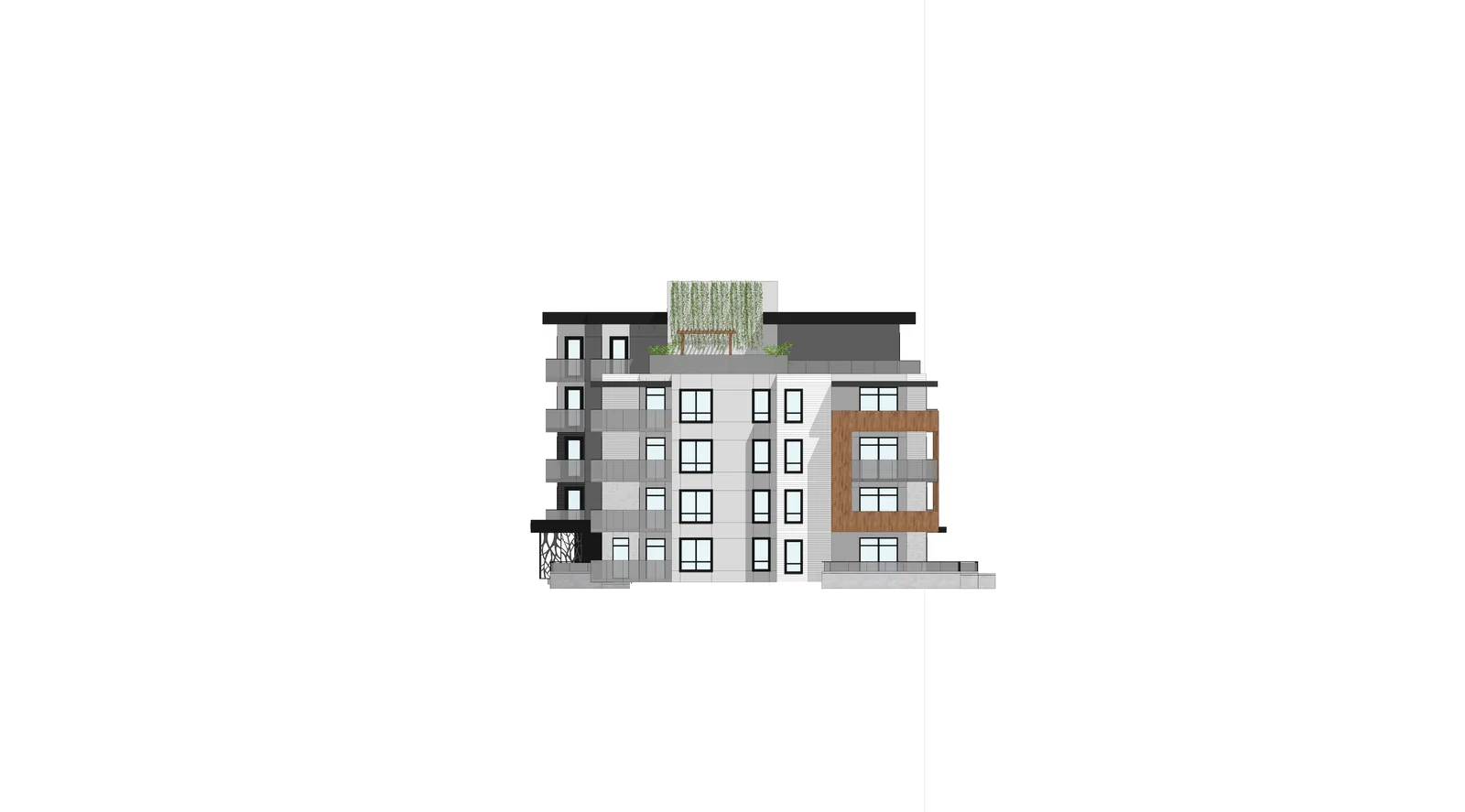

Building 3 - South Elevation

Scale: 1:100

Building 3 - South Elevation
Building 3 - South Elevation

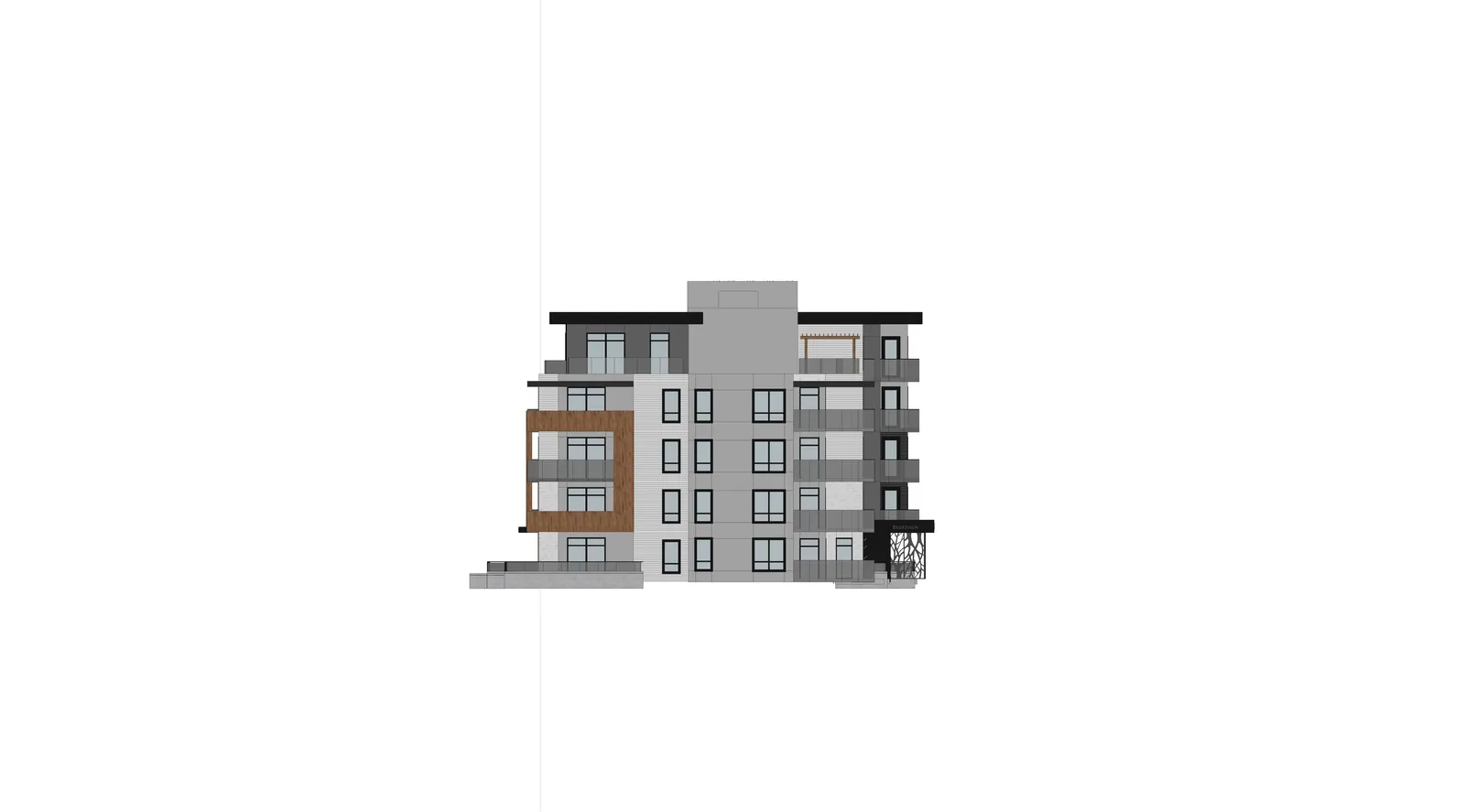

Building 3 - North Elevation

Scale: 1:100

Building 3 - North Elevation
Building 3 - North Elevation

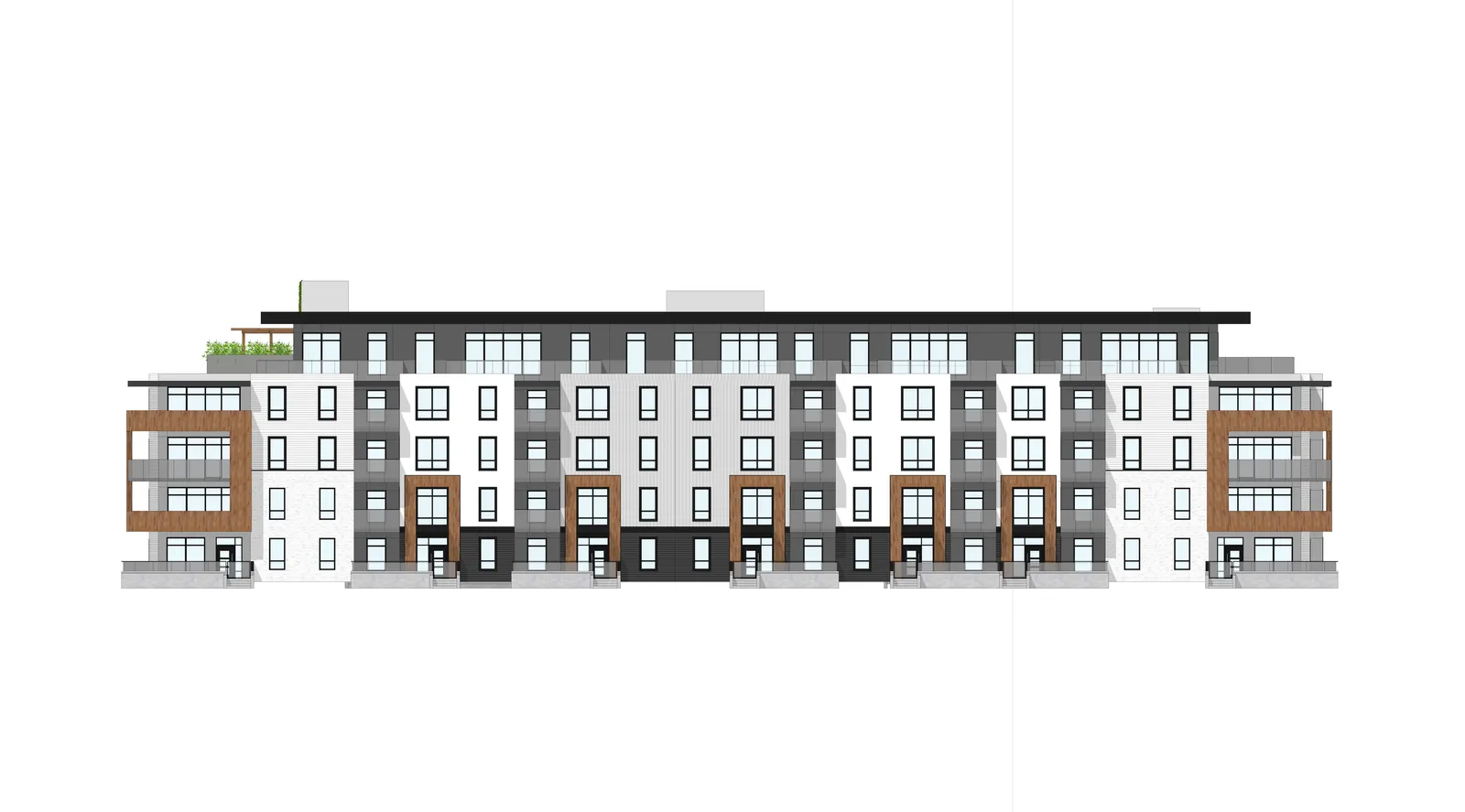

Building 3 - East Elevation

Scale: 1:100

Building 3 - East Elevation
Building 3 - East Elevation

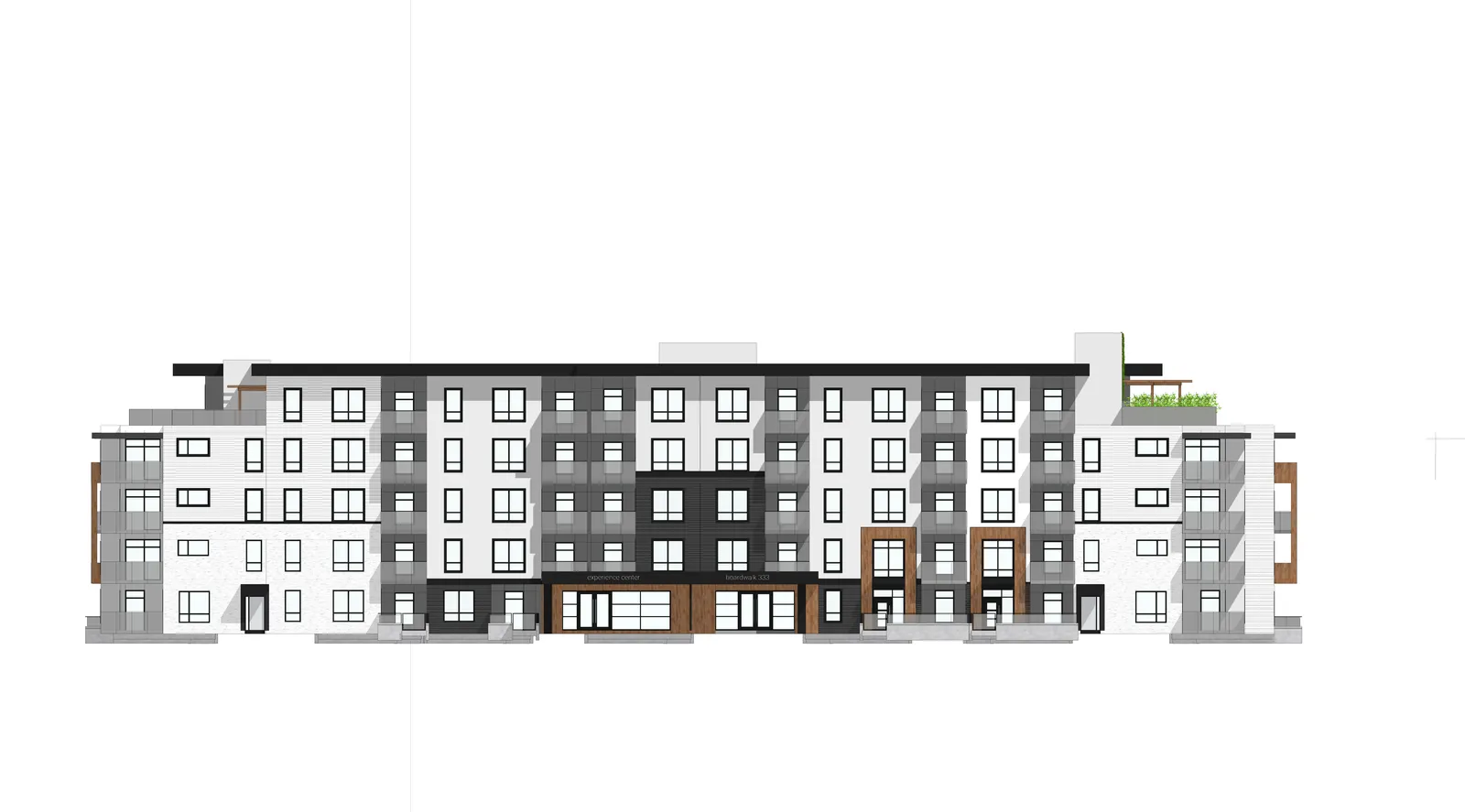

Building 3 - West Elevation

Scale: 1:100

Building 3 - West Elevation
Building 3 - West Elevation
*(Note: ROOFTOP MECHANICAL CONCEALED BEHIND indicated on rooftop)*

Elevation Datum and Level Information

Level Elevation (m) Relative Height (m)
Level 5 Roof 44.21 [15.71m]
Level 5 40.90 [12.40m]
Level 4 37.80 [9.30m]
Level 3 34.70 [6.20m]
Level 2 31.60 [3.10m]
Level 1 28.50 [0.0m]
Parkade P1 25.00 [-3.50m]
Parkade P2 22.50 [-7.00m]
