Material Palette - Eagle's Nest Residences (Sheet A310)

Eagle's Nest Residences

Project: Eagle's Nest Residences
Address: 3 Helmcken Road, Victoria, BC
Document Title: Material Palette
Drawing Number: A310
Date: 29 OCT 21
Project Number: 2152
Drawn by: JLY
Checked by: JLY
Scale: As noted
Firm: dHKarchitects

Material Palette Legend

1. RUNNING BOND STANDARD SIZE BRICKS IN WHITE WITH WHITE MORTAR, LIMA BY VANDERSANDEN OR SIMILAR
2. 4" HORIZONTAL GROOVE FIBRE-CEMENT PANEL, PRE-FINISHED IN COLOUR A, B, C, OR D, HARDI PLANK SMOOTH OR ARTISAN SHIPLAP OR SIMILAR
3. FLUSH JOINTED SMOOTH FINISH FIBRE-CEMENT PANEL, PRE-FINISHED IN COLOUR A, B, C, OR D WITH MATCHING TRIMS, HARDI PANEL SMOOTH OR SIMILAR
4. 2' X 5' SPACED BOARD AND BATTEN INSTALLATION SMOOTH-FINISH FIBRE-CEMENT PANEL, PRE-FINISHED IN COLOUR A, B, C, OR D WITH MATCHING TRIMS, HARDI PANEL SMOOTH OR SIMILAR
5. VERTICAL 4" V-GROOVE WOOD-LOOK METAL CLADDING, SMOOTH FINISH, PRE-FINISHED IN 'DARK ASH', LUX OR SIMILAR
6. FASCIA: ALUMINUM COMPOSITE PANEL, PRE-FINISHED IN BLACK
7. SOFFIT, MAIN ROOF: 4" V-GROOVE WOOD-LOOK METAL SOFFIT, SMOOTH FINISH, PRE-FINISHED IN 'DARK ASH', LUX OR SIMILAR*
8. SOFFIT, SECONDARY CANOPIES & U/S OF BALCONIES: ALUMINUM COMPOSITE PANEL, PRE-FINISHED IN COLOUR D OR E
9. TEMPERED AND LAMINATED GLASS GUARDRAIL WITH ANODIZED ALUMINUM CAP RAIL
10. CANOPY: ALUMINUM COMPOSITE PANEL, PRE-FINISHED IN BLACK
11. COLUMNS: ALUMINUM COMPOSITE PANEL, PRE-FINISHED IN BLACK
12. METAL SCREENS: WATER JET CUT, POWDER COATED STEEL
13. VINYL WINDOWS, PRE-FINISHED IN BLACK
14. EXTRUDED ALUMINUM STORE FRONT GLAZING C/W DOORS, PRE-FINISHED IN BLACK
15. VINYL SWING DOOR WITH GLASS PANEL, PRE-FINISHED IN BLACK
16. VINYL SWING DOORS WITH GLASS PANEL AND TOP LITE, PRE-FINISHED IN BLACK
17. WOOD PERGOLA STAINED TO MATCH 5 METAL CLADDING
18. PRE-FABRICATED ALUMINUM CLAD PLANTERS, PRE-FINISHED IN COLOUR C
19. WOOD TRIM, BLACK
20. STEEL KNIFE EDGE TRIM, PRE-FINISHED IN BLACK
21. ARCHITECTURAL EXPOSED CONCRETE WALL
22. SBS MEMBRANE ROOFING IN LIGHT GREY

* COLOUR TO MATCH 5 METAL CLADDING
** FLASHING TO COLOUR MATCH MATERIALS
ALUMINUM FLASHING, PRE-FINISHED IN COLOURS A, B, C, D, & E

---

Color Swatches

• A WHITE



• B DOVE GREY



• C MEDIUM GREY



• D CHARCOAL GREY



• E BLACK



---

Material Samples

• 1 BRICK - WHITE



• 2 LAPPED SIDING - CHARCOAL GREY



• 3 PANEL SIDING



• 4 BOARD & BATTEN SIDING



• 5 WOOD-LOOK METAL CLADDING - DARK ASH



• 6 ALUMINUM COMPOSITE FASCIA - BLACK

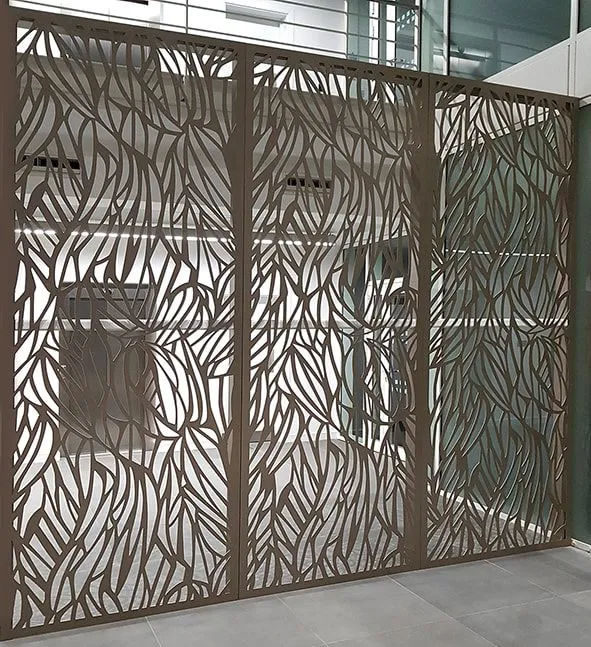

• 11 METAL SCREEN

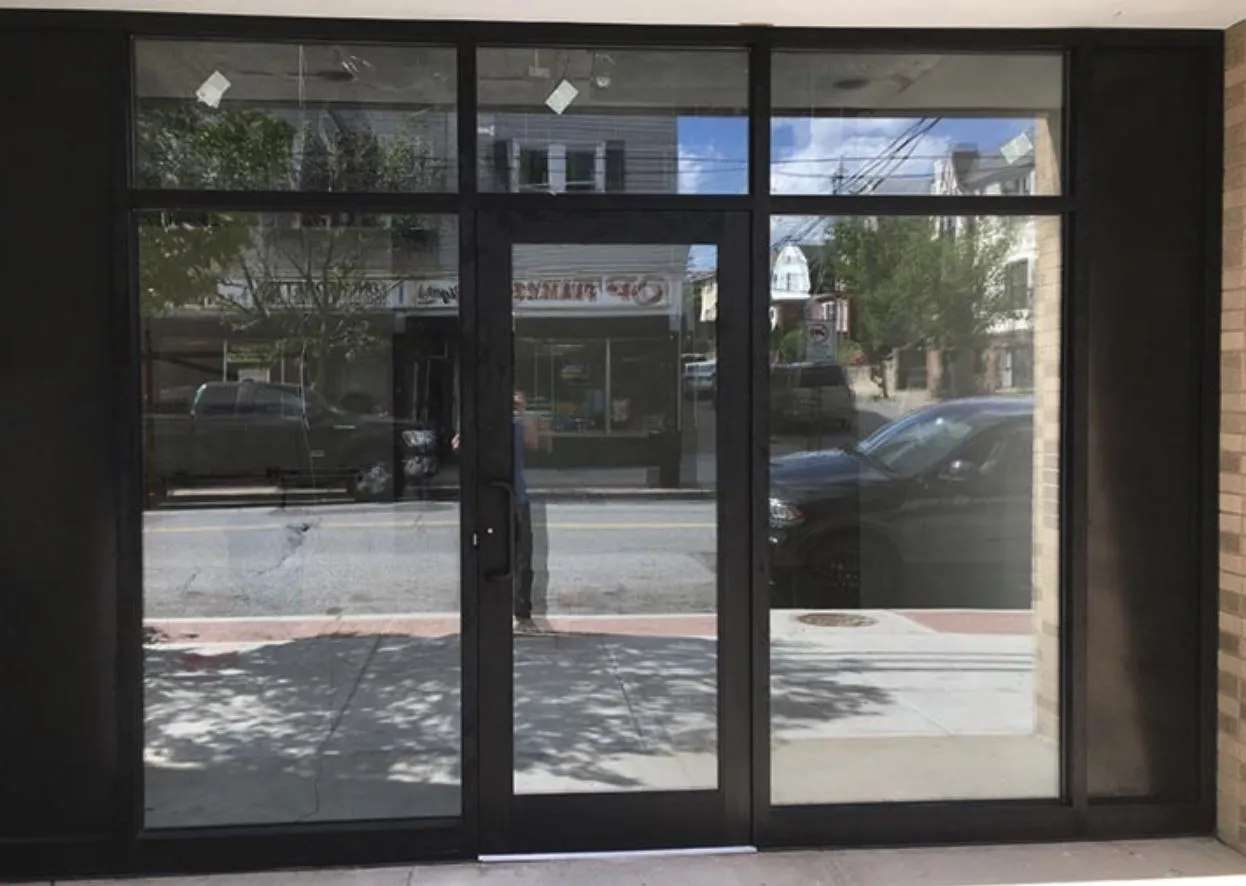

• 13 STOREFRONT DOORS & GLAZING

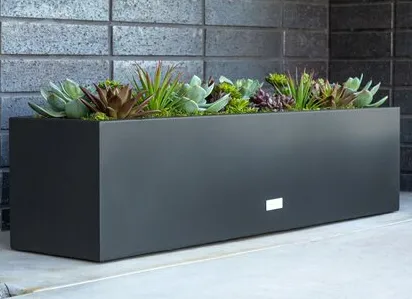

• 18 ALUMINUM CLAD PLANTER - MEDIUM GREY

• 19 WOOD TRIM - BLACK

• 21 ARCHITECTURAL EXPOSED CONCRETE
