EAGLES NEST RESIDENCES - Planting Plan (Sheet L3.01)

April 5, 2022Page 661 section

Planting plan providing a full plant list of trees (including Dogwood and Garry Oak) and amenity planting areas.

1 CALL TO ORDER
3 Helmcken RoadSheet L3.011253 sq m lawn area3000 sq m invasive management area

Planting Plan

Project Information

  • Project: EAGLES NEST RESIDENCES
  • Address: HELMCKEN & WEST BURNSIDE ROADS, VIEW ROYAL, BC
  • Client: BOARDWALK DEVELOPMENT, 200 – 1501 1 ST. SW, CALGARY ALBERTA, T2R 0W1
  • Project No.: 121.33
  • Date: 2021-10-29
  • Sheet No.: L3.01
  • Scale: 1: 150 @ 24"x36"
  • Drawn by: EB
  • Checked by: SM/JD

NOT FOR CONSTRUCTION

Main landscape planting plan map showing building footprints, site layout along Burnside Road, existing and proposed tree locations, and designated planting zones.
Main landscape planting plan map showing building footprints, site layout along Burnside Road, existing and proposed tree locations, and designated planting zones.

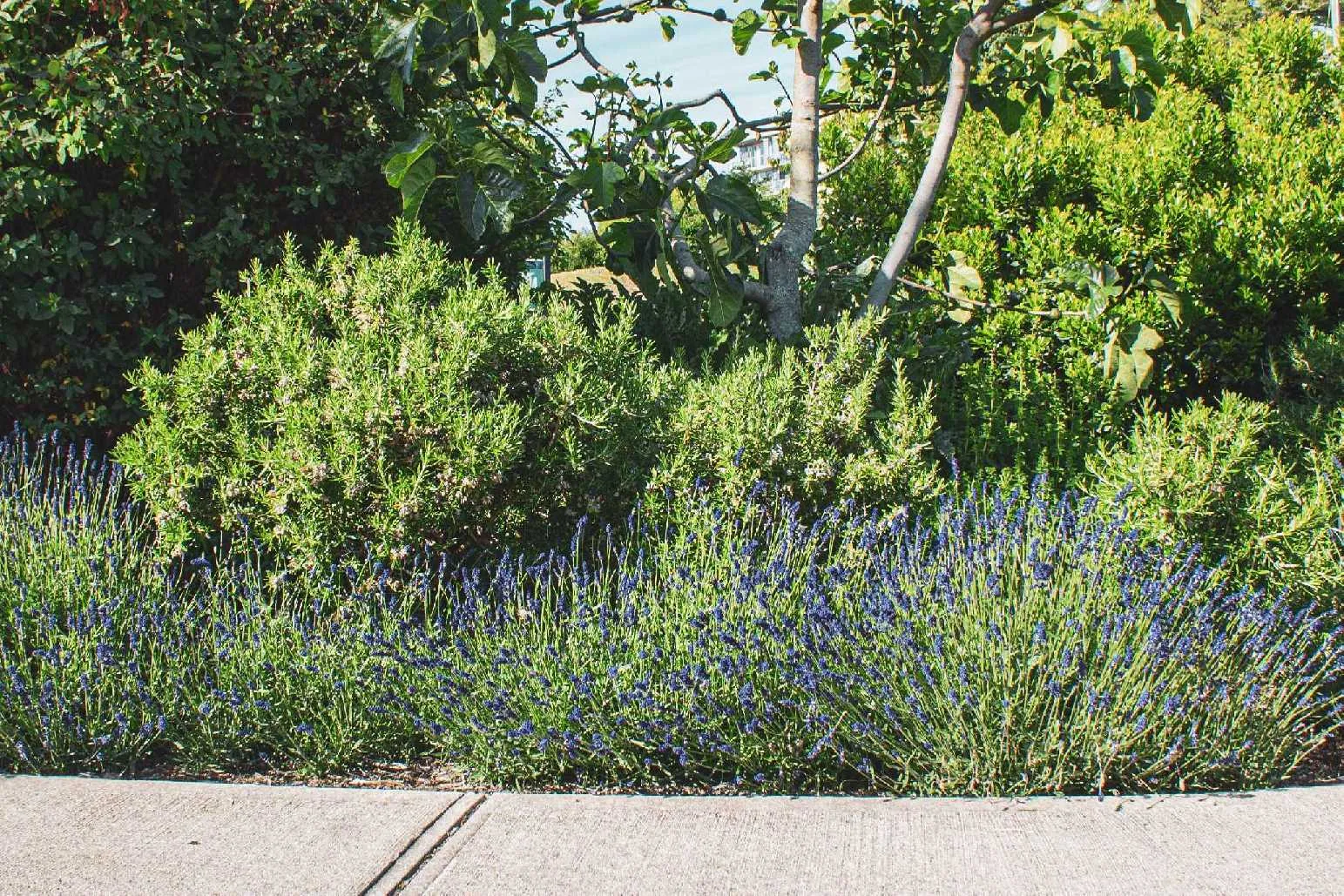

Photograph of garden bed with lavender in bloom and green shrubbery
Photograph of garden bed with lavender in bloom and green shrubbery

Plant List

Sym Qty Botanical Name Common Name Schd. Size / Plant Spacing
TREES:
Coe 14 Cornus 'Eddie's White Wonder' Dogwood 5.0cm cal, b&b
Magg 4 Magnolia grandiflora Evergreen Magnolia 5.0cm cal, b&b
Mags 2 Magnolia soulangeana Chinese Magnolia 5.0cm cal, b&b
Mr 7 Magnolia stellata 'Royal Star' Royal Star Magnolia 1.2m b&b
Nysw 5 Nyssa sylvatica 'Wildfire' Tupelo 5.0cm cal, b&b
Pprv 4 Parrotia persica 'Ruby Vase' Ruby Vase Persian Ironwood 5.0cm cal, b&b
Ps 9 Pseudotsuga menziesii Douglas Fir 1.5m ht, b&b
Qg 6 Quercus garryana Garry Oak 4.0cm cal, b&b
Sj 11 Styrax japonicus ‘Emerald Pagoda’ Japanese Snowbell 5.0cm cal, b&b
Cok 4 Cornus kousa Kousa Dogwood 4.0 cal, b&b
Fsyd 4 Fagus Syvatica 'Dawyk's Gold' 'Dawyk's Beech' 4.0 cal, b&b
Abcc 11 Abies concolour 'Compacta' Dwarf white fir 4.0 cal, b&b

Planting Areas

LAWN: 1253 sq m

  • SOD - Maintained Lawn

NATURALIZED GRASS SEED: ------ sq m

  • Seeded Grass - Naturalized

AMENITY & ORNAMENTAL PLANTING AREAS - SUGGESTED: 2837 sq m @ 3.0/SQ. M.

  • Lonicera piliata
  • Salvia yangii
  • Escallonia ‘Newport Dwarf’
  • Juniper Creeping
  • Rhododendron species
  • Cistus x corbariensis
  • Prunus laurocerasus
  • Ericea carnea

RAIN GARDEN AREA - SUGGESTED SPECIES: 275 sq m @ 3.0/SQ. M.

  • Carex obnupta
  • Juncus patens Carmen’s Grey
  • Myrica californica
  • Cornus sangenium ‘midwinter fire’
  • Polystichum munitum
  • Schizostylis coccinea ‘Oregon sunset’
  • Liriope muscari

NATURALIZED AREA - SUGGESTED SPECIES: 585 sq m @ 4.5/SQ. M.

  • Symphoricarpos albus
  • Mahonia aquifolium
  • Rosa nutkana

INVASIVE MANAGEMENT: 3000 sq m

  • Removal of Invasive Shrubs

Reference Notes

  1. INVASIVE MANAGEMENT: REMOVAL BLACKBERRY THICKET, DAPHNE. ADD GRAVEL PATH. CUT GRASS FOR MAINTENANCE.
  2. INVASIVE MANAGEMENT: REMOVAL BLACKBERRY THICKET, DAPHNE. PLANT NATIVE SHRUBS.
  3. INVASIVE MANAGEMENT: REMOVAL IVY, DAPHNE, ENCOURAGE NATIVE PLANTS AND GRASSLAND.

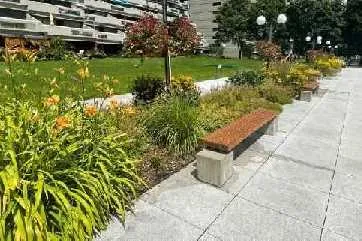

Typical Patio Planting

Revision History

rev no description date
1 DP 2021-10-29
Page 66
