EAGLES NEST RESIDENCES - Planting Plan (Sheet L3.02)
Detailed planting plan section showing typical patio planting and reference images for landscape character.
Planting Plan
Sheet No: L3.02 Project: EAGLES NEST RESIDENCES Address: HELMCKEN & WEST BURNSIDE ROADS, VIEW ROYAL, BC Client: BOARDWALK DEVELOPMENT, 200 – 1501 1 ST. SW, CALGARY ALBERTA, T2R 0W1 Status: NOT FOR CONSTRUCTION
Revision History
| rev no | description | date |
|---|---|---|
| 1 | DP | 2021-10-29 |
Project Data
- Project No: 121.33
- Scale: 1: 150 @ 24"x36"
- Drawn by: EB
- Checked by: SM/JD
Reference Notes

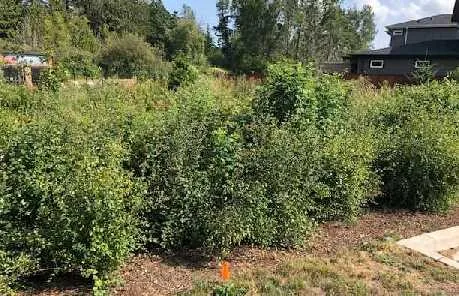

- INVASIVE MANAGEMENT: REMOVAL BLACKBERRY THICKET, DAPHNE. ADD GRAVEL PATH. CUT GRASS FOR MAINTENANCE.
- INVASIVE MANAGEMENT: REMOVAL BLACKBERRY THICKET, DAPHNE. PLANT NATIVE SHRUBS.
- INVASIVE MANAGEMENT: REMOVAL IVY, DAPHNE, ENCOURAGE NATIVE PLANTS AND GRASSLAND
Planting Plan Details
The main diagram illustrates the landscape planting layout, including a gravel path and various plant groupings denoted by codes (Abcc, Mr, Magg, Qg, Ps, Sj, Coe). The plan includes match lines for adjacent sheets 1.01, 1.02, and 1.03.
Typical Patio Planting
A detail diagram illustrates the typical planting arrangement for patio areas, showing species such as Sj, Coe, and Abcc.

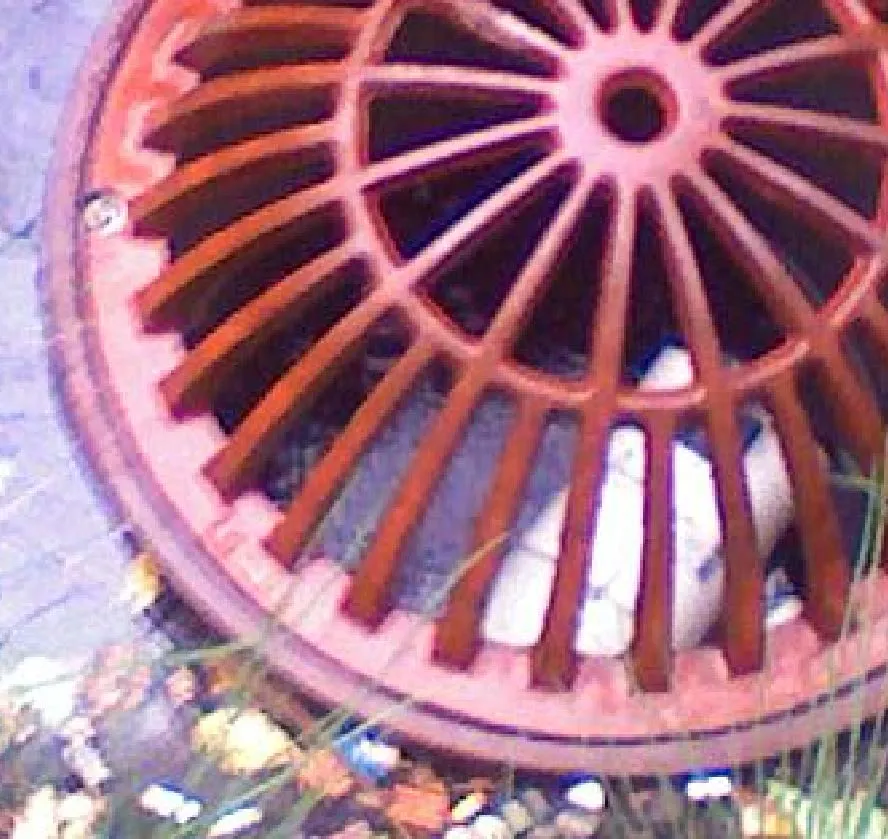

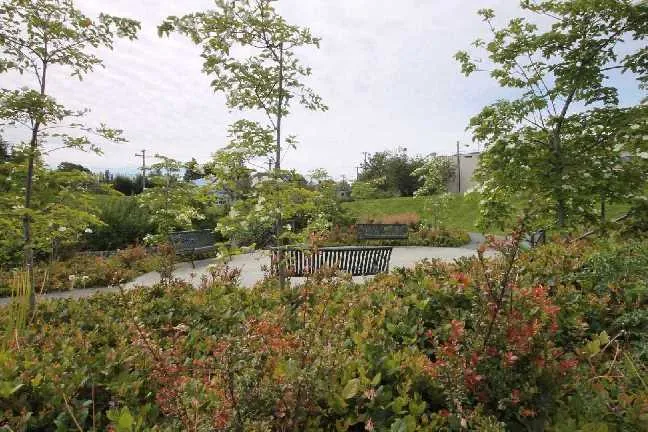

Reference Photos
Key Plan
A site map at the bottom left indicates the specific area of the planting plan within the overall development site.
