TREE PROTECTION FENCING

April 5, 2022Page 1231 section

A technical specification drawing showing the required wood frame and mesh fencing for tree protection during construction.

1 CALL TO ORDER
Drawing Number: E105Date: Oct 30/072.4M maximum span1.20m fence height

TREE PROTECTION FENCING

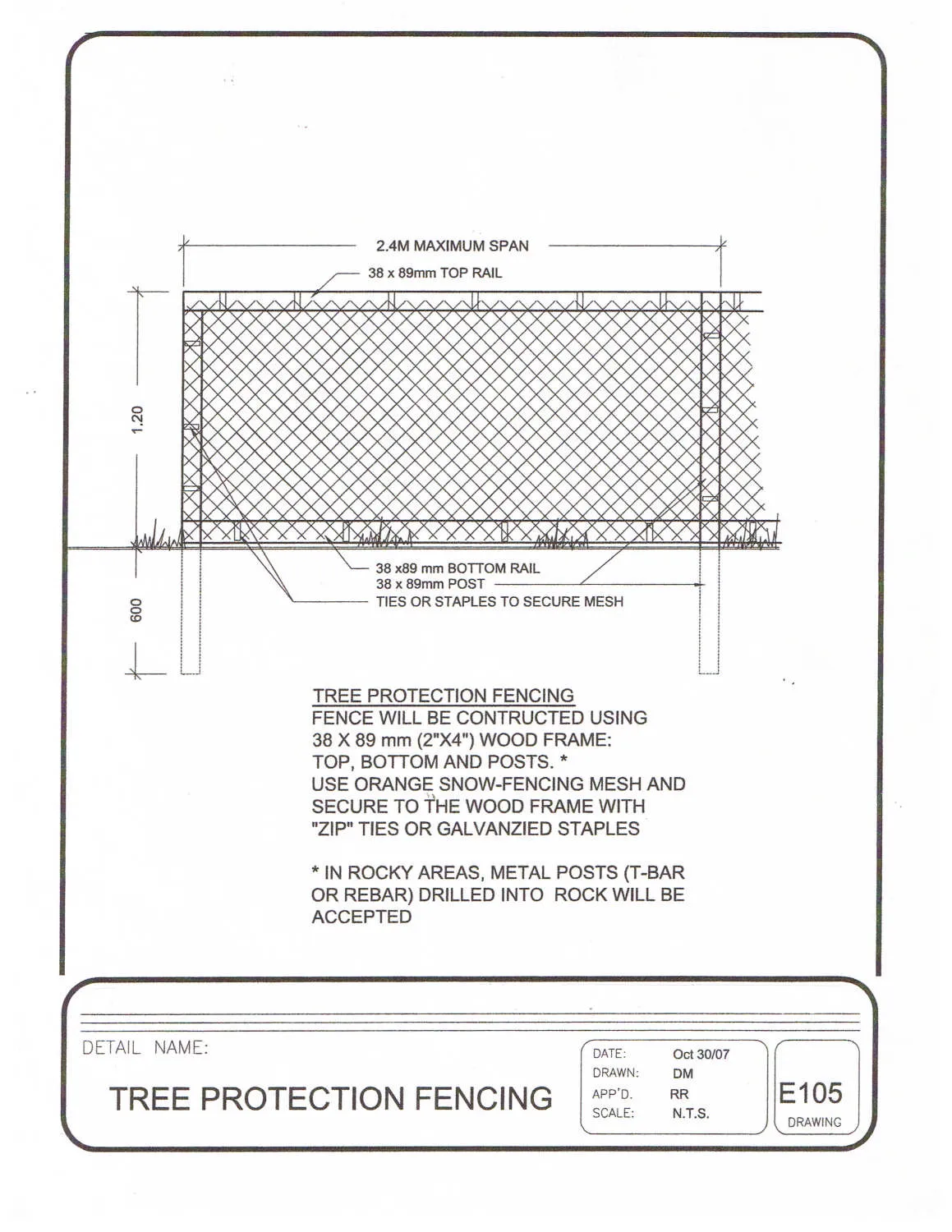

Engineering detail drawing for tree protection fencing showing front elevation dimensions, post depths, and material specifications.
Engineering detail drawing for tree protection fencing showing front elevation dimensions, post depths, and material specifications.

Drawing Specifications:

  • 2.4M MAXIMUM SPAN
  • 38 x 89mm TOP RAIL
  • 1.20 (Height)
  • 600 (Depth)
  • 38 x 89 mm BOTTOM RAIL
  • 38 x 89mm POST
  • TIES OR STAPLES TO SECURE MESH

TREE PROTECTION FENCING

FENCE WILL BE CONTRUCTED USING 38 X 89 mm (2"X4") WOOD FRAME: TOP, BOTTOM AND POSTS. *

USE ORANGE SNOW-FENCING MESH AND SECURE TO THE WOOD FRAME WITH "ZIP" TIES OR GALVANZIED STAPLES

  • IN ROCKY AREAS, METAL POSTS (T-BAR OR REBAR) DRILLED INTO ROCK WILL BE ACCEPTED
DETAIL NAME: TREE PROTECTION FENCING
DATE: Oct 30/07
DRAWN: DM
APP'D: RR
SCALE: N.T.S.
DRAWING E105
Page 123
