ROOF PLAN - Canadian Tire Corp. (A-111)
November 15, 2022Page 725 sections
Architectural drawings detailing the existing and proposed roof configuration and mechanical unit screening.
October 12, 2022Shows new RTU screening to match existing
Roof Plan - Canadian Tire Corp.
Project Information
- Project Name: Canadian Tire Corp. - 368 View Royal, BC
- Project Address: 1519 Admirals Rd., Victoria, BC, V9A 2P8
- Date: October 12, 2022
- Project Number: 22021
- Drawing Number: A-111
- Architecture Firm: MGBA Architecture + Interior Design (Suite 300 - 7 East 6th Ave, Vancouver, BC)
Page 72

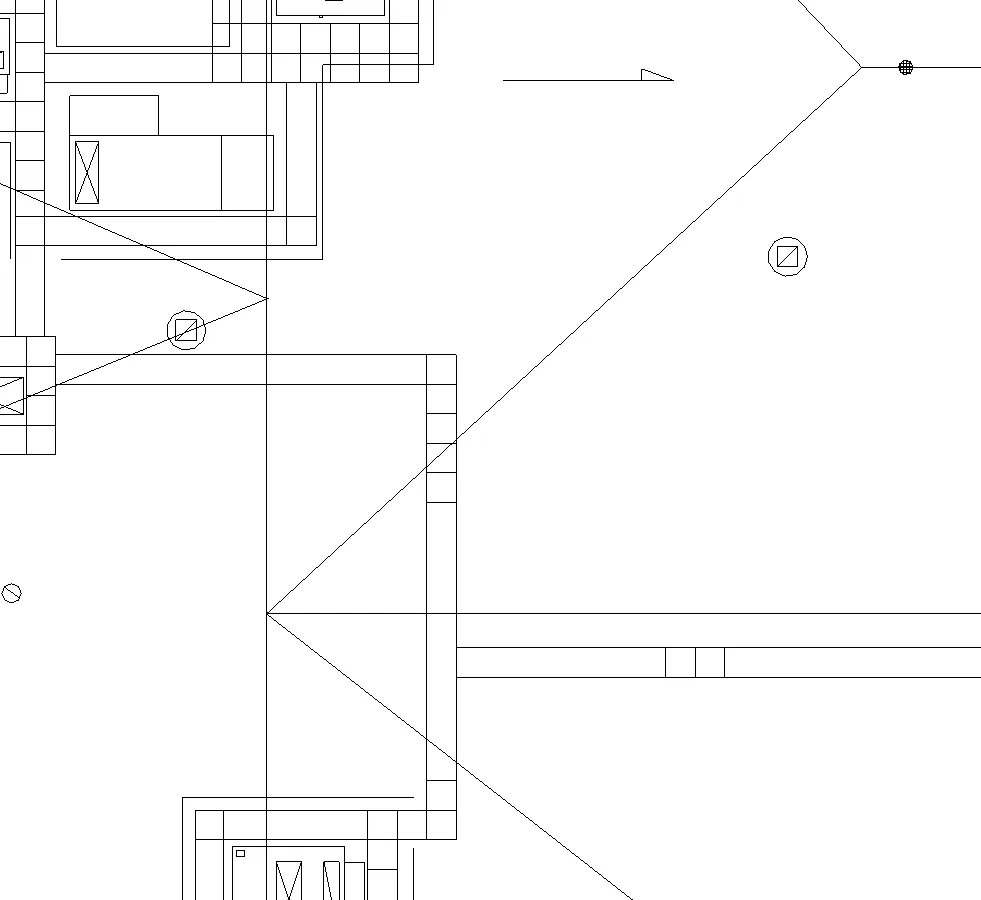

1 Existing Roof Plan
Scale: 1" = 20'-0"
Key Annotations:
- 1830x1830 Area of 610x610x45 Precast Concrete Pavers (Typ. at all building corners)
- Roof Scupper (Typ.)
- Provide sloped insulation as required to slope to roof drain
- Heating Unit Flue
- Prefinished Metal Gutter - 24 Gauge
- Prefinished Metal Awning
- Exhaust Fan
- Mechanical Fan
- High Pressure Wash Flue
- Roof Hatch c/w Safety Bar
- Skylight
- RD: Roof Drain
- Prefinished Metal Roof Cap Flashing
- 610x610x45 Precast Concrete Pavers on 550x550x50 Rigid Insulation around mechanical units and access walk. Adjust locations to clear intake hoods as required. Refer to specifications.
- Snow Guard
- Roof Top Unit Screen (Typ.). Allow min. 1m clearance from RTU.
- Roof Top Unit (Typ.)
- Provide 2 eyelets (38ø) at the back of the parapet for miscellaneous use by dealers.
Page 72

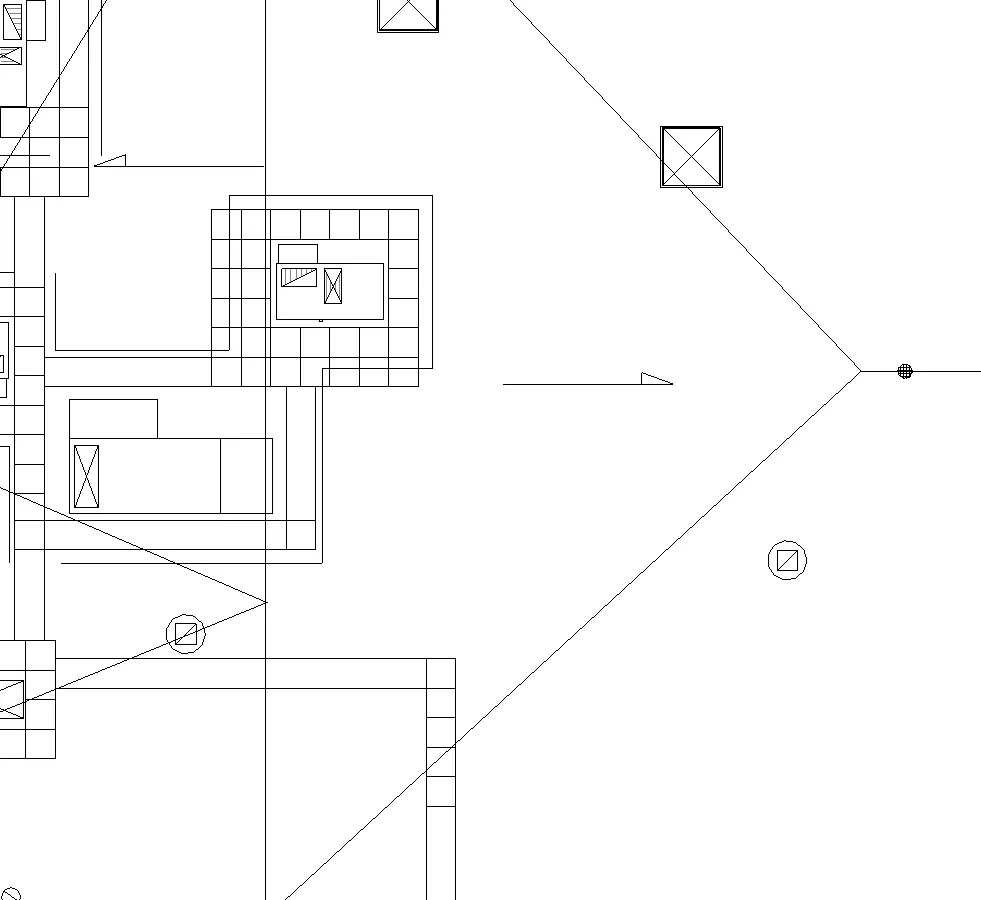

2 Proposed Roof Plan
Scale: 1" = 20'-0"
Key Annotations (in addition to Existing Roof Plan):
- Dimensions of New Addition: 269' - 2" (82.0 m) length x 81' - 6" (24.9 m) depth.
- New Roof
- New RTU w/ Screen to match the existing
- Line of Existing Store
Page 72
3 Mechanical Unit Screen Plan
Scale: 1/16" = 1'-0"
Key Details:
- Vertical Support: 89 x 89 Post @ 1500 O.C. Max (Treated & Stained Pewter Grey)
- Horizontal Framework: 38 x 89 Horizontal Member (Treated & Stained Pewter Grey)
- Slat Fence: 25 x 89 Slat Fence (Treated & Stained Pewter Grey)
- Base: 184 x 184 Continuous Base (Treated & Stained Pewter Grey)
- Foundation: 610 x 610 x 45 Concrete Pavers on rigid insulation
- Access: 1m wide opening (Typ.)
- Mechanical Unit: Central unit within the enclosure.
- Clearance: Varies; refer to plan.
Page 72
4 Mechanical Unit Screen - Section & Elevation
Scale: N.T.S.
Key Details:
- Lid: Lid provided over RTU.
- Assembly: Similar components as the Plan view (38x89 horizontal members, 89x89 posts, 25x89 slat fence, and 184x184 continuous base).
- Base Detail: 610 x 610 x 45 Concrete Pavers on rigid insulation.
- Notes: Confirm minimum clearance with mechanical requirements.
Revision History
| REV | MM/DD/YY | DESCRIPTION | DR | RV |
|---|---|---|---|---|
| 1 | 10/12/2022 | RE-ISSUED FOR DP | RH | RH |
Page 72
