EXTERIOR ELEVATIONS - SOUTH (A-201)
Visual elevations of the south-facing side of the building showing proposed signage and materials.
EXTERIOR ELEVATIONS
Project: Canadian Tire Corp. 368 View Royal, BC 1519 Admirals Rd. Victoria, BC V9A 2P8
Architect: MGBA Architecture + Interior Design Suite 300 - 7 East 6th Ave Vancouver British Columbia Canada 604 484 8285 | info@mgba.com | www.mgba.com
Revisions
| REV | MM/DD/YY | DESCRIPTION | DR | RV |
|---|---|---|---|---|
| 1 | 02/25/2022 | ISSUED FOR STORE PLANNING | RH | RH |
| 2 | 03/22/2022 | ISSUED FOR CLIENT REVIEW | JT | RH |
| 3 | 10/18/2022 | RE-ISSUED FOR DP | RH | RH |
Drawing Information
- Date: OCTOBER 18, 2022
- Project No: 22021
- Scale: As indicated
- Drawing No: A-201
- Revision: 3

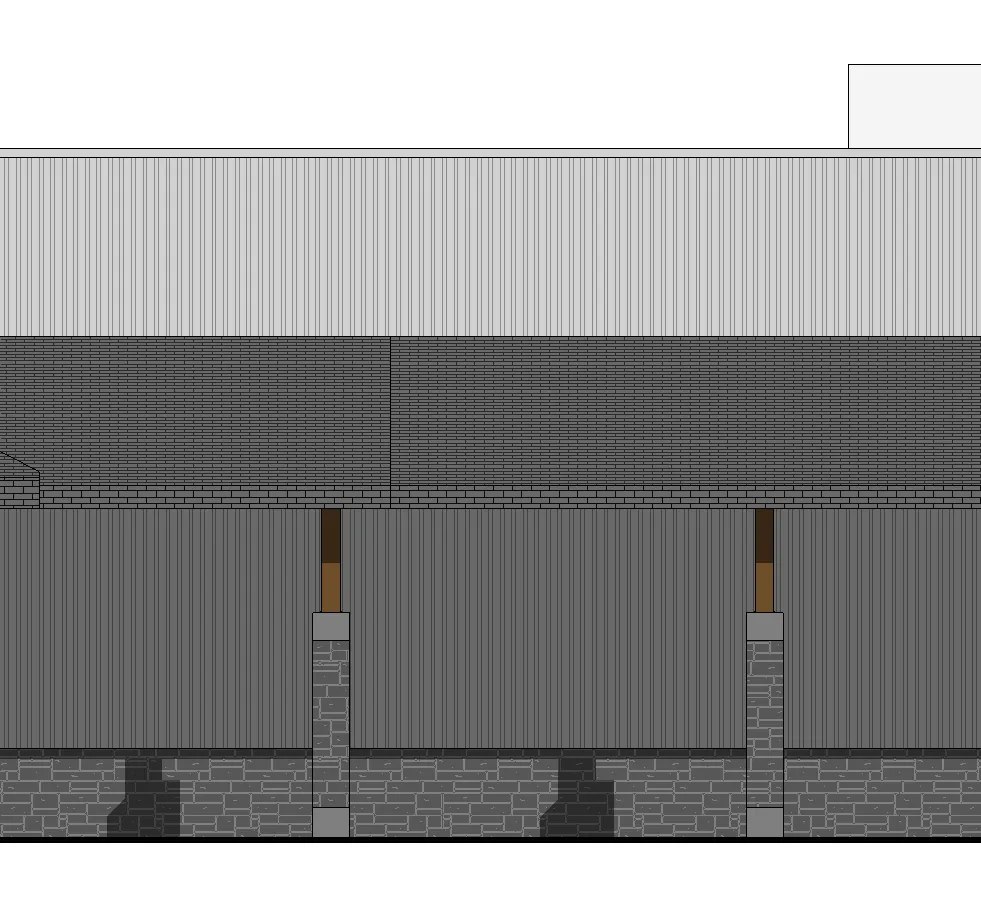

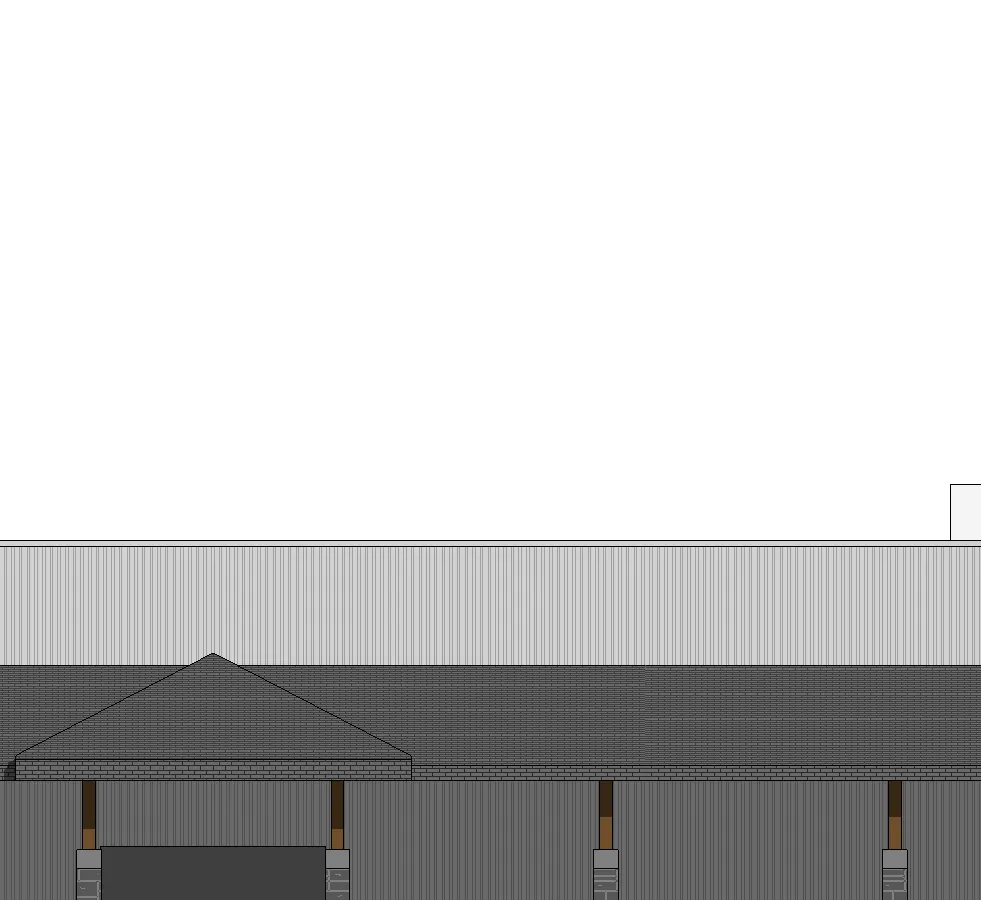

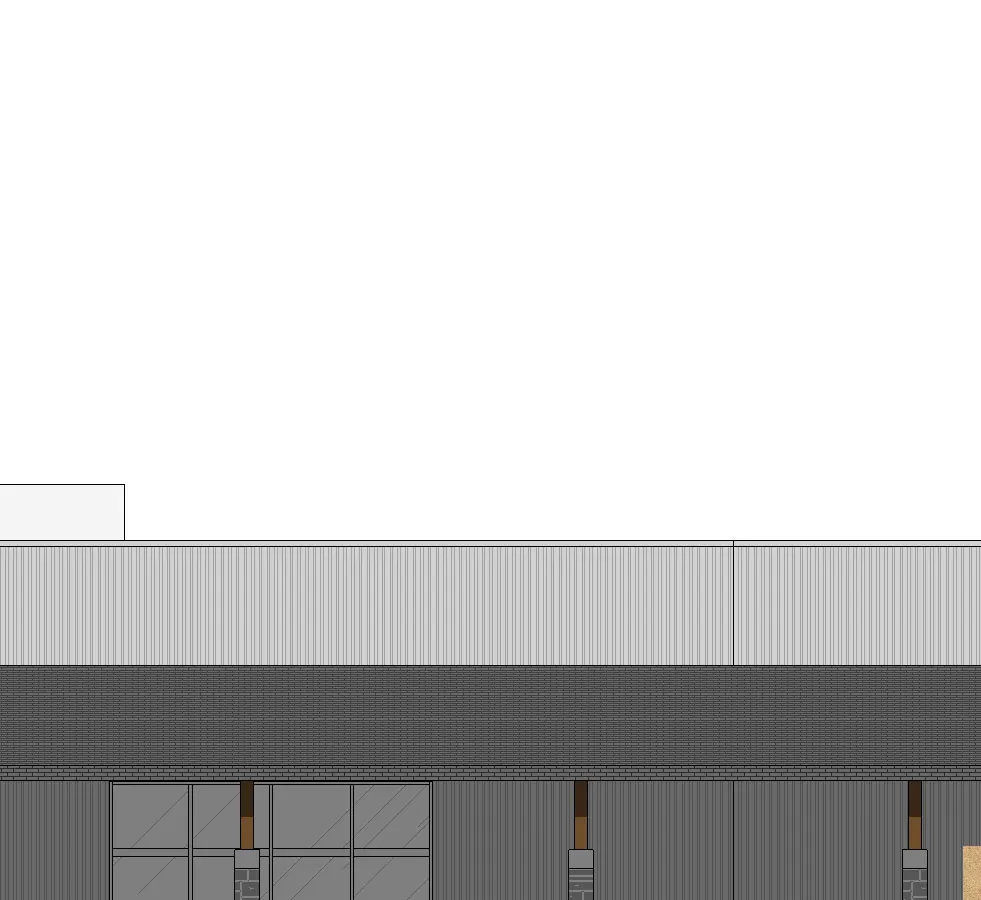

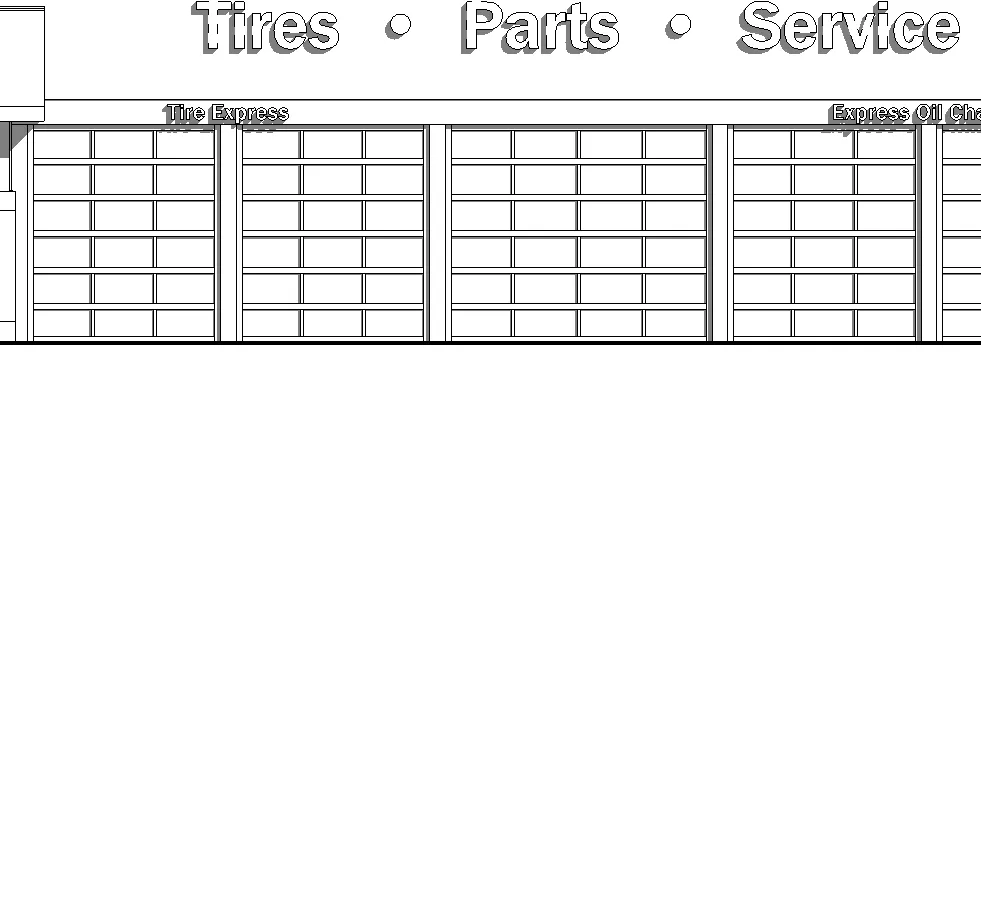

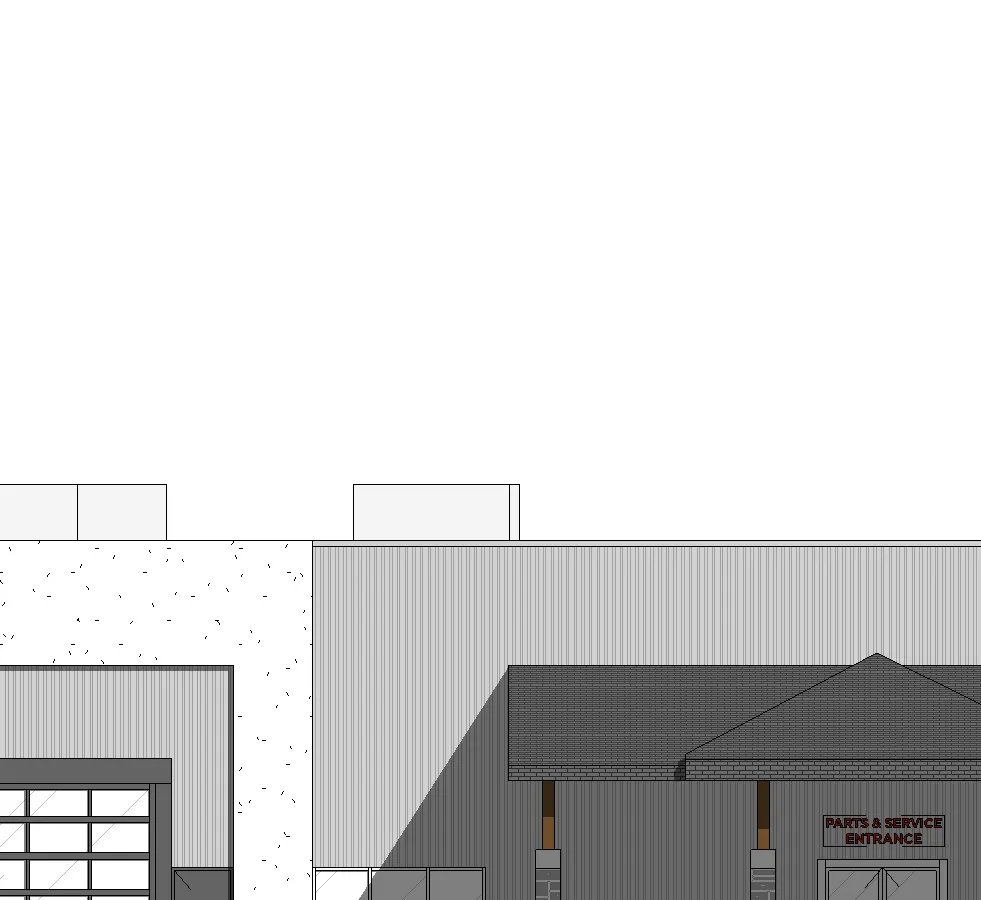

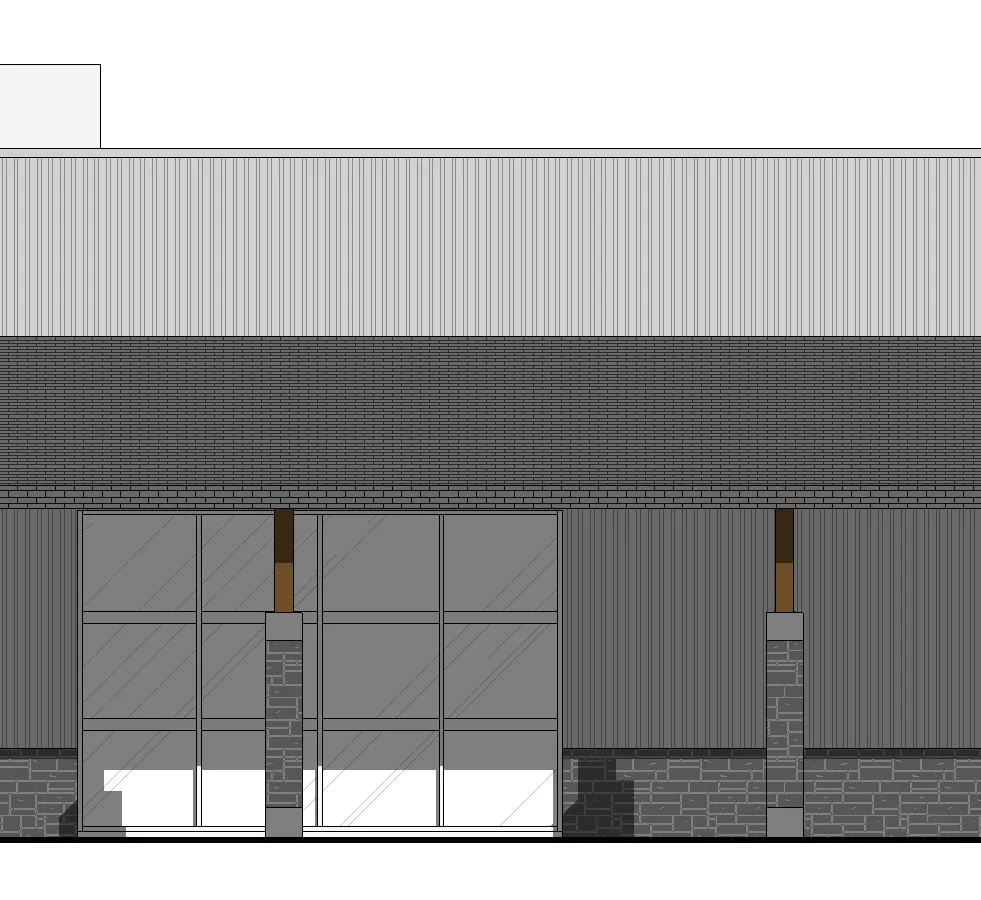

1 EXISTING SOUTH ELEVATION
Scale: 1/16" = 1'-0"
This elevation shows the current state of the building prior to modifications.
Key Notes and Callouts:
- EXISTING CANOPY BEYOND TO REMAIN.
- EXISTING FENCE BEYOND TO REMAIN.
- EXISTING SERVICE BAY TO REMAIN.
- EXISTING WINDOW TO REMAIN.
- EXISTING ENTRANCE TO REMAIN.
- EXISTING STONE CLADDING TO REMAIN.
- EXISTING STOREFRONT & GLAZING TO REMAIN.
- EXISTING SIGNAGE TO BE REMOVED AND REPLACED WITH NEW.
- EXISTING RTU C/W SCREENING.
- EXISTING METAL PANEL TO REMAIN.
- EXISTING FROST HOUSE TO BE RELOCATED. REMOVE AND REPLACE IF CONDITION IS POOR.
- Demolition Notes:
- EXTENT OF BUILDING TO BE DEMOLISHED.
- EXTENT OF GARDEN CENTRE TO BE DEMOLISHED.
6 PROPOSED SOUTH ELEVATION
Scale: 3/32" = 1'-0"
This rendering shows the full proposed south elevation including updated signage for Auto Centre, Canadian Tire, Order Pick-Up, and the Garden Centre.

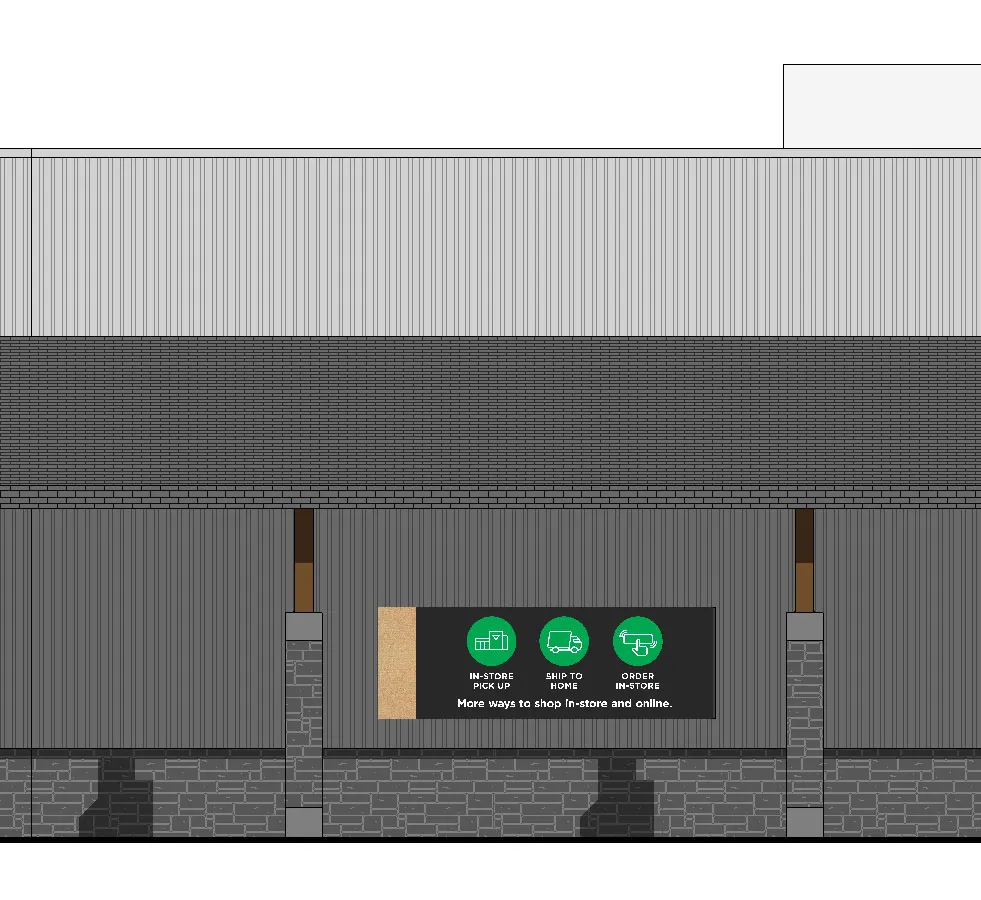

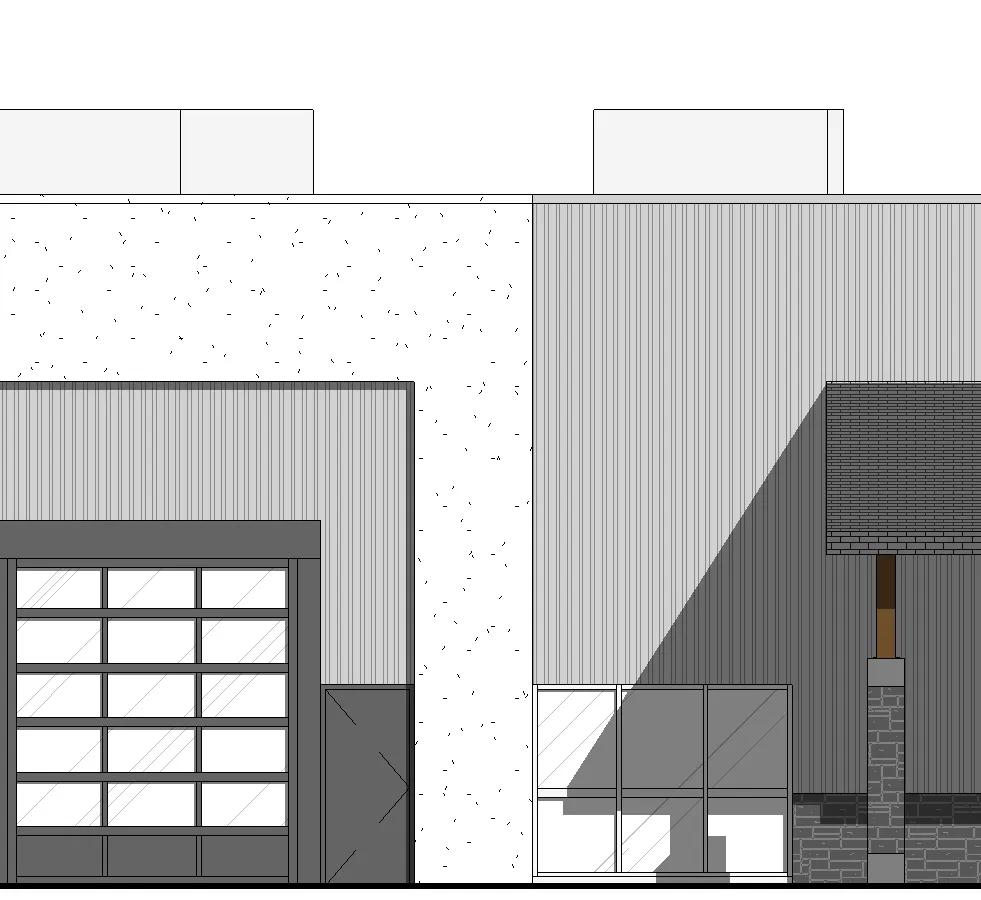

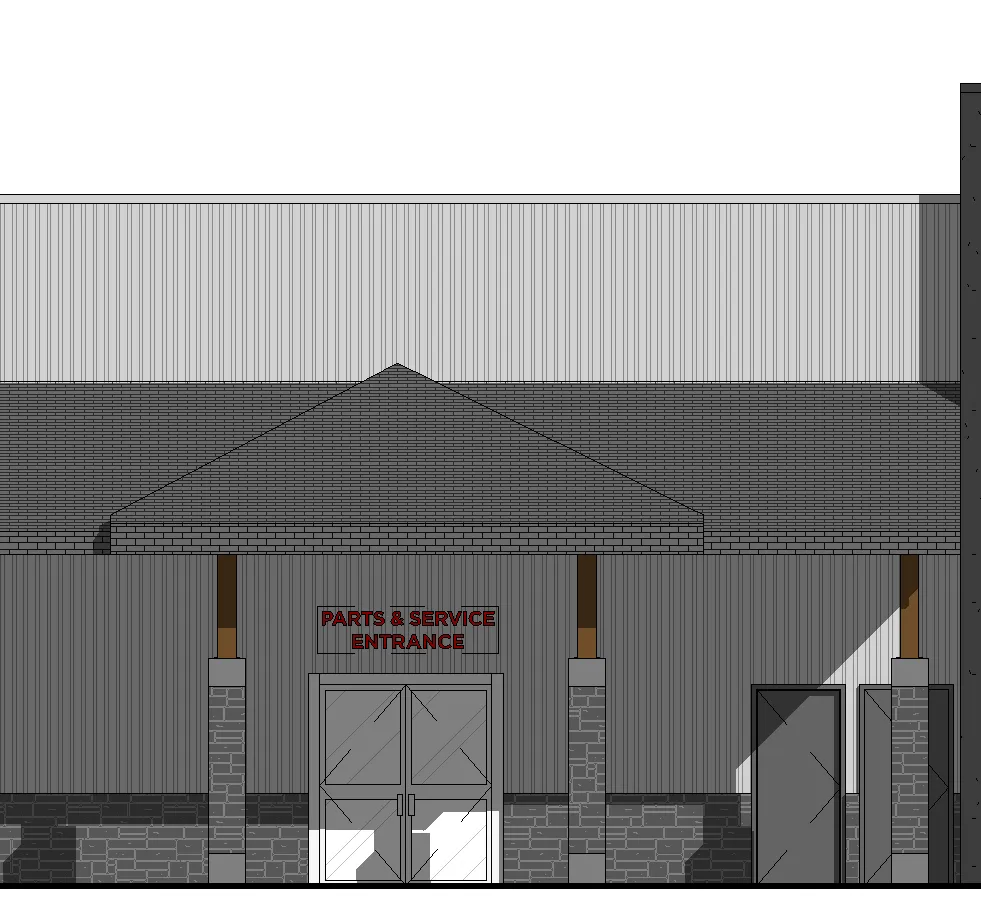

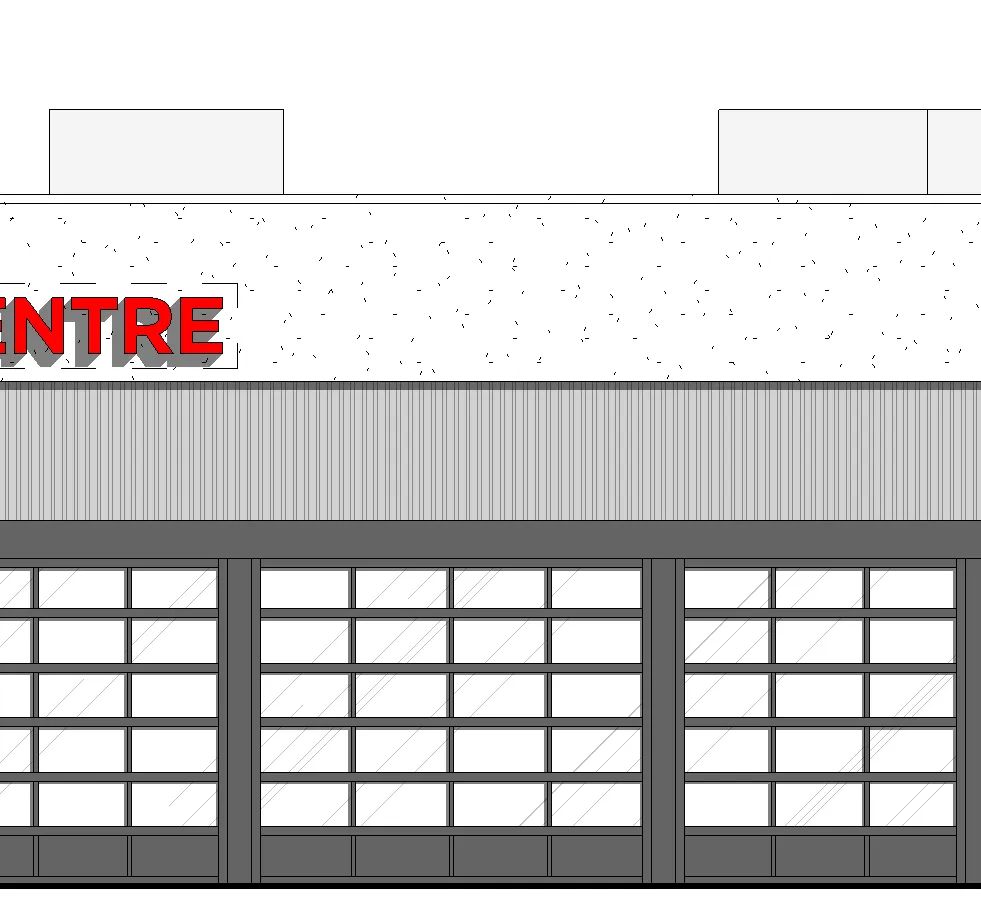

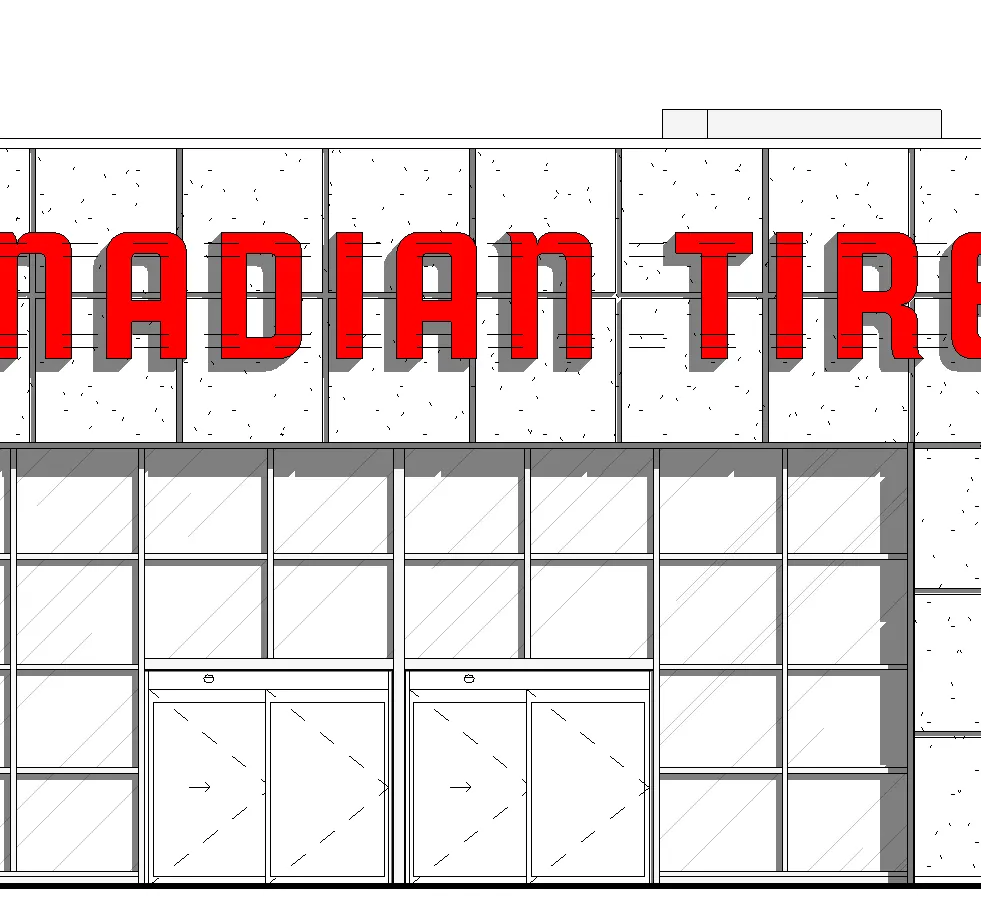

3 PARTIAL ENLARGED PROPOSED SOUTH ELEVATION 1
Scale: 3/32" = 1'-0"

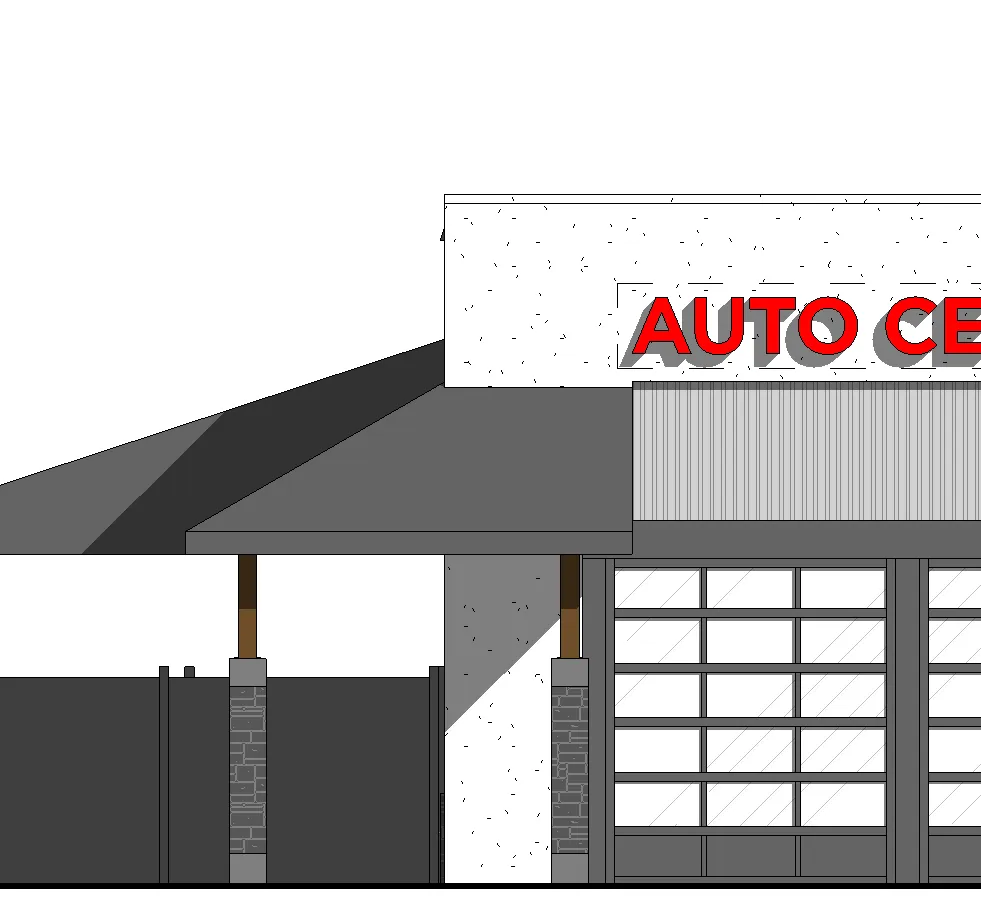

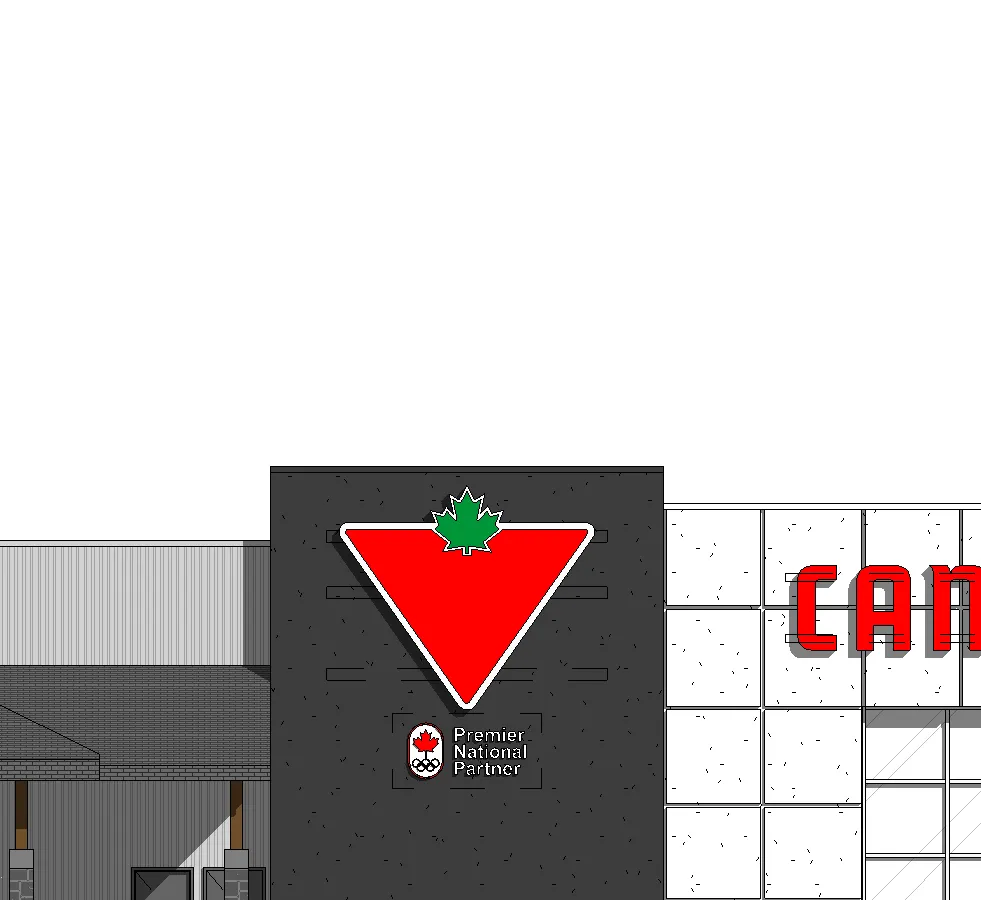

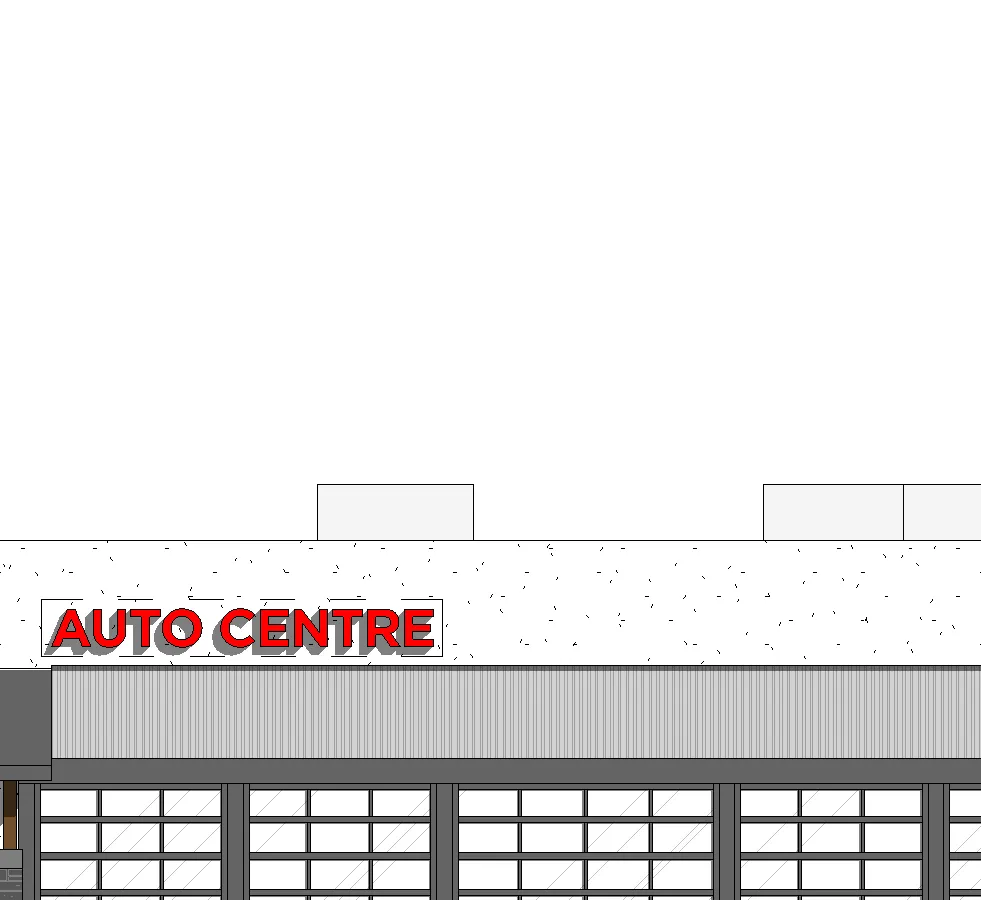

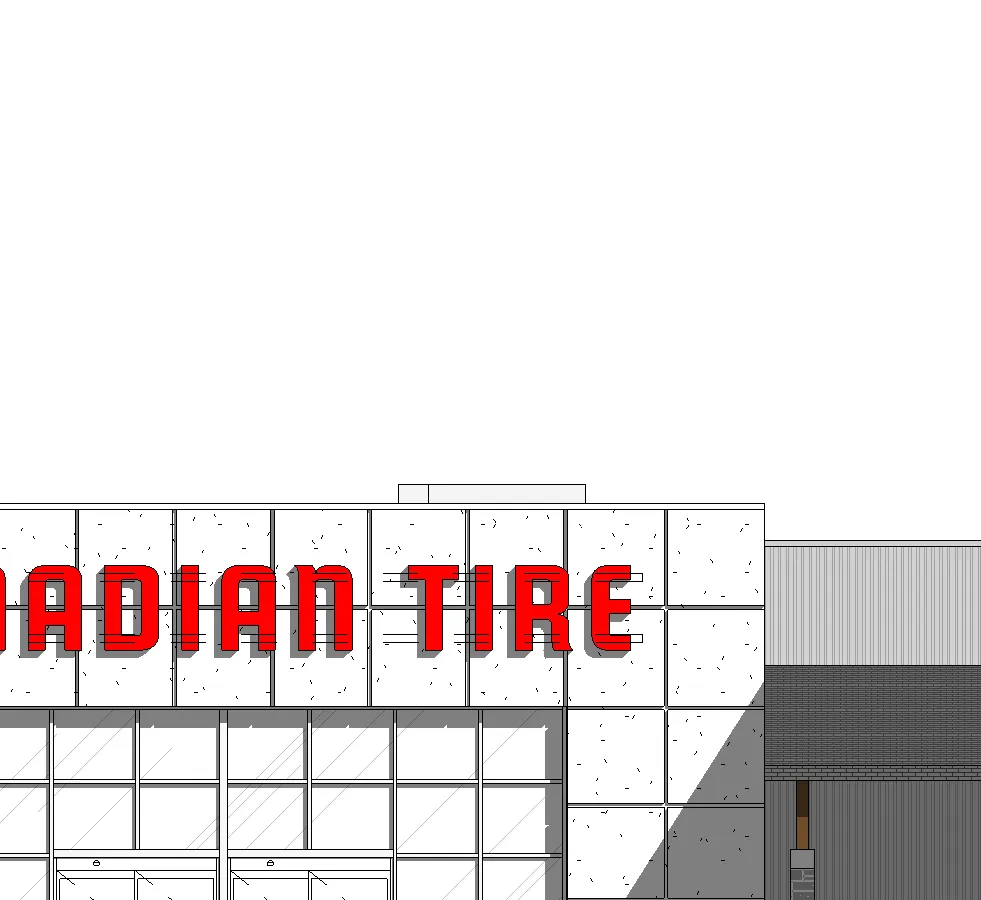

This drawing details the proposed modifications to the left portion of the south elevation, including the Auto Centre and main Canadian Tire storefront.
Materials and Signage:
- SIGN 1: NEW ILLUMINATED SIGNAGE BY OTHERS.
- SIGN 2 & 5: NEW ILLUMINATED SIGNAGE BY OTHERS.
- SIGN 3: NEW ILLUMINATED SIGNAGE BY OTHERS.
- SIGN 4a & 4b: NEW SIGN BY OTHERS.
- Wall Materials:
- NEW CULTURED STONE VENEER "ECHO RIDGE".
- EXISTING METAL PANEL PAINTED "THUNDERCLOUD GREY".
- NEW "SUPER WHITE" EIFS PANEL.
- NEW "ONYX" EIFS PANEL.
- Other: METAL CAP FLASHING "SUPER WHITE" and "THUNDERCLOUD GREY".

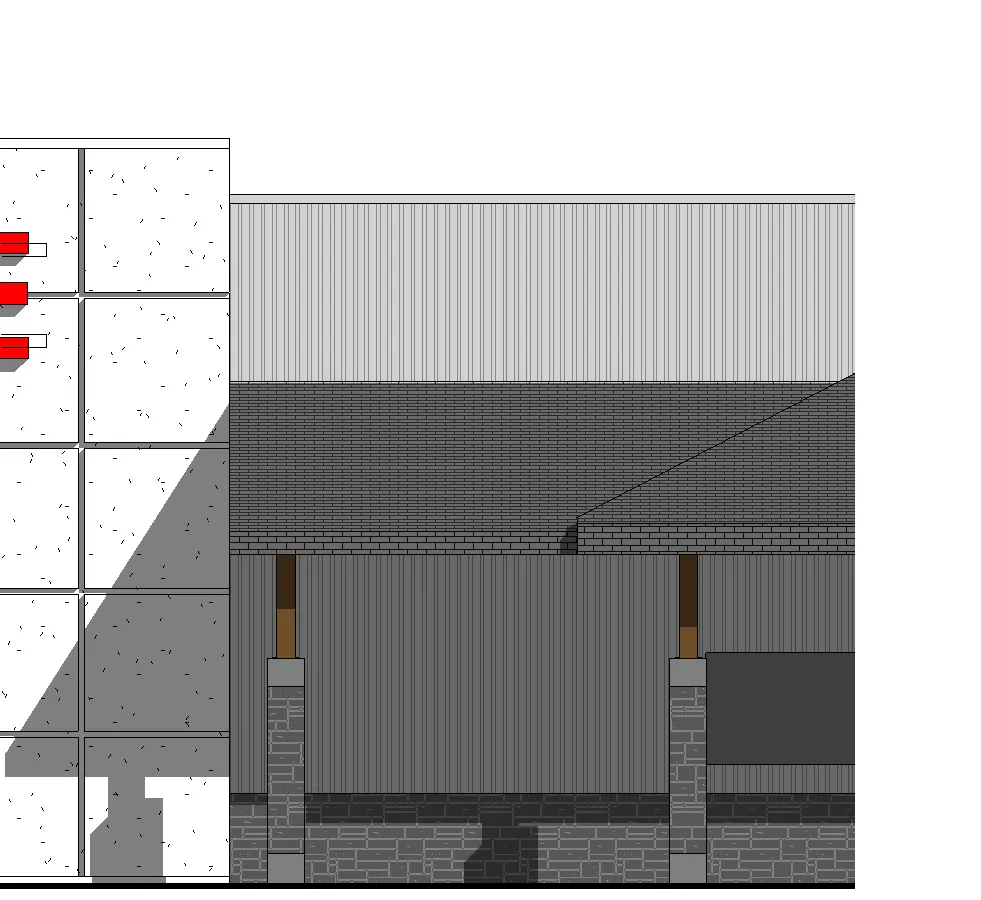

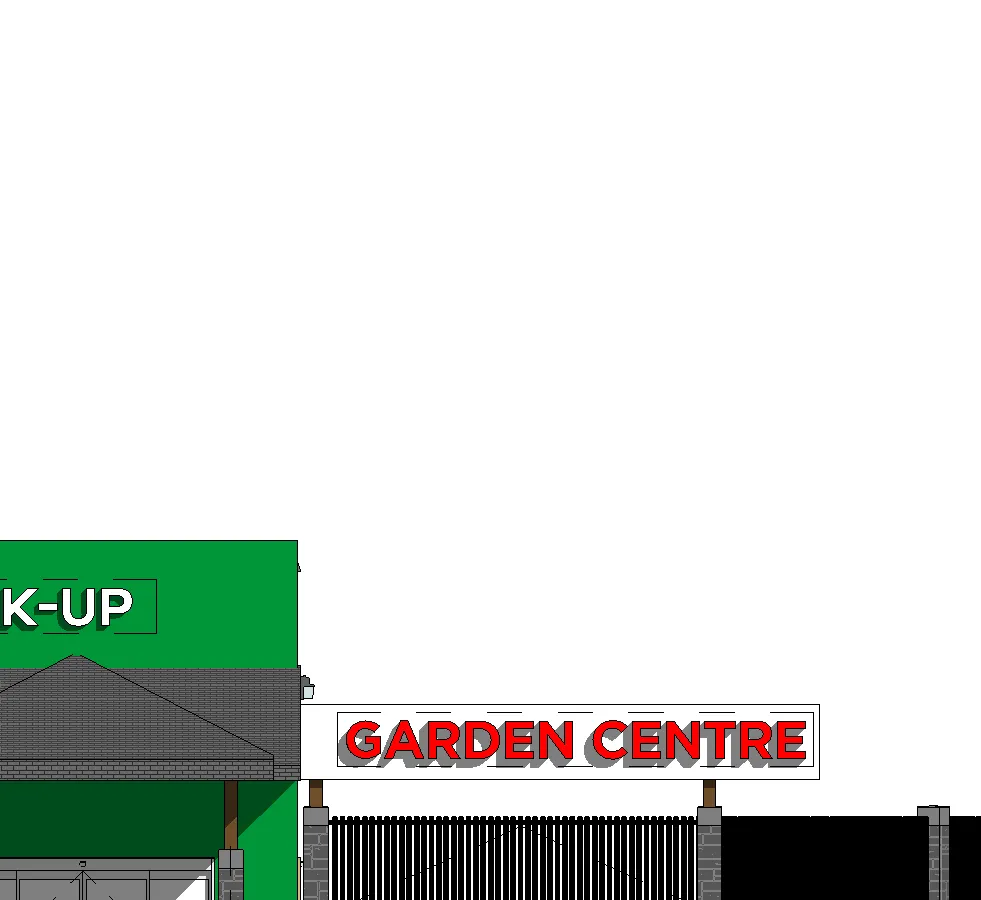

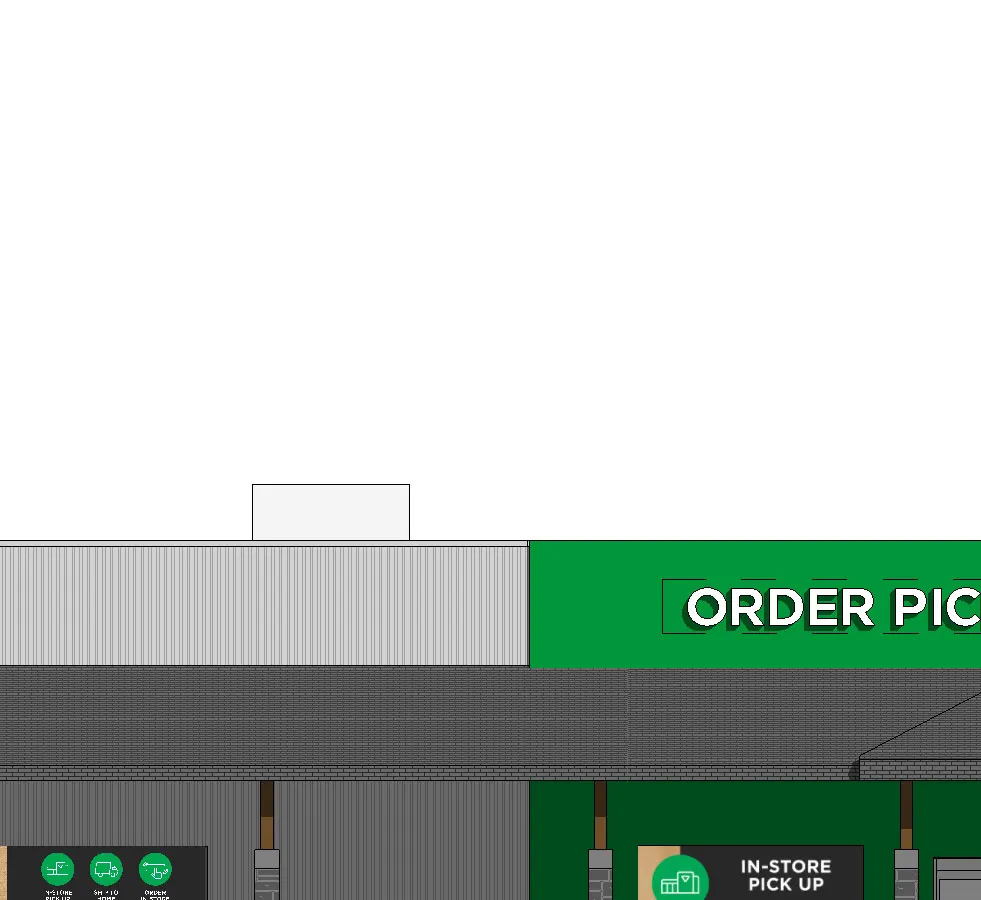

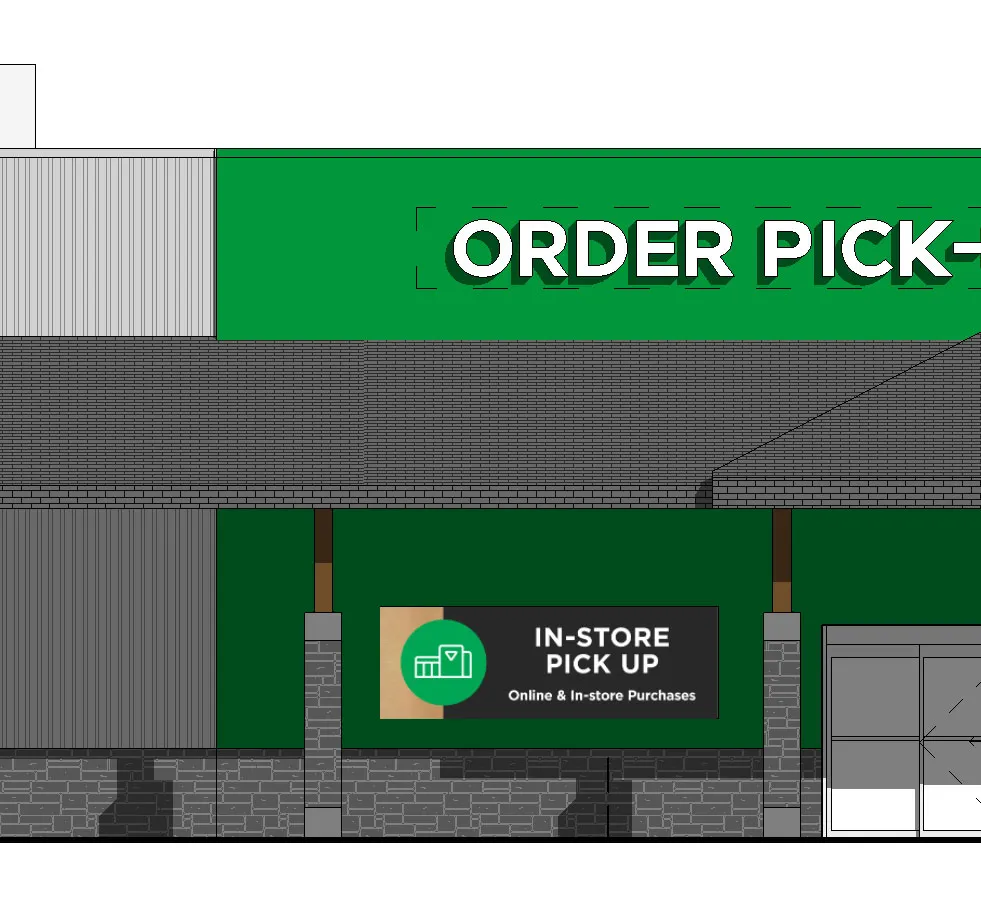

4 PARTIAL ENLARGED PROPOSED SOUTH ELEVATION 2
Scale: 3/32" = 1'-0"

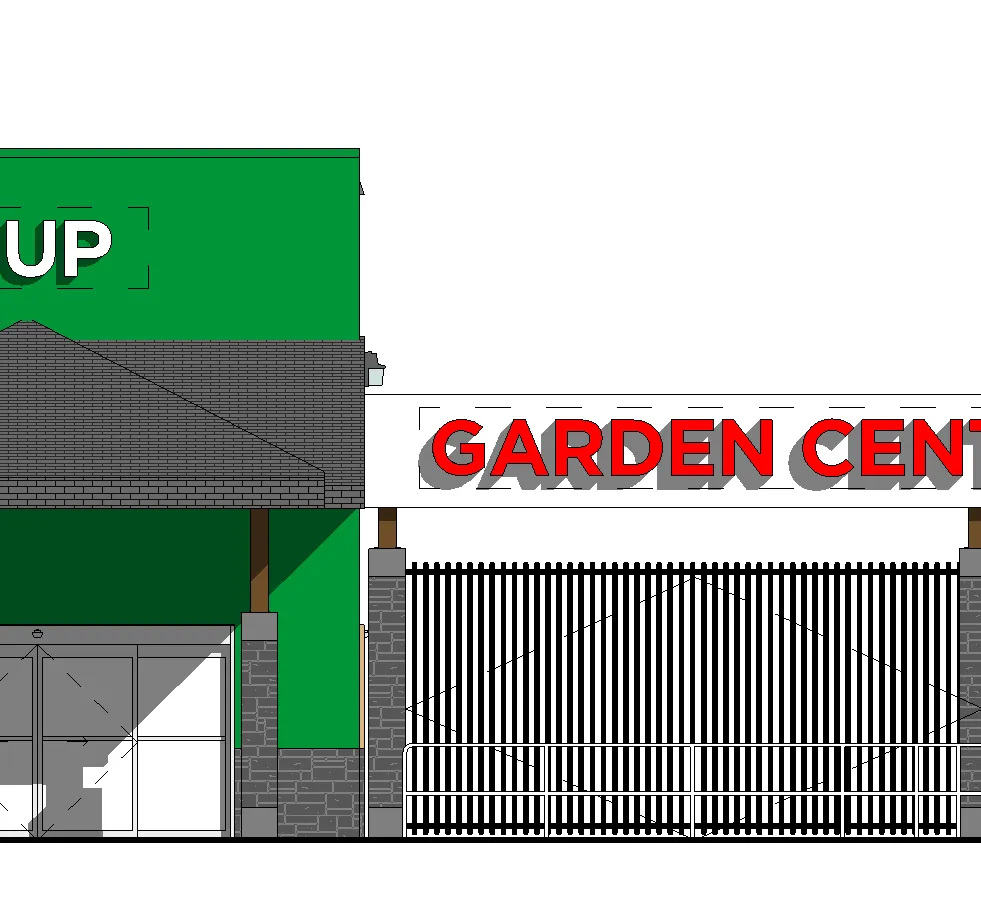

This drawing details the proposed modifications to the right portion of the south elevation, including the Order Pick-Up area and Garden Centre expansion.
Key Notes and Callouts:
- SIGN 6, 7, 8, 9 & 10: NEW ILLUMINATED SIGNAGE BY OTHERS.
- Wall Materials:
- NEW "PANTONE 355C GREEN" EIFS PANEL.
- NEW ALUMINUM METAL SIGNAGE BAND EYEBROW "WHITE".

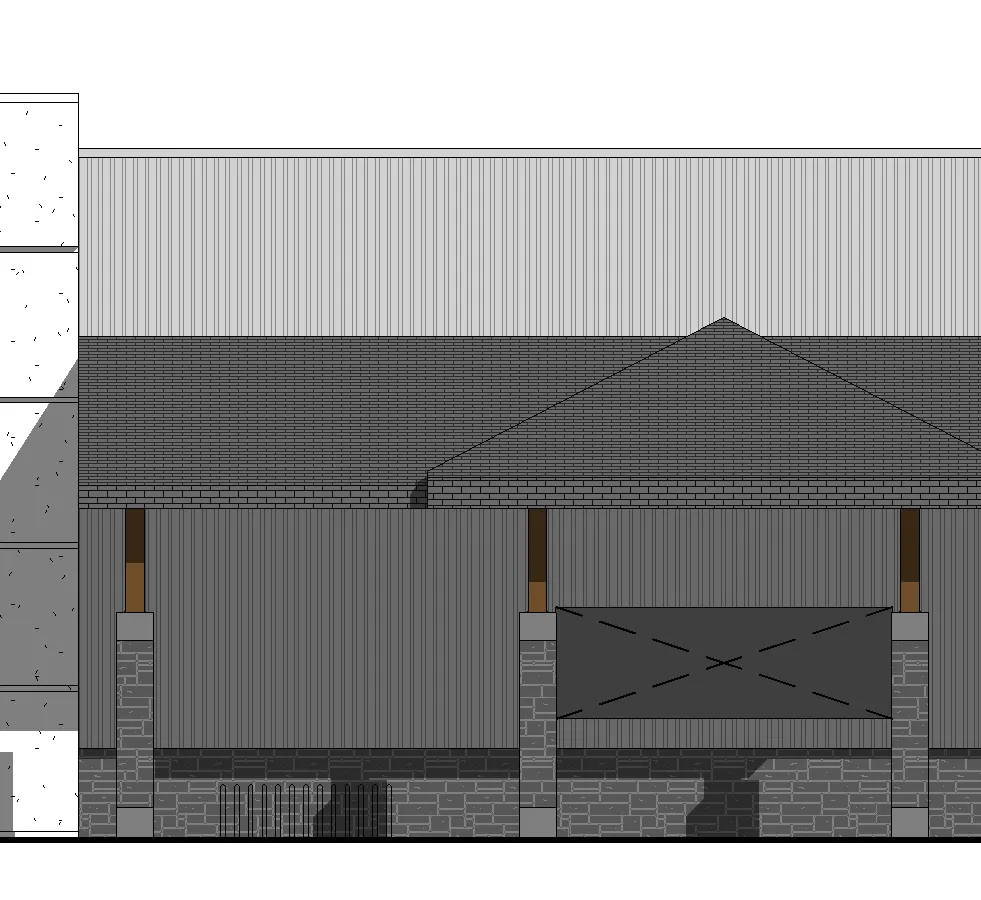

- NEW CULTURED STONE CLADDING AT COLUMNS "ECHO RIDGE".
- Expansion Area: EXTENT OF BUILDING EXPANSION (20'-1" length).
- Existing Frost House: TO BE RELOCATED. REMOVE AND REPLACE IF CONDITION IS POOR.
- Additional Features: NEW GUARDRAIL, NEW FENCE TO MATCH EXISTING.
Professional Notes
DRAWINGS AND SPECIFICATIONS, AS INSTRUMENTS OF SERVICE, ARE THE PROPERTY OF MALLEN GOWING BERZINS ARCHITECTURE INCORPORATED, THE COPYRIGHT IN THE SAME BEING RESERVED TO THEM. NO REPRODUCTION IS ALLOWED WITHOUT THE PERMISSION OF MALLEN GOWING BERZINS ARCHITECTURE INCORPORATED AND WHEN MADE MUST BEAR ITS NAME. ALL PRINTS TO BE RETURNED.
THIS DRAWING MUST NOT BE SCALED. THE CONTRACTOR IS TO VERIFY ALL DRAWING DIMENSIONS AND DATA NOTED HEREIN WITH CONDITIONS ON THE SITE AND IS HELD RESPONSIBLE FOR REPORTING DISCREPANCIES TO MALLEN GOWING BERZINS ARCHITECTURE INCORPORATED. THIS DRAWING IS NOT TO BE USED FOR CONSTRUCTION PURPOSES UNTIL SIGNED BY THE CONSULTANT.
