EXTERIOR ELEVATIONS - NORTH (A-202)
Visual elevations of the north side of the building, detailing existing features and proposed exterior updates.
EXTERIOR ELEVATIONS
Canadian Tire Corp.
368 View Royal, BC 1519 Admirals Rd. Victoria, BC V9A 2P8
MGBA ARCHITECTURE + INTERIOR DESIGN SUITE 300 - 7 EAST 6TH AVE VANCOUVER BRITISH COLUMBIA CANADA 604 484 8285 info@mgba.com www.mgba.com
Drawing Information
- Plot Date: OCTOBER 12, 2022
- Project No.: 22021
- Scale: 1/16" = 1'-0"
- Drawing No.: A-202
- Revision: 3
REVISION TABLE
| REV | MM/DD/YY | DESCRIPTION | DR | RV |
|---|---|---|---|---|
| 1 | 02/25/2022 | ISSUED FOR STORE PLANNING | RH | RH |
| 2 | 03/22/2022 | ISSUED FOR CLIENT REVIEW | JT | RH |
| 3 | 05/19/2022 | ISSUED FOR DP | RH | RH |
NOTES
DRAWINGS AND SPECIFICATIONS, AS INSTRUMENTS OF SERVICE, ARE THE PROPERTY OF MALLEN GOWING BERZINS ARCHITECTURE INCORPORATED, THE COPYRIGHT IN THE SAME BEING RESERVED TO THEM. NO REPRODUCTION IS ALLOWED WITHOUT THE PERMISSION OF MALLEN GOWING BERZINS ARCHITECTURE INCORPORATED AND WHEN MADE MUST BEAR ITS NAME. ALL PRINTS TO BE RETURNED.
THIS DRAWING MUST NOT BE SCALED. THE CONTRACTOR IS TO VERIFY ALL DRAWING DIMENSIONS AND DATA NOTED HEREIN WITH CONDITIONS ON THE SITE AND IS HELD RESPONSIBLE FOR REPORTING DISCREPANCIES TO MALLEN GOWING BERZINS ARCHITECTURE INCORPORATED. THIS DRAWING IS NOT TO BE USED FOR CONSTRUCTION PURPOSES UNTIL SIGNED BY THE CONSULTANT.

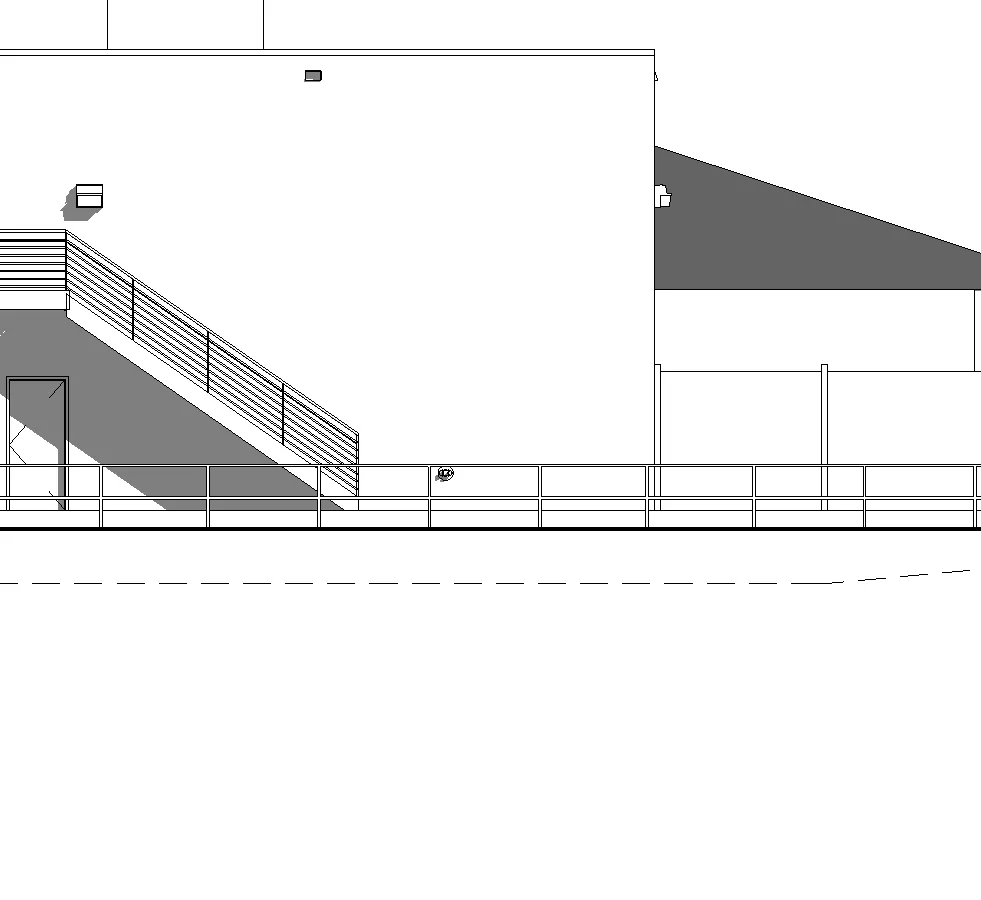

1 EXISTING NORTH ELEVATION
Scale: 1/16" = 1'-0"
Vertical Benchmarks:
- T/O SIDING: 24' - 3 11/32"
- T/O MEZZANINE: 11' - 5 25/32"
- T.O. SLAB LEVEL 1: 0' - 0"
Key Annotations:
- EXTENT OF GARDEN CENTRE TO BE DEMOLISHED
- EXTENT OF BUILDING TO BE DEMOLISHED
- EXISTING METAL PANEL TO REMAIN.
- EXISTING FIXTURES TO REMAIN.
- EXISTING DOOR AND STAIRS TO REMAIN.
- EXISTING WINDOW TO REMAIN.
- EXISTING DOOR AND STAIRS TO REMAIN.
- EXISTING RETAINING WALL TO REMAIN.
- EXISTING DOOR BEYOND TO REMAIN.
- EXISTING RETAINING WALL TO REMAIN.
- EXISTING LOADING DOCK TO REMAIN.
- EXISTING METAL PANEL TO REMAIN.
2 PROPOSED NORTH ELEVATION
Scale: 1/16" = 1'-0"
Vertical Benchmarks:
- T/O SIDING: 24' - 3 11/32"
- T/O MEZZANINE: 11' - 5 25/32"
- T.O. SLAB LEVEL 1: 0' - 0"
Key Annotations:
- FROST HOUSE
- NEW FENCE TO MATCH EXISTING
- LINE OF EXISTING RETAINING WALL BEHIND
- NEW GARDEN CENTRE
- EXTENT OF NEW BUILDING
- NEW LIGHT FIXTURES WILL BE DARK SKIES FRIENDLY
- EXISTING DOOR PAINTED "STEEL WOOL"
- EXISTING METAL PANEL PAINTED "THUNDERCLOUD GREY".
- EXISTING RTU C/W SCREENING
- METAL CAP FLASHING PAINTED "THUNDERCLOUD GREY".
- EXISTING DOOR AND STAIR PAINTED "STEEL WOOL"
- EXISTING DOOR AND STAIR PAINTED "STEEL WOOL"
Other Visual Elements:
Unidentifiable blank detail crop
Unidentifiable blank detail crop - Project North and True North Orientation Diagrams (located at bottom right)
