EXTERIOR ELEVATIONS - EAST/WEST (A-203)
November 15, 2022Page 756 sections
Visual elevations for the east and west sides of the store expansion, including the new garden centre area.
October 12, 2022Shows new pre-finished aluminum metal canopy in 'Pantone 355C Green'
EXTERIOR ELEVATIONS
Project: Canadian Tire Corp., 368 View Royal, BC
Address: 1519 Admirals Rd., Victoria, BC V9A 2P8
Date: October 12, 2022
Project No: 22021
Drawing No: A-203
Scale: 3/32" = 1'-0"
Page 75
Revision History
| REV | MM/DD/YY | DESCRIPTION | DR | RV |
|---|---|---|---|---|
| 1 | 02/25/2022 | ISSUED FOR STORE PLANNING | RH | RH |
| 2 | 03/22/2022 | ISSUED FOR CLIENT REVIEW | JT | RH |
| 3 | 05/19/2022 | ISSUED FOR DP | RH | RH |
Page 75
1 EXISTING EAST ELEVATION
Scale: 3/32" = 1'-0"
Annotations
- EXISTING GARDEN CENTRE CANOPY AND COMPOUND TO BE DEMOLISHED.
- EXISTING FROST HOUSE TO BE RELOCATED. REMOVE AND REPLACE IF CONDITION IS POOR.
Vertical Datum Levels
- T/O SIDING: 24' - 3 11/32"
- T/O MEZZANINE: 11' - 5 25/32"
- T.O. SLAB LEVEL 1: 0' - 0"
Page 75

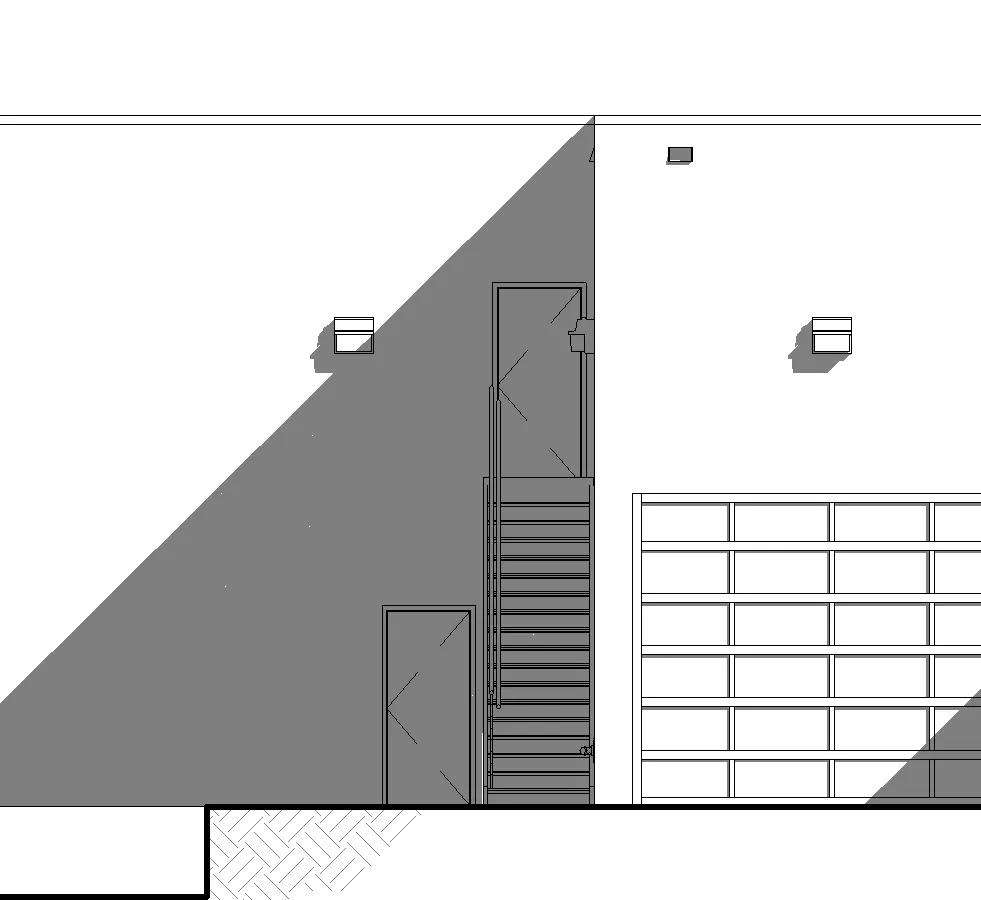

2 PROPOSED EAST ELEVATION
Scale: 3/32" = 1'-0"
Annotations
- NEW PRE-FINISHED ALUMINUM METAL CANOPY "PANTONE 355C GREEN"
- METAL PANEL PAINTED "THUNDERCLOUD GREY"

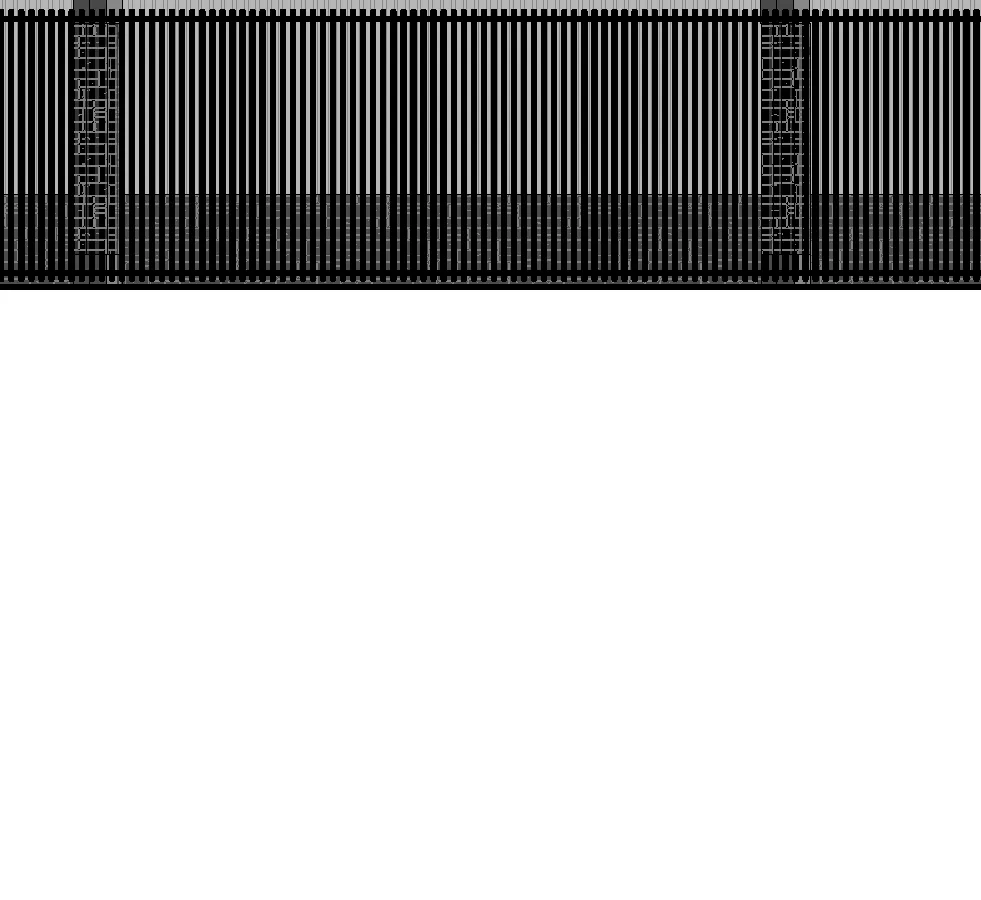

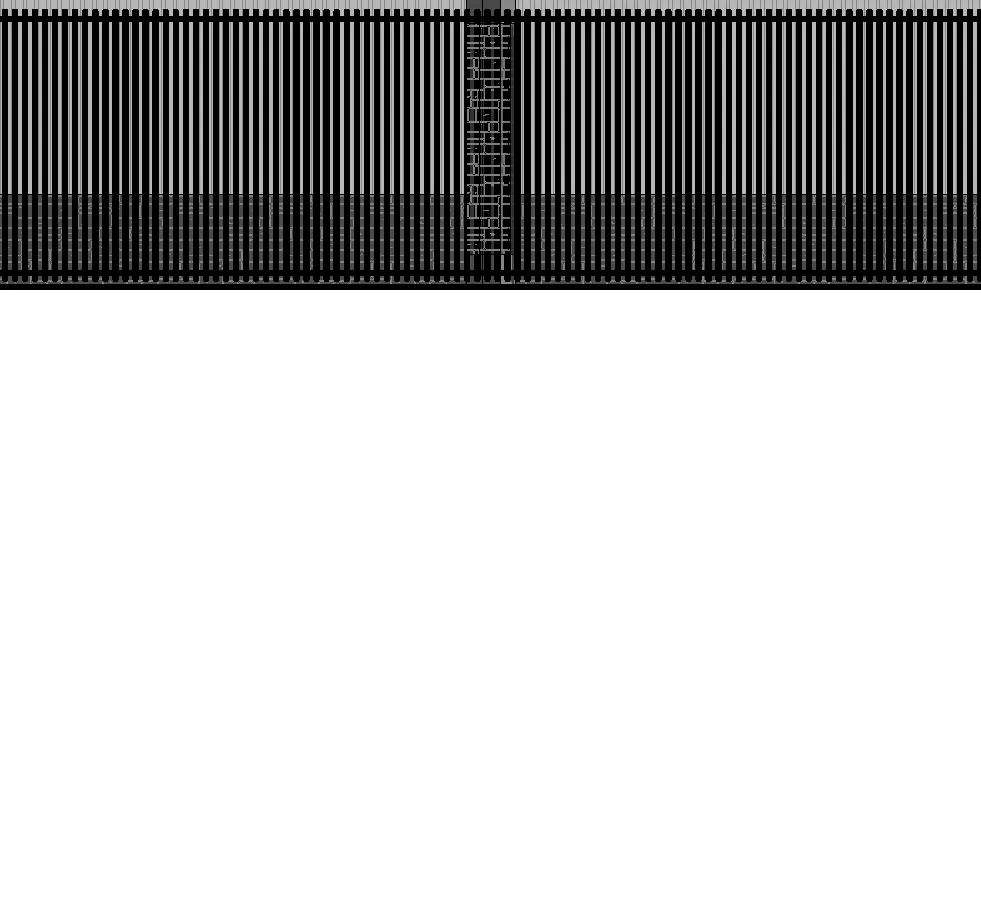

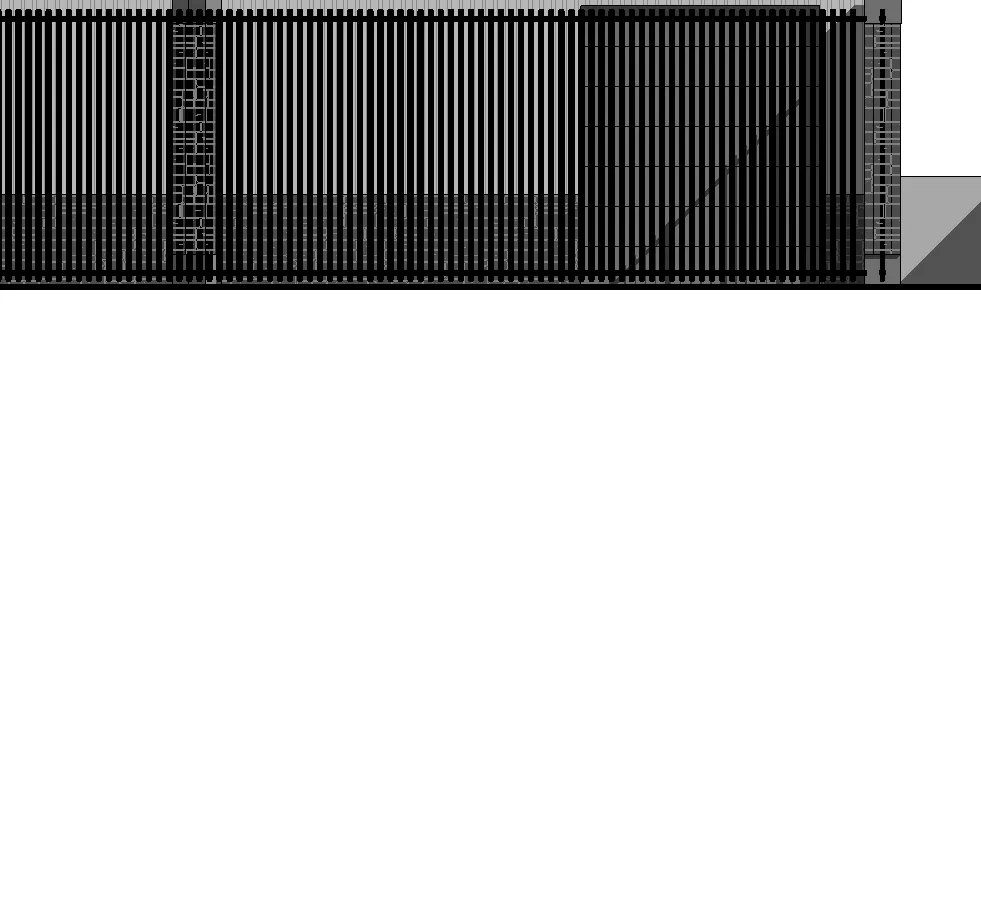

- GARDEN CENTRE FENCE TO MATCH EXISTING
- NEW RTU C/W SCREENING TO MATCH EXISTING
- METAL CAP FLASHING PAINTED "THUNDERCLOUD GREY"
- NEW LIGHT FIXTURES WILL BE DARK SKIES FRIENDLY
- NEW OVERHEAD DOOR BEYOND
- EXISTING RETAINING WALL BEYOND
- NEW CULTURED STONE VENEER "ECHO RIDGE"
Vertical Datum Levels
- T/O SIDING: 24' - 3 11/32"
- T/O MEZZANINE: 11' - 5 25/32"
- T.O. SLAB LEVEL 1: 0' - 0"
Page 75
3 EXISTING WEST ELEVATION
Scale: 3/32" = 1'-0"
Annotations
- FACADE IMPROVEMENTS LIMITED TO PAINTING ONLY
Vertical Datum Levels
- T/O SIDING: 24' - 3 11/32"
- T/O MEZZANINE: 11' - 5 25/32"
- T.O. SLAB LEVEL 1: 0' - 0"
Page 75

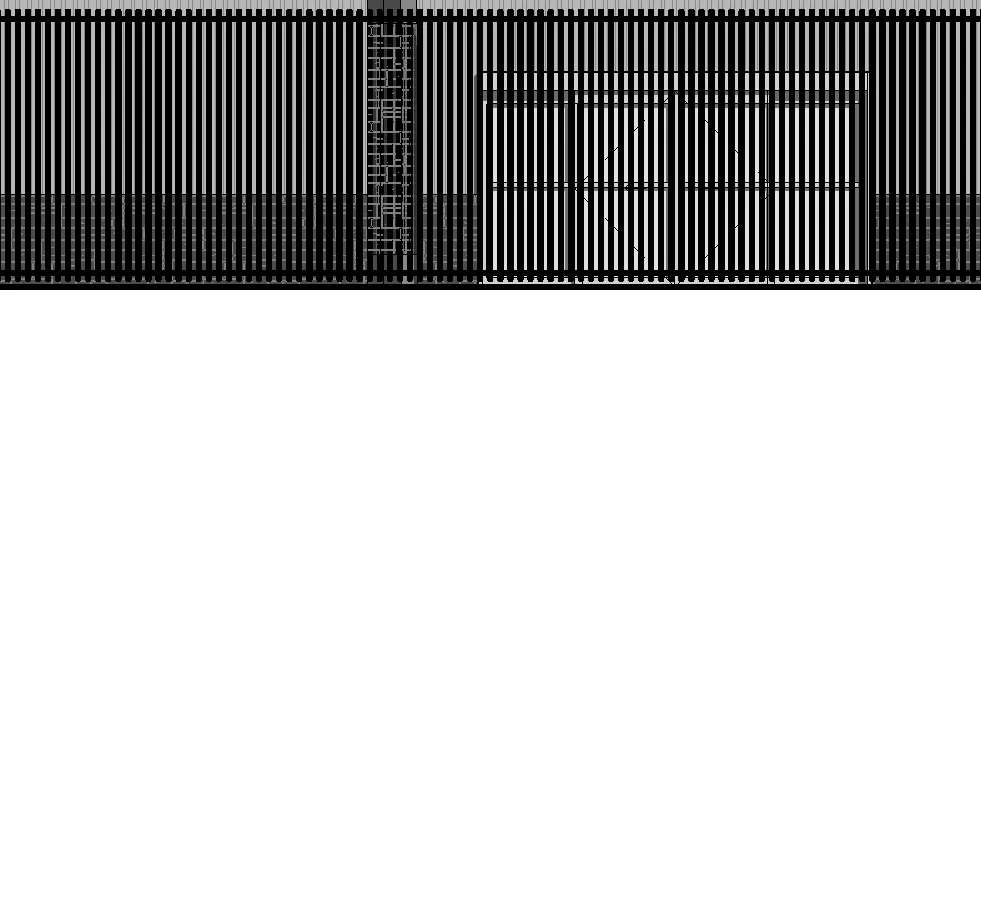

4 PROPOSED WEST ELEVATION
Scale: 3/32" = 1'-0"
Annotations
- METAL PANEL PAINTED "THUNDERCLOUD GREY"
- METAL CAP FLASHING PAINTED "THUNDERCLOUD GREY"
- EXISTING CANOPY PAINTED "STEEL WOOL"
- FACADE IMPROVEMENTS LIMITED TO PAINTING ONLY
Vertical Datum Levels
- T/O SIDING: 24' - 3 11/32"
- T/O MEZZANINE: 11' - 5 25/32"
- T.O. SLAB LEVEL 1: 0' - 0"
Page 75
