A017 MATERIAL PALETTE
Summary of exterior building materials, including brick cladding, soffits, and window styles.

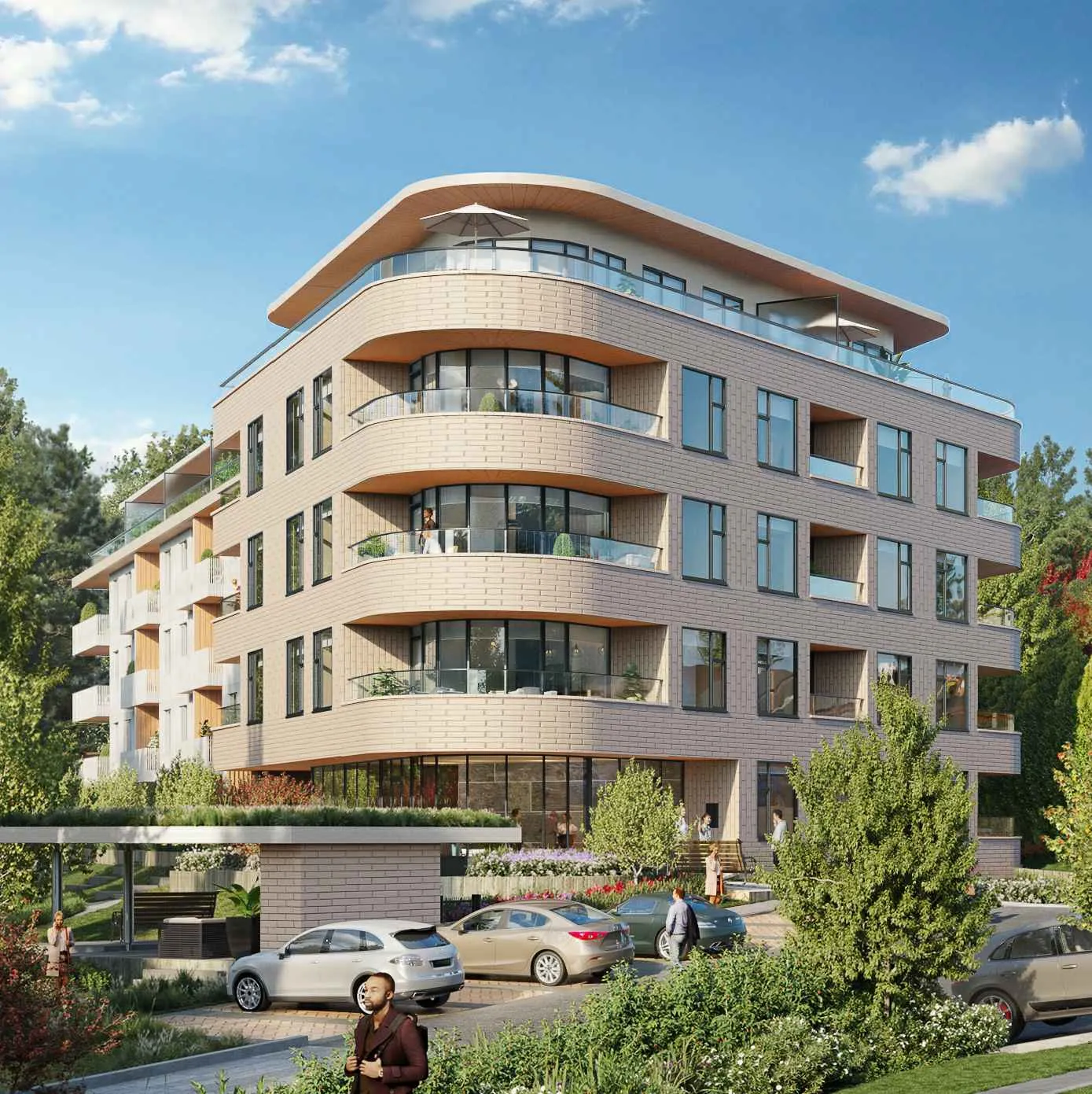

Portage Park Residences
167, 169 & 171 ISLAND HIGHWAY, VIEW ROYAL, BC 2021-01
Material Palette
Material Specifications

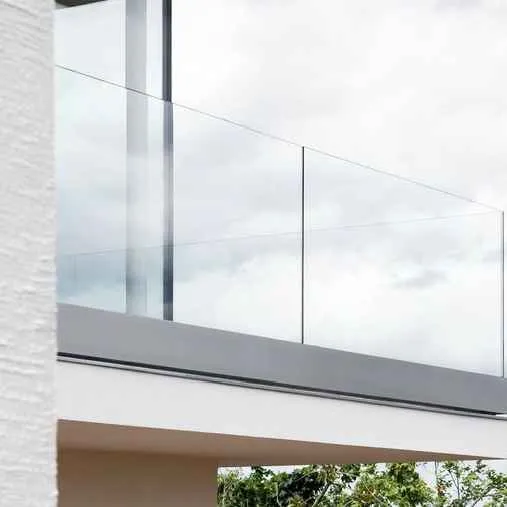

- Guardrail: Glass with aluminum frame; Colour: Charcoal
Detail of glass guardrail with charcoal aluminum frame - Residential Window: Vinyl or aluminum clad vinyl; Colour: Charcoal
Detail of charcoal residential window frame - Board & Batten: Fibre cement; Colour: White
Sample of white fibre cement board and batten siding - Guardrail: Aluminum railing w/ pickets; Colour: White
Detail of white aluminum picket guardrail - Landscape Pavilion: With green roof

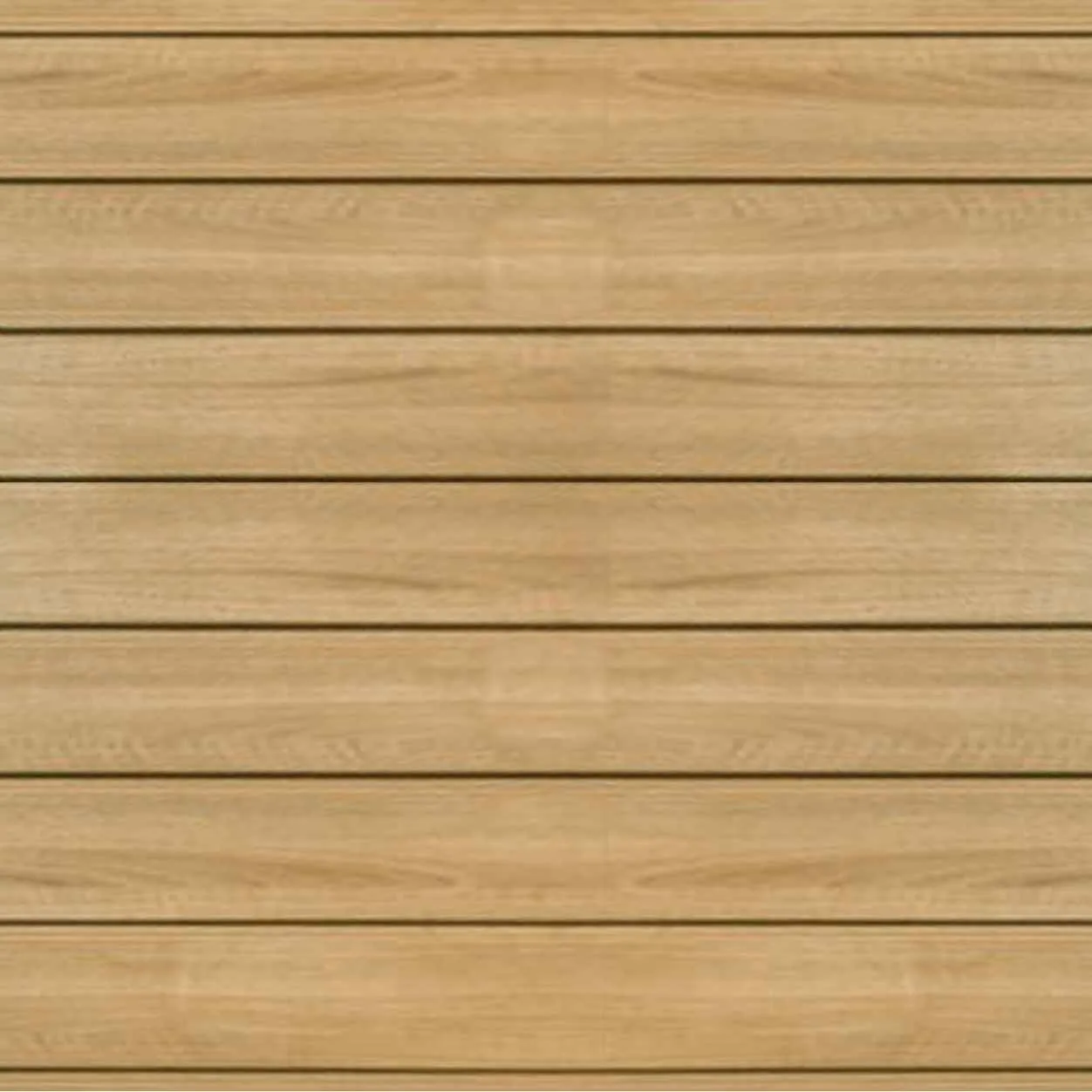

Detail of landscape pavilion structure with a green roof - Cedar Soffit: Alt: Metal soffit w/ wood grain

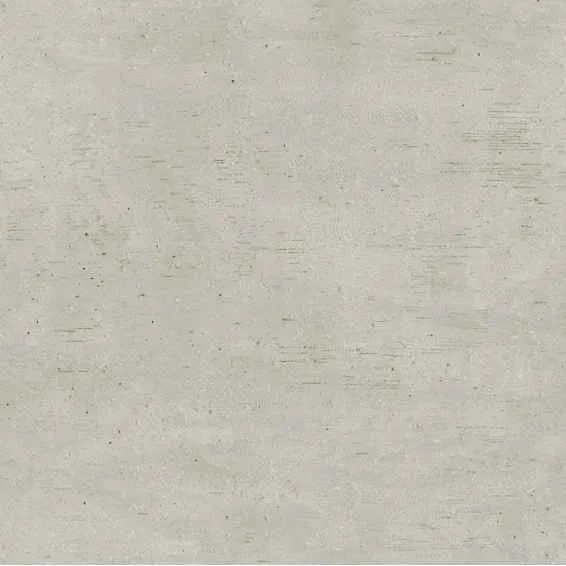

Sample of cedar/wood grain soffit material - Fibre Cement Panel: Colour: White
Sample of white fibre cement panel - Cast Resin Brick Cladding: Stocast brick; Colour: Tan

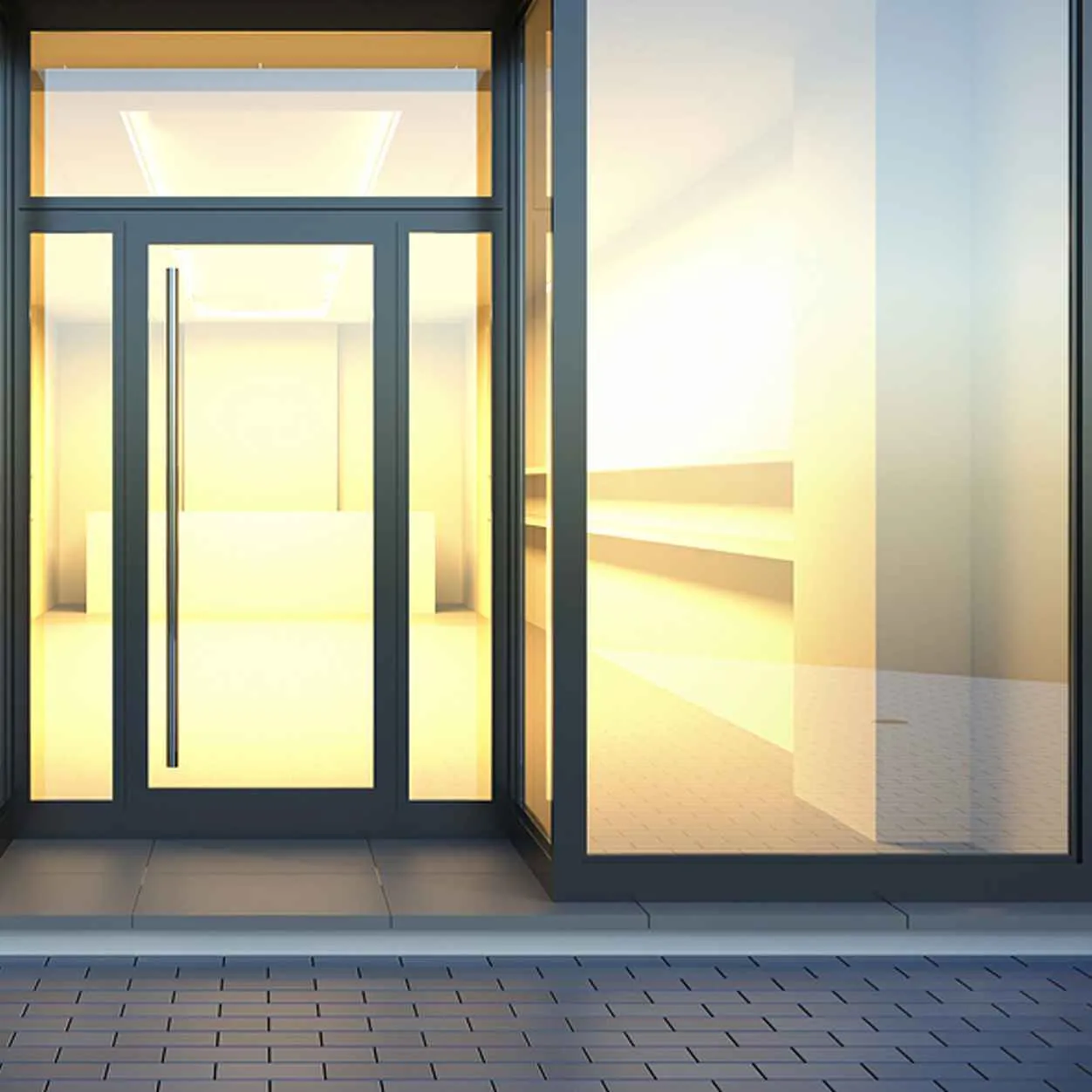

- Lobby Windows: Storefront or aluminum clad vinyl; Colour: Charcoal
- Landscape and Retaining Walls: Architectural concrete
Revision Schedule
| No. | Date | Description |
|---|---|---|
| 2022 08 12 | REISSUED FOR DP | |
| 2022 07 12 | REISSUED FOR DP | |
| 2022 04 04 | ISSUED FOR DP | |
| 2022 01 13 | REISSUED FOR REZONING | |
| 2021 12 03 | ISSUED FOR REZONING |
Drawing Number: A017
