Attachment 4: Front elevation and photos

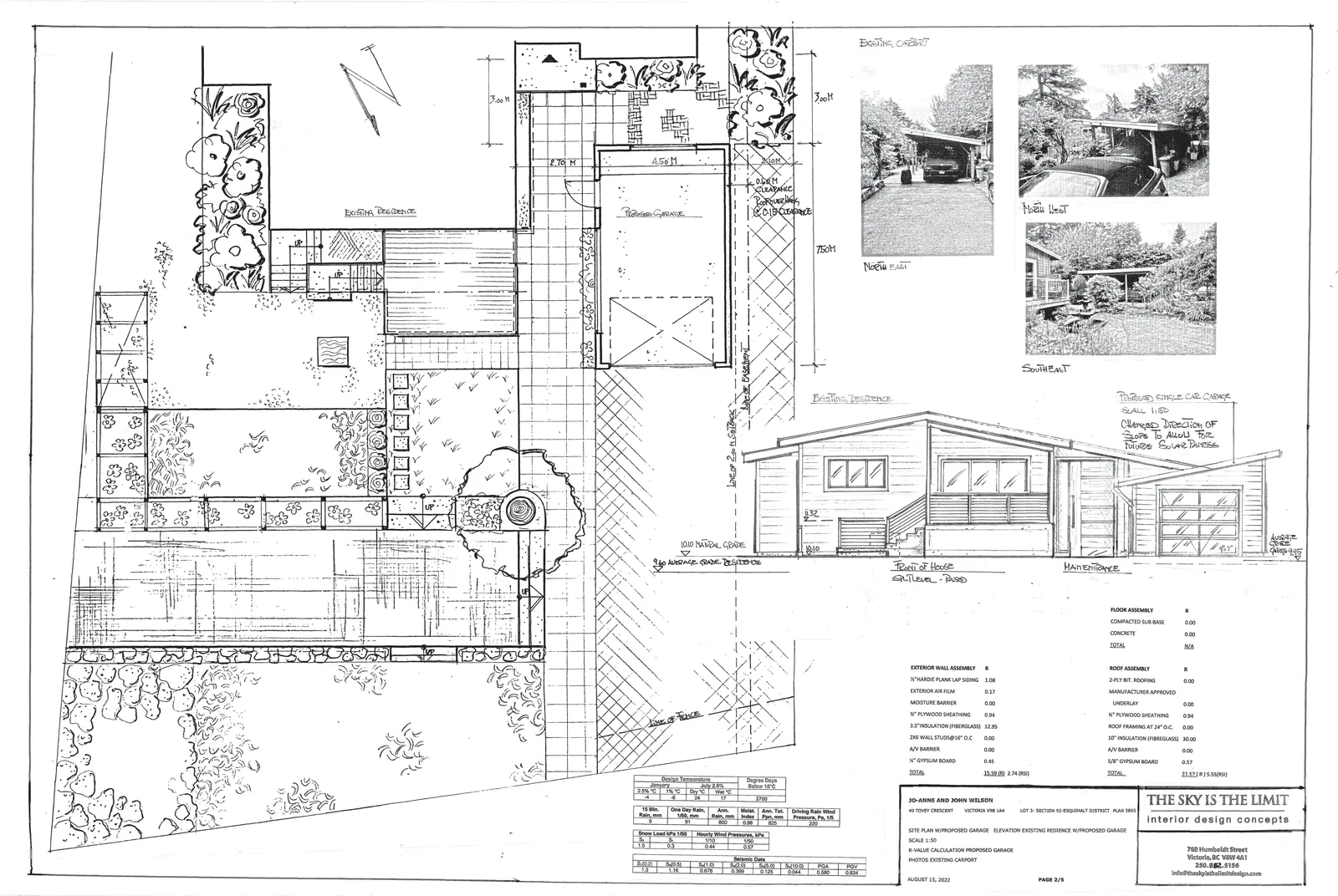

Site plan showing the layout of the existing residence and the proposed garage with property boundaries, landscaping, and dimensions.

Existing Carport Photos

Elevation - Existing Residence and Proposed Garage

Note: CHANGED DIRECTION OF SLOPE TO ALLOW FOR FUTURE SOLAR PANELS

PROPOSED SINGLE CAR GARAGE SCALE 1:50

R-Value Calculations Proposed Garage

FLOOR ASSEMBLY	R
COMPACTED SUB BASE	0.00
CONCRETE	0.00
TOTAL	N/A

EXTERIOR WALL ASSEMBLY	R
¾” HARDIE PLANK LAP SIDING	1.08
EXTERIOR AIR FILM	0.17
MOISTURE BARRIER	0.00
½” PLYWOOD SHEATHING	0.94
3.5” INSULATION (FIBERGLASS)	12.95
2X6 WALL STUDS @ 16” O.C.	0.00
A/V BARRIER	0.00
½” GYPSUM BOARD	0.45
TOTAL	15.59 (R) 2.74 (RSI)

ROOF ASSEMBLY	R
2-PLY BIT. ROOFING	0.00
MANUFACTURER APPROVED UNDERLAY	0.00
¾” PLYWOOD SHEATHING	0.94
ROOF FRAMING AT 24” O.C.	0.00
10” INSULATION (FIBERGLASS)	30.00
A/V BARRIER	0.00
5/8” GYPSUM BOARD	0.57
TOTAL	31.51 (R) 5.55 (RSI)

Design and Environmental Data

Design Temperature		Degree Days Below 18°C
January 2.5% °C	July 2.5% Dry °C	Wet °C
-7	24	17

15 Min. Rain, mm	One Day Rain, 1/50, mm	Ann. Rain, mm	Moist. Index	Ann. Tot. Rain, mm	Driving Rain Wind Pressure, Pa, 1/5
8	100	800	0.90	825	220

Snow Load kPa 1/50		Hourly Wind Pressures, kPa
Sg	Sr	1/10
1.5	0.5	0.44

Seismic Data

Sa(0.2)	Sa(0.5)	Sa(1.0)	Sa(2.0)	Sa(5.0)	Sa(10.0)	PGA	PGV
1.3	1.16	0.676	0.399	0.125	0.044	0.580	0.834

Project Information

JO-ANNE AND JOHN WILSON 49 TOVEY CRESCENT, VICTORIA V9B 1A4 LOT 3 - SECTION 92 - ESQUIMALT DISTRICT PLAN 5895

SITE PLAN W/ PROPOSED GARAGE ELEVATION EXISTING RESIDENCE W/ PROPOSED GARAGE SCALE 1:50 R-VALUE CALCULATION PROPOSED GARAGE PHOTOS EXISTING CARPORT

760 Humboldt Street Victoria, BC V8W 1A1 250.882.3156 info@theskyisthelimitdesign.com

AUGUST 15, 2022
