Attachment 4: Technical Sign Plans - Pride Signs

December 6, 2022Pages 35–395 sections

Detailed structural drawings and specifications for the proposed drive-thru order confirmation units and menu boards.

1 CALL TO ORDER
Structural drawings for BK_-PS116x0084.125BDesign notes reference B.C.B.C 2018Total cabinet area = 2.01m2

Order Confirmation Unit

Quantity: 1 required Scale: 3/8" = 1'-0" Drawing No: BK__-PS116x0084.125B Electrical Requirements: 120v

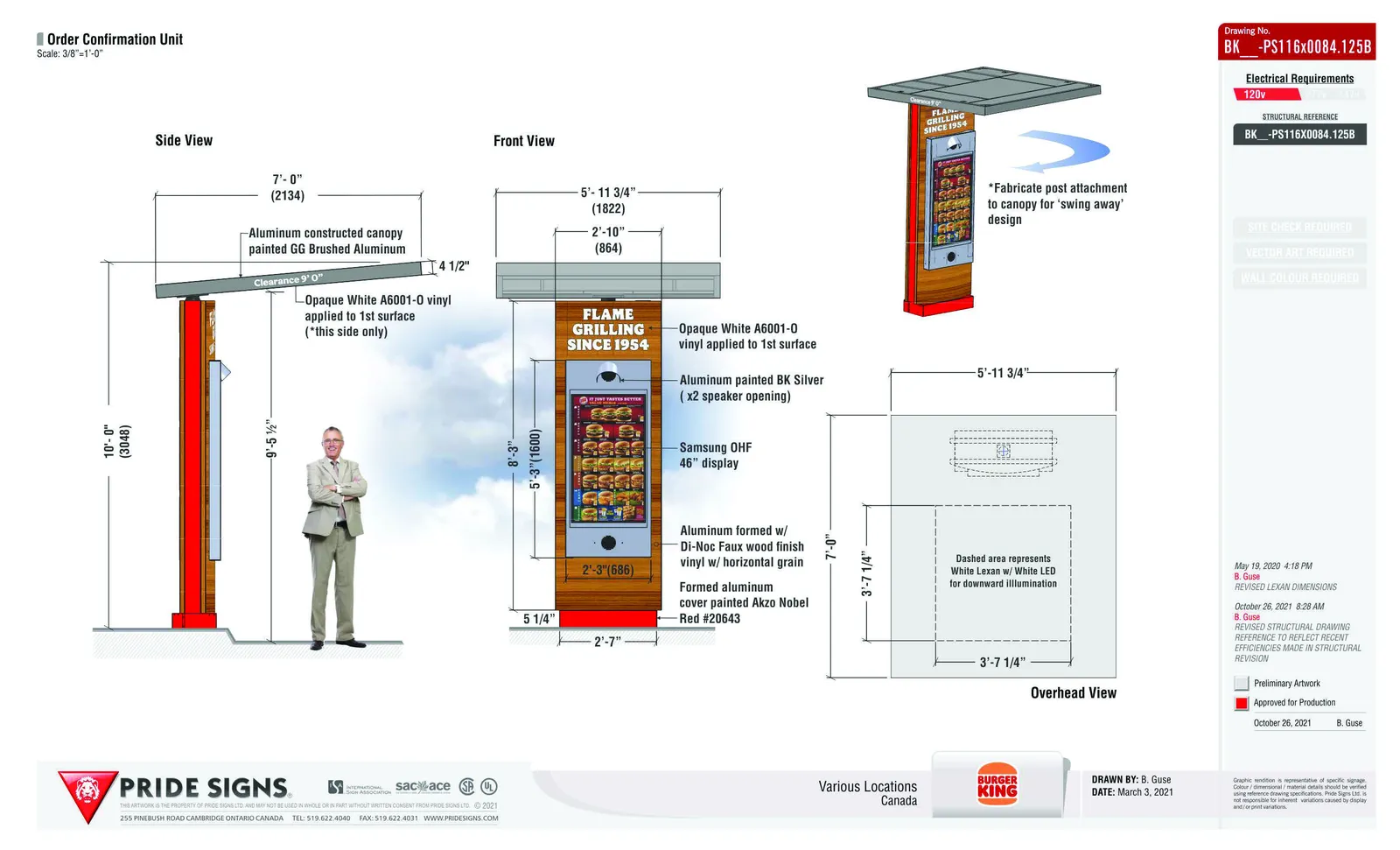

Side view, front view, 3D perspective, and overhead view drawings of the Order Confirmation Unit
Side view, front view, 3D perspective, and overhead view drawings of the Order Confirmation Unit

Design and Material Specifications

  • Canopy Construction: Aluminum constructed canopy painted GG Brushed Aluminum.
  • Canopy Side Vinyl: Opaque White A6001-0 vinyl applied to 1st surface (*this side only).
  • Canopy Front Vinyl: Opaque White A6001-0 vinyl applied to 1st surface.
  • Clearance: 9'-0"
  • Speaker Openings: Aluminum painted BK Silver (x2 speaker opening).
  • Digital Display: Samsung OHF 46" display.
  • Body Finish: Aluminum formed w/ Di-Noc Faux wood finish vinyl w/ horizontal grain.
  • Base Cover: Formed aluminum cover painted Akzo Nobel Red #20643.
  • Post Attachment: *Fabricate post attachment to canopy for 'swing away' design.
  • Overhead View Note: Dashed area represents White Lexan w/ White LED for downward illumination.

Dimensions

  • Overall Height: 10'-0" (3048 mm)
  • Canopy Depth: 7'-0" (2134 mm)
  • Canopy Width: 5'-11 3/4" (1822 mm)
  • Display Section Width: 2'-10" (864 mm)
  • Unit Face Width: 2'-7"
  • Main Body Depth: 5 1/4"

Revision History

  • May 19, 2020 4:18 PM: B. Guse - REVISED LEXAN DIMENSIONS
  • October 26, 2021 8:28 AM: B. Guse - REVISED STRUCTURAL DRAWING REFERENCE TO REFLECT RECENT EFFICIENCIES MADE IN STRUCTURAL REVISION

Drawn By: B. Guse Date: March 3, 2021 Various Locations, Canada

Page 35–39

Projecting Drive Thru Canopy

Drawing No: BK__-PS116x0084.125B Sheet #: 1 of 2 Location: 1681 Old Island Highway, View Royal, Victoria, BC

Design Notes

  • Loads: AS PER B.C.B.C 2018 FOR VIEW ROYAL, VICTORIA, BC AREA:
    • WIND q(1/50) = 0.57 KPa
    • SNOW Ss = 1.1 KPa
    • SNOW Sr = 0.2 KPa
  • General Weld Note: 1/8" FILLET WELD REQ'D UNLESS OTHERWISE NOTED

Structural Components and Details

  • Canopy Frame: 2" x 4" x 1/8" STEEL TUBE CANOPY FRAME w/ ACM CLADDING
  • Mounting Hardware:
    • 7" x 7" x 1/2" STEEL MATCH PLATE w/ Ø 3 1/2" SCH40 STEEL PIPE STUB SECURED TO CANOPY w/ 1/2" x 1 1/2" HEX BOLTS - (4) PL.
    • 3" SCH80 STEEL PIPE STUB SLEEVED INTO POST w/ 3/4" PINCH BOLTS
  • Sign Box: ALUMINUM SIGN BOX ATTACHED TO STEEL STRUCTURE w/ #10x1 1/2" C'SUNK TEK SCREW - (x10) PL.
  • Back Panel: REMOVABLE BACK PANEL ATTACHED w/ #10x1 1/2" C'SUNK TEK SCREW - (x4) PL.
  • Base Plate Connection: 4" x 4" x 1/4" HSS WELDED TO TOP OF STEEL BASE PLATE
  • Welding Specification: 1/4" TYP., 3 PASSES
  • Electrical/Audio:
    • LED DOWNWARD ILLUMINATION
    • SPEAKER w/ DOME COVER
    • MICROPHONE
  • Total Amp Draw: 6.3 A @ 120 V

Drawn By: C. Lenz Date: 25-Oct-21 Checked By: C. Lenz

Page 35–39

Projecting Drive Thru Canopy - Foundation Details

Drawing No: BK__-PS116x0084.125B Sheet #: 2 of 2

Bill of Materials

# PART QTY DESCRIPTION WIDTH LENGTH
1 AB005 4 Ø3/4" ANCHOR BOLT 3'-0"
2 PAT308 1 3/4" PLYWOOD PATTERN - Ø3/4"-8"x8" 11" 11"

Foundation and Reinforcement Details

Diagrams showing the plywood pattern, anchor bolt assembly, and concrete caisson foundation details
Diagrams showing the plywood pattern, anchor bolt assembly, and concrete caisson foundation details
  • Caisson Diameter: Ø 2'-0"
  • Caisson Depth: 8'-0"
  • Vertical Reinforcement: (6) 15M VERTICAL REBAR EQUALLY SPACED
  • Ties: (11) 10M REBAR CIRCULAR TIES WITH 9" LAP
  • Conduits: DMB - (x4) 1" CONDUITS (x2 - POWER, x1 - DATA, x1 - SPEAKER / MICROPHONE IF REQUIRED)
  • Conduit Depth: CONDUIT MIN 18" BELOW GRADE
  • Concrete Clearance: 3" CLEARANCE

Foundation Design Notes

  1. DESIGN LOADS AS PER BCBC 2018 FOR VICTORIA, BC: q 1/50 = 0.57 kPa, Ss = 1.1 kPa, Sr = 0.2 kPa
  2. PRESUMPTIVE ALLOWABLE SOIL BEARING CAPACITY: 2000 psf.
  3. PRESUMPTIVE ALLOWABLE PASSIVE LATERAL SOIL RESISTANCE: 150 psf/ft.

Specifications

  1. HSS SECTIONS SHALL CONFORM TO CSA G40.21M-350W.
  2. STEEL PLATES SHALL CONFORM TO CSA G40.21M-300W.
  3. REINFORCING STEEL SHALL CONFORM TO CSA G30.18-09 GRADE 400.
  4. ANCHOR BOLTS TO BE MANUFACTURED FROM ASTM A-36 (A307) BAR OR GREATER.
  5. CONCRETE SHALL HAVE A MINIMUM COMPRESSIVE STRENGTH AFTER 28 DAYS OF 25 MPa.
  6. CONCRETE SHALL HAVE 4” - 5” SLUMP WITH 4% - 7% AIR ENTRAINMENT, VIBRATE DURING PLACEMENT.
  7. ALL CONCRETE WORK TO BE IN CONFORMANCE WITH CSA-A23.1.
  8. CONCRETE MUST BE POURED AGAINST UNDISTURBED SOIL, NO BACKFILL AROUND FOUNDATION.
  9. IF BACKFILL IS REQUIRED, IT IS TO BE PLACED IN SUITABLY COMPACTED LAYERS (DEPTHS SELECTED IN ACCORDANCE WITH THE EQUIPMENT USED), WITH EACH LAYER COMPACTED TO 95% MODIFIED PROCTOR DENSITY.
  10. CONCRETE REQUIRES A MIN. OF 7 DAYS OF CURE TIME PRIOR TO INSTALLATION OF SIGN.
  11. CONNECTION BOLTS FOR SIGN BOXES SHALL CONFORM TO SAE J429 GRADE 5 OR GREATER.

1681 Old Island Highway, View Royal, Victoria, BC

Page 35–39

S/S Digital Menu Board

Drawing No: BK__-MB082x0074.150A Electrical Requirements: 120v

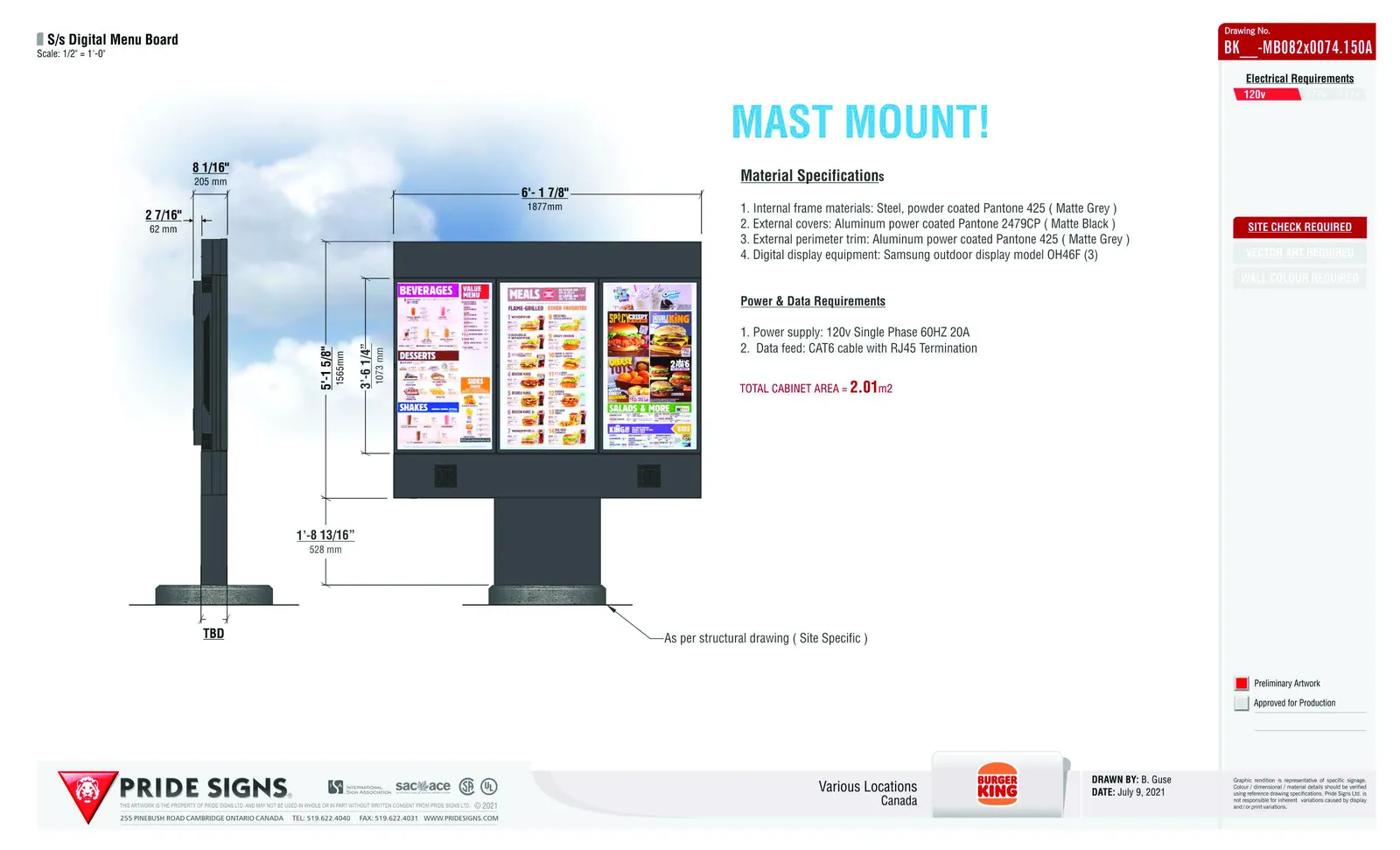

Rendering and material specifications for the triple-screen digital menu board
Rendering and material specifications for the triple-screen digital menu board

Material Specifications

  1. Internal frame materials: Steel, powder coated Pantone 425 (Matte Grey)
  2. External covers: Aluminum power coated Pantone 2479CP (Matte Black)
  3. External perimeter trim: Aluminum power coated Pantone 425 (Matte Grey)
  4. Digital display equipment: Samsung outdoor display model OH46F (3)

Power & Data Requirements

  1. Power supply: 120v Single Phase 60HZ 20A
  2. Data feed: CAT6 cable with RJ45 Termination

Dimensions

  • Total Cabinet Area: 2.01 m²
  • Overall Height: 5'-1 5/8" (1565 mm)
  • Cabinet Width: 6'-1 7/8" (1877 mm)
  • Screen Section Height: 3'-6 1/4" (1073 mm)
  • Base Width: 1'-8 13/16" (528 mm)

Drawn By: B. Guse Date: July 9, 2021 Various Locations, Canada

Page 35–39

ODMB, 46" Triple Pedestal Menu Display

Drawing No: BK__-MB013574.150A1 Sheet #: 1 of 1 Location: 1681 Old Island Highway, View Royal, Victoria, BC Weight: 629 LBS

Parts List

# PART QTY DESCRIPTION LENGTH
1 BOLT146 4 3/4" x10" WEDGE BOLT
2 NUT011 12 3/4" STEEL HEX NUT - GRADE 5
3 WASH047 12 Ø3/4" STEEL WASHER
4 PLY002 1 ROUTED PLYWOOD PATTERN ITEM #4 NOT SHOWN 1'-8"

Installation Notes

  • Existing Menu Board Area: 67 SF
  • New Menu Board Area: 35.5 SF
  • PROPOSED MENU BOARD HAS SIGNIFICANTLY LESS WIND LOAD THAN EXISTING MENU BOARD
  • Note: BOLTS MUST BE TRIMMED TO FIT INSIDE OF BASE COVER

Wedge Bolt Installation Procedure

  • CUT ANY EXISTING BOLTS FLUSH TO GRADE
  • DRILL 3/4" HOLE - 7" INTO EXISTING CONCRETE USING PLYWOOD PATTERN PROVIDED
  • BLOW OUT HOLE / CLEAN HOLE
  • PLACE WEDGE BOLTS INTO DRILLED HOLES
  • PLACE WASHER AND NUT
  • TIGHTEN INTO PLACE - MIN 4" ABOVE GRADE
  • MINIMUM EMBEDMENT OF 5.625" BELOW TOP OF BASE

Design Notes

  • Loads: AS PER BCBC - 2018 FOR VIEW ROYAL, VICTORIA, AREA:
    • WIND q(1/50) = 0.57 kPa
    • SNOW Ss = 1.1 kPa
    • SNOW Sr = 0.2 kPa

Drawn By: A. Sarin Date: 27-Sep-22 Released for Permit: A. Sarin, 28-Sep-22
