Tree Management Plan (Township of View Royal) - Victoria General Hospital

Tree Management Plan (Township of View Royal)

Victoria General Hospital, View Royal, BC Project No: 22-018 Date: October 17, 2024 Sheet: T - 1 of 2

Summary Tree Statistics

Tree Preservation Measures

1. Site meeting to review Tree Plan: Before site clearing begins, the project manager/site superintendent and clearing contractor shall meet with the arborist to review the placement of fencing and other tree protection measures within this plan. a) The Project Arborist shall clearly mark the boundaries of all areas to be fenced and protected. b) Access routes and areas for heavy equipment access, trade parking and materials processing and storage will be identified with the contractor.
2. Tree Fencing: It is recommended that the emplacement of tree fencing be delayed until after the clearing and grubbing phase of the project has been completed. Clearing and grubbing shall occur under the supervision of the project arborist. a) Following clearing and grubbing, tree protection fencing shall be installed to the Town of View Royal standards at the locations indicated on this drawing (see fencing detail on plan). b) Tree protection fencing and armouring shall be maintained in good condition throughout the duration of the project. c) Requests to temporarily remove or move tree fencing must be reviewed by the project arborist for approval.
3. Tree Management Plan posting: a) A full-sized weather-proof copy of this tree plan shall be posted in plain sight in the site office. b) The general contractor shall ensure that all relevant sub-trades are familiar with the drawing and tree protection measures.
4. Site servicing and excavations: The project arborist shall be present to oversee tree and stump removal, site grading, excavation, service trenching and any associated blasting or rock removal within, or adjacent to, the tree protection areas (TPAs).
5. Procedure for rock removal near tree root zones: a) The general contractor will convene a meeting with the arborist and blasting contractor prior to drilling to develop a work plan that minimizes rock removal impacts to protected trees. b) Where considered necessary by the arborist, alternate rock removal techniques, such as hoe-ramming, shall be used in place of blasting. c) Blasting vibrations in the vicinity of the Tree Protection Areas are not to exceed a measured peak particle velocity of 25 mm/sec. i) Seismometer records will be kept of all blasting within a 30m radius of any tree protection areas for review by the project arborist. ii) Seismometers shall be placed at the outer boundary of the tree protection area closest to the blast zone. d) Use DYNAMITE as the explosive product. No fertilizer-based explosive is permitted, due to its toxicity to tree roots. e) The contractor shall prevent rock debris from the blast site from entering the TPA.
6. Root & branch pruning and protection: a) Any tree roots or branches damaged during site work shall be pruned back to undamaged tissue by the arborist. b) The vertical face of excavated cuts adjacent to the TPAs shall be securely covered with non-permeable fabric by the project arborist to prevent soil desiccation and erosion.
7. Irrigation: Retained trees along the perimeter of cleared or excavated areas shall be mulched with clean tree chip mulch to a depth of 100 - 150mm and irrigated bi-weekly during the dry summer period to a minimum effective depth of 30cm.
8. Temporary access: If temporary access is required within a tree protection area (TPA), the contractor shall notify the project arborist in advance and review the access requirements and any additional protective measures prescribed by the arborist.
9. Soil armouring: If it is not possible to fence the entire PRZ, the unprotected portion of the PRZ shall be armoured with 3/4" plywood or a temporary cover of geo-textile and 200mm of road-base, moderately compacted with a plate compactor. (See drawing for recommended soil armouring locations.)
10. Storage restrictions: No equipment, materials or excavated soil shall be placed or stored within the TPA. THIS PARTICULARLY INCLUDES HOARDING OF EXCAVATED SOILS NEEDED FOR FUTURE BACKFILLING.

Tree Protection Fencing Detail

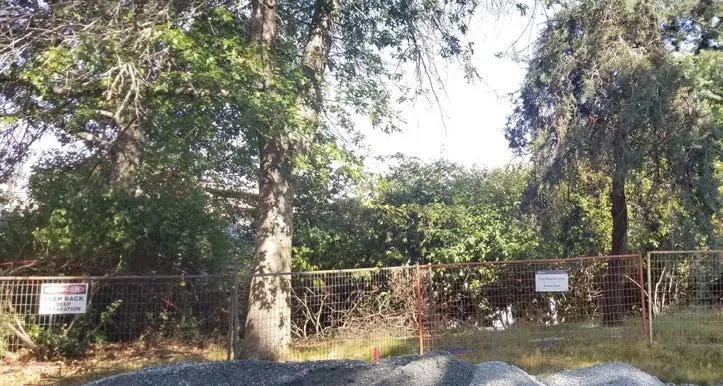

Modular steel panel fencing is recommended in order to reduce land-fill waste post-construction. Fencing panels shall be secured to the ground with rebar wired to panel frame.

16 x 24” all-weather signage will be attached with the following wording:

• For protected trees: DO NOT ENTER – Tree Protection Zone
• For replacement/landscape tree planting sites: DO NOT ENTER – Future Tree Planting Zone

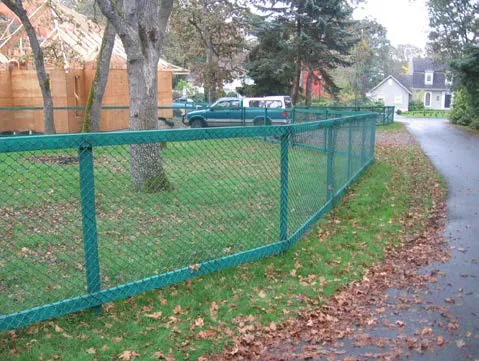

In cases where steel-panel fencing is not practical or available, fencing shall be constructed with a wooden 2x4 frame (side, top and bottom rails) and back-bracing supports as required to ensure robust placement. Snow-fencing will then be affixed to the frame using battens, zip-ties, staples, wire or nails.

Tree Protection Fencing Signage

(Signs shall be 16x24" and made to sustain all weather conditions)

DO NOT ENTER Tree Protection Zone

• NO DUMPING NO FILL
• NO STORAGE
• NO DIGGING NO EXCAVATING

Saanich Parks: 250-475-5522 saanich.ca/parks Under the Tree Protection Bylaw, No. 9272, up to $1,000 penalty may apply if this sign or protective fencing is removed. Project Arborist: Gye and Associates Ltd. 250.883.4533

Legend

• TREE TAG #: [Circle symbol with number 20]
• TREE CENTRE: [Black dot symbol]
• TREE CANOPY: [Dashed circle symbol]
• PROTECTED ROOT ZONE: [Thick solid line symbol]
• TREE FENCING: [Line with perpendicular tick marks symbol]
• REMOVE TREE - BP (View Royal): [Circle with an 'X' symbol]
• REMOVE TREE - BP (Saanich): [Dashed circle with an 'X' symbol]
