ELEVATIONS - SOUTH & NORTH (Drawing A200)

May 6, 2025Page 496 sections

Architectural elevation drawings for Buildings 1, 2, 4, and 5 from the south and north perspectives.

8.1 a) Development Permit with Variances Application No. 2024-03 - 294, 296 Eltham Road and 242 Helmcken Road Reconsideration by Mayor as per Section 131, Community Charter
Building heights ranging from 11.1m to 11.78mDrawing A200Proposed building height variance to 11.78m

Project Information

Architect: ANKENMAN MARCHAND ARCHITECTS 1645 West 5th Avenue Vancouver, BC V6J 1N5 Tel: (604) 872-2595 Fax: (604) 872-2505 Email: office@AMArchitects.com

Project: 2130 Jeffrey Sengara 294 & 296 ELTHAM & 242 HELMCKEN ROAD, VICTORIA, BC.

Drawing: ELEVATIONS - SOUTH & NORTH

Project Status: DP

Page 49

Keynote Legend

Material Description 1

Material Description
1 BRICK. COLOR: LIGHT GREY
2 FIBER CEMENT PANEL SYSTEMS. COLOR: WHITE
3 FIBER CEMENT PANEL SYSTEMS. COLOR: LIGHT GREY
4 FIBER CEMENT PANEL SYSTEMS. COLOR: DARK GREY
5 FIBER CEMENT PANEL. COLOR: CEDAR STAINED WOOD TEXTURE (HORIZONTAL)
6 CAST-IN-PLACE CONCRETE
7 ALUMINUM AND CLEAR GLASS GUARD. COLOR: CHARCOAL
8 VINYL WINDOW - FRAME COLOUR: CHARCOAL

Material Description 2

Material Description
9 VINYL FULL GLAZED SLIDING DOOR - FRAME COLOUR: IRON GRAY
10 METAL FRONT DOOR WITH GLASS PANELS. MATERIAL: ALUMINUM. COLOR: CEDAR STAINED WOOD
11 PRIVACY SCREEN: OBSCURED GLASS & METAL
12 WOOD ROOF FASCIA. PAINTED. COLOUR: CHARCOAL
13 OVERHEAD INSULATED GARAGE DOOR. METAL. COLOUR: CHARCOAL/WHITE (ALTERNATING)
14 TRELLIS AT SITE ENTRIES
15 PLAYGROUND EQUIPMENT
Page 49

Elevations

1 SOUTH ELEVATION

Scale 1 : 100

This elevation shows Building 2 and Building 1 along Helmcken Rd.

  • Building 2: Located between grid lines A.3 and C.8.
  • Building 1: Located between grid lines G.5 and I.3.
  • Building Heights:
    • Building 1: 11.78 m
    • Building 2: 11.17 m
  • Elevations:
    • EL. 26.05 m AVG. GRADE
    • EL. 25.5 m
Close-up building facade detail showing cedar stained wood panels and windows
Close-up building facade detail showing cedar stained wood panels and windows

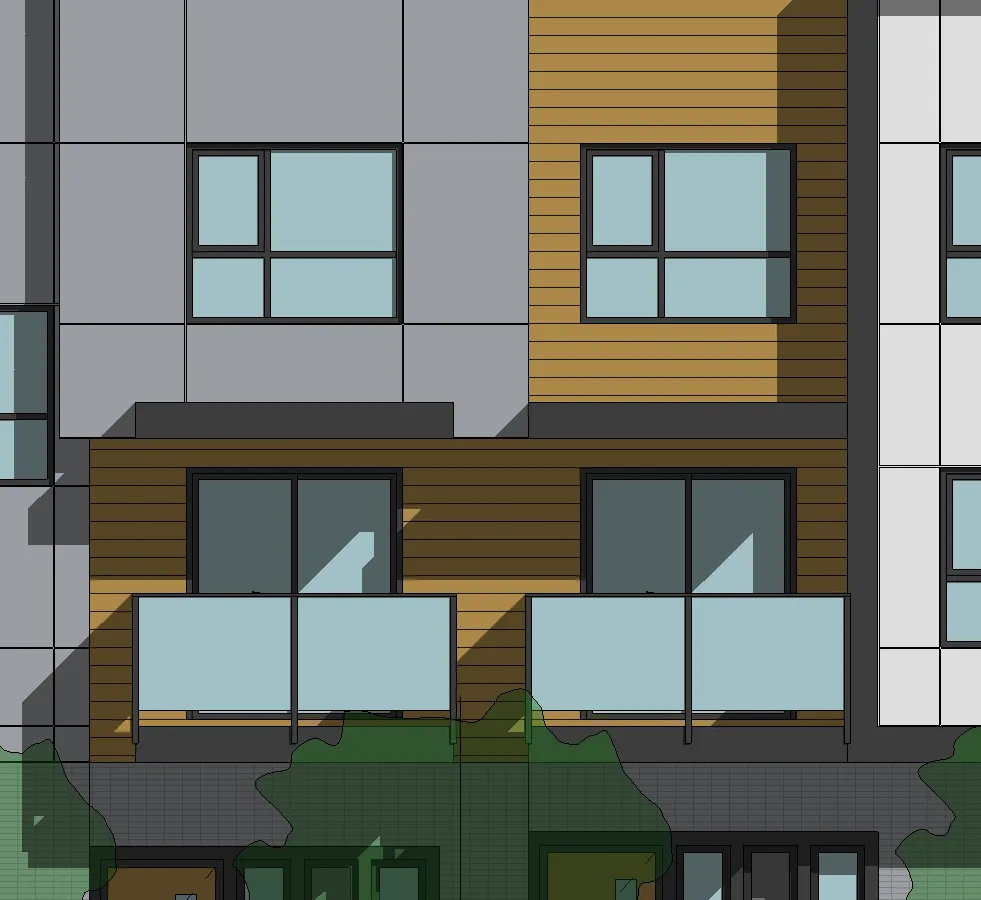

Detail of balcony with aluminum and glass guard
Detail of balcony with aluminum and glass guard

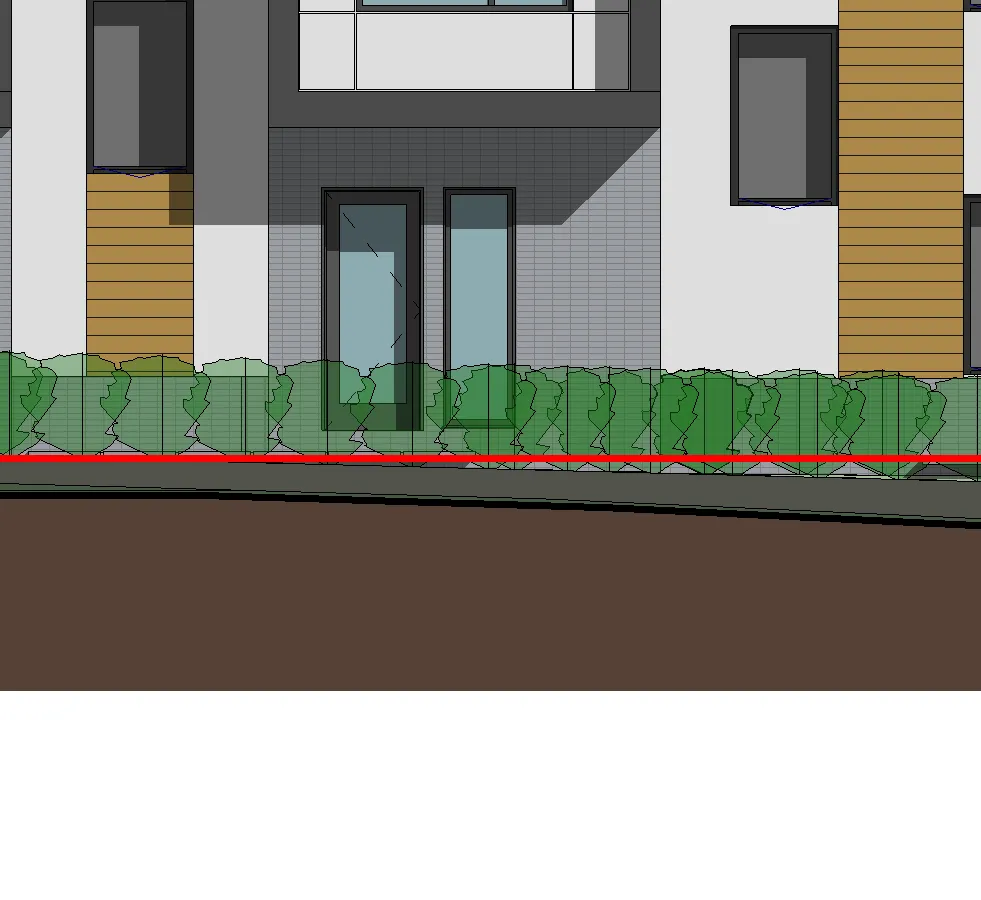

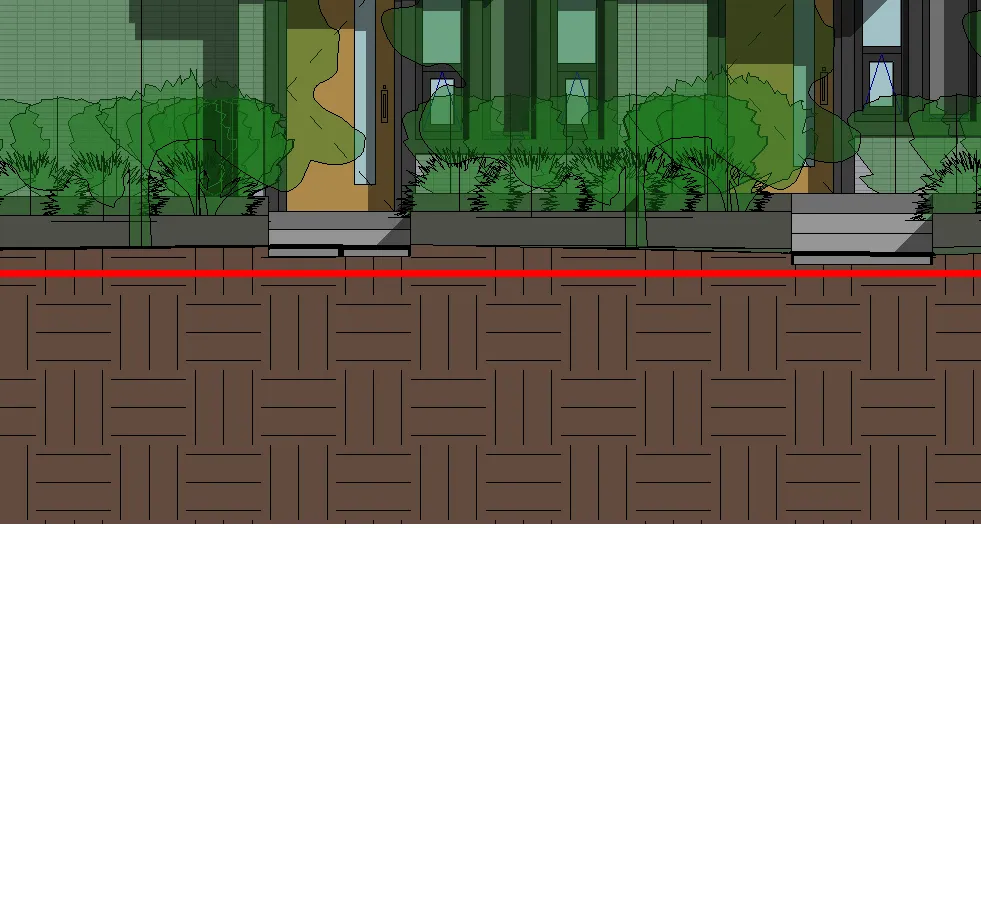

Detail of ground level grade and landscaping with red line indicator
Detail of ground level grade and landscaping with red line indicator
Facade detail showing fiber cement panel color transitions
Facade detail showing fiber cement panel color transitions
Detail of trellis structure at site entry
Detail of trellis structure at site entry
Façade window and wood texture detail
Façade window and wood texture detail

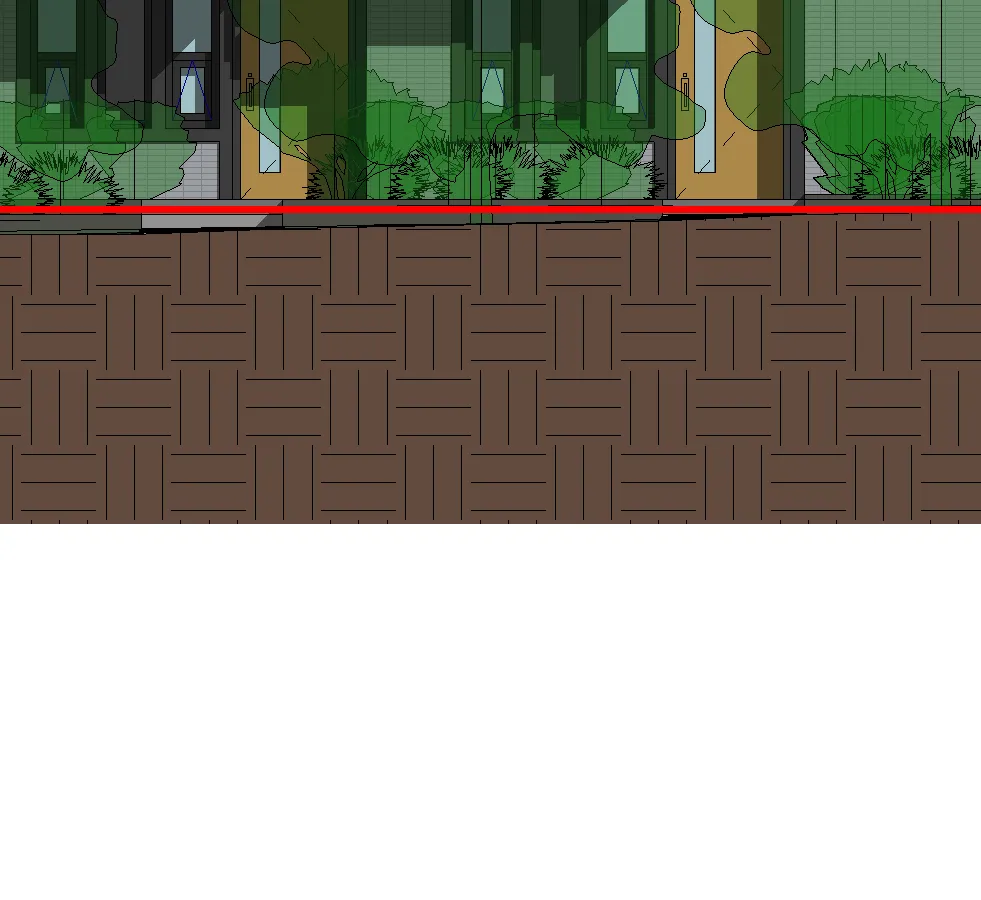

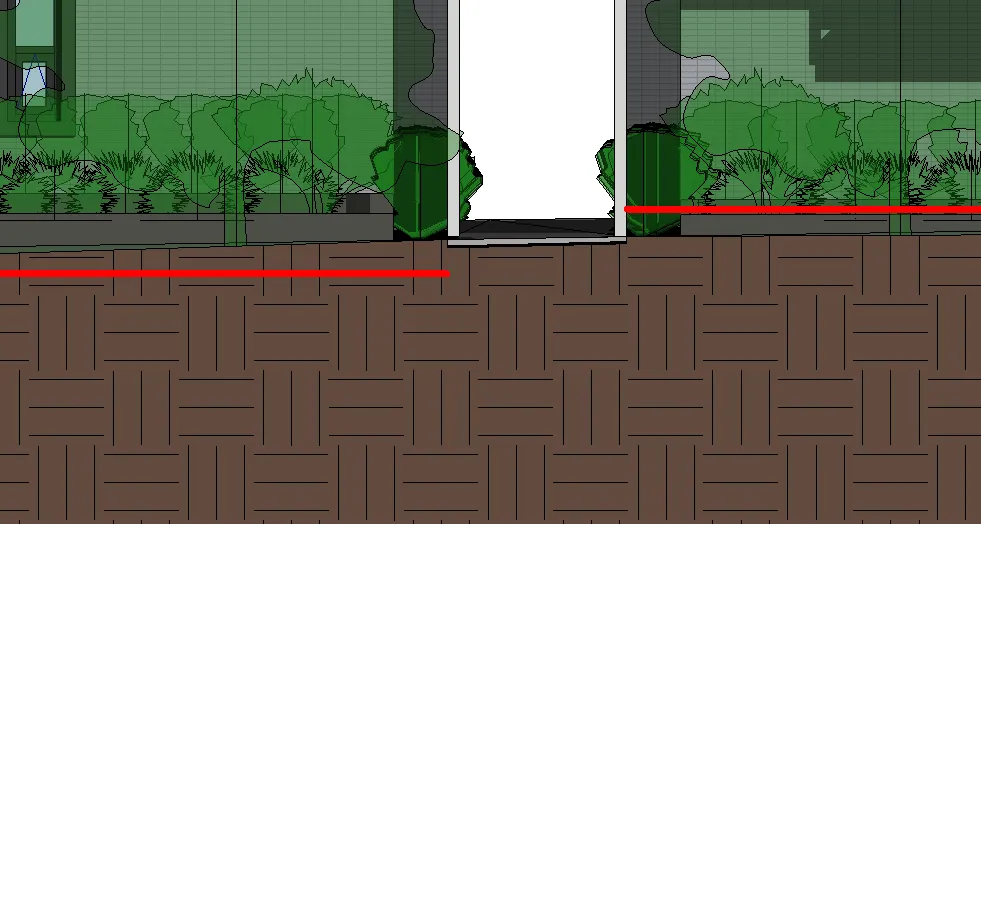

Grade elevation detail with red line
Grade elevation detail with red line
Building facade architectural detail
Building facade architectural detail
Facade window and panel arrangement detail
Facade window and panel arrangement detail

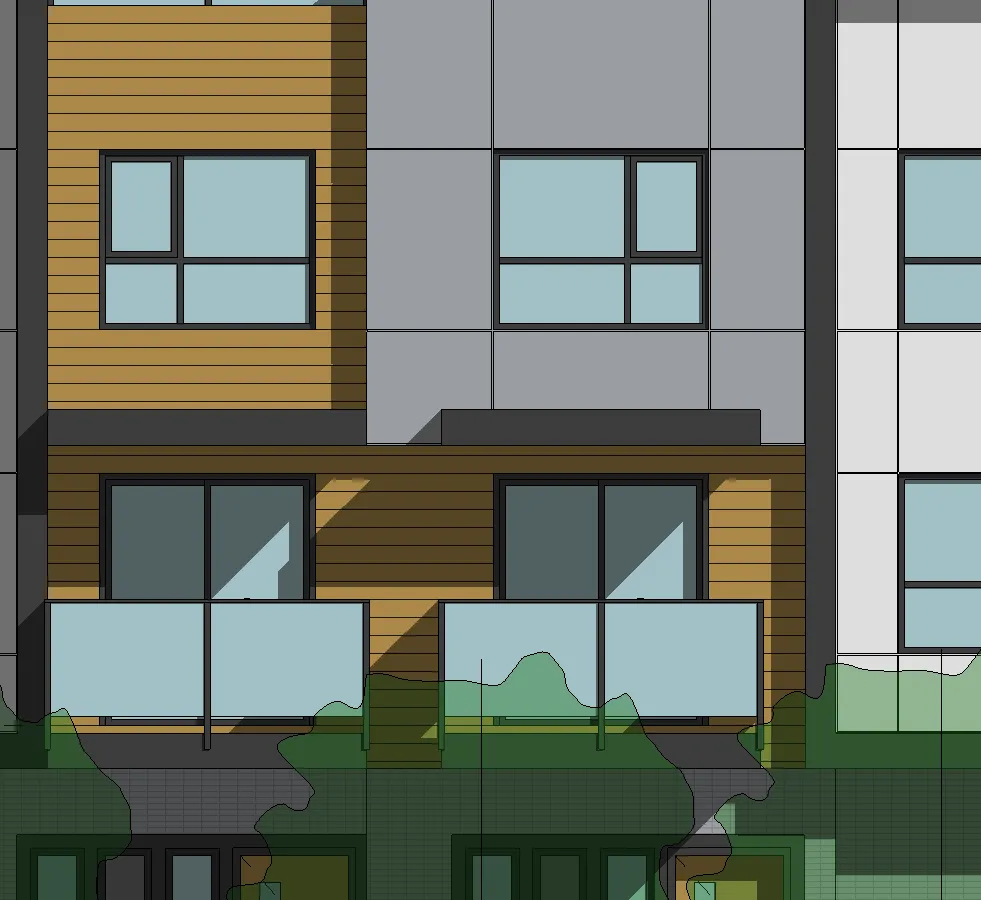

Balcony and sliding glass door facade detail
Balcony and sliding glass door facade detail

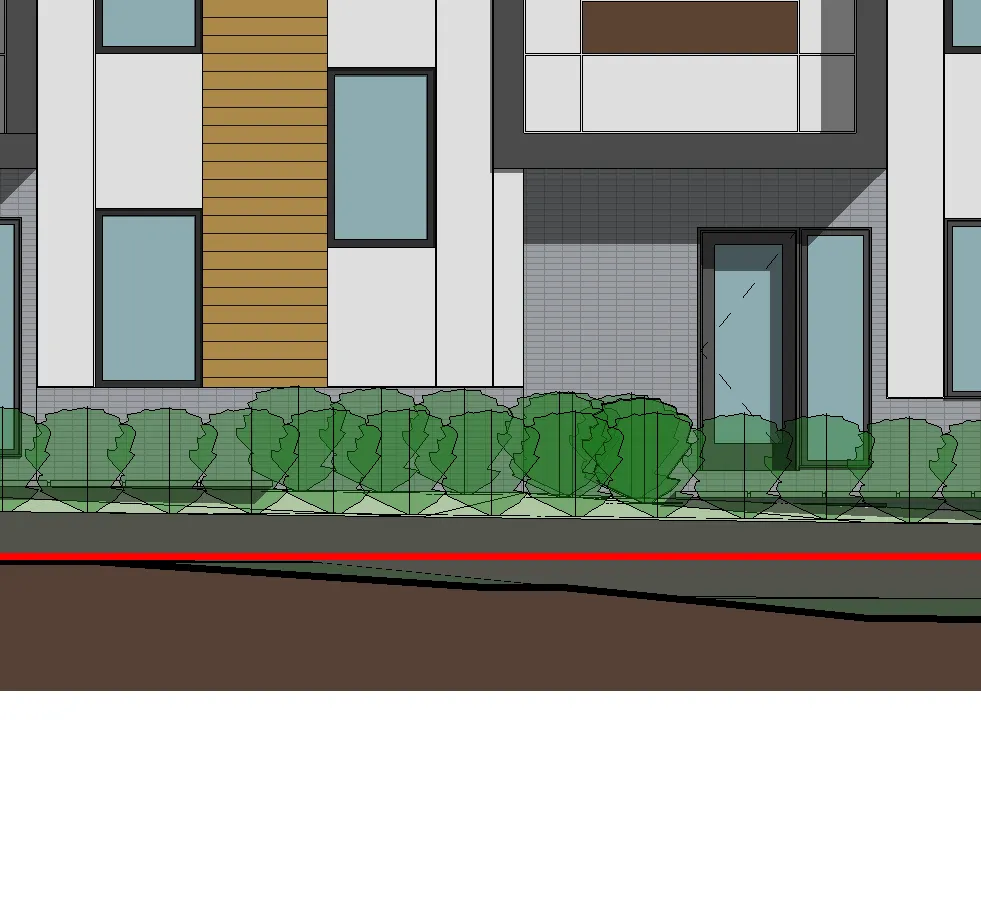

Ground level detail showing landscaping and grade line
Ground level detail showing landscaping and grade line
Cedar stained wood paneling detail on facade
Cedar stained wood paneling detail on facade

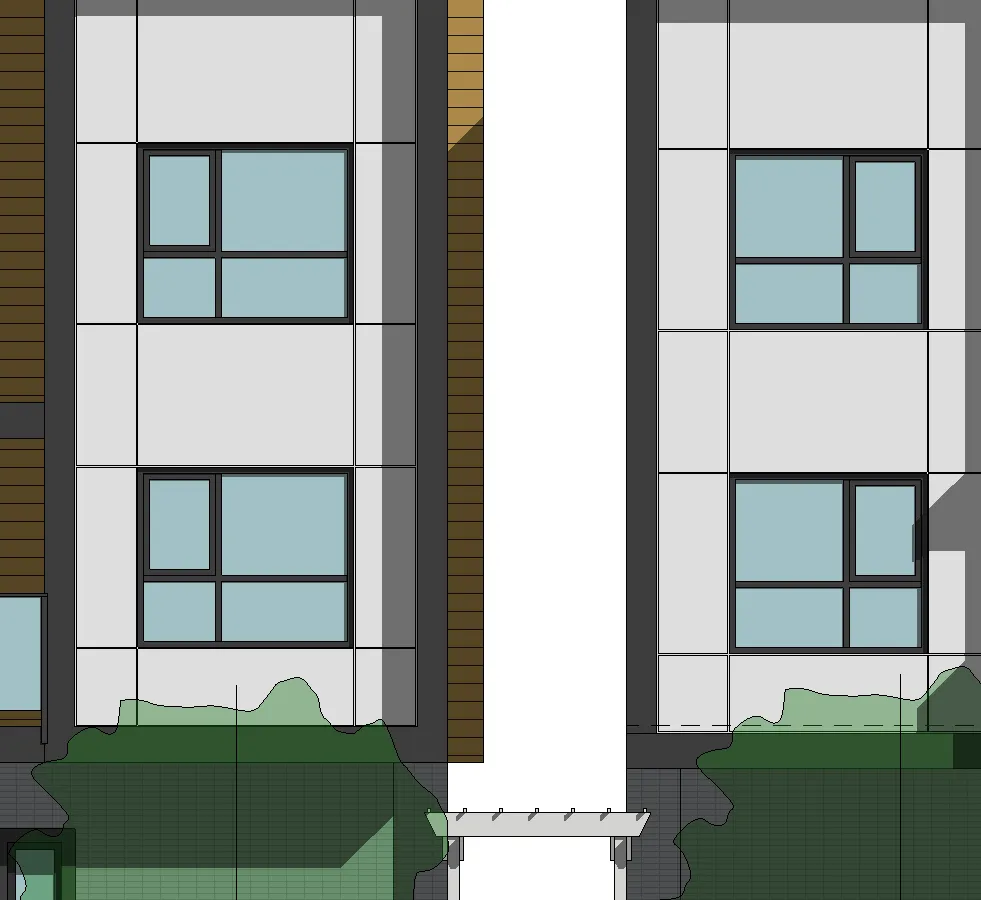

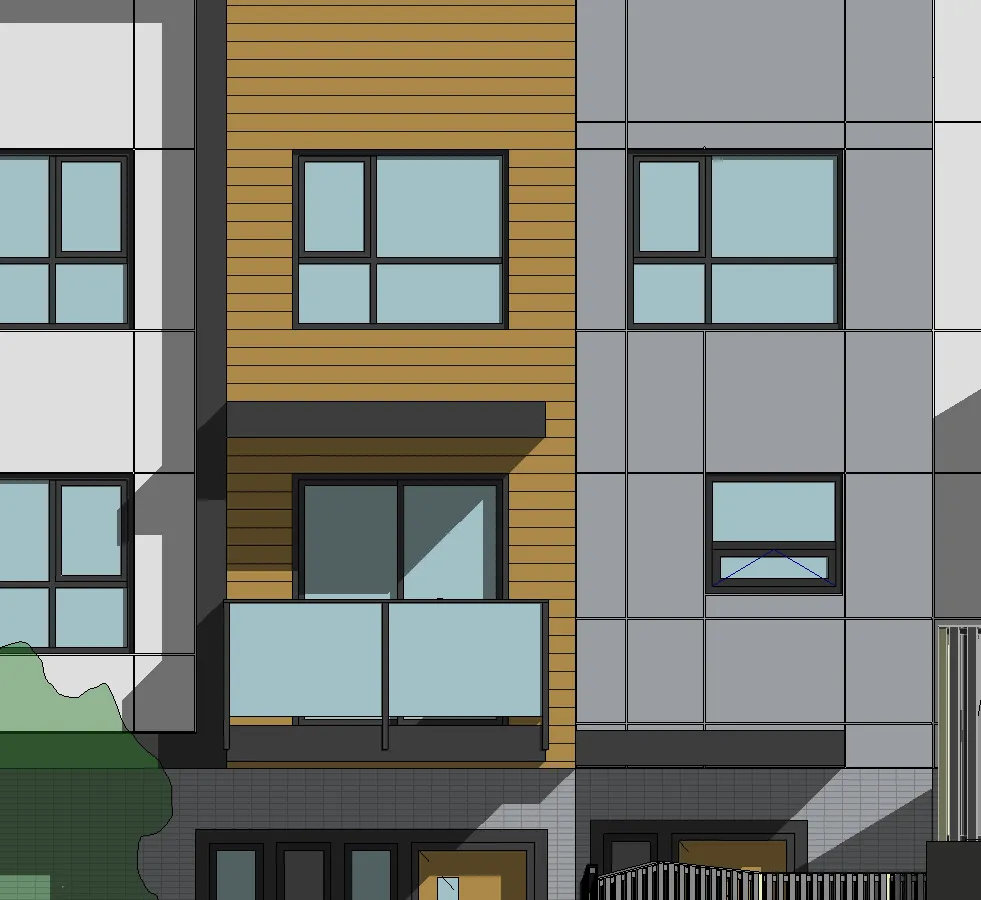

Building facade window and vertical panel detail
Building facade window and vertical panel detail

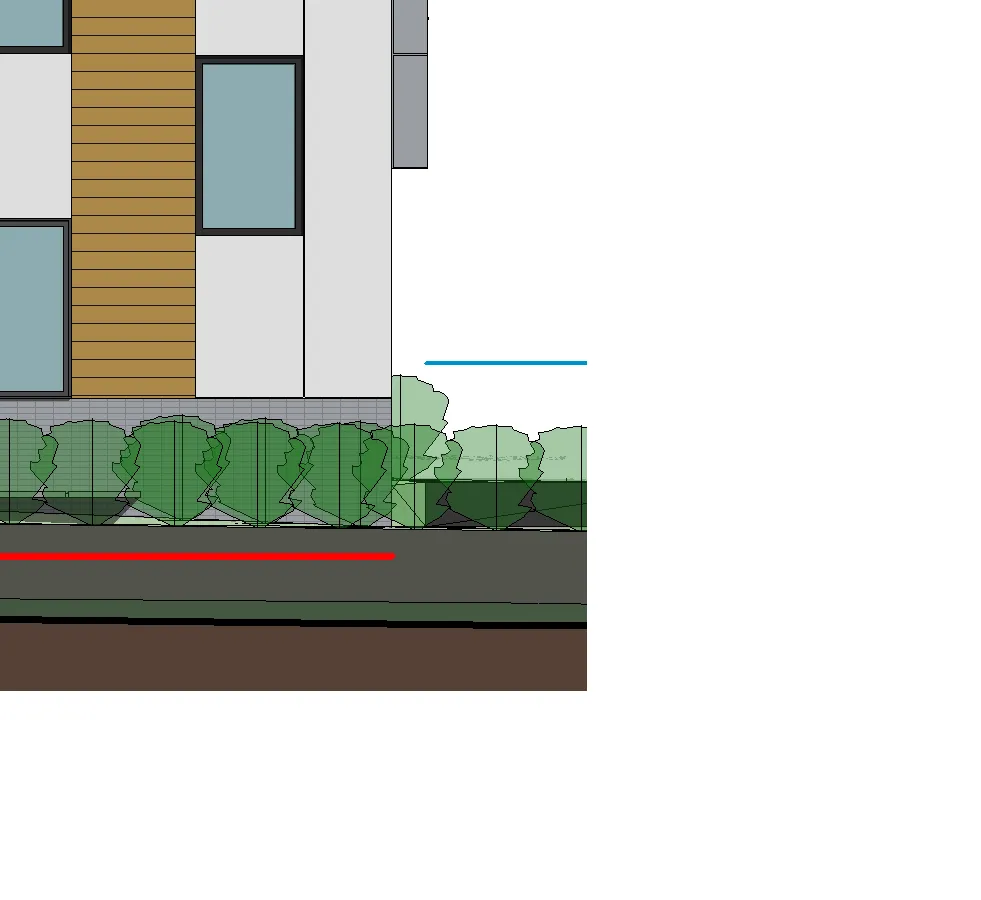

Ground level detail with red grade line
Ground level detail with red grade line
Detailed view of balcony and fiber cement paneling
Detailed view of balcony and fiber cement paneling

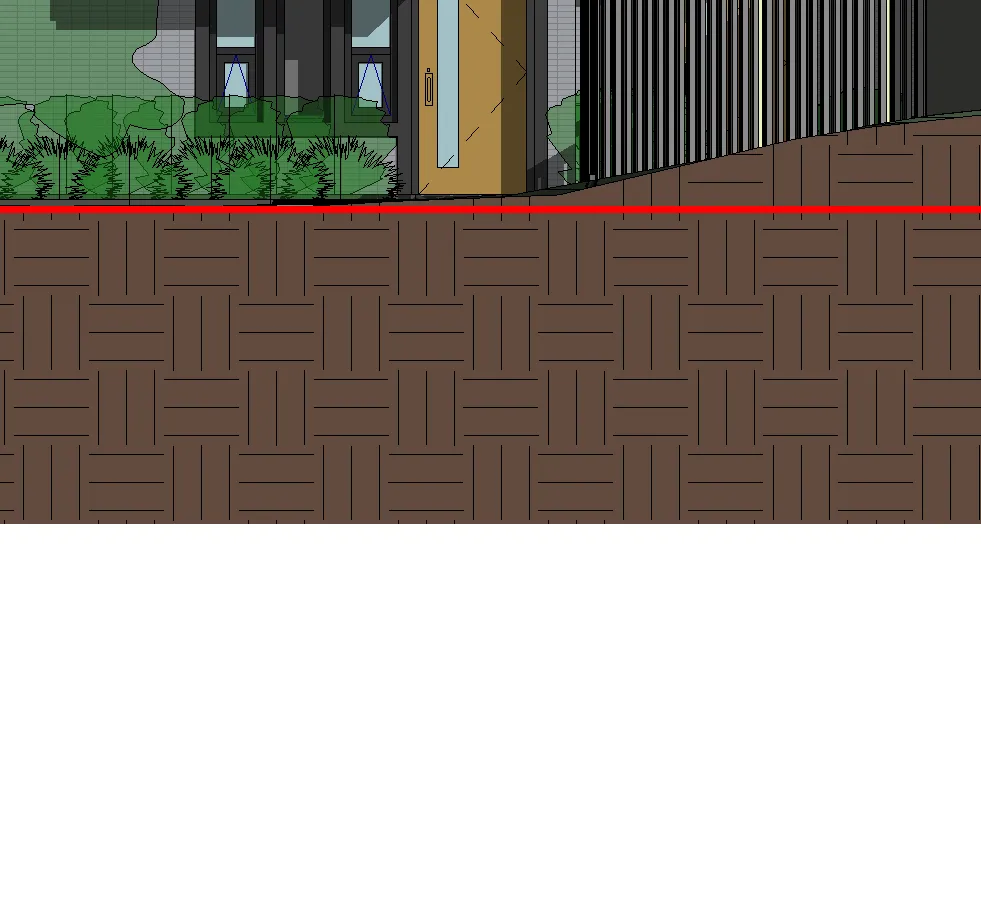

Detail of ground plane with red line
Detail of ground plane with red line

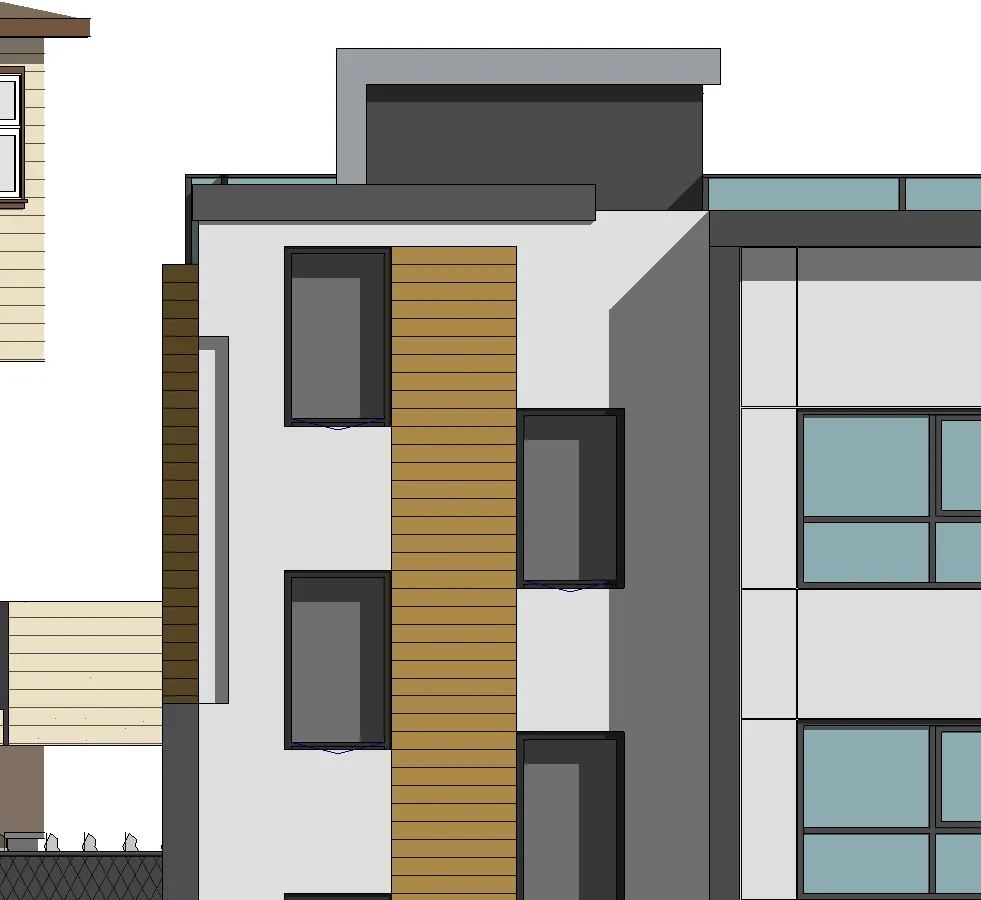

Building facade detail showing light grey paneling
Building facade detail showing light grey paneling

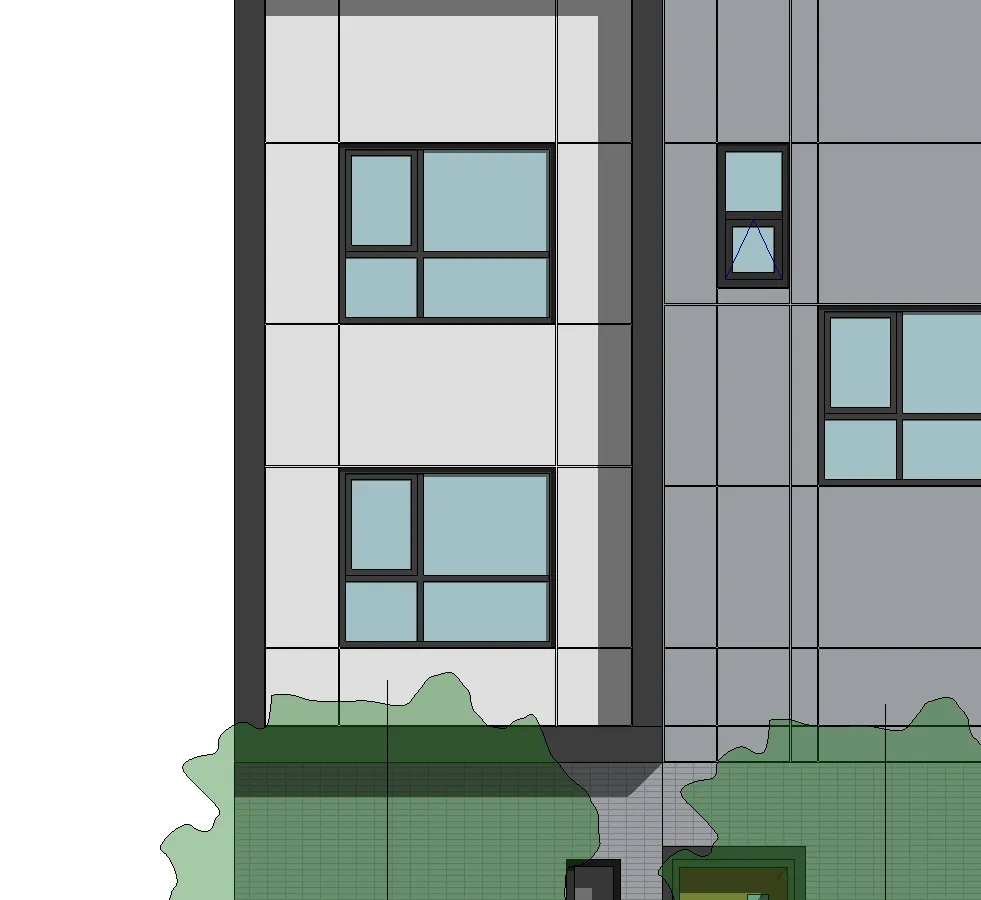

Close-up of site entry trellis
Close-up of site entry trellis

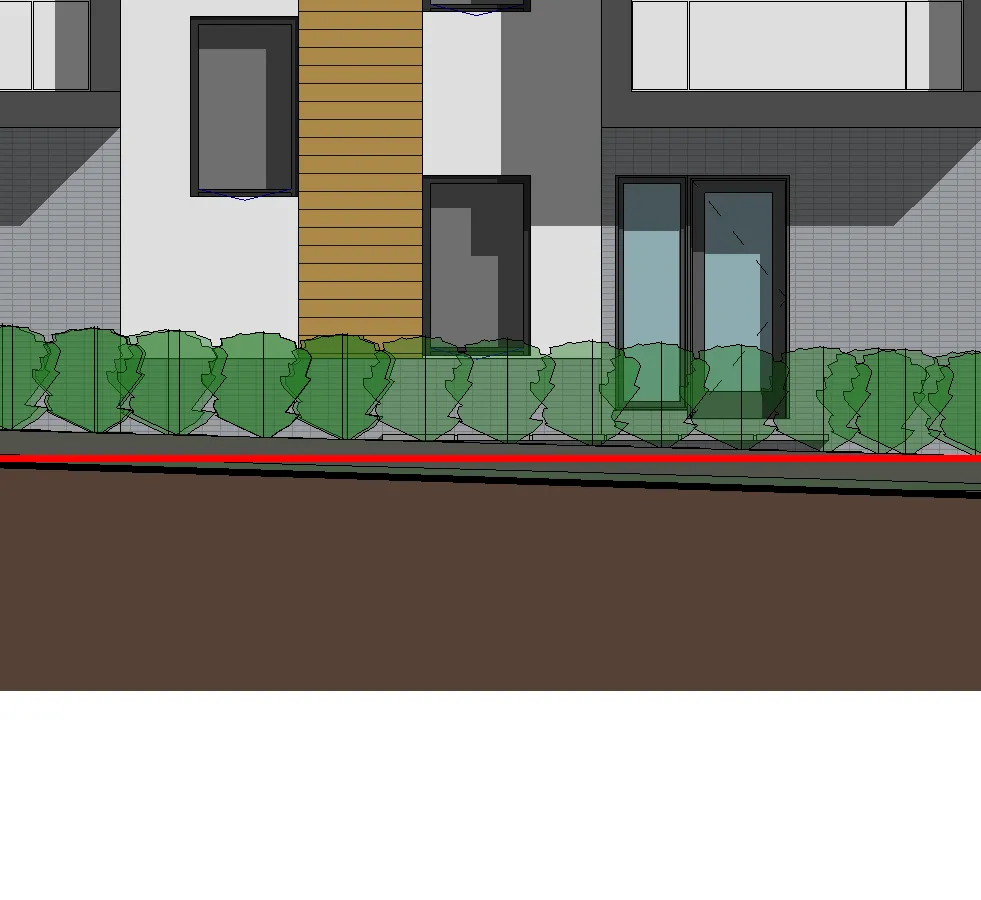

Detail of facade materials and window frames
Detail of facade materials and window frames

2 NORTH ELEVATION

Scale 1 : 100

This elevation shows Building 5 and Building 4.

  • Building 5: Located between grid lines J and F. Includes playground equipment (15) and views of residential neighbours (beyond).
  • Building 4: Located between grid lines D and A.
  • Building Heights:
    • Building 5: 11.1 m
    • Building 4: 11.57 m
  • Elevations:
    • EL. 26.35 m
    • EL. 25.88 m AVG. GRADE
    • EL. 25.05 m AVG. GRADE

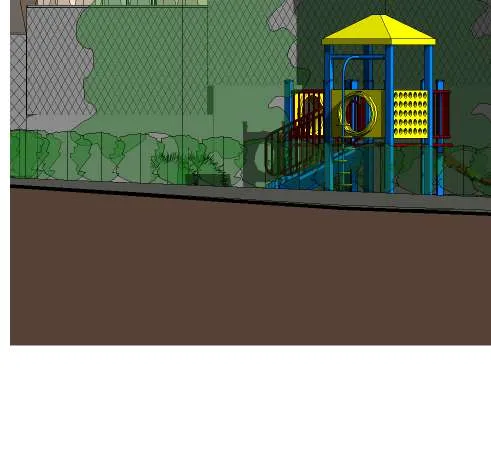

Detail of playground equipment at Building 5
Detail of playground equipment at Building 5

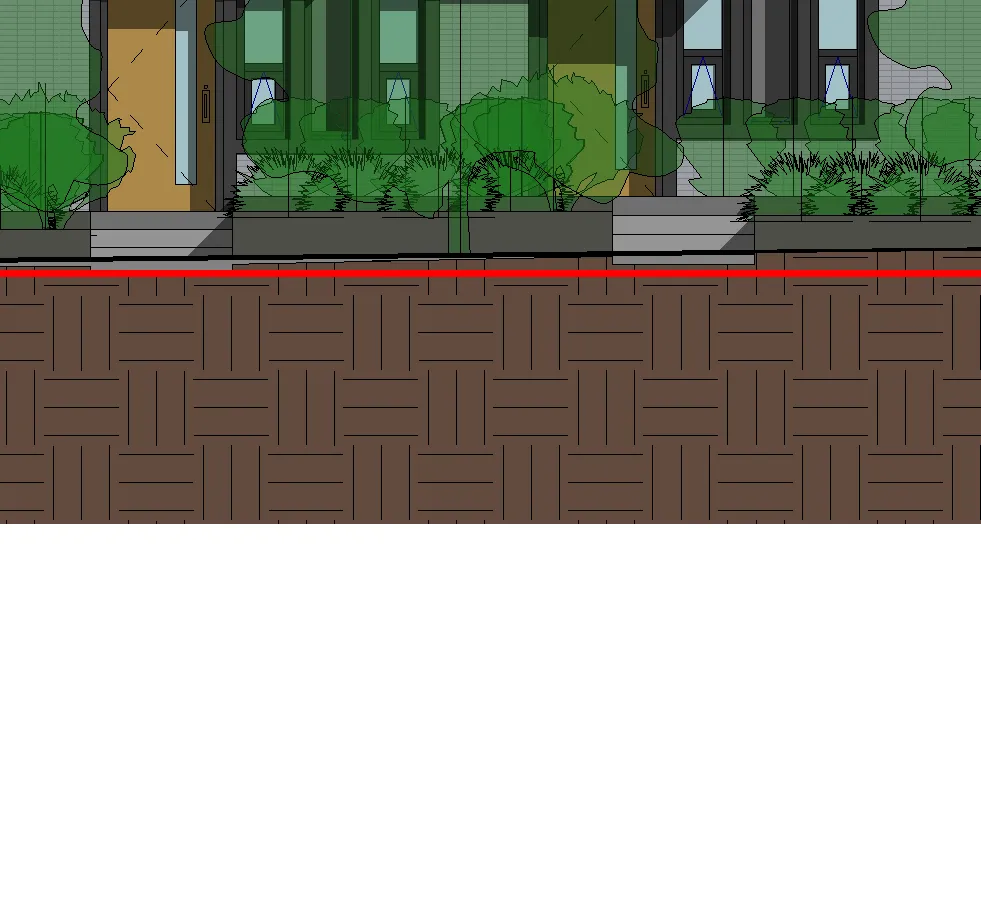

Detailed view of grade line at north elevation
Detailed view of grade line at north elevation
Roofline and top floor detail of Building 4
Roofline and top floor detail of Building 4
Facade window and panel detail
Facade window and panel detail

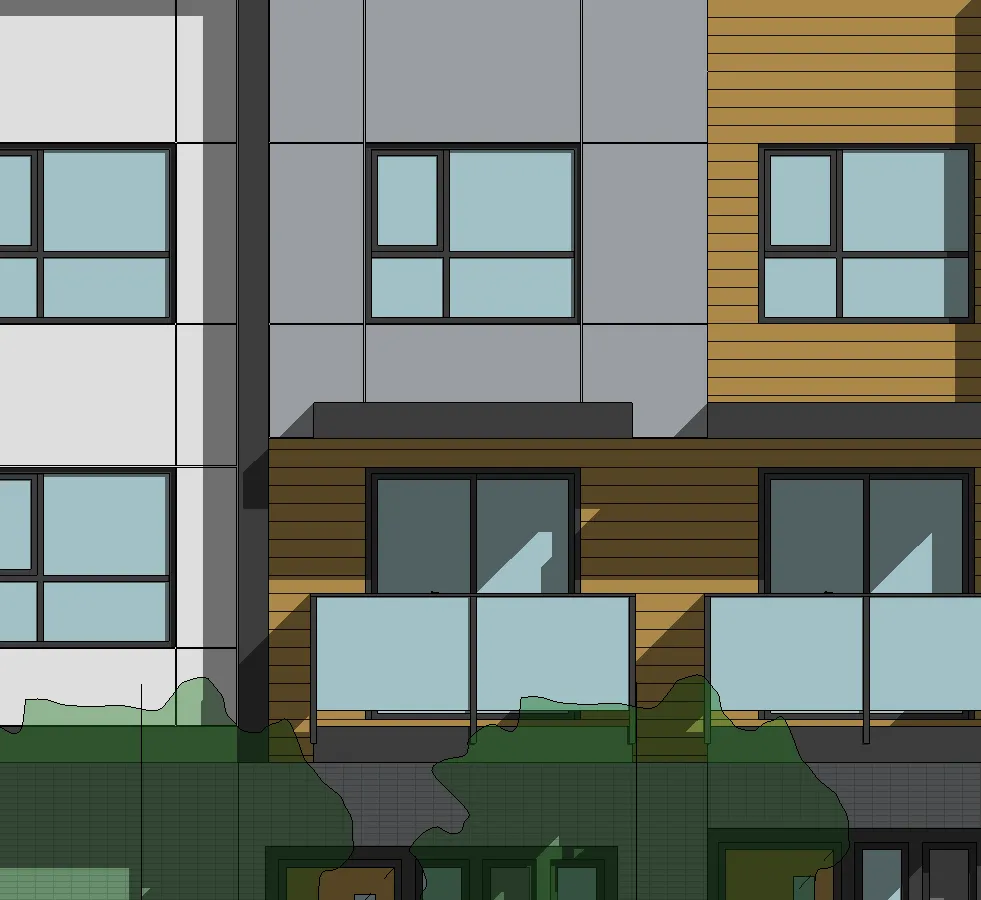

Top floor architectural detail
Top floor architectural detail

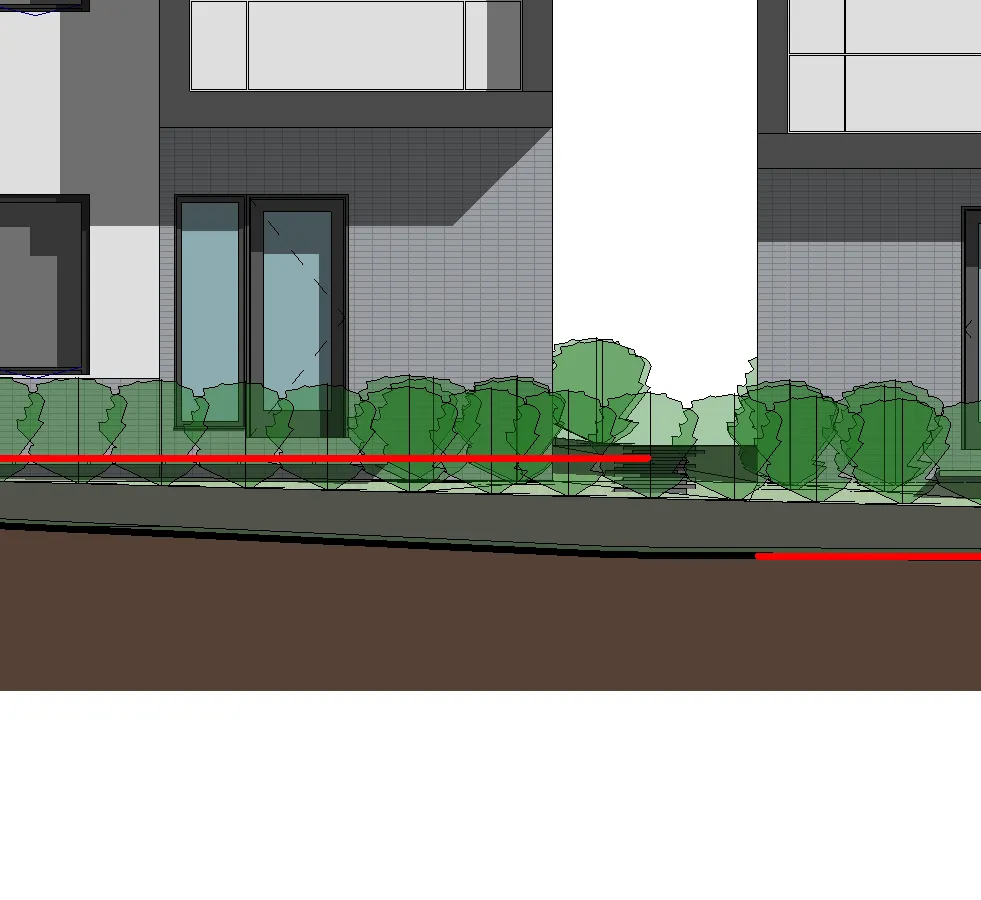

Facade fiber cement panel color detail
Facade fiber cement panel color detail
Balcony detail on Building 4 facade
Balcony detail on Building 4 facade
Building facade window detail
Building facade window detail

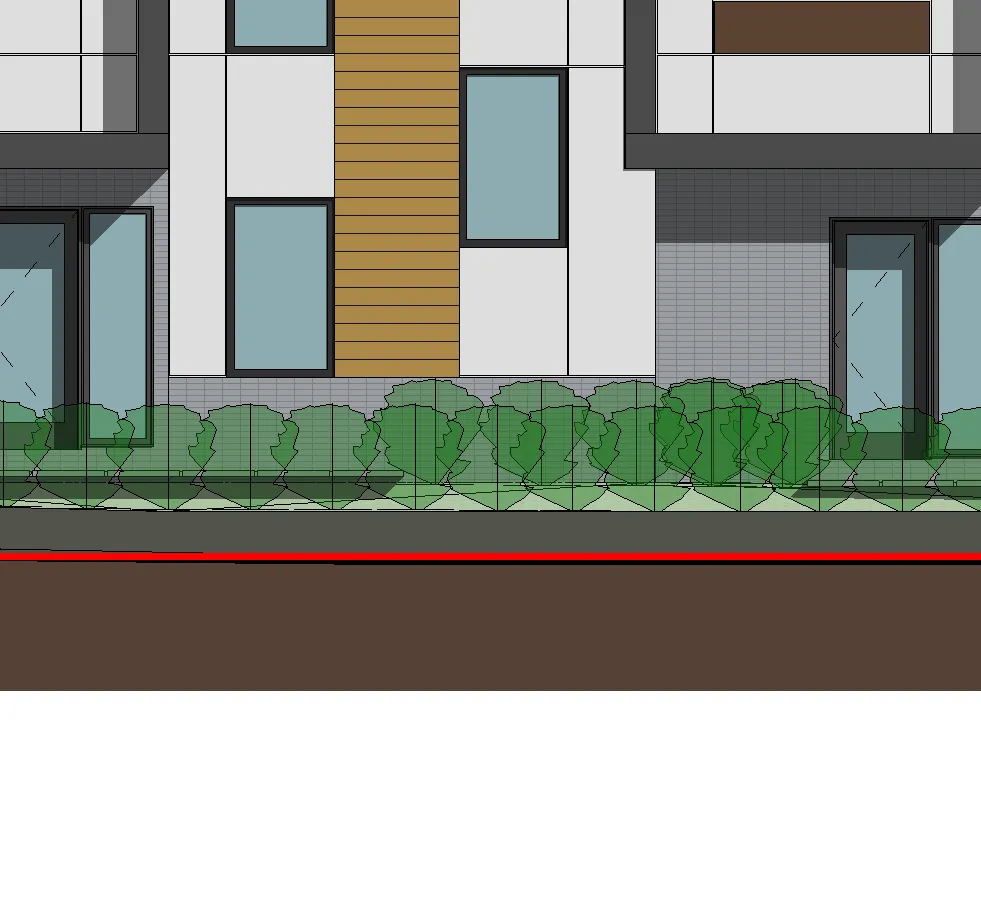

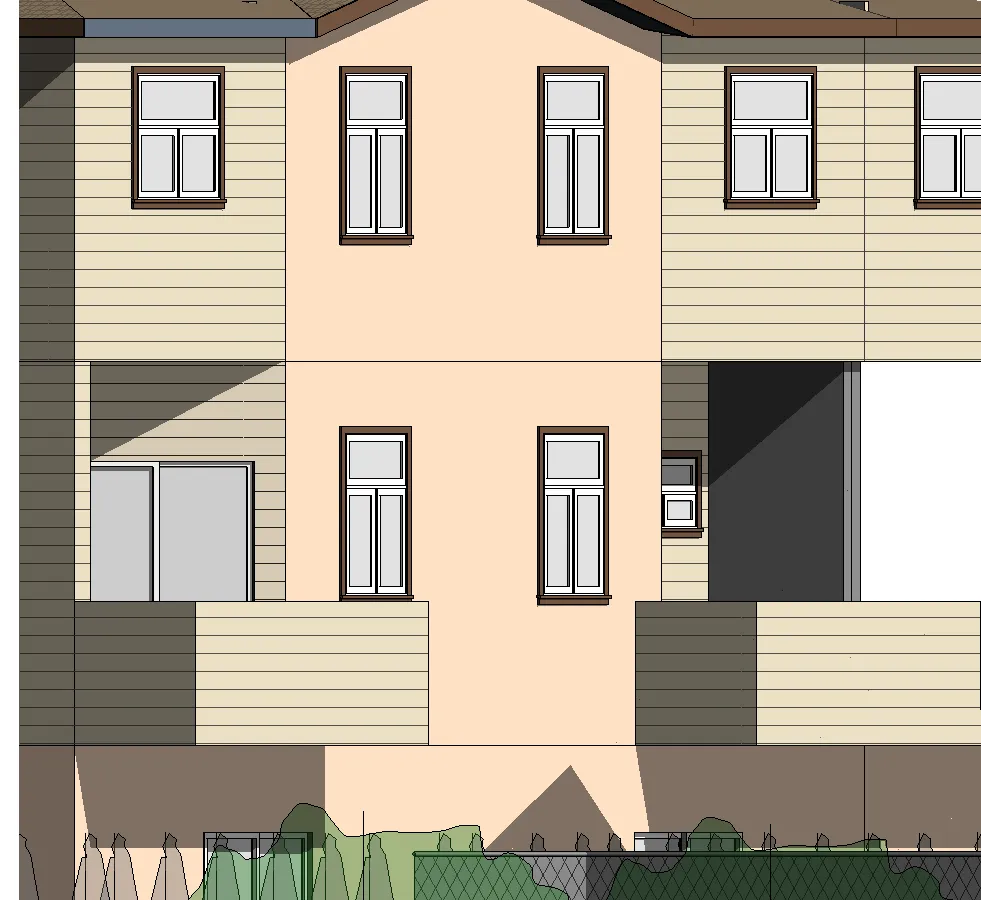

Detail of existing residential neighbour building beyond the site
Detail of existing residential neighbour building beyond the site
Building facade paneling and window details
Building facade paneling and window details
Top floor architectural details including wood roof fascia
Top floor architectural details including wood roof fascia
Detail of windows and facade panels
Detail of windows and facade panels
Roofline detail on Building 5
Roofline detail on Building 5
Detail of cedar stained wood panels and windows on Building 5
Detail of cedar stained wood panels and windows on Building 5
Detailed view of a second-floor balcony
Detailed view of a second-floor balcony

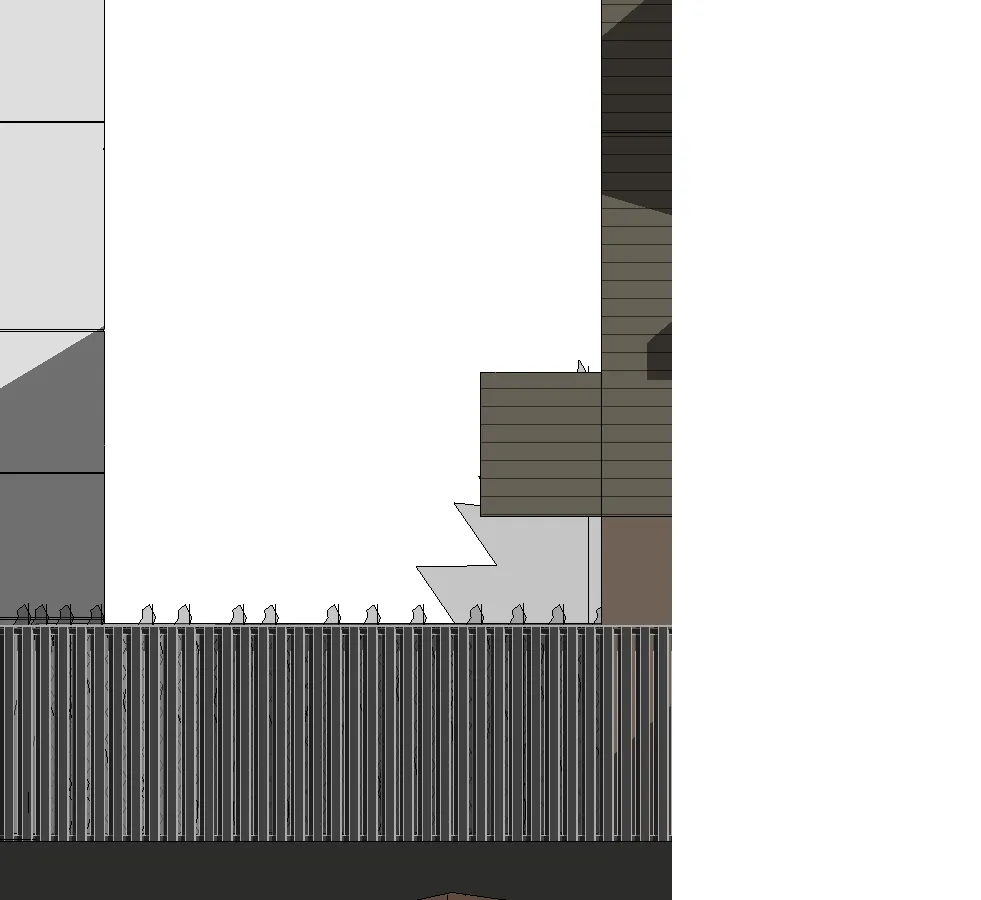

Detail of the building's upper facade
Detail of the building's upper facade

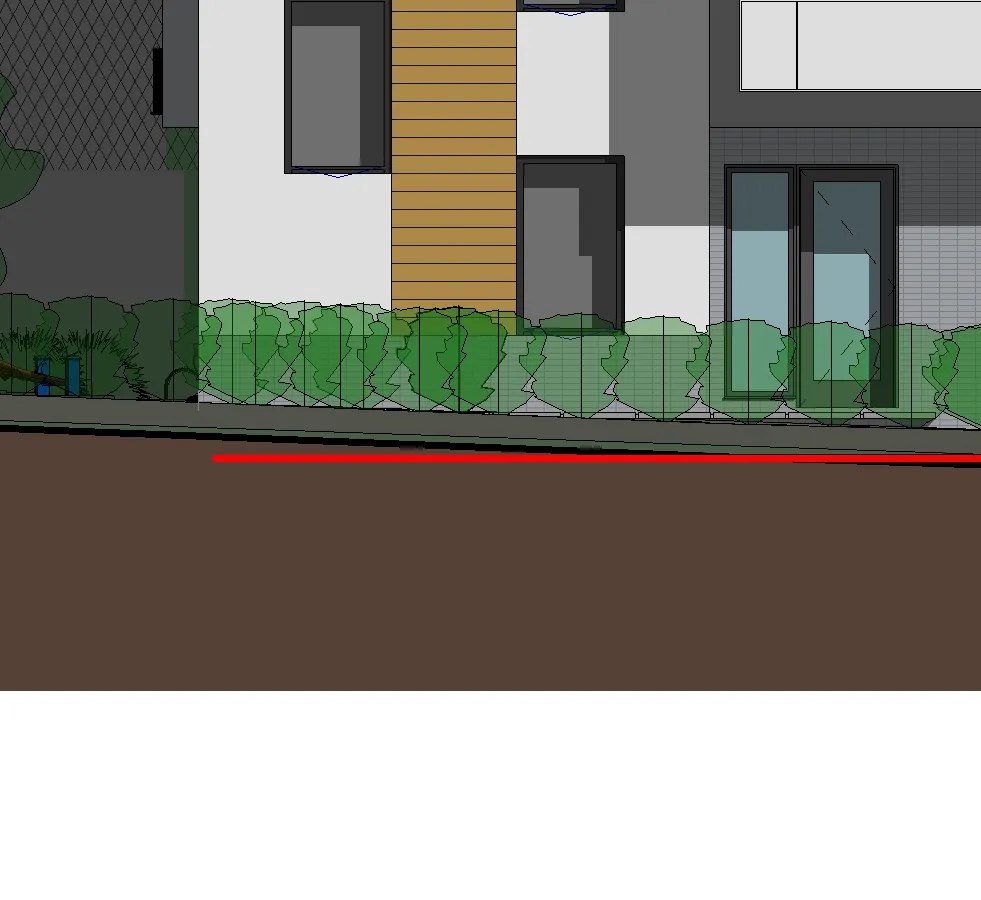

Facade detail showing light grey fiber cement panels
Facade detail showing light grey fiber cement panels

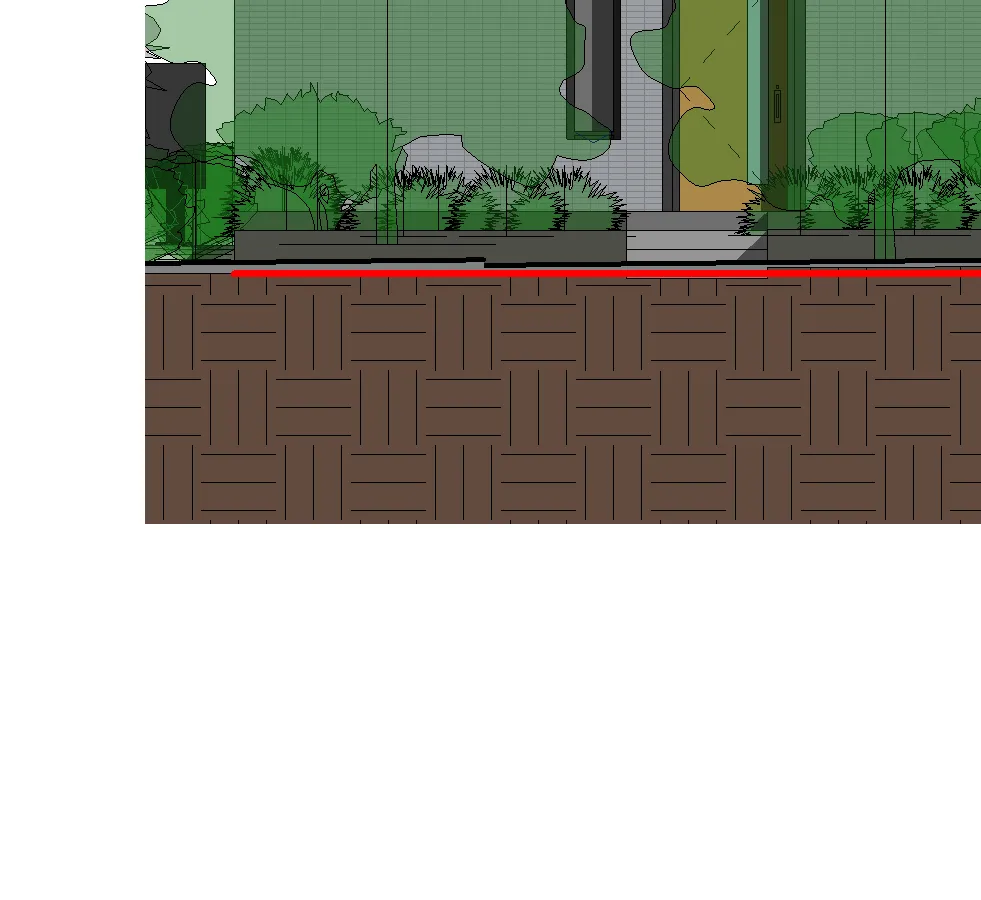

Detail of existing building on neighbouring property
Detail of existing building on neighbouring property
Façade detail with wood texture panels
Façade detail with wood texture panels
Page 49

Submission History

Date (YYYY-MM-DD) Description
2022-06-06 Issued for Rezoning
2023-09-14 Issued for Rezoning
2023-12-06 Issued for Rezoning
2024-07-11 Issued for Development Permit
Page 49

Revision History

No. Date Description
Page 49

Drawing Details

Scale: 1 : 100 DWG. NO: A200 Plot Date: 2024-07-11 2:58:23 PM File Name: 2130_01_MAIN_R23_CF_DP_242 Helmcken Road, Victoria_danieldTGBM4.rvt

All Drawings in this set to be read in conjunction with each other. Any errors or discrepancies to be reported to the Architect before commencing work. Contractors are responsible to ensure that all work is executed to the requirements of the appropriate Building Code Authority. © Copyright Ankenman Marchand Architects. All rights reserved.
