Transportation Review Report Appendices (Site Plans, Traffic Counts, Capacity Analysis)
Technical data supporting the transportation review, including detailed intersection traffic counts and computer-modeled capacity reports.
Appendix A
Project Development Site Plan
Appendix B
Intersection Turning Movement Traffic Count Data
15-Unit Townhouses Traffic Impact Assessment, View Royal, Victoria, BC Intersection: Helmcken Road and Eltham Road Count Date: 12/13/2022 Count Day: Tuesday Counted By: Addoz Engineering Inc.
ALL VEHICLES
AM Peak Hour Traffic Count at Helmcken Road and Eltham Road Intersection
| Time Period | Eltham Road, WB L | Eltham Road, WB T | Eltham Road, WB R | Helmcken Road, NB L | Helmcken Road, NB T | Helmcken Road, NB R | Helmcken Road, SB L | Helmcken Road, SB T | Helmcken Road, SB R | Sum | 4-P Total | PHF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7:00 - 7:15 | 0 | 0 | 0 | 3 | 0 | 2 | 0 | 28 | 1 | 1 | 59 | 0 |
| 7:15 - 7:30 | 0 | 0 | 0 | 2 | 0 | 5 | 0 | 19 | 0 | 3 | 78 | 0 |
| 7:30 - 7:45 | 0 | 0 | 0 | 5 | 0 | 3 | 0 | 38 | 1 | 3 | 80 | 0 |
| 7:45 - 8:00 | 0 | 0 | 0 | 2 | 0 | 3 | 0 | 57 | 1 | 2 | 61 | 0 |
| 8:00 - 8:15 | 0 | 0 | 0 | 2 | 0 | 3 | 0 | 49 | 2 | 2 | 81 | 0 |
| 8:15 - 8:30 | 0 | 0 | 0 | 2 | 0 | 3 | 0 | 59 | 4 | 1 | 75 | 0 |
| 8:30 - 8:45 | 0 | 0 | 0 | 2 | 0 | 6 | 0 | 78 | 2 | 0 | 72 | 0 |
| 8:45 - 9:00 | 0 | 0 | 0 | 1 | 0 | 3 | 0 | 53 | 2 | 1 | 85 | 0 |
| Peak Hour | 0 | 0 | 0 | 7 | 0 | 15 | 0 | 239 | 10 | 4 | 313 | 0 |
| App Total | 0 | 22 | 249 | 317 | ||||||||
| HV % | 0% | 5% | 4% | 1% |
PM Peak Hour Traffic Count at Helmcken Road and Eltham Road Intersection
| Time Period | Eltham Road, WB L | Eltham Road, WB T | Eltham Road, WB R | Helmcken Road, NB L | Helmcken Road, NB T | Helmcken Road, NB R | Helmcken Road, SB L | Helmcken Road, SB T | Helmcken Road, SB R | Sum | 4-P Total | PHF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4:00 - 4:15 | 0 | 0 | 0 | 5 | 0 | 3 | 0 | 46 | 2 | 3 | 56 | 0 |
| 4:15 - 4:30 | 0 | 0 | 0 | 5 | 0 | 4 | 0 | 60 | 4 | 3 | 62 | 0 |
| 4:30 - 4:45 | 0 | 0 | 0 | 2 | 0 | 4 | 0 | 74 | 4 | 4 | 45 | 0 |
| 4:45 - 5:00 | 0 | 0 | 0 | 0 | 0 | 4 | 0 | 57 | 3 | 3 | 66 | 0 |
| 5:00 - 5:15 | 0 | 0 | 0 | 1 | 0 | 4 | 0 | 53 | 2 | 4 | 52 | 0 |
| 5:15 - 5:30 | 0 | 0 | 0 | 0 | 0 | 3 | 0 | 47 | 3 | 2 | 61 | 0 |
| 5:30 - 5:45 | 0 | 0 | 0 | 1 | 0 | 2 | 0 | 52 | 5 | 1 | 48 | 0 |
| 5:45 - 6:00 | 0 | 0 | 0 | 2 | 0 | 0 | 0 | 33 | 2 | 2 | 49 | 0 |
| Peak Hour | 0 | 0 | 0 | 8 | 0 | 16 | 0 | 244 | 13 | 14 | 225 | 0 |
| App Total | 0 | 24 | 257 | 239 | ||||||||
| HV % | 0% | 0% | 3% | 3% |

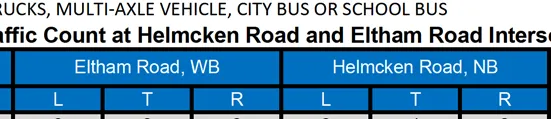

TRUCKS, MULTI-AXLE VEHICLE, CITY BUS OR SCHOOL BUS
AM Peak Hour Traffic Count at Helmcken Road and Eltham Road Intersection
| Time Period | Eltham Road, WB L | Eltham Road, WB T | Eltham Road, WB R | Helmcken Road, NB L | Helmcken Road, NB T | Helmcken Road, NB R | Helmcken Road, SB L | Helmcken Road, SB T | Helmcken Road, SB R | Sum |
|---|---|---|---|---|---|---|---|---|---|---|
| 7:00 - 7:15 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 |
| 7:15 - 7:30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 7:30 - 7:45 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 |
| 7:45 - 8:00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 0 | 0 |
| 8:00 - 8:15 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 |
| 8:15 - 8:30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 3 | 0 | 0 |
| 8:30 - 8:45 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 2 | 1 | 0 |
| 8:45 - 9:00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 0 | 0 |
| Peak Hour | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 8 | 1 | 0 |
| App Total | 0 | 1 | 9 |
PM Peak Hour Traffic Count at Helmcken Road and Eltham Road Intersection
| Time Period | Eltham Road, WB L | Eltham Road, WB T | Eltham Road, WB R | Helmcken Road, NB L | Helmcken Road, NB T | Helmcken Road, NB R | Helmcken Road, SB L | Helmcken Road, SB T | Helmcken Road, SB R | Sum |
|---|---|---|---|---|---|---|---|---|---|---|
| 4:00 - 4:15 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 |
| 4:15 - 4:30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 0 | 0 |
| 4:30 - 4:45 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 |
| 4:45 - 5:00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 |
| 5:00 - 5:15 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 3 | 0 | 0 |
| 5:15 - 5:30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 |
| 5:30 - 5:45 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 0 | 0 |
| 5:45 - 6:00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 |
| Peak Hour | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 7 | 0 | 0 |
| App Total | 0 | 0 | 7 |

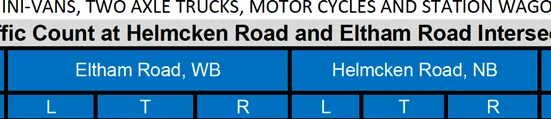

PASSENGER CARS, MINI-VANS, TWO AXLE TRUCKS, MOTOR CYCLES AND STATION WAGONS
AM Peak Hour Traffic Count at Helmcken Road and Eltham Road Intersection
| Time Period | Eltham Road, WB L | Eltham Road, WB T | Eltham Road, WB R | Helmcken Road, NB L | Helmcken Road, NB T | Helmcken Road, NB R | Helmcken Road, SB L | Helmcken Road, SB T | Helmcken Road, SB R | Sum |
|---|---|---|---|---|---|---|---|---|---|---|
| 7:00 - 7:15 | 0 | 0 | 0 | 3 | 0 | 2 | 0 | 27 | 1 | 1 |
| 7:15 - 7:30 | 0 | 0 | 0 | 2 | 0 | 5 | 0 | 19 | 0 | 3 |
| 7:30 - 7:45 | 0 | 0 | 0 | 5 | 0 | 3 | 0 | 37 | 1 | 3 |
| 7:45 - 8:00 | 0 | 0 | 0 | 2 | 0 | 3 | 0 | 55 | 1 | 2 |
| 8:00 - 8:15 | 0 | 0 | 0 | 2 | 0 | 3 | 0 | 48 | 2 | 2 |
| 8:15 - 8:30 | 0 | 0 | 0 | 2 | 0 | 3 | 0 | 56 | 4 | 1 |
| 8:30 - 8:45 | 0 | 0 | 0 | 2 | 0 | 5 | 0 | 76 | 1 | 0 |
| 8:45 - 9:00 | 0 | 0 | 0 | 1 | 0 | 3 | 0 | 51 | 2 | 1 |
| Peak Hour | 0 | 0 | 0 | 7 | 0 | 14 | 0 | 231 | 9 | 4 |
| App Total | 0 | 21 | 240 |
PM Peak Hour Traffic Count at Helmcken Road and Eltham Road Intersection
| Time Period | Eltham Road, WB L | Eltham Road, WB T | Eltham Road, WB R | Helmcken Road, NB L | Helmcken Road, NB T | Helmcken Road, NB R | Helmcken Road, SB L | Helmcken Road, SB T | Helmcken Road, SB R | Sum |
|---|---|---|---|---|---|---|---|---|---|---|
| 4:00 - 4:15 | 0 | 0 | 0 | 5 | 0 | 3 | 0 | 45 | 2 | 3 |
| 4:15 - 4:30 | 0 | 0 | 0 | 5 | 0 | 4 | 0 | 58 | 4 | 3 |
| 4:30 - 4:45 | 0 | 0 | 0 | 2 | 0 | 4 | 0 | 73 | 4 | 4 |
| 4:45 - 5:00 | 0 | 0 | 0 | 0 | 0 | 4 | 0 | 56 | 3 | 3 |
| 5:00 - 5:15 | 0 | 0 | 0 | 1 | 0 | 4 | 0 | 50 | 2 | 4 |
| 5:15 - 5:30 | 0 | 0 | 0 | 0 | 0 | 3 | 0 | 46 | 3 | 2 |
| 5:30 - 5:45 | 0 | 0 | 0 | 1 | 0 | 2 | 0 | 50 | 5 | 1 |
| 5:45 - 6:00 | 0 | 0 | 0 | 2 | 0 | 0 | 0 | 32 | 2 | 2 |
| Peak Hour | 0 | 0 | 0 | 8 | 0 | 16 | 0 | 237 | 13 | 14 |
| App Total | 0 | 24 | 250 |
BICYCLE AND PEDESTRIAN TRAFFIC
AM Peak Hour Traffic Count at Helmcken Road and Eltham Road Intersection
| Time Period | Eltham Road, WB L | Eltham Road, WB T | Eltham Road, WB R | PED S. Side | Eltham Road, WB L | Eltham Road, WB T | Eltham Road, WB R | PED N. Side | Helmcken Road, NB L | Helmcken Road, NB T | Helmcken Road, NB R | PED E. Side | Helmcken Road, SB L | Helmcken Road, SB T | Helmcken Road, SB R | PED W. Side |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7:00 - 7:15 | 0 | 0 | 0 | - | ||||||||||||
| 7:15 - 7:30 | 0 | 0 | 1 | - | ||||||||||||
| 7:30 - 7:45 | 0 | 0 | 2 | - | ||||||||||||
| 7:45 - 8:00 | 0 | 1 | 2 | - | ||||||||||||
| 8:00 - 8:15 | 0 | 0 | 3 | - | ||||||||||||
| 8:15 - 8:30 | 0 | 3 | 2 | - | ||||||||||||
| 8:30 - 8:45 | 0 | 0 | 3 | - | ||||||||||||
| 8:45 - 9:00 | 0 | 1 | 1 | - | ||||||||||||
| Peak Hour | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 4 | 0 | 0 | 0 | 9 | 0 | 0 | 0 | 0 |
PM Peak Hour Traffic Count at Helmcken Road and Eltham Road Intersection
| Time Period | Eltham Road, WB L | Eltham Road, WB T | Eltham Road, WB R | PED S. Side | Eltham Road, WB L | Eltham Road, WB T | Eltham Road, WB R | PED N. Side | Helmcken Road, NB L | Helmcken Road, NB T | Helmcken Road, NB R | PED E. Side | Helmcken Road, SB L | Helmcken Road, SB T | Helmcken Road, SB R | PED W. Side |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4:00 - 4:15 | 0 | 0 | 0 | - | ||||||||||||
| 4:15 - 4:30 | 0 | 0 | 3 | - | ||||||||||||
| 4:30 - 4:45 | 0 | 0 | 1 | - | ||||||||||||
| 4:45 - 5:00 | 0 | 0 | 2 | - | ||||||||||||
| 5:00 - 5:15 | 0 | 0 | 10 | - | ||||||||||||
| 5:15 - 5:30 | 0 | 0 | 0 | - | ||||||||||||
| 5:30 - 5:45 | 0 | 0 | 3 | - | ||||||||||||
| 5:45 - 6:00 | 0 | 0 | 0 | - | ||||||||||||
| Peak Hour | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 16 | 0 | 1 | 0 | 0 |
Appendix C
Synchro - HCM 6th Edition Capacity Analysis Reports
