Attachment B: Site Sections and 3D Representations

February 6, 2024Pages 182–1865 sections

Architectural drawings and visual renderings for the proposed townhouse development at 294 & 296 Eltham Road and 242 Helmcken Road.

1 CALL TO ORDER- Councillor Rogers, Acting Chair, called the meeting to order at 7:03 p.m.
294 & 296 Eltham Road242 Helmcken RoadAnkenman Marchand ArchitectsJeffrey Sengara

SITE SECTIONS

Project: 2130, Jeffrey Sengara Address: 294 & 296 ELTHAM & 242 HELMCKEN ROAD, VICTORIA, BC. Drawing No: A300 Project Status: RZ/DP Scale: As indicated Architect: ANKENMAN MARCHAND ARCHITECTS, 1645 West 5th Avenue, Vancouver, BC V6J 1N5

SUBMISSION

Date Description
2023-09-14 Issued for Rezoning
2023-12-06 Issued for Rezoning

Drawings

  1. EAST-WEST SECTION AT DRIVEWAY (LOOKING SOUTH) (Scale 1:100) Includes "Building 1", "Outline of 288 Eltham Rd Building", "Visitor Parking", and "Landscaping".

    • Section detail showing building interior and levels
      Section detail showing building interior and levels
    • Section detail of building exterior facade
      Section detail of building exterior facade
    • Landscape and fencing detail in section
      Landscape and fencing detail in section

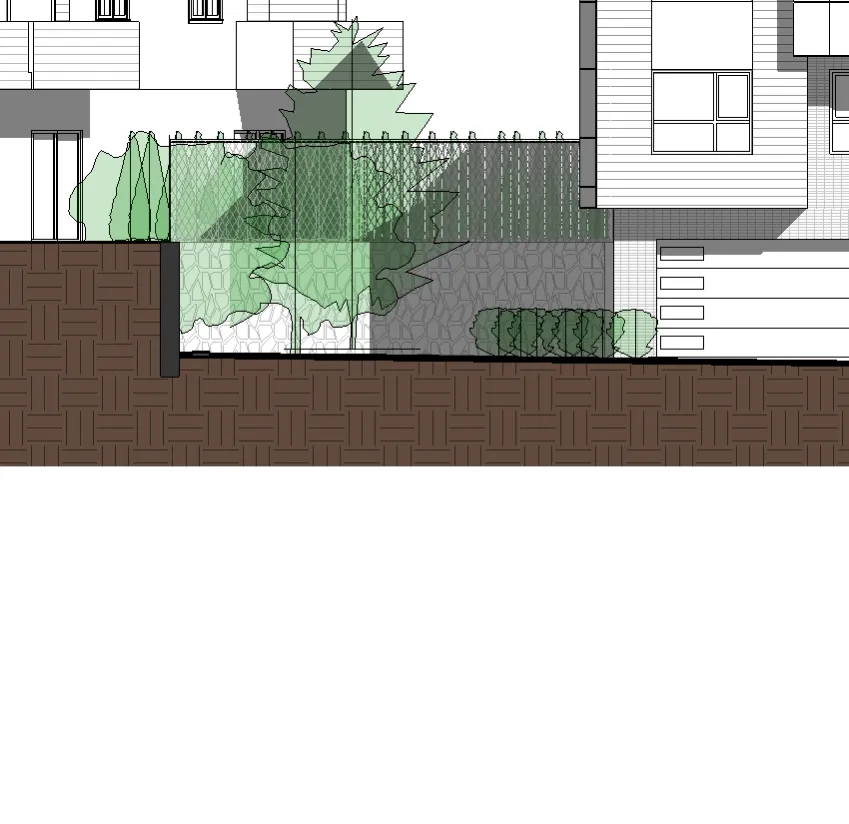

    • Building facade and window detail in section
      Building facade and window detail in section
    • Ground level detail showing garage doors and landscaping
      Ground level detail showing garage doors and landscaping
    • Upper level and roof access detail in section
      Upper level and roof access detail in section

    Building Elevation Levels:

    • ROOF LEVEL: 118.16' (36.02 m)
    • LEVEL 3: 107.50' (32.77 m)
    • LEVEL 2: 97.50' (29.72 m)
    • LEVEL 1: 87.50' (26.67 m)

  2. Section Looking South At Ashley Gate Unit 1 Corner Camera (Scale 1:100)

    • Section view at Unit 1 corner showing 30.00° view cones
      Section view at Unit 1 corner showing 30.00° view cones

  3. Section Looking South At Ashley Gate Unit 3 Camera (Scale 1:100)

    • Includes 30.00° view cones.

  4. Section Looking South At Ashley Gate Unit 4 Corner Camera (Scale 1:100)

    • Includes 30.00° view cones.

Drawing Information:

  • Drawing title block and scale information
    Drawing title block and scale information
Page 182–186

3D REPRESENTATIONS

Project: 2130, Jeffrey Sengara Address: 294 & 296 ELTHAM & 242 HELMCKEN ROAD, VICTORIA, BC. Drawing No: A600 Project Status: RZ/DP

SUBMISSION

Date Description
2022-06-06 Issued for Rezoning
2023-09-14 Issued for Rezoning
2023-12-06 Issued for Rezoning

Renderings

  • FRONT VIEW ALONG ELTHAM RD

    3D perspective rendering of the project along Eltham Road
    3D perspective rendering of the project along Eltham Road

  • ELTHAM VIEW FROM SOUTH CORNER

    3D perspective rendering from the south corner of the property on Eltham Road
    3D perspective rendering from the south corner of the property on Eltham Road

  • FRONT VIEW FROM HELMCKEN RD

    3D perspective rendering of the project frontage along Helmcken Road
    3D perspective rendering of the project frontage along Helmcken Road
Page 182–186

HELMCKEN DEVELOPMENT IMPACT STUDY ON ASHLEY GATE

Project: 2130, Jeffrey Sengara Address: 294 & 296 ELTHAM & 242 HELMCKEN ROAD, VICTORIA, BC. Drawing No: A601 Project Status: RZ/DP Scale: 1 : 500

SUBMISSION

Date Description
2022-06-06 Issued for Rezoning
2023-09-14 Issued for Rezoning
2023-12-06 Issued for Rezoning

Impact Study Renderings - Unit 1 Corner

  • Camera View Looking North West from Ashley Gate Unit 1 Corner - Level 3 (Bedrooms)

    3D view from Ashley Gate Unit 1 Level 3 toward the project
    3D view from Ashley Gate Unit 1 Level 3 toward the project

  • Camera View Looking North West from Ashley Gate Unit 1 Corner - Level 2 Balcony

    3D view from Ashley Gate Unit 1 Level 2 balcony toward the project
    3D view from Ashley Gate Unit 1 Level 2 balcony toward the project
Page 182–186

HELMCKEN DEVELOPMENT IMPACT STUDY ON ASHLEY GATE

Project: 2130, Jeffrey Sengara Address: 294 & 296 ELTHAM & 242 HELMCKEN ROAD, VICTORIA, BC. Drawing No: A602 Project Status: RZ/DP Scale: 1 : 500

SUBMISSION

Date Description
2022-06-06 Issued for Rezoning
2023-09-14 Issued for Rezoning
2023-12-06 Issued for Rezoning

Impact Study Renderings - Unit 3

  • Camera View Looking North West from Ashley Gate Unit 3 - Level 3 (Bedrooms)

    3D view from Ashley Gate Unit 3 Level 3 toward the project
    3D view from Ashley Gate Unit 3 Level 3 toward the project

  • Camera View Looking North West from Ashley Gate Unit 3 - Level 2 Balcony

    3D view from Ashley Gate Unit 3 Level 2 balcony toward the project
    3D view from Ashley Gate Unit 3 Level 2 balcony toward the project
Page 182–186

HELMCKEN DEVELOPMENT IMPACT STUDY ON ASHLEY GATE

Project: 2130, Jeffrey Sengara Address: 294 & 296 ELTHAM & 242 HELMCKEN ROAD, VICTORIA, BC. Drawing No: A603 Project Status: RZ/DP Scale: 1 : 500

SUBMISSION

Date Description
2022-06-06 Issued for Rezoning
2023-09-14 Issued for Rezoning
2023-12-06 Issued for Rezoning

Impact Study Renderings - Unit 4 Corner

  • Camera View Looking North West from Ashley Gate Unit 4 Corner - Level 3 (Bedrooms)

    3D view from Ashley Gate Unit 4 corner Level 3 toward the project
    3D view from Ashley Gate Unit 4 corner Level 3 toward the project

  • Camera View Looking North West from Ashley Gate Unit 4 Corner - Level 2 Balcony

    3D view from Ashley Gate Unit 4 corner Level 2 balcony toward the project
    3D view from Ashley Gate Unit 4 corner Level 2 balcony toward the project
    Wide perspective 3D view from Ashley Gate Unit 4 corner Level 2 balcony
    Wide perspective 3D view from Ashley Gate Unit 4 corner Level 2 balcony
Page 182–186
