Appendix A. Private Recreational Dock Construction Plans and Section View

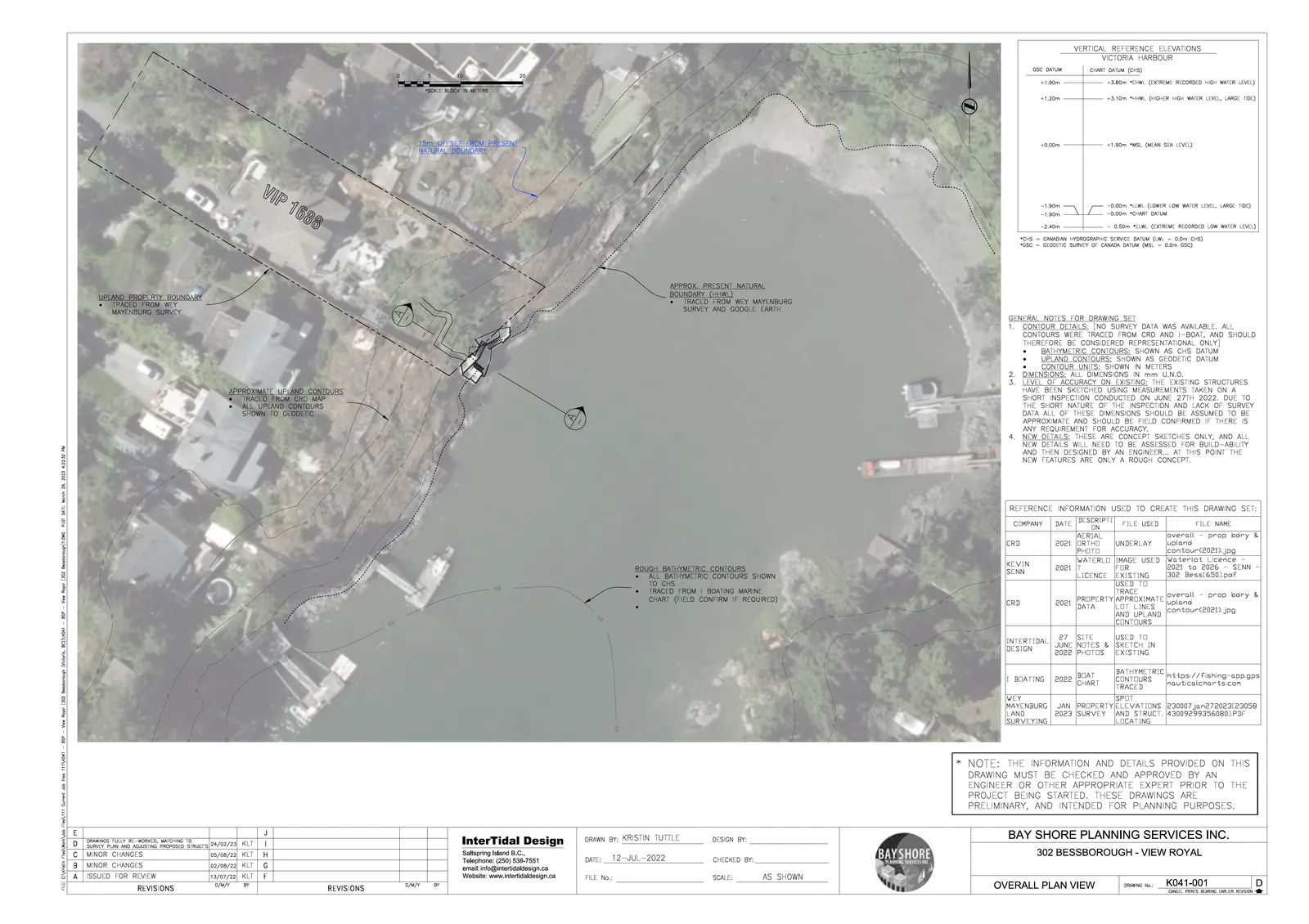

VICTORIA HARBOUR

GSC DATUM	CHART DATUM (CHS)
+1.90m	+3.80m	*EHML (EXTREME RECORDED HIGH WATER LEVEL)
+1.20m	+3.10m	*HHWL (HIGHER HIGH WATER LEVEL, LARGE TIDE)

+0.00m	+1.90m	*MSL (MEAN SEA LEVEL)

-1.90m	-0.00m	*LLWL (LOWER LOW WATER LEVEL, LARGE TIDE)
-1.90m	-0.00m	*CHART DATUM
-2.40m	-0.50m	*ELWL (EXTREME RECORDED LOW WATER LEVEL)

*CHS = CANADIAN HYDROGRAPHIC SERVICE DATUM (U.W. = 0.0m CHS) *GSC = GEODETIC SURVEY OF CANADA DATUM (MSL = 0.0m GSC)

CONTOUR DETAILS: NO SURVEY DATA WAS AVAILABLE. ALL CONTOURS WERE TRACED FROM CRD AND i-BOAT, AND SHOULD THEREFORE BE CONSIDERED REPRESENTATIONAL ONLY:
- BATHYMETRIC CONTOURS: SHOWN AS CHS DATUM
- UPLAND CONTOURS: SHOWN AS GEODETIC DATUM
- CONTOUR UNITS: SHOWN IN METERS
DIMENSIONS: ALL DIMENSIONS IN mm U.N.O.

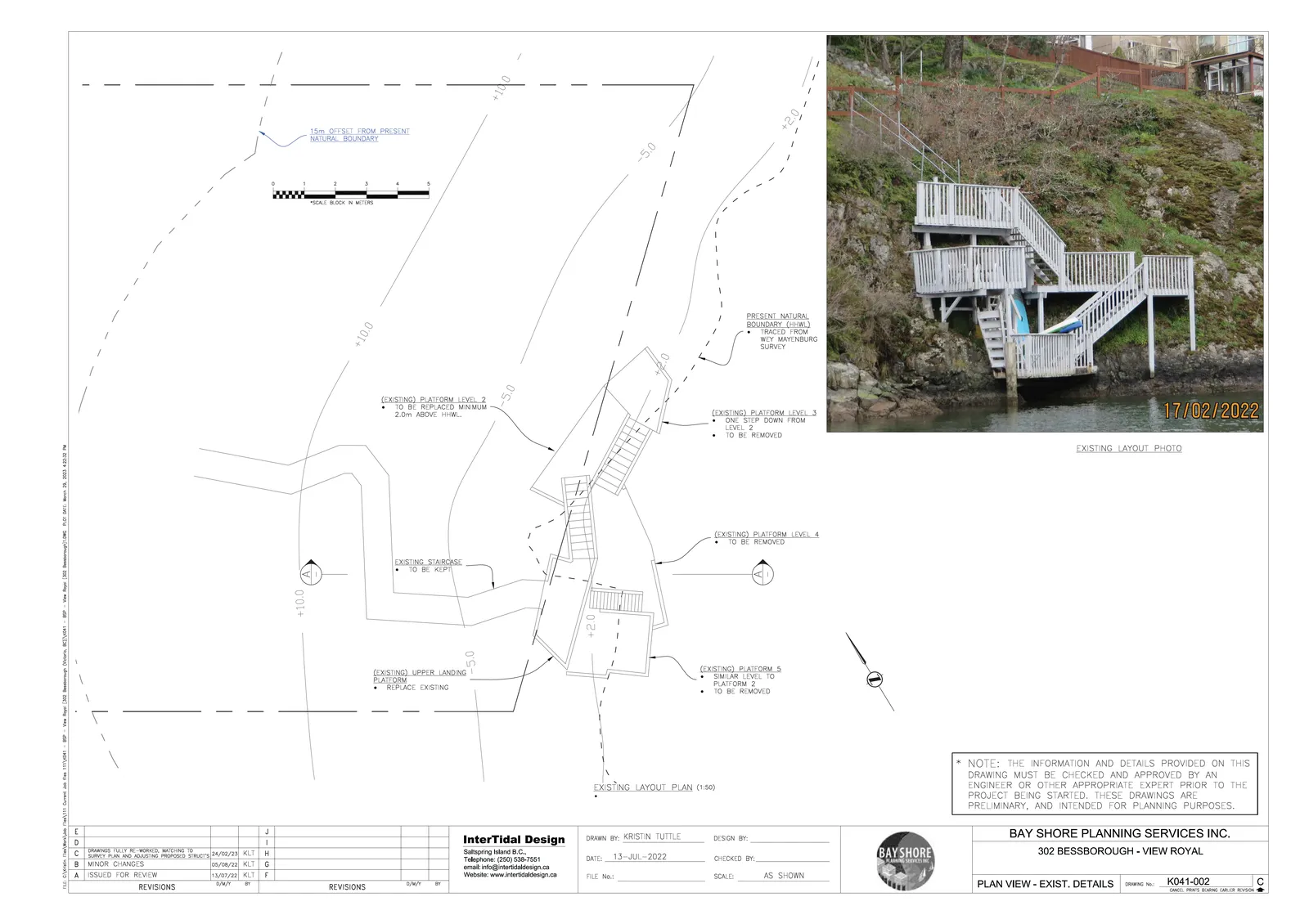

LEVEL OF ACCURACY ON EXISTING: THE EXISTING STRUCTURES HAVE BEEN SKETCHED USING MEASUREMENTS TAKEN ON A SHORT INSPECTION CONDUCTED ON JUNE 27TH 2022. DUE TO THE SHORT NATURE OF THE INSPECTION AND LACK OF SURVEY DATA ALL OF THESE DIMENSIONS SHOULD BE ASSUMED TO BE APPROXIMATE AND SHOULD BE FIELD CONFIRMED IF THERE IS ANY REQUIREMENT FOR ACCURACY.
NEW DETAILS: THESE ARE CONCEPT SKETCHES ONLY, AND ALL NEW DETAILS WILL NEED TO BE ASSESSED FOR BUILD-ABILITY AND THEN DESIGNED BY AN ENGINEER... AT THIS POINT THE NEW FEATURES ARE ONLY A ROUGH CONCEPT.

COMPANY	DATE	DESCRIPTION	FILE USED	FILE NAME
CRD	2021	AERIAL ORTHO PHOTO	UNDERLAY	overall - prop bdry & upland contour(2021).jpg
KEVIN SENN	2021	WATERLOT LICENCE	IMAGE USED FOR EXISTING TRACE	Waterlot Licence - 2001 to 2026 - SENN - 302 Bess(650).pdf
CRD	2021	PROPERTY DATA	APPROXIMATE LOT LINES AND UPLAND CONTOURS	overall - prop bdry & upland contour(2021).jpg
INTERTIDAL DESIGN	27 JUNE 2022	SITE NOTES & PHOTOS	USED TO SKETCH IN EXISTING
I BOATING	2022	BOAT CHART	BATHYMETRIC CONTOURS TRACED	https://fishing-app.gpsnauticalcharts.com
WEY MAYENBURG LAND SURVEYING	JAN 2023	PROPERTY SURVEY	ELEVATIONS AND STRUCT. LOCATING	230007_jan272023123058430092993560801.PDF

NOTE: THE INFORMATION AND DETAILS PROVIDED ON THIS DRAWING MUST BE CHECKED AND APPROVED BY AN ENGINEER OR OTHER APPROPRIATE EXPERT PRIOR TO THE PROJECT BEING STARTED. THESE DRAWINGS ARE PRELIMINARY, AND INTENDED FOR PLANNING PURPOSES.

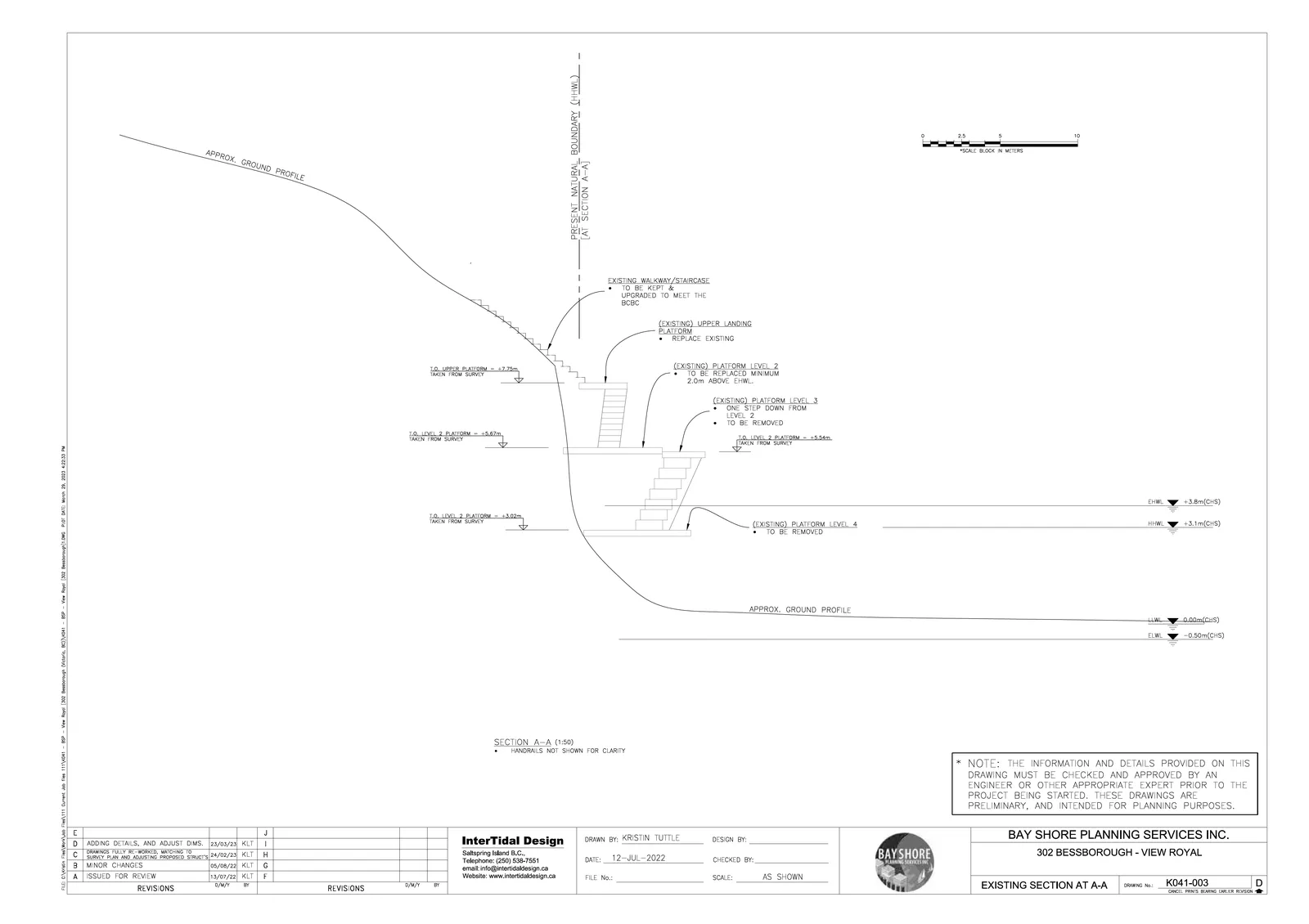

Existing cross-section diagram A-A showing the profile of the ground, natural boundary, and the multi-level existing platforms.

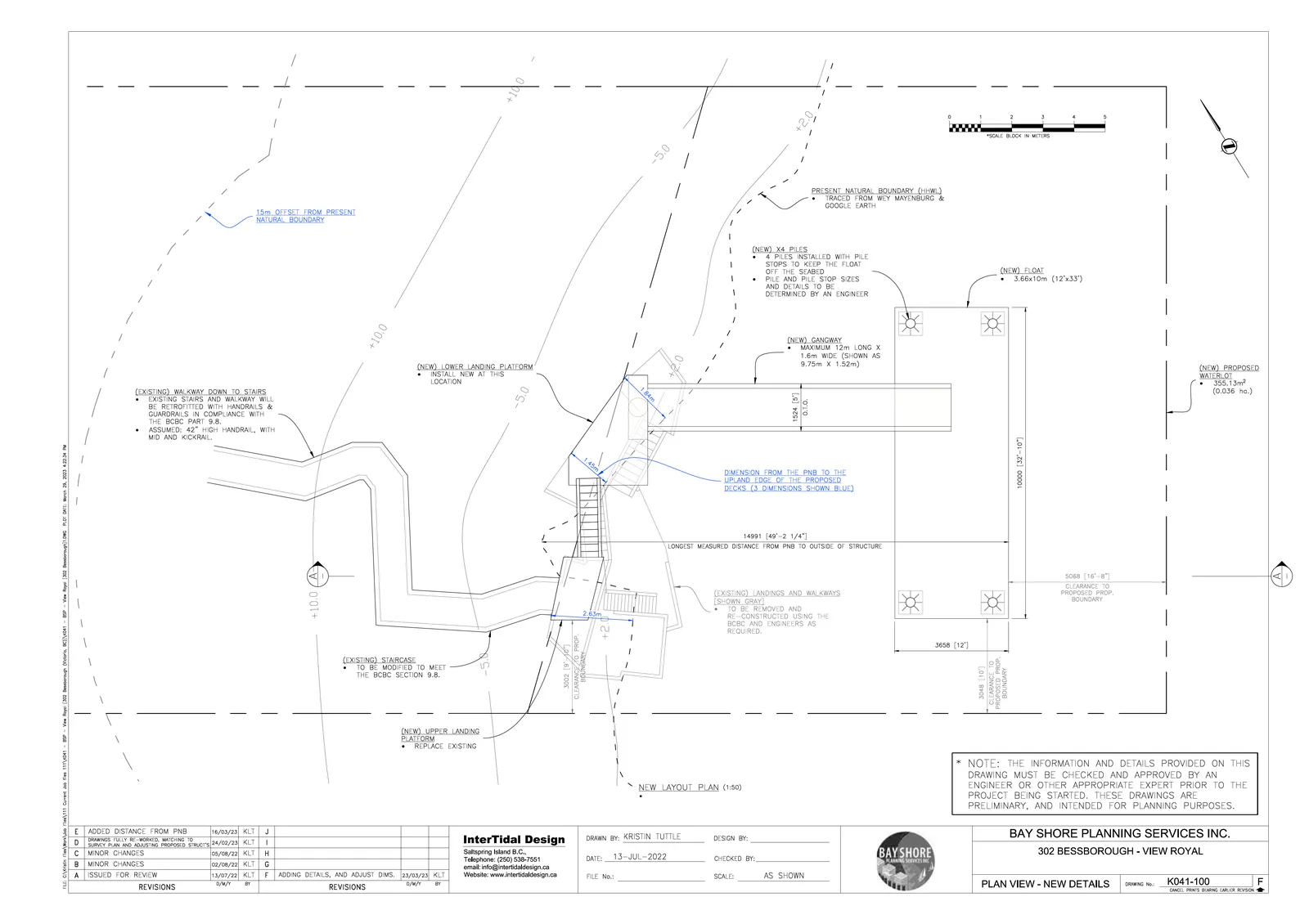

NEW LAYOUT PLAN (1:50)
(NEW) X4 PILES - 4 PILES INSTALLED WITH PILE STOPS TO KEEP THE FLOAT OFF THE SEABED - PILE AND PILE STOP SIZES AND DETAILS TO BE DETERMINED BY AN ENGINEER
(NEW) FLOAT - 3.66x10m (12'x33')
(NEW) GANGWAY - MAXIMUM 12m LONG X 1.6m WIDE (SHOWN AS 9.75m x 1.52m)
(NEW) LOWER LANDING PLATFORM - INSTALL NEW AT THIS LOCATION
(NEW) PROPOSED WATERLOT - 355.13m² (0.036 ha.)
(EXISTING) WALKWAY DOWN TO STAIRS - EXISTING STAIRS AND WALKWAY WILL BE RETROFITTED WITH HANDRAILS & GUARDRAILS IN COMPLIANCE WITH THE BCBC PART 9.8.
(EXISTING) STAIRCASE - TO BE MODIFIED TO MEET THE BCBC SECTION 9.8.
(NEW) UPPER LANDING PLATFORM - REPLACE EXISTING

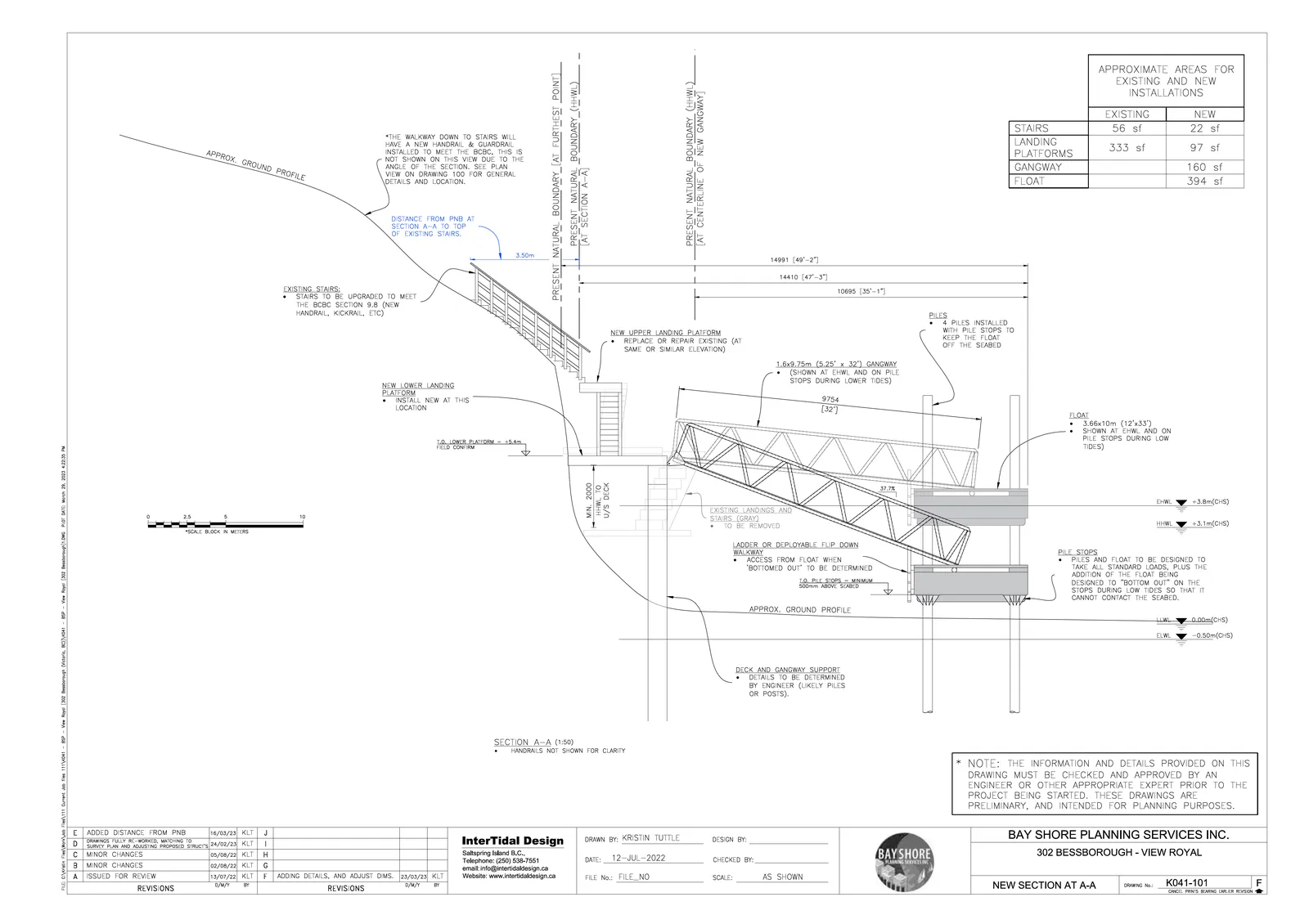

THE WALKWAY DOWN TO STAIRS WILL HAVE A NEW HANDRAIL & GUARDRAIL INSTALLED TO MEET THE BCBC, THIS IS NOT SHOWN ON THIS VIEW DUE TO THE ANGLE OF THE SECTION. SEE PLAN VIEW ON DRAWING 100 FOR GENERAL DETAILS AND LOCATION.
NEW UPPER LANDING PLATFORM - REPLACE OR REPAIR EXISTING (AT SAME OR SIMILAR ELEVATION)
NEW LOWER LANDING PLATFORM - INSTALL NEW AT THIS LOCATION
1.6x9.75m (5.25' x 32') GANGWAY - (SHOWN AT EHWL AND ON PILE STOPS DURING LOWER TIDES)
PILES - 4 PILES INSTALLED WITH PILE STOPS TO KEEP THE FLOAT OFF THE SEABED
FLOAT - 3.66x10m (12'x33') - SHOWN AT EHML AND ON PILE STOPS DURING LOW TIDES
PILE STOPS - PILES AND FLOAT TO BE DESIGNED TO TAKE ALL STANDARD LOADS, PLUS THE ADDITION OF THE FLOAT BEING DESIGNED TO "BOTTOM OUT" ON THE STOPS DURING LOW TIDES SO THAT IT CANNOT CONTACT THE SEABED.
LADDER OR DEPLOYABLE FLIP DOWN WALKWAY - ACCESS FROM FLOAT WHEN 'BOTTOMED OUT' TO BE DETERMINED
T.O. PILE STOPS = MINIMUM 500mm ABOVE SEABED
