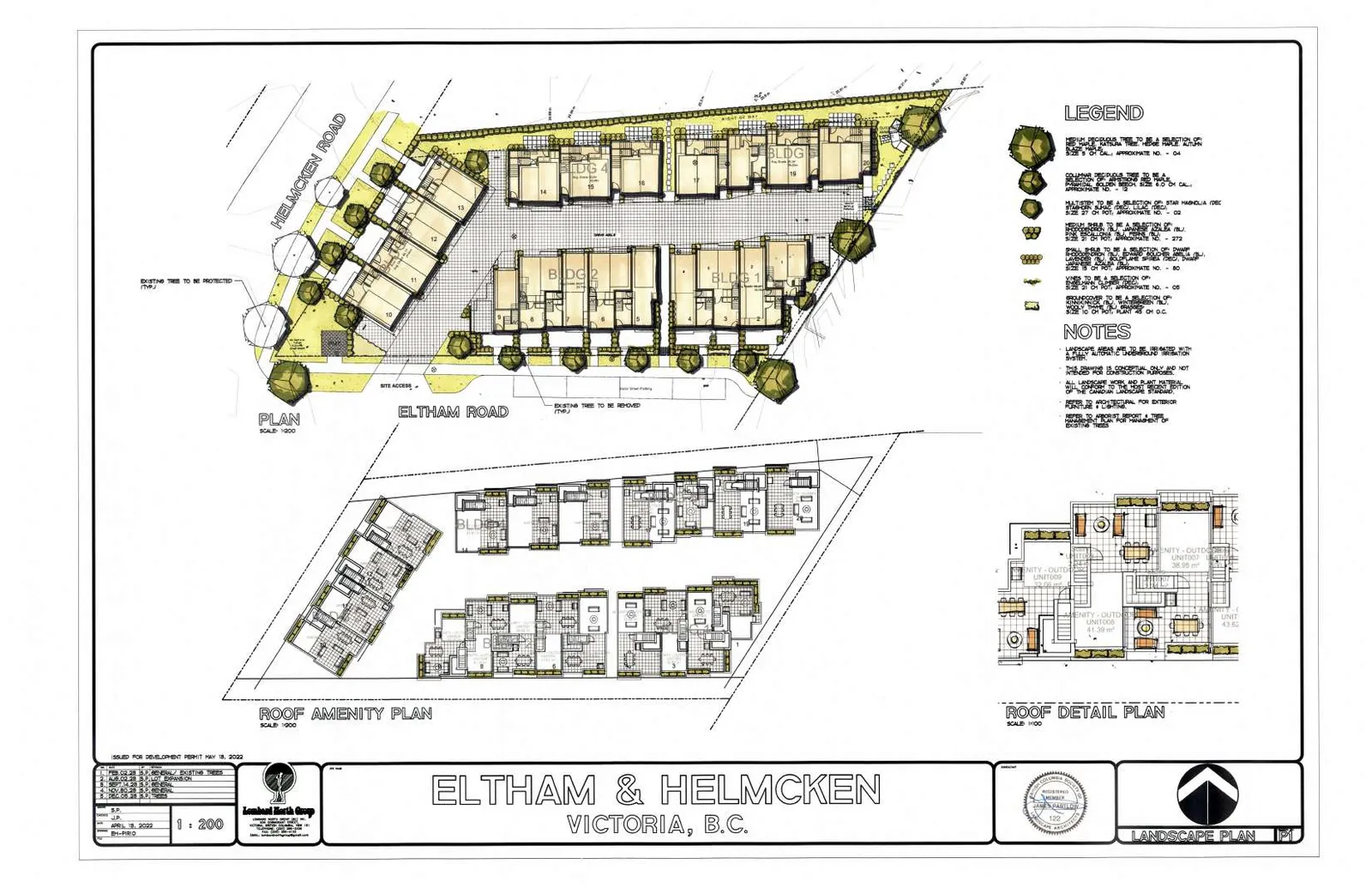

Attachment 3: Landscape Plan

ELTHAM & HELMCKEN, VICTORIA, B.C.

MEDIUM DECIDUOUS TREE TO BE A SELECTION OF: RED MAPLE, KATURA TREE, HEDGE MAPLE, ALDER, BLACK TUPELO. SIZE: 50-60 MM CAL. APPROXIMATE NO. - 04
COLUMNAR DECIDUOUS TREE TO BE A SELECTION OF: PYRAMIDAL EUROPEAN HORNBEAM, SLENDER SILHOUETTE SWEETGUM. SIZE: 50-60 MM CAL. APPROXIMATE NO. - 10
MULTI-STEM TREE TO BE A SELECTION OF: STAR MAGNOLIA. SIZE: 2.0-2.5 M HT. APPROXIMATE NO. - 02
MEDIUM SHRUB TO BE A SELECTION OF: HYDRANGEA, SALAL, BOXWOOD, PRIVET, ETC. SIZE: 2-5 GAL. POT. APPROXIMATE NO. - 272
SMALL SHRUB TO BE A SELECTION OF: DWARF JAPANESE SPIREA, BOXWOOD, DWARF LEYMUS, ETC. SIZE: 1-2 GAL. POT. APPROXIMATE NO. - 60
VINES TO BE A SELECTION OF: STAR JASMINE, CLEMATIS, ETC. SIZE: 1-2 GAL. POT. APPROXIMATE NO. - 05
GROUNDCOVER TO BE A SELECTION OF: ENGLISH IVY, KINNIKINNICK, ETC. SIZE: 10 CM POT. PLANT 45 CM O.C.

LANDSCAPE AREAS ARE TO BE IRRIGATED WITH A FULLY AUTOMATIC UNDERGROUND IRRIGATION SYSTEM.
THIS DRAWING IS CONCEPTUAL ONLY AND NOT INTENDED FOR CONSTRUCTION PURPOSES.
ALL LANDSCAPE WORK AND PLANT MATERIAL WILL CONFORM TO THE MOST RECENT EDITION OF THE CANADIAN LANDSCAPE STANDARD.
REFER TO ARCHITECTURAL FOR EXTERIOR FURNITURE & LIGHTING.
REFER TO ARBORIST REPORT & TREE MANAGEMENT PLAN FOR MANAGEMENT OF EXISTING TREES.

PLAN (SCALE 1:200): Displays the main site layout featuring Buildings 1 through 4 (BLDG 1, BLDG 2, BLDG 3, BLDG 4) situated at the corner of Helmcken Road and Eltham Road. Annotations indicate "SITE ACCESS," "EXISTING TREE TO BE PROTECTED (TYP.)," and "EXISTING TREE TO BE REMOVED (TYP.)."
ROOF AMENITY PLAN (SCALE 1:200): Illustrates the layout of amenity spaces on the rooftops of the buildings.
ROOF DETAIL PLAN (SCALE 1:100): A detailed view of roof amenity areas, specifying square meterage for outdoor units:
- AMENITY - OUTDOOR UNIT 009: 22.06 m²
- AMENITY - OUTDOOR UNIT 008: 41.39 m²
- AMENITY - OUTDOOR UNIT 007: 38.85 m²
