City of View Royal Water Customer Data Sheet
March 3, 2015Page 2171 section

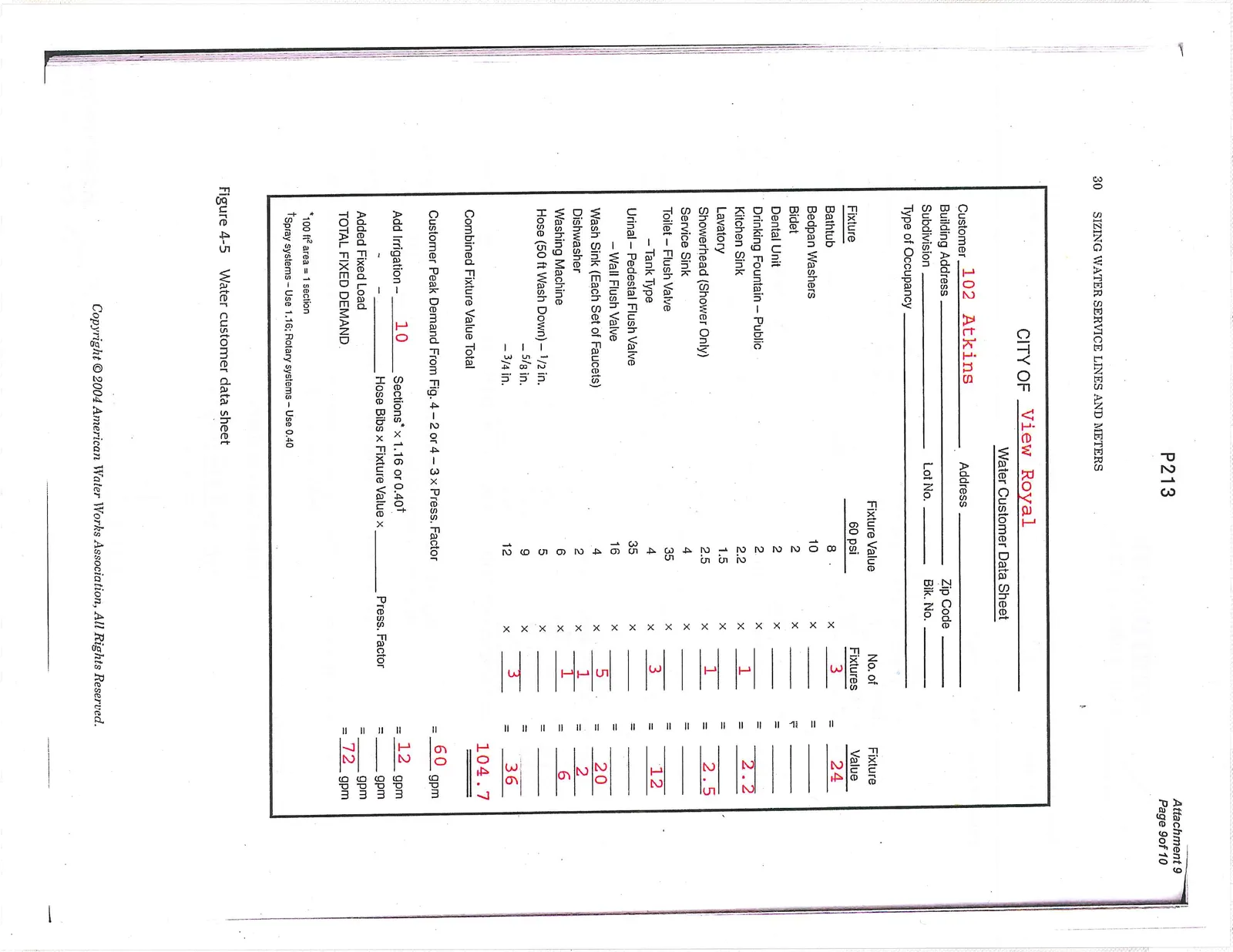

Worksheet detailing fixture counts and peak water demand calculations for the development at 102 Atkins Road.
102 Atkins RoadCombined fixture value total: 104.7Total fixed demand: 72 gpm
CITY OF View Royal
Water Customer Data Sheet
Customer: 102 Atkins
Address: __________
Building Address: __________
Zip Code: __________
Subdivision: __________
Lot No.: __________
Blk. No.: __________
Type of Occupancy: __________
| Fixture | Fixture Value 60 psi | x | No. of Fixtures | = | Fixture Value |
|---|---|---|---|---|---|
| Bathtub | 8 | x | 3 | = | 24 |
| Bedpan Washers | 10 | x | = | ||
| Bidet | 2 | x | = | ||
| Dental Unit | 2 | x | = | ||
| Drinking Fountain – Public | 2 | x | = | ||
| Kitchen Sink | 2.2 | x | 1 | = | 2.2 |
| Lavatory | 1.5 | x | = | ||
| Showerhead (Shower Only) | 2.5 | x | 1 | = | 2.5 |
| Service Sink | 4 | x | = | ||
| Toilet – Flush Valve | 35 | x | = | ||
| – Tank Type | 4 | x | 3 | = | 12 |
| Urinal – Pedestal Flush Valve | 35 | x | = | ||
| – Wall Flush Valve | 16 | x | = | ||
| Wash Sink (Each Set of Faucets) | 4 | x | 5 | = | 20 |
| Dishwasher | 2 | x | 1 | = | 2 |
| Washing Machine | 6 | x | 1 | = | 6 |
| Hose (50 ft Wash Down) – 1/2 in. | 5 | x | = | ||
| – 5/8 in. | 9 | x | = | ||
| – 3/4 in. | 12 | x | 3 | = | 36 |
| Combined Fixture Value Total | 104.7 |
Customer Peak Demand From Fig. 4 - 2 or 4 - 3 x Press. Factor = 60 gpm
Add Irrigation – 10 Sections* x 1.16 or 0.40† = 12 gpm
Added Fixed Load [Hose Bibs x Fixture Value x ____ Press. Factor] = ____ gpm
TOTAL FIXED DEMAND = 72 gpm
* 100 ft² area = 1 section
† Spray systems – Use 1.16; Rotary systems – Use 0.40
Figure 4-5 Water customer data sheet
Copyright © 2004 American Water Works Association, All Rights Reserved.
Page 217
