Topographic Site Plan Of: Lot A, Section 8, Esquimalt District, Plan VIP71776

March 17, 2015Page 411 section

Detailed surveying plan showing proposed strata lots and common property access from Jedburgh Road.

8.1a Development Variance Permit No. 2015/02 - 17A Jedburgh Road
Wey Meyenburg Land Surveying Inc.7 proposed Strata Lots (SL 1 through SL 7)Common Property access route

Topographic Site Plan Of: Lot A, Section 8, Esquimalt District, Plan VIP71776.

Scale 1:500

This document is prepared for municipal purposes only.

Dated this 12th day of February, 2015.

Distances and elevations shown are in metres.

Elevations are based upon geodetic datum derived from View Royal Central Monuments.

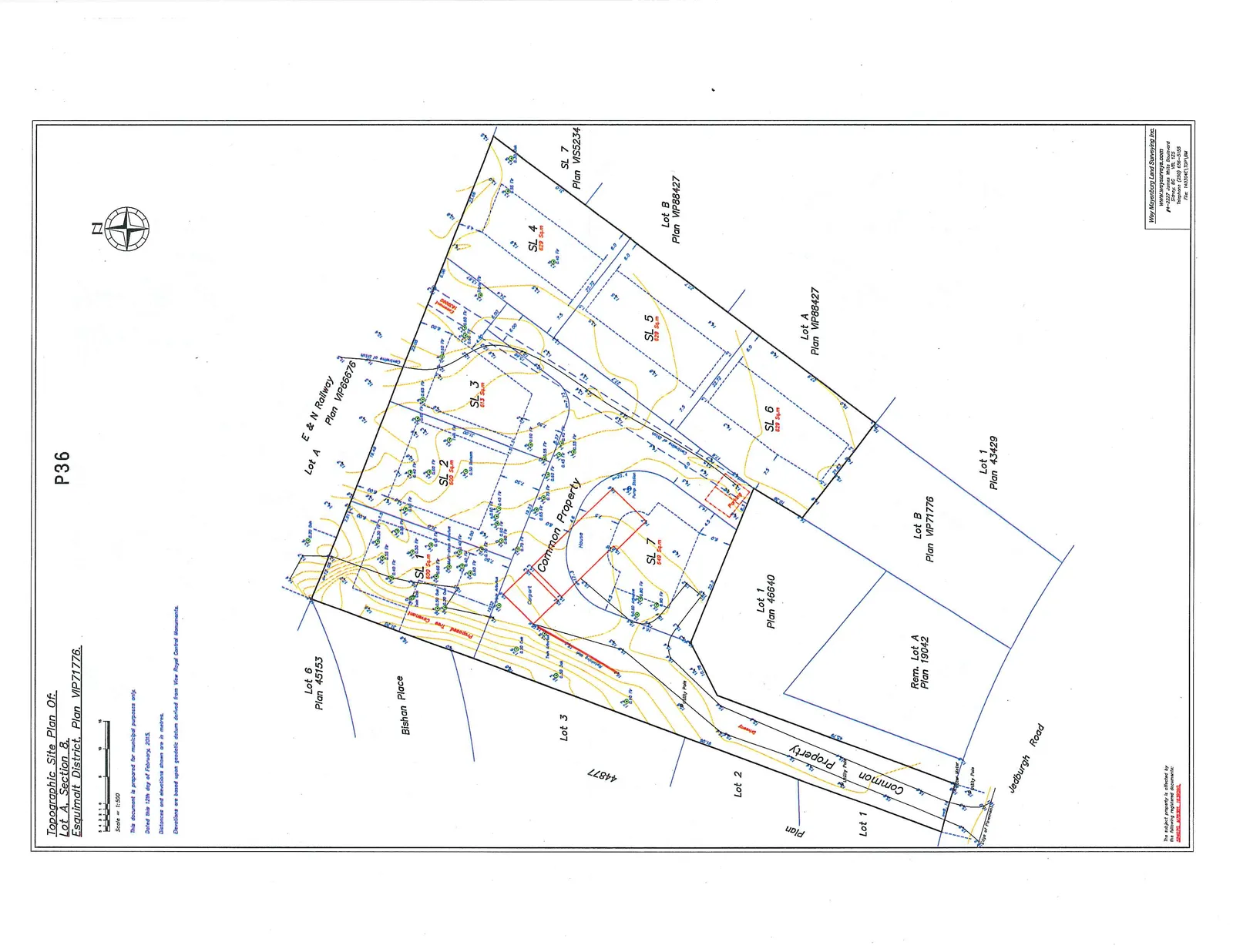

Topographic Site Plan for Lot A, Section 8, Esquimalt District, Plan VIP71776, showing strata lots SL 1 through SL 7 with the following areas: - SL 1: 659 Sq.m - SL 2: 602 Sq.m - SL 3: 613 Sq.m - SL 4: 629 Sq.m - SL 5: 629 Sq.m - SL 6: 629 Sq.m - SL 7: 649 Sq.m The plan also identifies common property, a house, carport, pump station, parking areas, a driveway, and utility poles. Bordering properties include Bishan Place, Jedburgh Road, the E & N Railway (Plan VIP66676), and various numbered lots and plans.
Topographic Site Plan for Lot A, Section 8, Esquimalt District, Plan VIP71776, showing strata lots SL 1 through SL 7 with the following areas: - SL 1: 659 Sq.m - SL 2: 602 Sq.m - SL 3: 613 Sq.m - SL 4: 629 Sq.m - SL 5: 629 Sq.m - SL 6: 629 Sq.m - SL 7: 649 Sq.m The plan also identifies common property, a house, carport, pump station, parking areas, a driveway, and utility poles. Bordering properties include Bishan Place, Jedburgh Road, the E & N Railway (Plan VIP66676), and various numbered lots and plans.

The subject property is affected by the following registered documents: AE46249, AF85257, CA3823447.
