JC Scott ECO Design

17 ½ Fan Tan Alley, Victoria, BC V8W 3G9 P(250) 385-9545 F(250) 385-9575 E: jc@jcscott.com W: www.jcscott.com

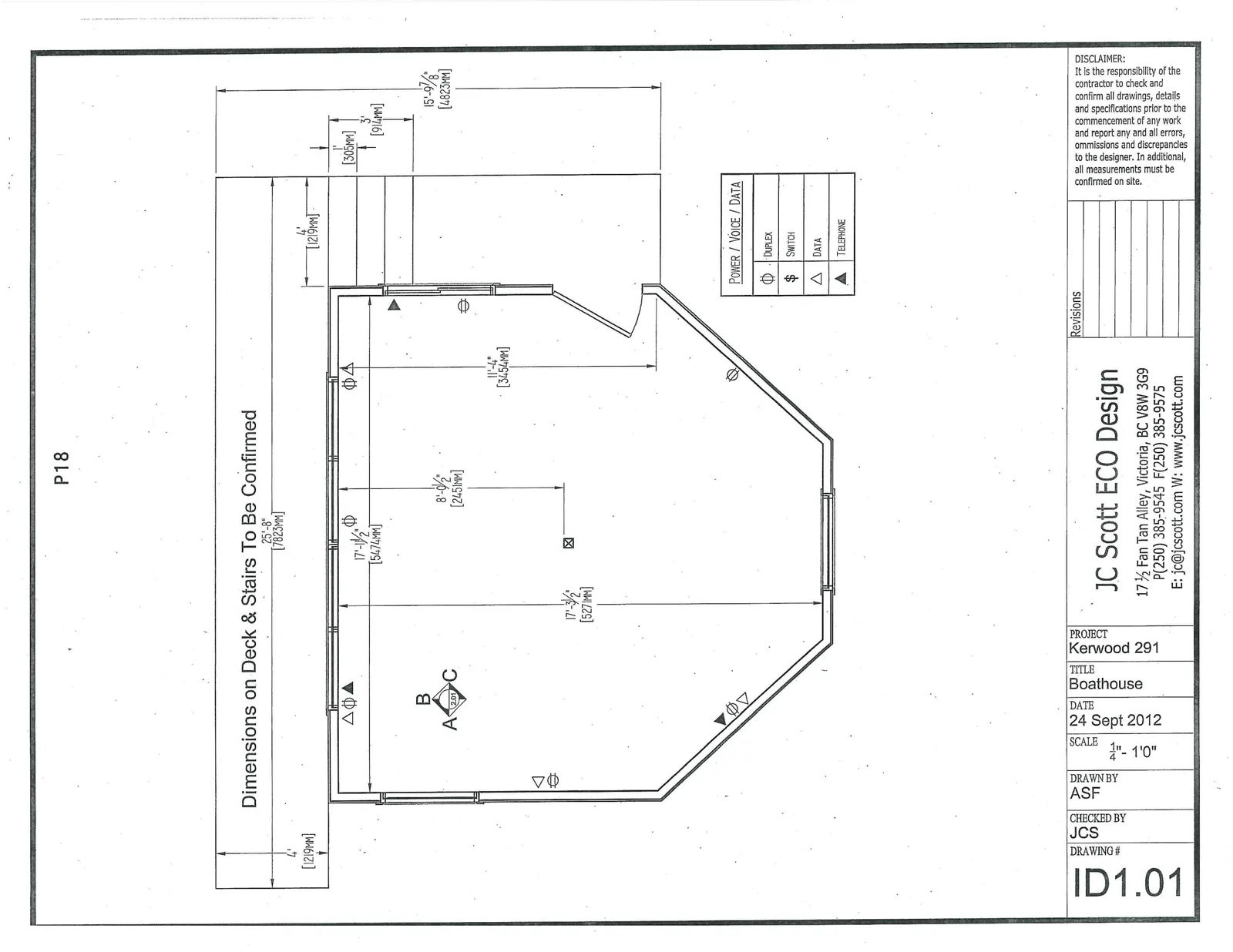

Boathouse Floor Plan (Drawing ID1.01)

Floor plan of the boathouse showing interior dimensions, electrical and data outlet locations, and exterior deck area.

Power / Voice / Data Legend

Symbol	Description
$\Phi$	DUPLEX
$	SWITCH
$\Delta$	DATA
$\blacktriangle$	TELEPHONE

Project Details

Field	Value
Project	Kerwood 291
Title	Boathouse
Date	24 Sept 2012
Scale	1/4" - 1'0"
Drawn By	ASF
Checked By	JCS
Drawing #	ID1.01

Notes

Dimensions on Deck & Stairs To Be Confirmed

Boathouse Elevations A, B, & C (Drawing ID2.01)

Three interior wall elevations labeled A, B, and C, detailing wall heights, window/door positions, and electrical/data outlet heights.

Project Details

Field	Value
Project	Kerwood 291
Title	Boathouse
Date	24 Sept 2012
Scale	1/4" - 1'0"
Drawn By	ASF
Checked By	JCS
Drawing #	ID2.01

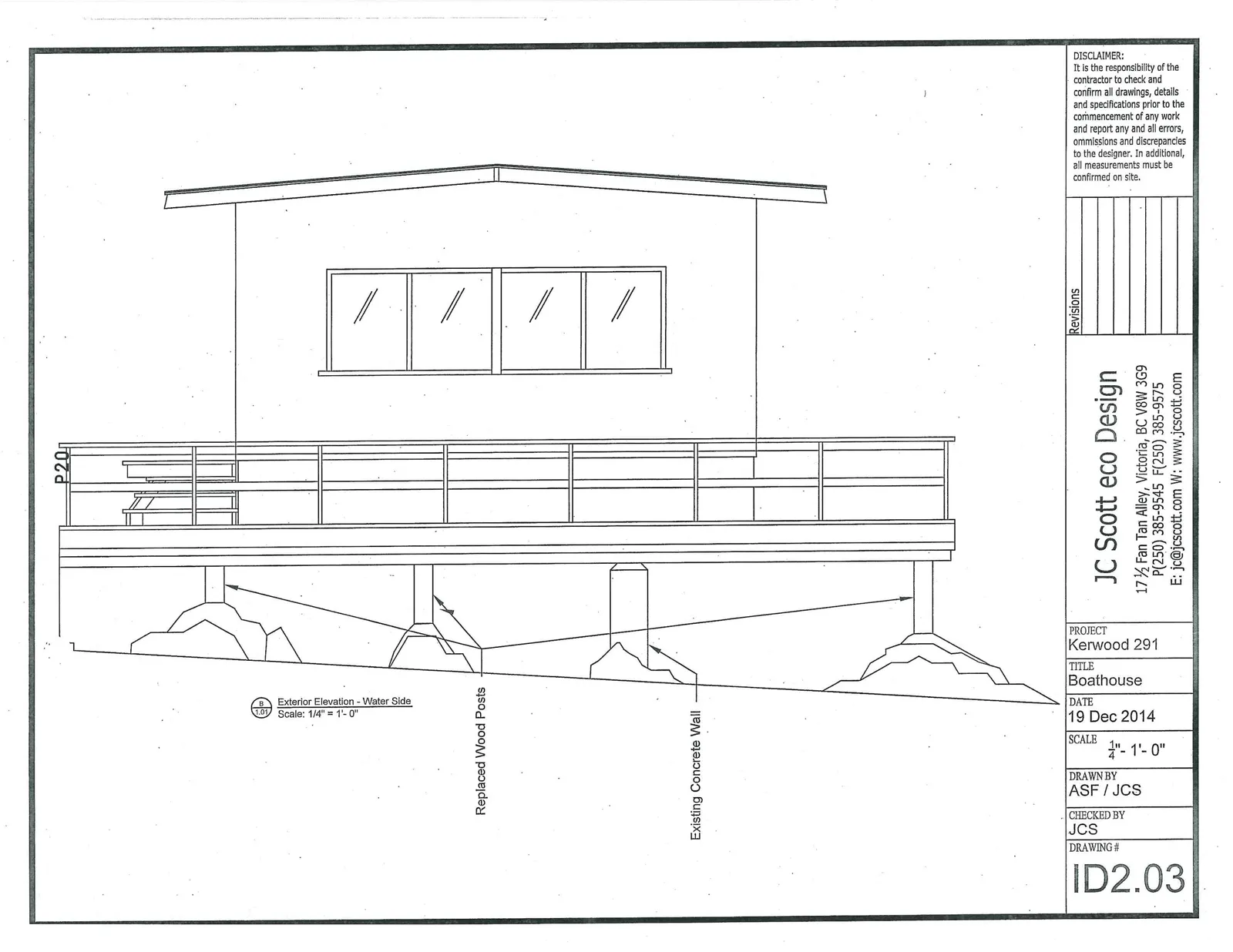

Boathouse Exterior Elevation - Water Side (Drawing ID2.03)

Exterior elevation view of the boathouse from the water, showing the deck railing, windows, and structural support system.

Key Features

Replaced Wood Posts
Existing Concrete Wall

Project Details

Field	Value
Project	Kerwood 291
Title	Boathouse
Date	19 Dec 2014
Scale	1/4" - 1'0"
Drawn By	ASF / JCS
Checked By	JCS
Drawing #	ID2.03

Disclaimer It is the responsibility of the contractor to check and confirm all drawings, details and specifications prior to the commencement of any work and report any and all errors, omissions and discrepancies to the designer. In addition, all measurements must be confirmed on site.
