Proposed Subdivision Plan - 17A Jedburgh Road

Preliminary Lot Layout - Jedburgh

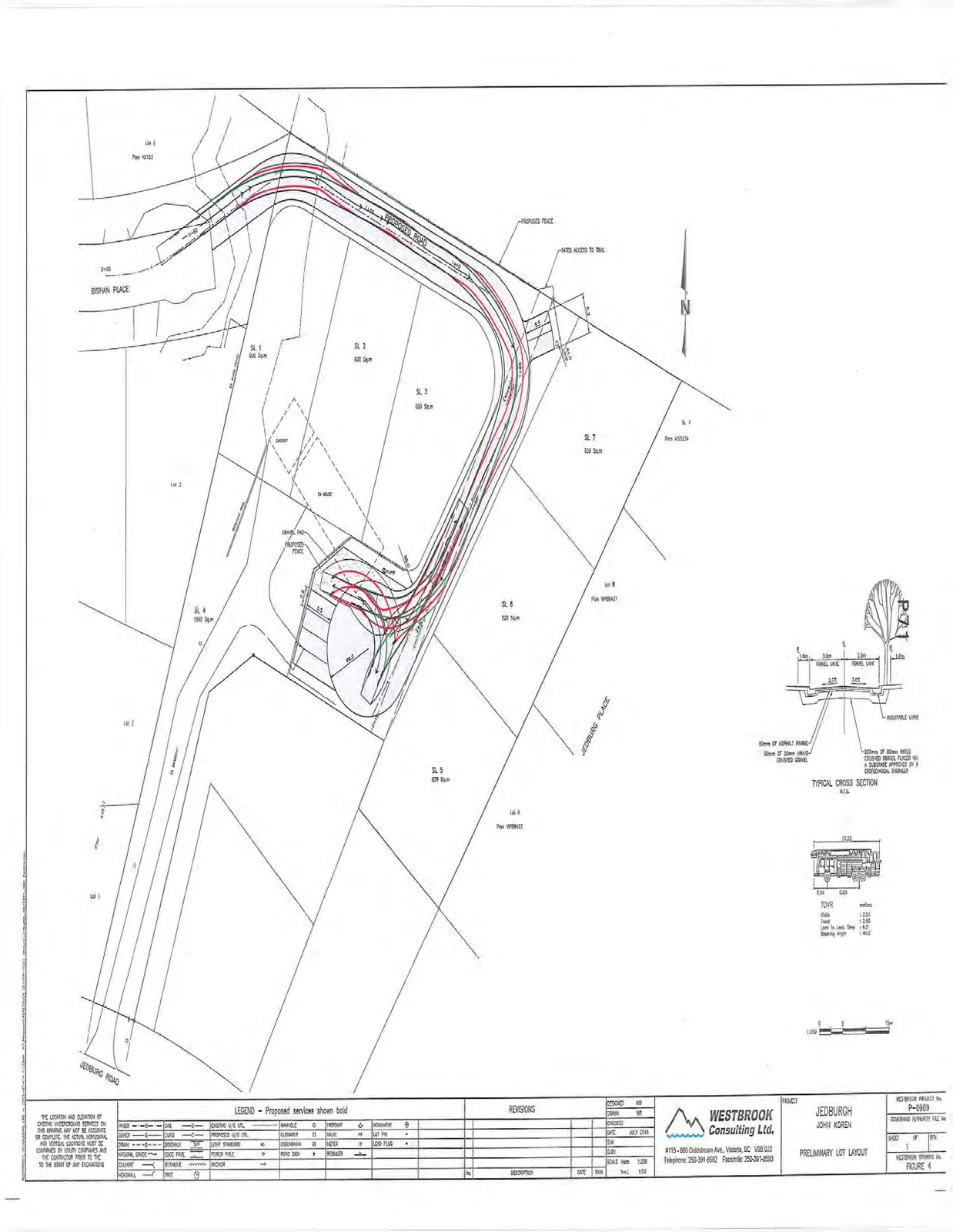

Engineering drawing by Westbrook Consulting Ltd. titled "Jedburgh - John Koren Preliminary Lot Layout" showing the proposed subdivision of seven lots (SL 1 to SL 7), road infrastructure connecting Bishan Place and Jedburgh Place, and a typical road cross section.

Project Information

Project: Jedburgh - John Koren
Consultant: Westbrook Consulting Ltd.
Date: July 2013
Project No.: P-0503
Figure: 4
Scale: Horiz. 1:250

Legend - Proposed services shown bold

Symbol	Description	Symbol	Description
---- W ----	WATER	----	EXISTING U/G UTIL.
---- S ----	SEWER	----	PROPOSED U/G UTIL.
---- D ----	DRAIN	¤	LAMP STANDARD
---- H ----	HYDRO/TEL	○	POWER POLE
- - - -	NATURAL GRADE	⚐	ROAD SIGN
[ ]	CULVERT	⛑	HYDRANT
🧱	HEADWALL	⧖	VALVE
⌖	MONUMENT	×	CUT PIN
⏺	LEAD PLUG	▣	CATCH BASIN
⧓	REDUCER

Typical Cross Section Details

Surface: 50mm of Asphalt Paving
Base: 200mm of 20mm minus crushed gravel placed on a subgrade approved by a Geotechnical Engineer.
Lane Widths: Includes a 3.0m travel lane, a 2.5m travel lane, and a 1.5m sidewalk.

General Notes The location and elevation of existing underground services on this drawing may not be accurate or complete. The actual horizontal and vertical locations must be confirmed by utility companies and the contractor prior to the start of any excavation.

Proposed Subdivision Plan Of: Lot A, Section 8, Esquimalt District, Plan VIP71776

Legal subdivision plan by Wey Mayenburg Land Surveying Inc. dated April 11, 2015, showing the detailed layout of Strata Lots 1 through 7 and Common Property areas.

Plan Details

Date: 11th day of April, 2015

Scale: 1:500

Surveyor: Wey Mayenburg Land Surveying Inc.

Notes: Distances and elevations shown are in metres. Elevations are based upon geodetic datum derived from View Royal Control Monuments.

Lot Area Summary

SL 1: 600 Sq.m

SL 2: 600 Sq.m

SL 3: 600 Sq.m

SL 4: 701 Sq.m

SL 5: 629 Sq.m

SL 6: 629 Sq.m

SL 7: 629 Sq.m

Adjacent Properties and Features

North/East: Lot A E & N Railway Plan VIP66676; Lot 7 Plan VIS5234

South/East: Lot B Plan VIP88427; Lot 1 Plan 43429

South: Lot B Plan VIP71776; Rem. Lot A Plan 19042; Lot 1 Plan 46640

West: Lot 6 Plan 45153; Lot 3; Lot 2; Lot 1

Access: Connects to Bishan Place and Jedburgh Road via designated Common Property.
