Proposed Road Profile & Cross Sections - 17A Jedburgh Rd

JEDBURGH JOHN KOREN

Consulting Information

WESTBROOK Consulting Ltd. #115 - 866 Goldstream Ave., Victoria, BC V9B 0J3 Telephone: 250-391-8592 Facsimile: 250-391-8593 Project Ref: P-0989 Date: APRIL 2015 Figure: 2 Scale: 1:500 Drawn: WR

Page 87–88

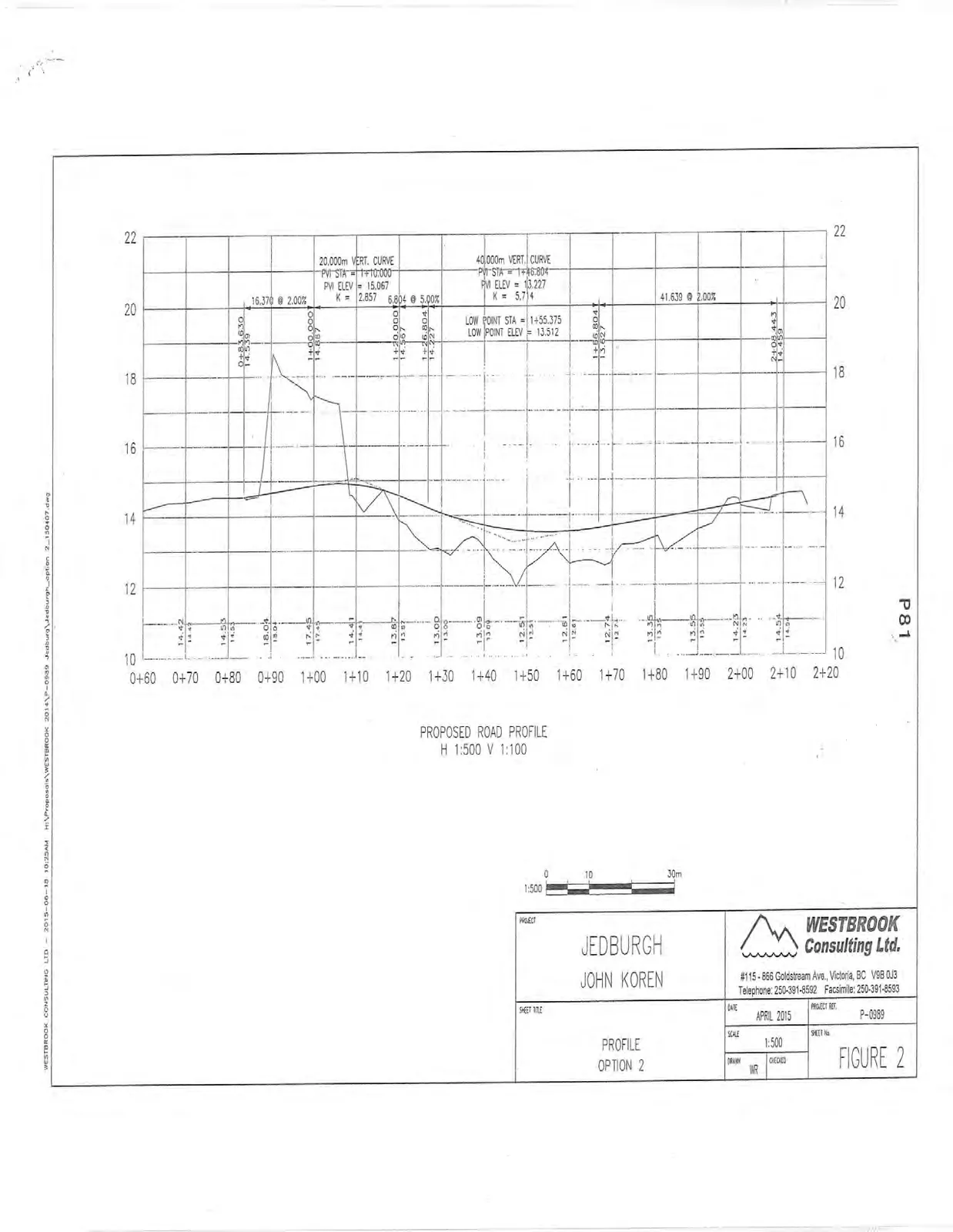

PROPOSED ROAD PROFILE

Proposed road profile diagram showing existing ground and proposed road elevations, vertical curves, and slopes from station 0+60 to 2+20

Scale: H 1:500, V 1:100

Vertical Curve Data

20.000m VERT. CURVE
- PVI STA = 1+10.000
- PVI ELEV = 15.067
- K = 2.857
40.000m VERT. CURVE
- PVI STA = 1+86.804
- PVI ELEV = 13.227
- K = 5.714
Additional Curve Data:
- LOW POINT STA = 1+55.375
- LOW POINT ELEV = 13.512

Slope Annotations

16.370 @ 2.00%
6.504 @ 5.00%
41.630 @ 2.00%

Station and Elevation Data

Station	Elevation (Upper Row)	Elevation (Lower Row)
0+60	14.42	14.42
0+70	14.53	14.53
0+80	14.53	14.53
0+90	18.04	15.04
1+00	17.45	15.45
1+10	14.41	14.41
1+20	13.87	13.97
1+30	13.00	13.00
1+40	13.09	13.09
1+50	12.51	12.51
1+60	12.61	12.61
1+70	12.74	12.74
1+80	13.35	13.35
1+90	13.55	13.55
2+00	14.23	14.23
2+10	14.54	14.54

Page 87–88

CROSS SECTIONS STA 0+85 TO 0+120

Eight individual cross-section diagrams for the proposed road and trail at specified stations

Scale: 1:500

Stations Included

0+120.000
0+115.000
0+110.000
0+105.000
0+100.000
0+095.000
0+090.000
0+085.000

Cross-Section Annotations (Typical)

EXISTING GROUND
PROPOSED ROAD
TRAIL
P/L (Property Line)
SL (Sidewalk Line)
T & N Railway Lot A Plan VIP66576
