Site and House Plans - 2601 Herbate Road

July 21, 2015Pages 153–1564 sections

Architectural set including site plan, floor plans, and west elevation for the James Trueit residence.

1 CALL TO ORDER
June 3, 2015James Trueit4764 m2 site area.

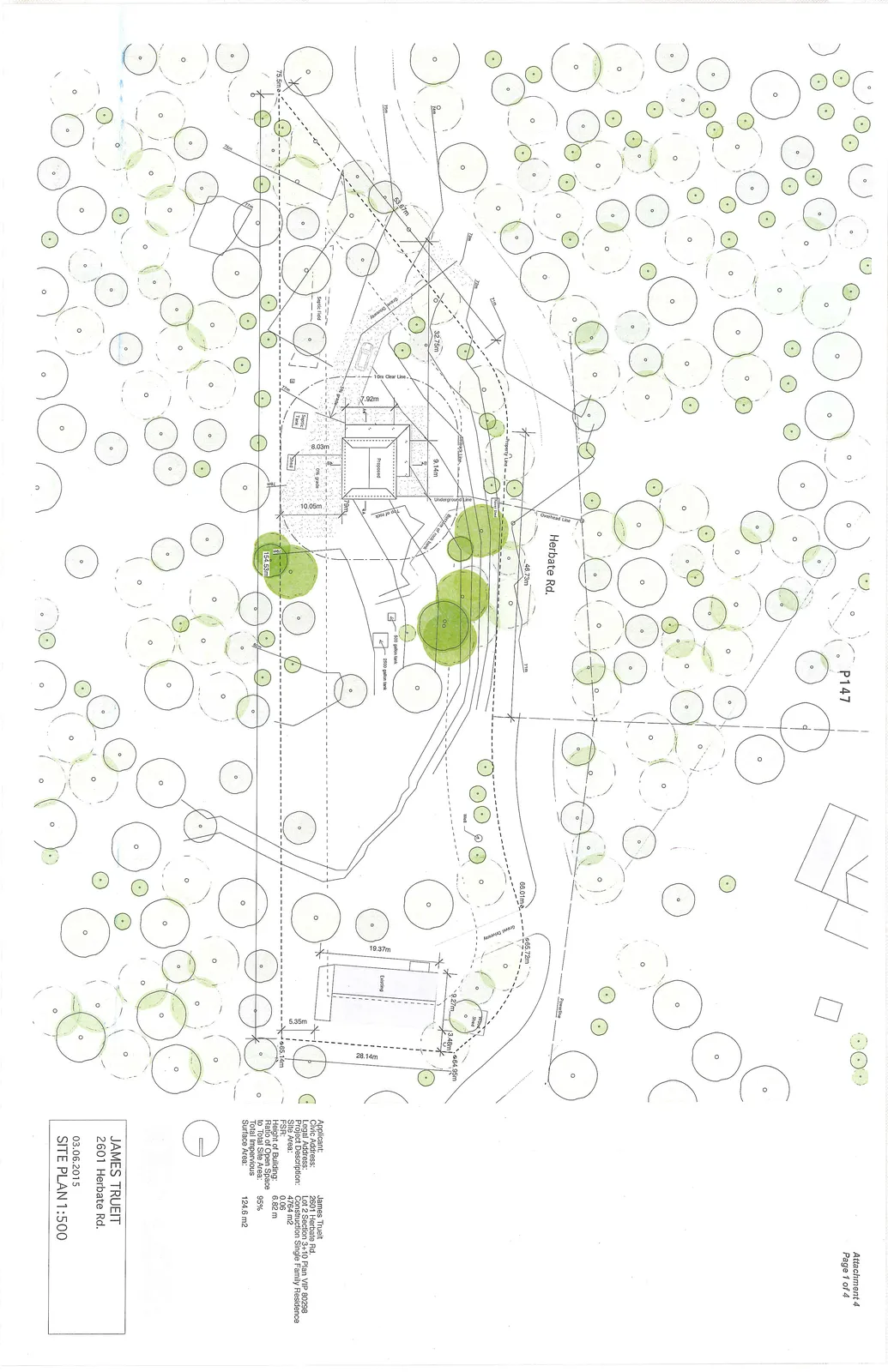

SITE PLAN 1:500

Detailed site plan of 2601 Herbate Rd. showing the property layout, proposed and existing residences, septic systems, and surrounding wooded terrain.
Detailed site plan of 2601 Herbate Rd. showing the property layout, proposed and existing residences, septic systems, and surrounding wooded terrain.

Project Data

Field Description
Applicant James Trueit
Civic Address 2601 Herbate Rd.
Legal Address Lot 2 Section 3+10 Plan VIP 80298
Project Description Construction Single Family Residence
Site Area 4764 m2
FSR 0.06
Height of Building 6.82 m
Ratio of Open Space to Total Site Area 95%
Total Impervious Surface Area 124.6 m2

Plan Details:

  • Date: 03.06.2015
  • Scale: 1:500
  • Key Landmarks: Herbate Rd., existing building (19.37m length), proposed building, septic field, septic tank, shed, well, gravel driveway, and powerline.
Page 153–156

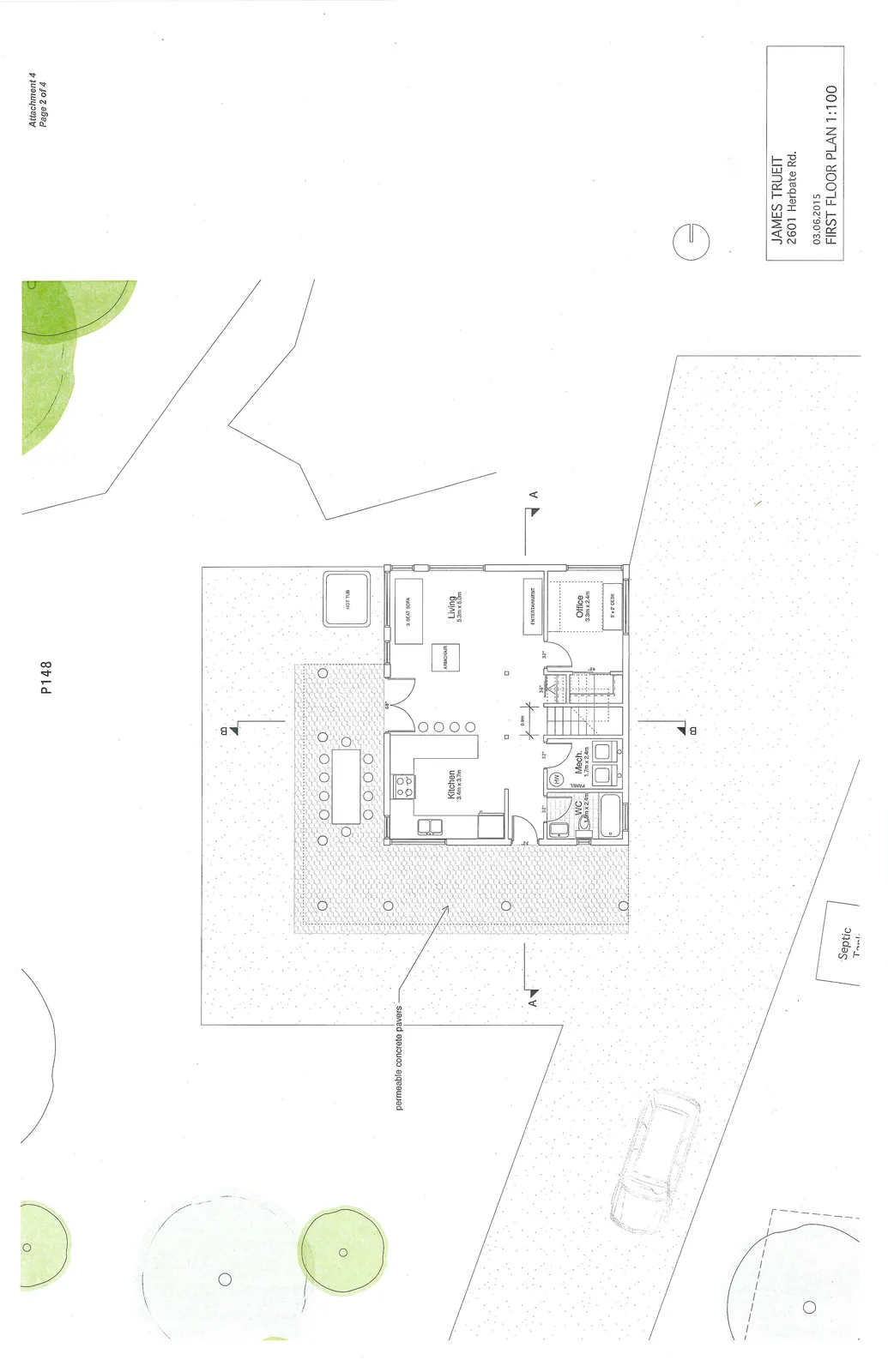

FIRST FLOOR PLAN 1:100

First floor architectural plan showing interior room layouts and immediate exterior features.
First floor architectural plan showing interior room layouts and immediate exterior features.

Interior Room Specifications:

  • Kitchen: 3.4m x 3.7m
  • Living Area: 5.3m x 5.0m (includes 9-seat sofa and armchair)
  • Office: 3.3m x 2.4m (includes 5' x 2' desk)
  • Mechanical Room (Mech.): 1.7m x 2.4m
  • Water Closet (WC): 1.9m x 2.4m

Exterior Features:

  • Permeable concrete pavers surrounding the structure.
  • Outdoor hot tub.
  • Entertainment area.

Plan Details:

  • Project: JAMES TRUEIT, 2601 Herbate Rd.
  • Date: 03.06.2015
  • Scale: 1:100
Page 153–156

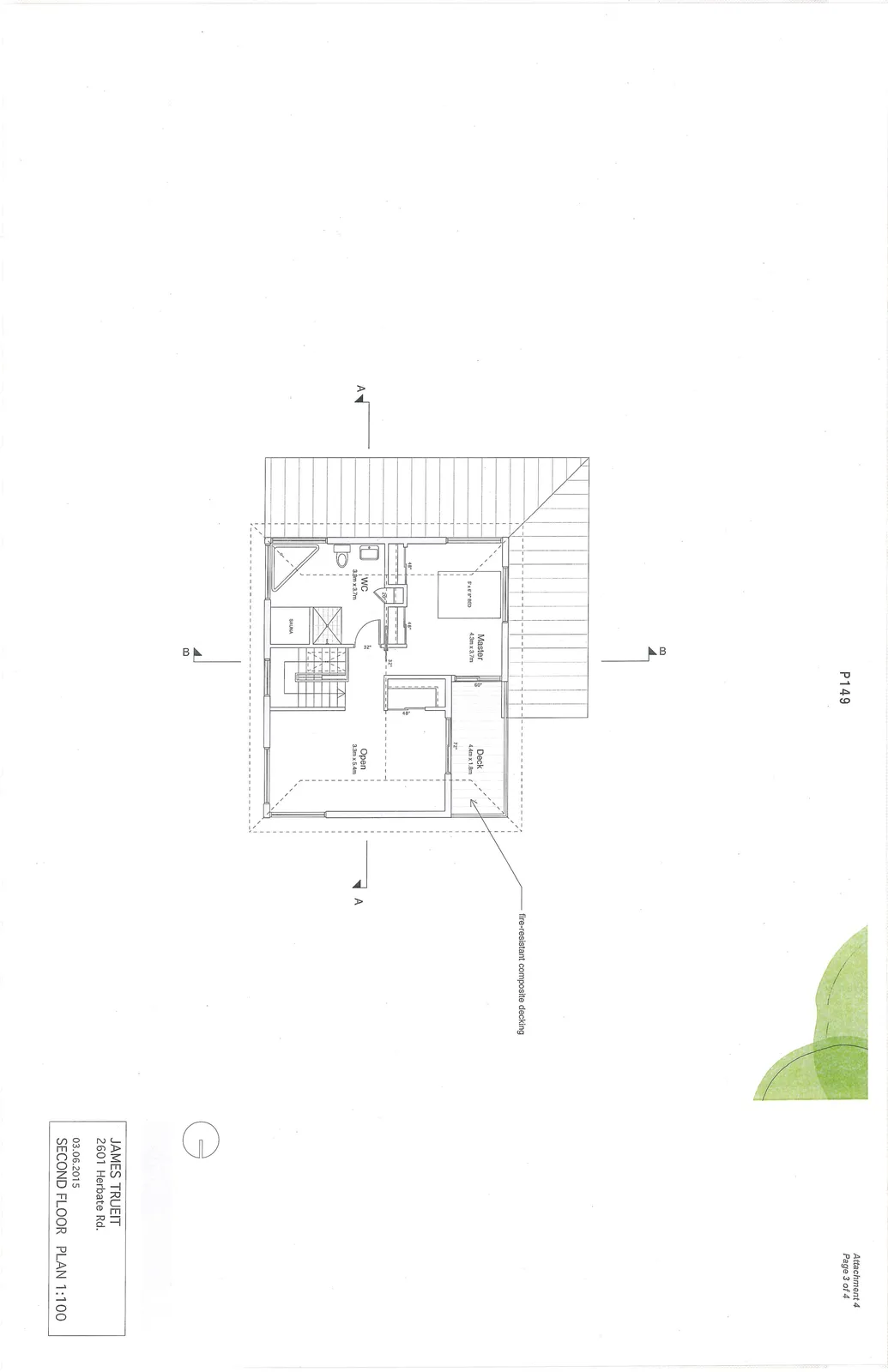

SECOND FLOOR PLAN 1:100

Second floor architectural plan showing the master bedroom, deck, and open floor area.
Second floor architectural plan showing the master bedroom, deck, and open floor area.

Room Specifications:

  • Master Bedroom: 4.3m x 3.7m (includes 9' x 6' 6" bed)
  • Deck: 4.4m x 1.8m (specified as fire-resistant composite decking)
  • Water Closet (WC): 3.3m x 3.7m
  • Open Area: 3.3m x 5.4m
  • Additional Features: Sauna and interior staircase.

Plan Details:

  • Project: JAMES TRUEIT, 2601 Herbate Rd.
  • Date: 03.06.2015
  • Scale: 1:100
Page 153–156

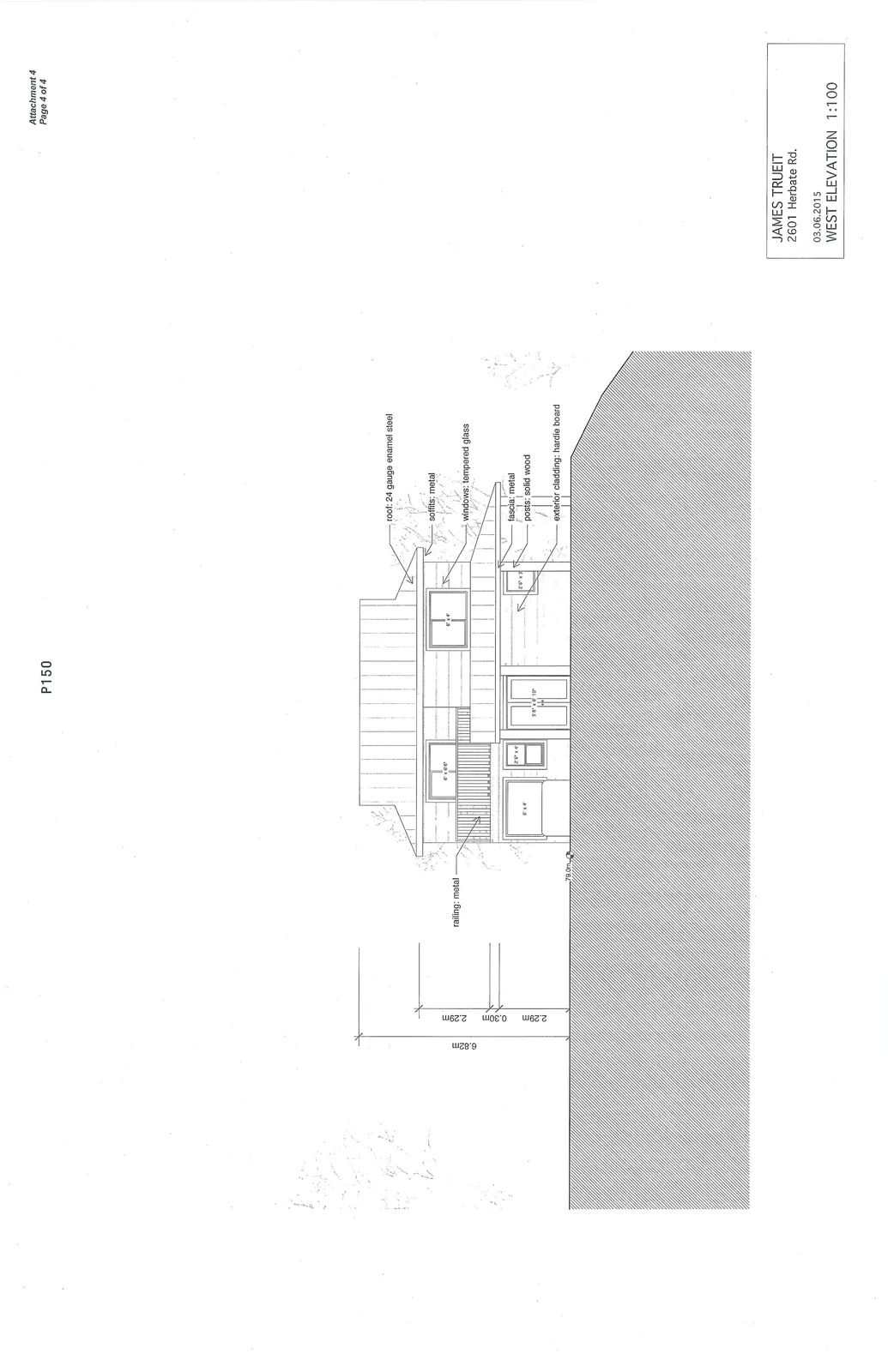

WEST ELEVATION 1:100

West elevation drawing showing the building height and specified exterior construction materials.
West elevation drawing showing the building height and specified exterior construction materials.

Building Specifications

  • Roof: 24 gauge enamel steel
  • Soffits: Metal
  • Windows: Tempered glass
  • Fascia: Metal
  • Posts: Solid wood
  • Exterior Cladding: Hardie board
  • Railing: Metal

Vertical Dimensions

  • Total Building Height: 6.82m
  • Main Floor Height: 2.29m
  • Floor Structure Thickness: 0.30m
  • Upper Floor Height: 2.29m

Plan Details:

  • Project: JAMES TRUEIT, 2601 Herbate Rd.
  • Date: 03.06.2015
  • Scale: 1:100
Page 153–156
