Proposed Dock and Landscaping Site Plan and Section

June 16, 2015Page 341 section

Landscape and architectural drawing showing the dock sections and surrounding topography.

1. CALL TO ORDER
Revised September 26, 2014

Proposed Dock and Landscaping

333a Stewart Avenue

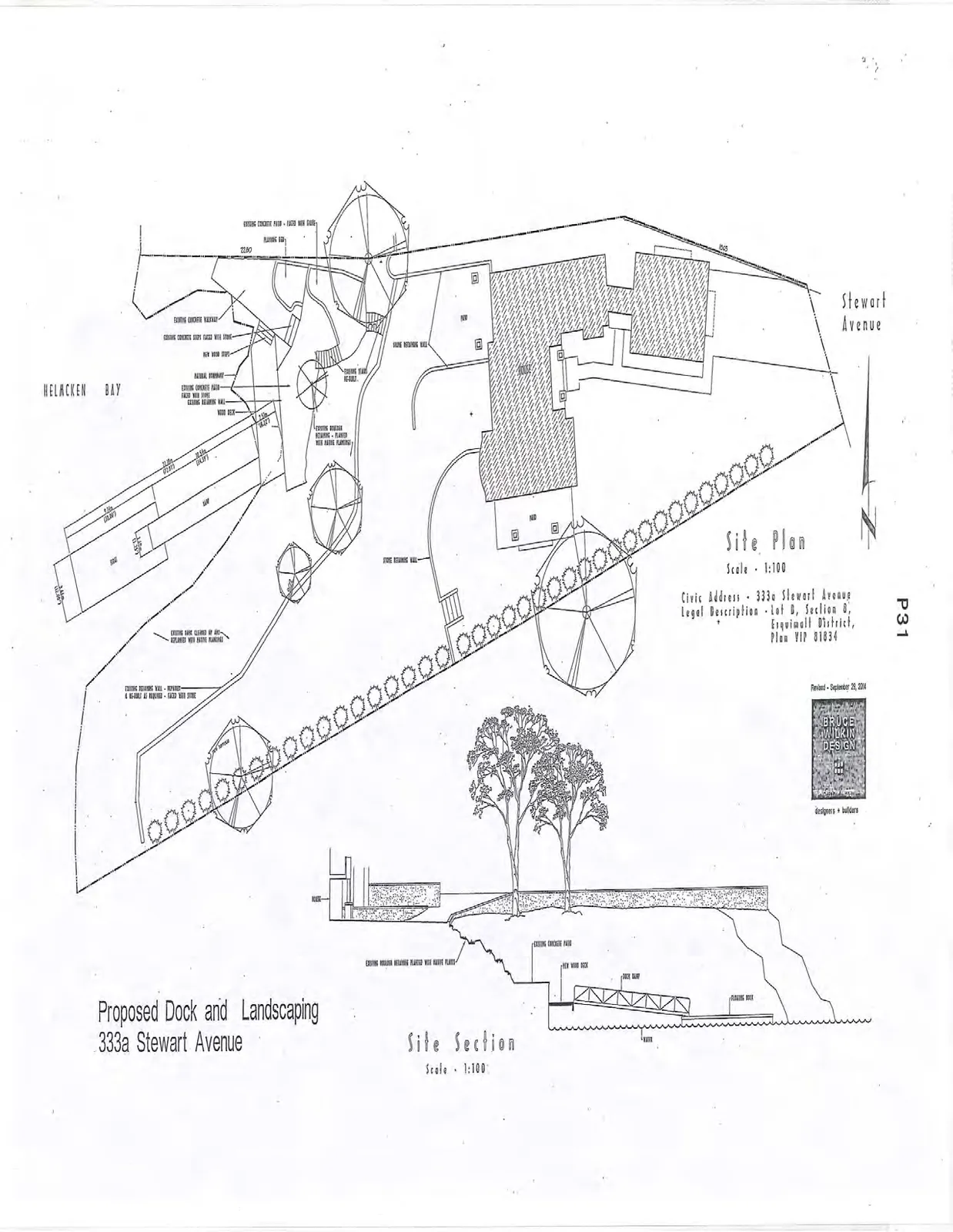

Architectural drawing featuring a Site Plan and Site Section for the property at 333a Stewart Avenue, showing landscaping details, a new wood deck, and a dock system on Helmcken Bay.
Architectural drawing featuring a Site Plan and Site Section for the property at 333a Stewart Avenue, showing landscaping details, a new wood deck, and a dock system on Helmcken Bay.

Site Plan

  • Scale: 1:100
  • Civic Address: 333a Stewart Avenue
  • Legal Description: Lot D, Section B, Esquimalt District, Plan VIP 81834
  • Revision Date: September 25, 2014

Plan Notes and Callouts:

  • Helmcken Bay
  • Stewart Avenue
  • Existing concrete path - finish with gravel
  • Planting area
  • Existing concrete walkway
  • Existing concrete steps faced with stone
  • New wood steps
  • Natural aggregate finished surface path with stone edging
  • New wood deck
  • Existing boulders relocated - planted with native plantings
  • Existing rock garden - planted with native plantings
  • Stone retaining wall
  • Existing bank cleared of ivy - replanted with native planting
  • Existing retaining wall - repaired & re-stoned as needed - faced with stone
  • Lawn

Site Section

  • Scale: 1:100

Section Notes and Callouts:

  • House
  • Existing boulder retaining planted with native plants
  • Existing concrete path
  • New wood deck
  • Dock ramp
  • Floating dock
  • Water
