Phase 1 & Phase 2 Site Plan - Omicron
Full site plan for the COHO Condominiums development showing both phases.

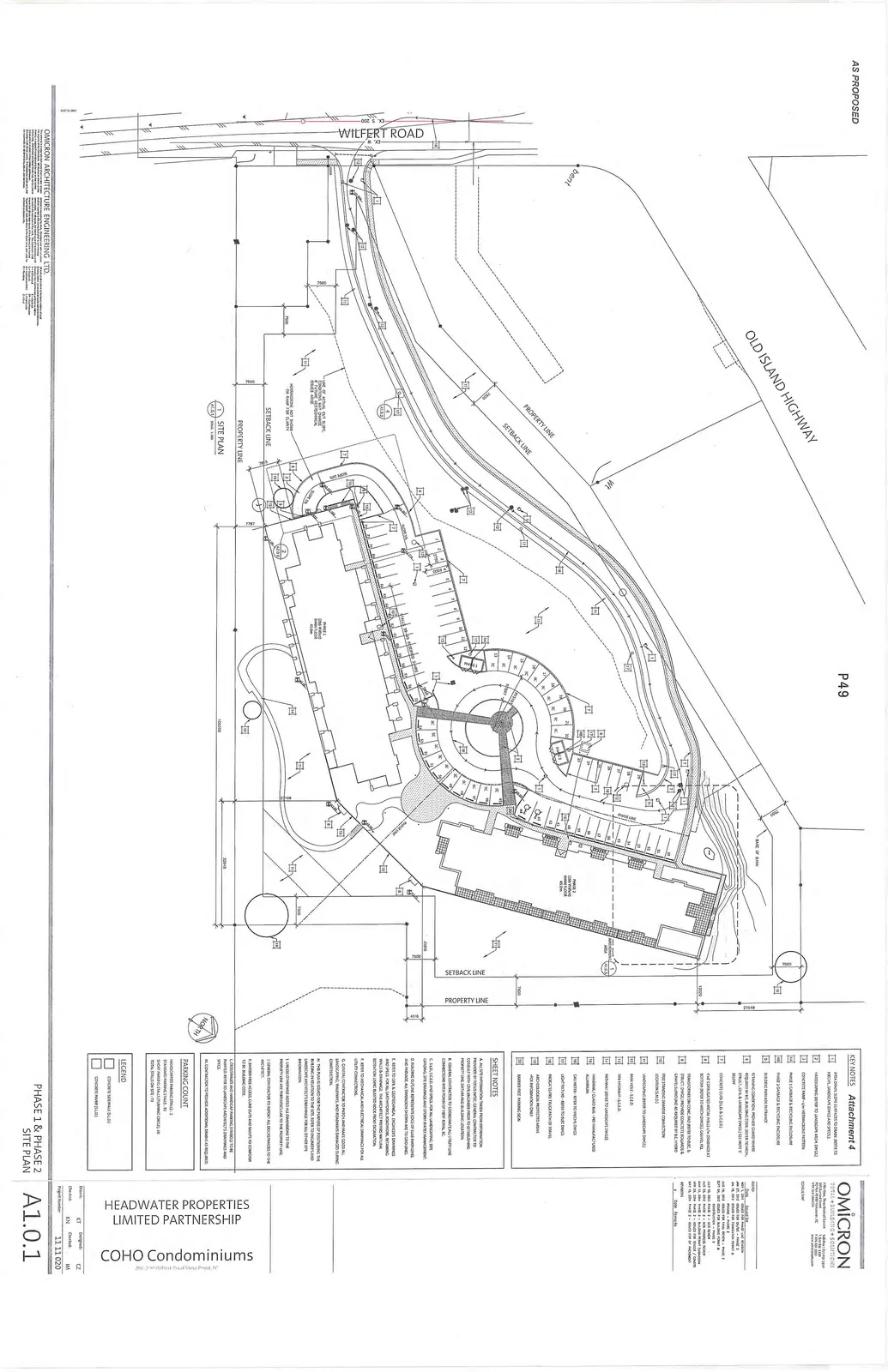

COHO Condominiums - PHASE 1 & PHASE 2 SITE PLAN
KEY NOTES Attachment 4
- SITE DRAIN, SLOPE SURFACES TO DRAIN. (REFER TO CIVIL DWGS FOR DETAILS)
- HARDSCAPING (REFER TO LANDSCAPE ARCH. DWGS)
- CONCRETE RAMP - W/ HERRINGBONE PATTERN
- PHASE 1 GARBAGE & RECYCLING ENCLOSURE
- PHASE 2 GARBAGE & RECYCLING ENCLOSURE
- BUILDING PRIMARY ENTRANCE
- RETAINING/CONCRETE PRIVACY GUARD WHERE SHOWN. PER BC BUILDING CODE. (REFER TO ARCH., STRUCT., CIVIL & LANDSCAPE DWGS.) (SEE NOTE 'E' BELOW)
- CONCRETE CURB (S.I.O. & S.C.E.D)
- 4'-0" CORRUGATED METAL FENCE W/ DRAINAGE AT 2% MIN. SLOPE AS SHOWN ON CIVIL PLANS
- TRANSFORMER ON CONC. PAD (REFER TO ELEC. & STRUCT. DWGS.) PROVIDE BOLLARDS & GRAVEL SURROUND AS REQUIRED BY BC HYDRO
- FREE STANDING SIAMESE CONNECTION (FDC) LOCATION
- LANDSCAPING (REFER TO LANDSCAPE ARCH DWGS)
- PIPE RAIL - S.C.E.D.
- FIRE HYDRANT - S.C.E.D.
- ARCHAEOLOGICAL SENSITIVE (AWGE)
- HANDRAIL / GLASS RAIL - PRE-MANUFACTURED ALUMINUM
- CACHED RAIL (REFER TO ARCH. DWGS)
- LIGHT FIXTURE - REFER TO ELEC DWGS.
- INDICATES FIRE TRUCK PATH OF TRAVEL
- ARCHAEOLOGICAL PROTECTED AREAS (AWGE) - PROTECT DURING CONST.
- BARRIER FREE PARKING SIGN
SHEET NOTES
A. ALL SITE DIMENSIONS TAKEN FROM INFORMATION PROVIDED BY FOCUS BCTS, GENERAL CONTRACTOR TO CONFIRM PRIOR TO STARTING CONSTRUCTION INCLUDING PROPERTY LINE, DATUM AND BUILDING LOCATION. B. GENERAL CONTRACTOR TO COORDINATE ALL UTILITY LINE CONNECTIONS WITH TOWN OF VIEW ROYAL, BC. C. S.I.D, S.C.E.D. AND SPOCS. FOR ALL LANDSCAPING, SITE SERVICES, SITE FINISHES AND STORM WATER MANAGEMENT. D. BUILDING OUTLINE REPRESENTS EDGE OF SLAB MAIN LEVEL AND PATIO AS. ALL DIMENSIONS SHOWN ARE TO GRID LINES. E. REFER TO CIVIL & GEOTECHNICAL ENGINEERS DRAWINGS FOR ALL FILTER CLOTH, CRUSHED CONCRETE, RETAINING WALLS & DRAINAGE. THE ARCHITECT PREFERS NATURAL BOULDERS OVER ENGINEERED RETAINING SYSTEMS. F. REFER TO MECHANICAL AND ELECTRICAL DRAWINGS FOR ALL SITE RELATED SERVICES. G. GENERAL CONTRACTOR TO PATCH AND MAKE GOOD ALL LANDSCAPING, WALKWAYS, AND ROADWAYS DAMAGED DURING CONSTRUCTION. H. THIS PLAN IS ISSUED FOR THE PURPOSE OF POSITIONING THE BUILDINGS. REFERENCE CIVIL, STRUCTURAL, ELECTRICAL AND LANDSCAPE ARCHITECT'S DRAWINGS FOR ALL OTHER SITE RELATED WORK. I. UNLESS OTHERWISE NOTED ALL DIMENSIONS TO THE PROPERTY LINE ARE PERPENDICULAR TO THE PROPERTY LINE. J. GENERAL CONTRACTOR TO REPORT ALL DISCREPANCIES TO THE ARCHITECT. K. BARRIER FREE ACCESS, CURB CUTS AND RAMPS TO CONFORM TO BC BUILDING CODE. L. LAYOUT OF HANDICAP PARKING SYMBOLS TO BE PAINTED. REFER TO LANDSCAPE ARCHITECT'S DRAWINGS AND CIVIL DRAWINGS. M. CONTRACTOR TO PROVIDE ADDITIONAL DRAINS AS REQUIRED.
PARKING COUNT
| Description | Count |
|---|---|
| HANDICAPPED PARKING STALLS | 2 |
| STANDARD PARKING STALLS | 51 |
| SHORT PARKING STALLS (PARKING CIRCLE) | 20 |
| TOTAL STALLS ON SITE | 73 |
LEGEND
- CONCRETE SIDEWALK (S.I.D.)
- CONCRETE PAVIOR (S.I.D)
REVISION SCHEDULE
| Date | Description |
|---|---|
| JAN 31, 2012 | ISSUED FOR PHASE 1 REZONING |
| MAR 14, 2012 | ISSUED FOR DP SUBMISSION - PHASE 2 (PARTIAL) / PHASE 2 |
| JUN 18, 2012 | ISSUED FOR FINAL REVIEW - PHASE 2 |
| SEP 24, 2012 | ISSUED FOR BUILDING PERMIT & COORDINATION - PHASE 2 |
| JUL 11, 2012 | PHASE 1 - SITE PLAN |
| MAY 23, 2012 | PHASE 2 - FOR DP SUBMISSION |
| MAY 15, 2012 | PHASE 2 - BUILDING PERMIT SUBMISSION |
| APR 20, 2012 | PHASE 2 - ISSUED FOR DESIGN / COORD. |
| JAN 25, 2012 | PHASE 2 - ISSUED FOR DP SUBMISSION |
Project Information
- Client: HEADWATER PROPERTIES LIMITED PARTNERSHIP
- Project: COHO Condominiums
- Project Number: 11 11 020
- Drawing Title: PHASE 1 & PHASE 2 SITE PLAN
- Date: JUL 11, 2012
- Drawn: KT
- Checked: KN
- Designed: CZ
- Sheet Number: A1.0.1
