Enlarged North Site Plan - COHO Phase 2

PHASE 2 ENLARGED NORTH SITE PLAN

Project Information

• Project Name: COHO Condominiums
• Address: 290 Wilfert Road, View Royal, BC
• Client: HEADWATER PROPERTIES LIMITED PARTNERSHIP
• Consultant: OMICRON (Victoria, BC)
• Drawing Number: A1.0.3
• Scale: 1:200

Issue History

• Date: May 15, 2011
• Remarks: ISSUED FOR PHASE 2 DP AMENDMENT

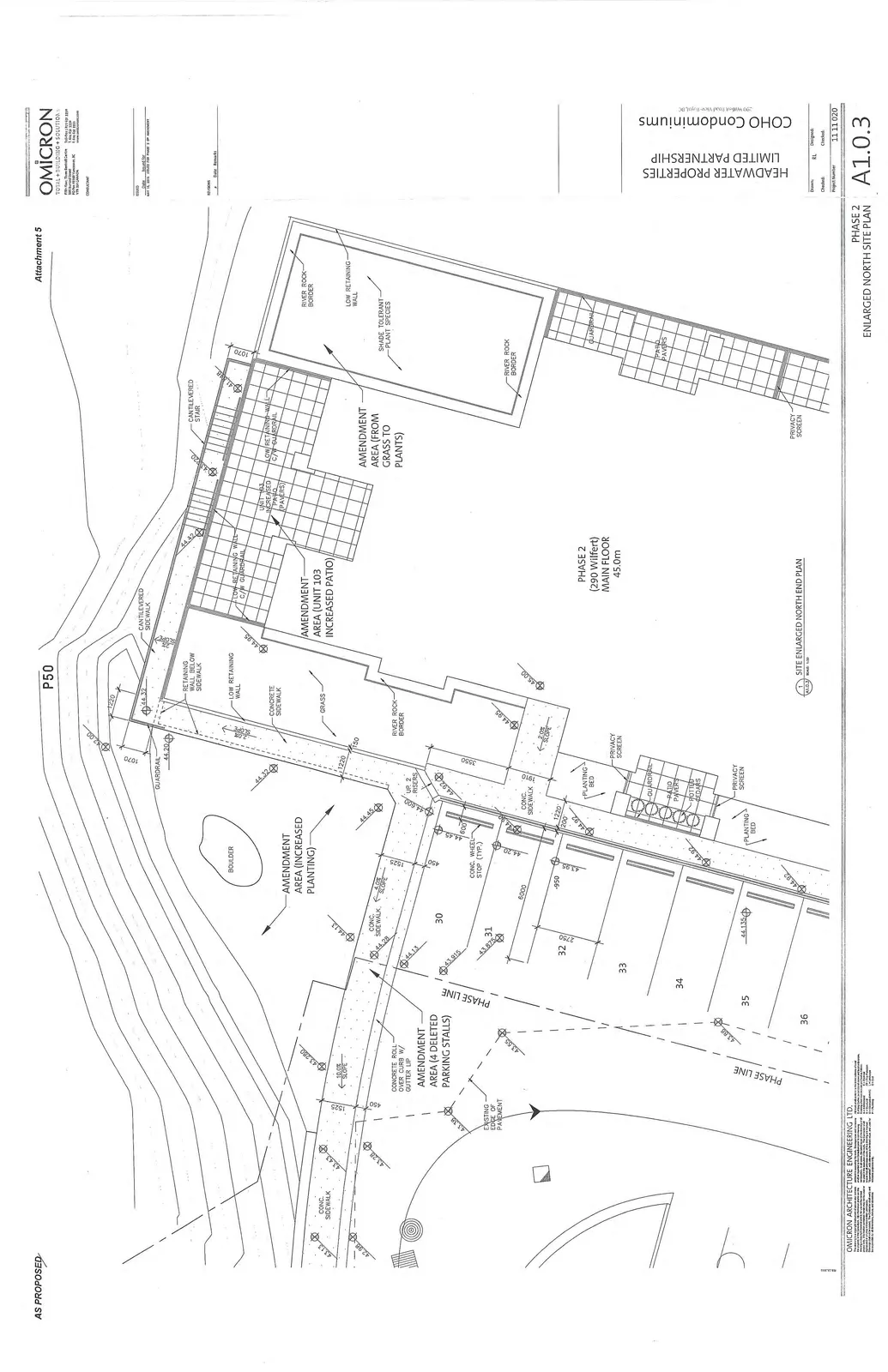

Plan Details: Site Enlarged North End Plan

The plan illustrates proposed site modifications for Phase 2 of the development. Key features and annotations include:

Amendments

• AMENDMENT AREA (INCREASED PLANTING): Located north of parking stalls 30-31.
• AMENDMENT AREA (4 DELETED PARKING STALLS): Area previously designated for parking, now showing concrete sidewalk and landscaping.
• AMENDMENT AREA (UNIT 103 INCREASED PATIO): Extension of the patio area using pavers for Unit 103.
• AMENDMENT AREA (FROM GRASS TO PLANTS): Conversion of a grass area to a planted area with shade-tolerant species.

Site Features

• Parking/Units: Stalls numbered 30, 31, 32, 33, 34, 35, and 36 are shown.
• Phase 2 Building Area: Labeled "PHASE 2 (290 Wilfert) MAIN FLOOR 45.0m".
• Landscaping:
  • Grass areas
  • Planting beds with privacy screens
  • Potted cedars
  • River rock border
  • Shade tolerant plant species
  • Boulder
• Structures and Paving:
  • Concrete sidewalk with various slopes (10.0%, 4.0%, 2.0%)
  • Concrete roll-over curb w/ gutter lip
  • Retaining walls (low retaining wall, low retaining wall c/w guardrail, retaining wall below sidewalk)
  • Cantilevered sidewalk and cantilevered stair
  • Patio pavers
  • Guardrails
• Technical Annotations:
  • Spot elevations (e.g., 42.00, 44.32, 44.20, 44.35, 45.00)
  • Dimensions in millimeters (e.g., 1070, 1220, 1525, 2750, 3550, 6000)
  • Property and phase lines (e.g., P50, PHASE LINE)
  • Labels such as "AS PROPOSED" and "EXISTING EDGE OF PAVEMENT"
