Appendix

Construction Assemblies - Revised DP

June 16, 2015Page 551 section

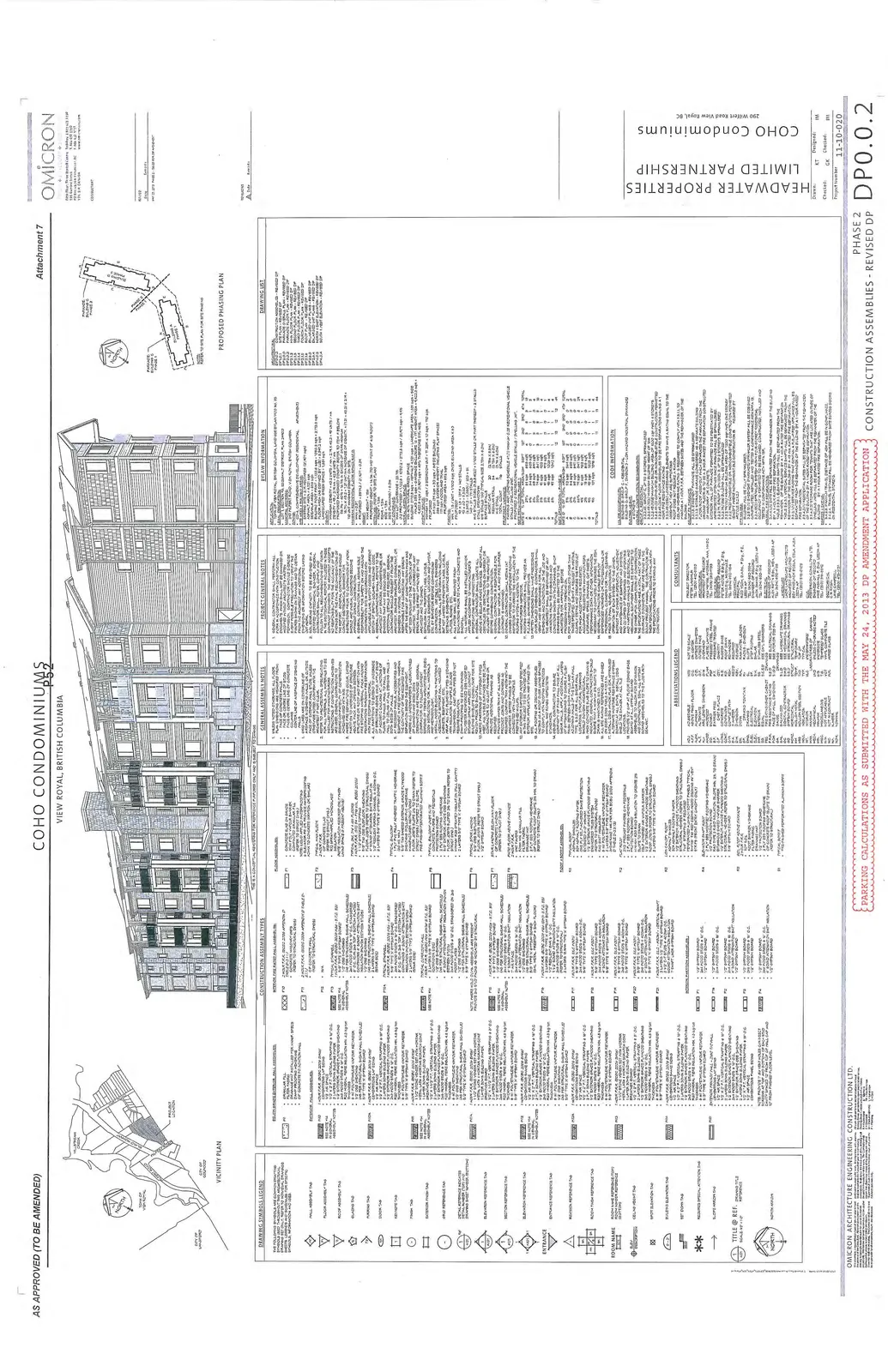

Technical drawing showing building sections and parking calculations for the revised permit.

1. CALL TO ORDER
93 total dwelling units

COHO CONDOMINIUMS

VIEW ROYAL, BRITISH COLUMBIA

Vicinity Plan map showing project location in View Royal, BC
Vicinity Plan map showing project location in View Royal, BC

Drawing Symbols Legend

Symbol Description
(Hexagon) Wall assembly tag
(Oval) Floor assembly tag
(Diamond) Roof assembly tag
(Square) Glazing tag
(Triangle) Furring tag
(Circle) Door tag
(Rectangle) Keynote tag
(Pentagon) Finish tag
(Circle with "E") Exterior finish tag
(Circle with Letter/Number) Grid reference tag
(Circle with Detail/Sheet) Detail reference tag
(Circle with Elev/Sheet) Elevation reference tag
(Circle with Sect/Sheet) Section reference tag
(Arrow Circle) Entrance reference tag
(Triangle) Revision reference tag
(Circle/Square) Room number reference tag
(Rectangle) Room name reference tag
(Plus Sign) Ceiling height tag
(Target) Spot elevation tag
(Circle with number) Building elevation tag
(Dashed arrow) 2% Down slope tag
** Requires special attention tag
(North Arrow) North arrow

Construction Assembly Types

Exterior Wall Assemblies

  • W1: 1 HOUR F.R.R. (BSW) 2X6 Studs @ 16" O.C., R20 mineral fibre insulation, 1/2" exterior gypsum sheathing, weather barrier, vertical furring, and exterior finish (cementitious siding).
  • W2: 1 HOUR F.R.R. (BSW) 2X4 Studs @ 16" O.C., R14 mineral fibre insulation, 1/2" exterior gypsum sheathing, weather barrier, vertical furring, and exterior finish.
  • W11: Foundation Wall - 10" Concrete wall, 2" rigid insulation, and interior finish.

Interior Fire Rated Wall Assemblies

  • F10: 1 HOUR F.R.R. (Sound) 2X6 Studs @ 16" O.C., 2 layers 5/8" Type X gypsum board on each side, sound attenuation insulation.
  • F12: 2 HOUR F.R.R. (U.L.C. S101) 2X4 Studs @ 16" O.C., staggered studs on common plates, 2 layers 5/8" Type X gypsum board each side.
  • F13: 2 HOUR F.R.R. (U.L.C. S101) 2X4 Studs @ 16" O.C., double stud wall, 2 layers 5/8" Type X gypsum board each side.

Interior Partition Assemblies

  • P1: 2X4 Studs @ 16" O.C., 1/2" gypsum board each side.
  • P2: 2X4 Studs @ 16" O.C., 1/2" gypsum board each side, sound attenuation insulation.
  • P3: 2X6 Studs @ 16" O.C., 1/2" gypsum board each side.

Floor Assemblies

  • F1: Concrete slab on grade, 4" thickness, poly vapor barrier, compacted fill.
  • F2: Typical Wood Floor (1 HOUR F.R.R.), engineered floor joists, sound attenuation insulation, resilient channels, 5/8" Type X gypsum board.
  • F4: Typical Balcony Deck, engineered floor joists, exterior grade plywood, waterproof membrane.

Roof / Soffit Assemblies

  • R1: Typical Roof, engineered roof trusses, R40 fiberglass batt insulation, 1/2" exterior grade plywood, roofing membrane.
  • R5: Sol / Roof Above Parkade, concrete slab on metal deck, rigid insulation, waterproof membrane, 4" concrete topping.

General Assembly Notes

  1. Unless noted otherwise, all floor plan dimensions are to the center of partitions and to the face of framing at the exterior walls.
  2. Wood framing to be in accordance with the BCBC Section 9.23.
  3. Contractor to verify all dimensions and notify the consultant of any discrepancies prior to construction.
  4. Sound attenuation insulation to be provided in all fire rated walls and floor assemblies as noted.
  5. All fire stopping and smoke sealing of penetrations in fire-rated assemblies to be installed in accordance with U.L.C. standards.

Project General Notes

  1. General: Contractor shall perform all work shown on the drawings and in accordance with the project specifications.
  2. Site Conditions: Contractor shall be responsible for visiting the site and verifying all conditions.
  3. Code: Building is to be constructed in accordance with the 2012 British Columbia Building Code (BCBC).
  4. Coordination: The General Contractor shall coordinate the work of all trades.
  5. Permitting: Contractor shall obtain all necessary permits and licenses required for the work.

Bylaw Information

  • Bylaw Number: View Royal Zoning Bylaw No. 651
  • Zone: CD-12 Comprehensive Development (Multi-Family Residential)
  • Site Area: 5,612 sq.m (60,409 sq.ft.)
  • Density (FSR): Permitted 2.2 / Proposed 2.14
  • Lot Coverage: Permitted 40% (2,244.8 sq.m) / Proposed 43.1% (2,422.3 sq.m)
  • Building Height: Permitted 4 stories / Proposed 4 stories

Unit Mix Summary

Unit Type Phase 1 Phase 2 Total
1 Bedroom 9 5 14
1 Bedroom + Den 10 6 16
2 Bedroom 31 20 51
2 Bedroom + Den 3 0 3
Total Units 53 31 84

Parking Calculations

PARKING CALCULATIONS AS SUBMITTED WITH THE MAY 24, 2013 DP AMENDMENT APPLICATION

Parking Requirements (Bylaw No. 651) Calculation Total Required
Residential Parking 84 units @ 1.6 stalls/unit 134.4 stalls
Visitor Parking 84 units @ 0.2 stalls/unit 16.8 stalls
Total Required Parking 152 stalls
Parking Provided Phase 1 Phase 2 Total
Surface Stalls 24 14 38
Underground Stalls 78 44 122
Total Provided Parking 102 58 160 stalls

Code Information

  • Building Classification: Group C - Residential
  • Construction Type: Combustible construction
  • Sprinkler System: Yes, building to be fully sprinklered to NFPA 13R standards.
  • Fire Alarm System: Required in accordance with BCBC Section 3.2.4.

Abbreviations Legend

  • A.F.F.: Above Finished Floor
  • B.C.B.C.: British Columbia Building Code
  • CL.: Centerline
  • CONC: Concrete
  • EXT: Exterior
  • F.R.R.: Fire Resistance Rating
  • GYP BD: Gypsum Board
  • INSUL: Insulation
  • O.C.: On Center
  • O.H.: Overhead
  • PL: Property Line
  • S.A.B.: Sound Attenuation Batts

Consultants

  • Architect / Structural / Mechanical / Electrical: Omicron Architecture Engineering Construction Ltd.
  • Civil: Westbrook Consulting Ltd.
  • Landscape: Murdoch de Greeff Inc.

Drawing List

  • DP0.0.2: Construction Assemblies - Revised DP
  • DP1.0.1: Phasing Plan - Revised DP
  • DP2.0.1: Parkade Floor Plan - Revised DP
  • DP2.0.2: Main Floor Plan - Revised DP
  • DP2.0.3: Second Floor Plan - Revised DP
  • DP2.0.4: Third Floor Plan - Revised DP
  • DP2.0.5: Fourth Floor Plan - Revised DP
  • DP2.0.6: Roof Plan - Revised DP
  • DP3.0.1: Building Elevations - Revised DP
  • DP3.0.2: Building Sections - Revised DP
  • DP4.0.1: North & East Elevation - Revised DP
  • DP4.0.2: South & West Elevation - Revised DP

Headwater Properties Limited Partnership COHO CONDOMINIUMS 290 Wilfert Road, View Royal, BC

  • Project Number: 11-10-020
  • Drawn: KT
  • Designed: IM
  • Checked: GK
  • Phase: PHASE 2
  • Sheet Number: DP0.0.2
  • Drawing Title: CONSTRUCTION ASSEMBLIES - REVISED DP
Page 55
