Appendix: Master Transportation Plan 2008 Design Concept Map

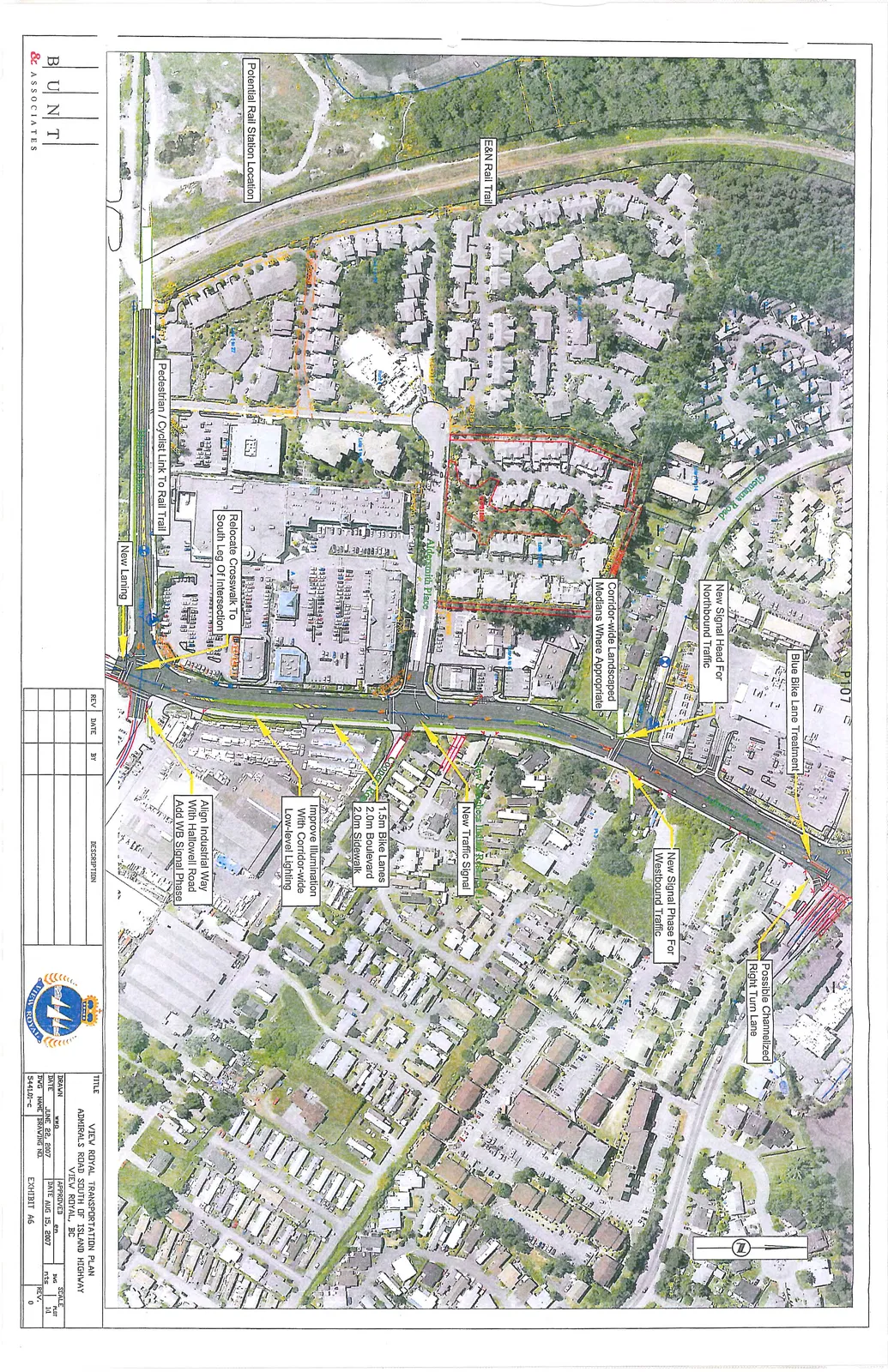

View Royal Transportation Plan: Admirals Road South of Island Highway

Blue Bike Lane Treatment: Located at the northern intersection with Island Highway.
Possible Channelized Right Turn Lane: At the intersection with Island Highway.
New Signal Head For Northbound Traffic: At the intersection of Admirals Road and Glentana Road.
New Signal Phase For Westbound Traffic: At the intersection of Admirals Road and Glentana Road.
Corridor-wide Landscaped Medians Where Appropriate: Along the center of Admirals Road.
New Traffic Signal: At the intersection of Admirals Road and Aldersmith Place.
1.5m Bike Lanes, 2.0m Boulevard, 2.0m Sidewalk: Cross-section specifications for the Admirals Road corridor.
Improve Illumination With Corridor-wide Low-level Lighting: Along the Admirals Road corridor.
Align Industrial Way With Hallowell Road, Add WB Signal Phase: Realignment and signalization at the southern end of the corridor.
Relocate Crosswalk To South Leg Of Intersection: At the Admirals Road and Aldersmith Place intersection.
Pedestrian / Cyclist Link To Rail Trail: Connecting the E&N Rail Trail to the southern intersection area.
New Laning: Proposed at the intersection of Admirals Road and Industrial Way/Hallowell Road.
Potential Rail Station Location: Identified along the E&N Rail Trail.
E&N Rail Trail: Running parallel to Admirals Road on the western side.
Glentana Road: Intersecting Admirals Road from the east.
Aldersmith Place: Intersecting Admirals Road from the west.

REV	DATE	BY	DESCRIPTION

Field	Detail
TITLE	VIEW ROYAL TRANSPORTATION PLAN, ADMIRALS ROAD SOUTH OF ISLAND HIGHWAY, VIEW ROYAL, BC
DRAWN	wwg
DATE	JUNE 22, 2007
APPROVED	en
DATE	AUG 15, 2007
DWG NAME / DRAWING NO.	5441.01-c / EXHIBIT A6
SCALE	nts
PLOT	1:1
REV	0
