Attachment 8: Section Through Site (South-East Elev.)
May 15, 2012Page 401 section

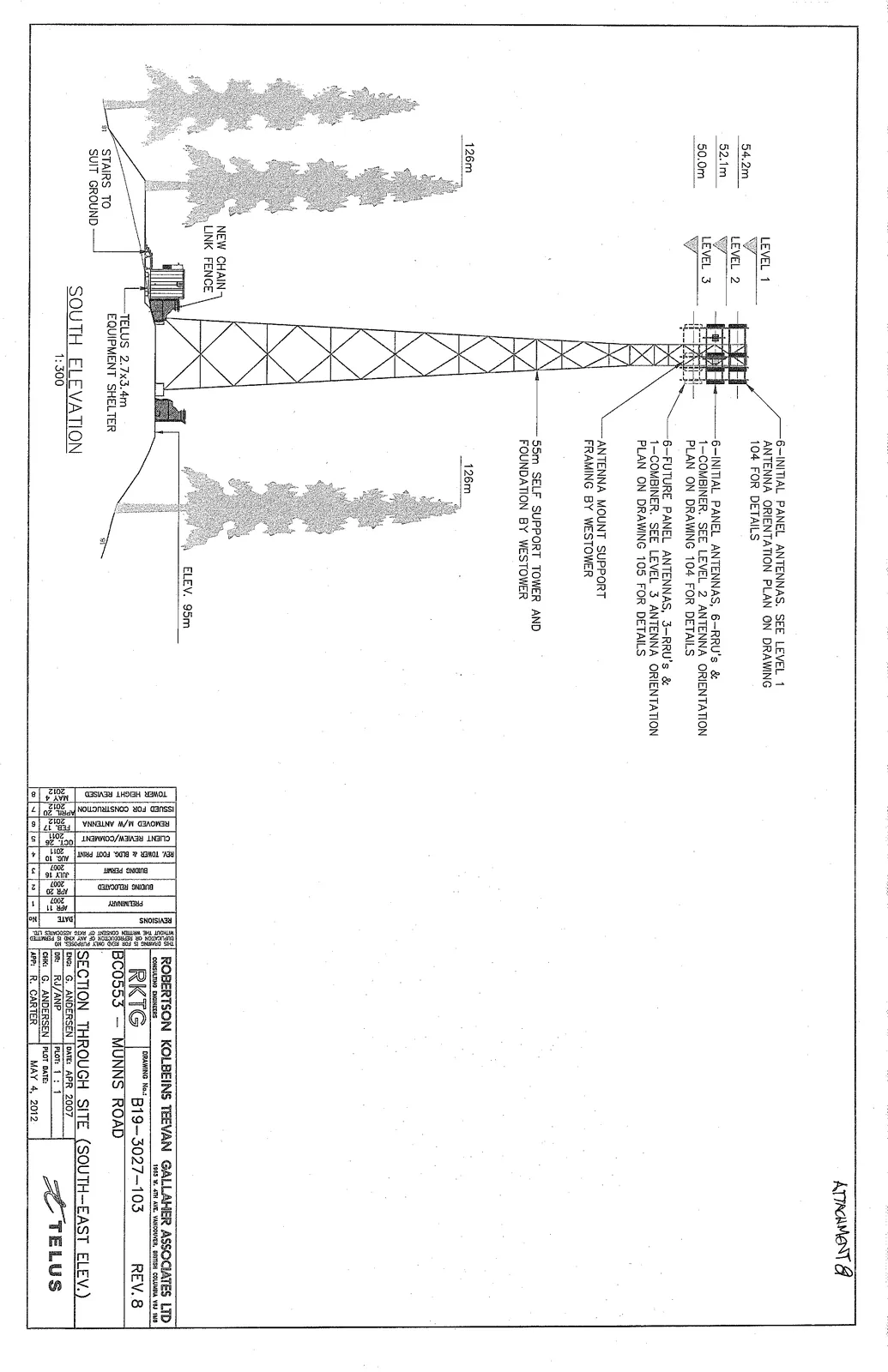

Cross-section elevation showing the tower, equipment shelter, and surrounding trees.
55m self support tower
SECTION THROUGH SITE (SOUTH-EAST ELEV.)
South Elevation Details (Scale 1:300)
- Level 1 (54.2m): 6-INITIAL PANEL ANTENNAS. SEE LEVEL 1 ANTENNA ORIENTATION PLAN ON DRAWING 104 FOR DETAILS
- Level 2 (52.1m): 6-INITIAL PANEL ANTENNAS, 6-RRU'S & 1-COMBINER. SEE LEVEL 2 ANTENNA ORIENTATION PLAN ON DRAWING 104 FOR DETAILS
- Level 3 (50.0m): 6-FUTURE PANEL ANTENNAS, 3-RRU'S & 1-COMBINER. SEE LEVEL 3 ANTENNA ORIENTATION PLAN ON DRAWING 105 FOR DETAILS
- Antenna Mount Support: FRAMING BY WESTOWER
- Tower: 55m SELF SUPPORT TOWER AND FOUNDATION BY WESTOWER
- Perimeter: NEW CHAIN LINK FENCE
- Equipment: TELUS 2.7x3.4m EQUIPMENT SHELTER
- Access: STAIRS TO SUIT GROUND
- Ground Elevation: ELEV. 95m
- Terrain Heights: 126m
Revisions
| No. | REVISIONS | DATE |
|---|---|---|
| 1 | PRELIMINARY | APR 11, 2007 |
| 2 | BUILDING RELOCATED | JUN 25, 2007 |
| 3 | BUILDING PERMIT | JULY 16, 2007 |
| 4 | REV. TOWER & BLDG. FOOT PRINT | AUG 10, 2007 |
| 5 | CLIENT REVIEW/COMMENT | OCT 26, 2007 |
| 6 | REMOVED M/W ANTENNA | FEB 27, 2009 |
| 7 | ISSUED FOR CONSTRUCTION | APRIL 20, 2011 |
| 8 | TOWER HEIGHT REVISED | MAY 4, 2012 |
Project Information
- Consulting Engineers: ROBERTSON KOLBEINS TEEVAN GALLAHER ASSOCIATES LTD
- 1955 W. 4TH AVE., VANCOUVER, BRITISH COLUMBIA V6J 1M5
- Project Name: RKTG BC0553 — MUNNS ROAD
- Drawing Title: SECTION THROUGH SITE (SOUTH-EAST ELEV.)
- Drawing No.: B19-3027-103
- Revision: REV. 8
- ENG: G. ANDERSEN
- DATE: APR 2007
- DR: RJ/ANP
- PLOT: 1 : 1
- CHK: G. ANDERSEN
- PLOT DATE: MAY 4, 2012
- APP: R. CARTER
