Attachment 9: Antenna Orientation Plan

May 15, 2012Page 411 section

Technical diagrams showing the direction and type of antennas at Levels 1 and 2.

1. CALL TO ORDER
LTE-AWSWCDMA-800/1900

ATTACHMENT 9

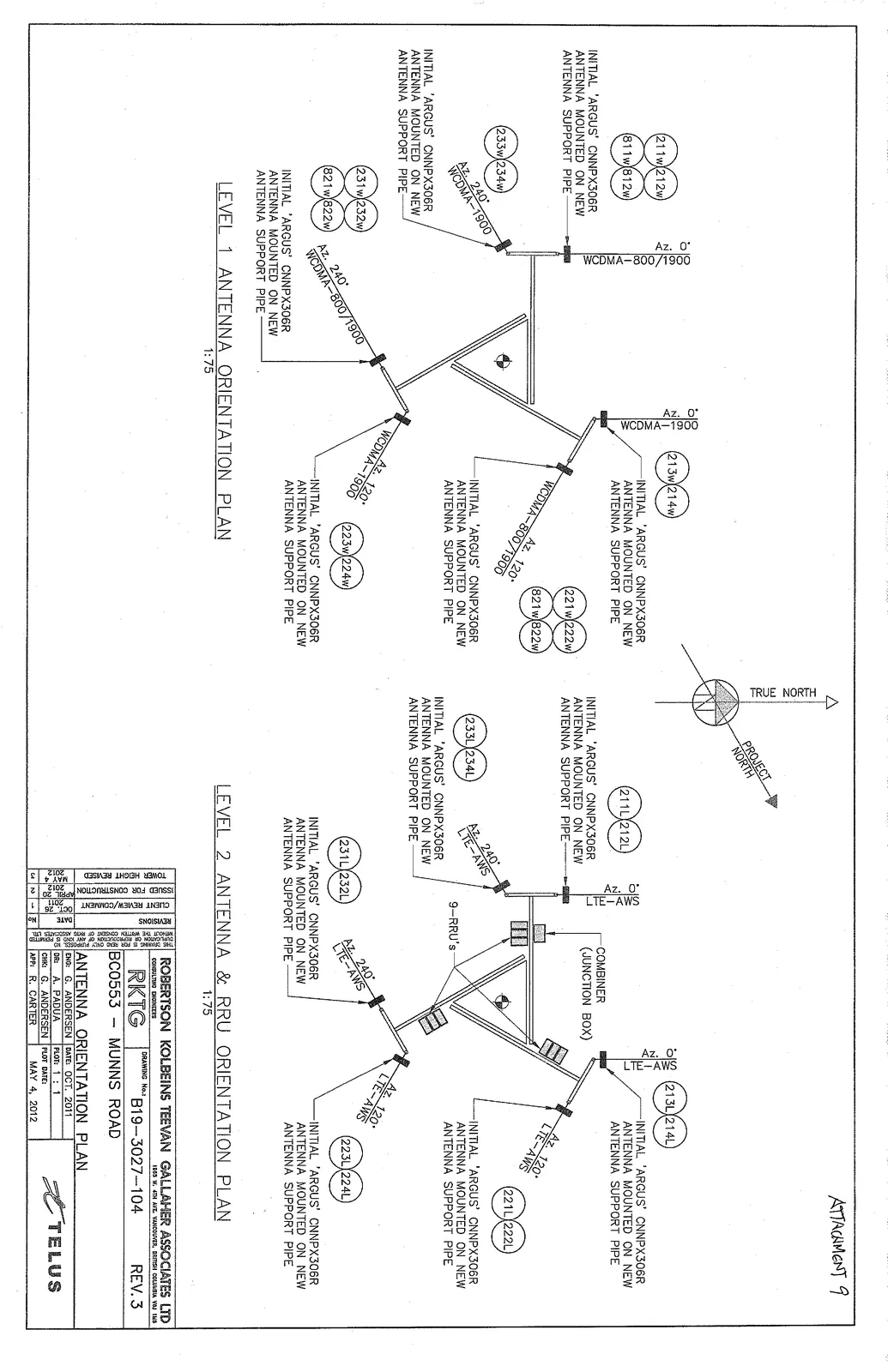

Technical drawing showing antenna orientation plans for Level 1 and Level 2. The diagrams detail antenna placements for WCDMA and LTE-AWS systems at Azimuths 0°, 120°, and 240°, including antenna labels, support pipes, and equipment like RRUs and combiner boxes.
Technical drawing showing antenna orientation plans for Level 1 and Level 2. The diagrams detail antenna placements for WCDMA and LTE-AWS systems at Azimuths 0°, 120°, and 240°, including antenna labels, support pipes, and equipment like RRUs and combiner boxes.

LEVEL 1 ANTENNA ORIENTATION PLAN

Scale 1:75

This plan specifies the initial 'ARGUS' CNNPX306R antennas mounted on new antenna support pipes for the following sectors:

  • Azimuth 0°:
    • WCDMA-800/1900: Antennas 211w, 212w, 811w, 812w
    • WCDMA-1900: Antennas 213w, 214w
  • Azimuth 120°:
    • WCDMA-800/1900: Antennas 221w, 222w, 821w, 822w
    • WCDMA-1900: Antennas 223w, 224w
  • Azimuth 240°:
    • WCDMA-1900: Antennas 233w, 234w
    • WCDMA-800/1900: Antennas 231w, 232w, 821w, 822w

LEVEL 2 ANTENNA & RRU ORIENTATION PLAN

Scale 1:75

This plan specifies the initial 'ARGUS' CNNPX306R antennas mounted on new antenna support pipes for the following sectors, along with associated equipment:

  • Azimuth 0°:
    • LTE-AWS: Antennas 211L, 212L, 213L, 214L
  • Azimuth 120°:
    • LTE-AWS: Antennas 221L, 222L, 223L, 224L
  • Azimuth 240°:
    • LTE-AWS: Antennas 231L, 232L, 233L, 234L
  • Other Equipment:
    • 9-RRU's
    • Combiner (Junction Box)

REVISIONS

NO. DESCRIPTION DATE
1 CLIENT REVIEW/COMMENT OCT. 26, 2011
2 ISSUED FOR CONSTRUCTION APR 20, 2012
3 TOWER HEIGHT REVISED MAY 4, 2012

PROJECT INFORMATION

FIELD DETAIL
Consulting Engineers ROBERTSON KOLBEINS TEEVAN GALLAHER ASSOCIATES LTD.
1885 W. 4th AVE. VANCOUVER, BRITISH COLUMBIA V6J 1M3
Drawing No. B19–3027–104
Revision REV. 3
Site Name BC0553 — MUNNS ROAD
Drawing Title ANTENNA ORIENTATION PLAN
Engineer (ENG) G. ANDERSEN
Date OCT. 2011
Drafted (DR) A. PADUA
Plot Scale 1 : 1
Checked (CHK) G. ANDERSEN
Plot Date MAY 4, 2012
Approved (APP) R. CARTER
