Attachment 10: Level 3 Future Antenna Orientation Plan

May 15, 2012Page 421 section

Technical diagram showing the planned orientation for future antenna expansions at Level 3.

1. CALL TO ORDER
Future 3-RRU's

LEVEL 3 FUTURE ANTENNA & RRU ORIENTATION PLAN

1:75

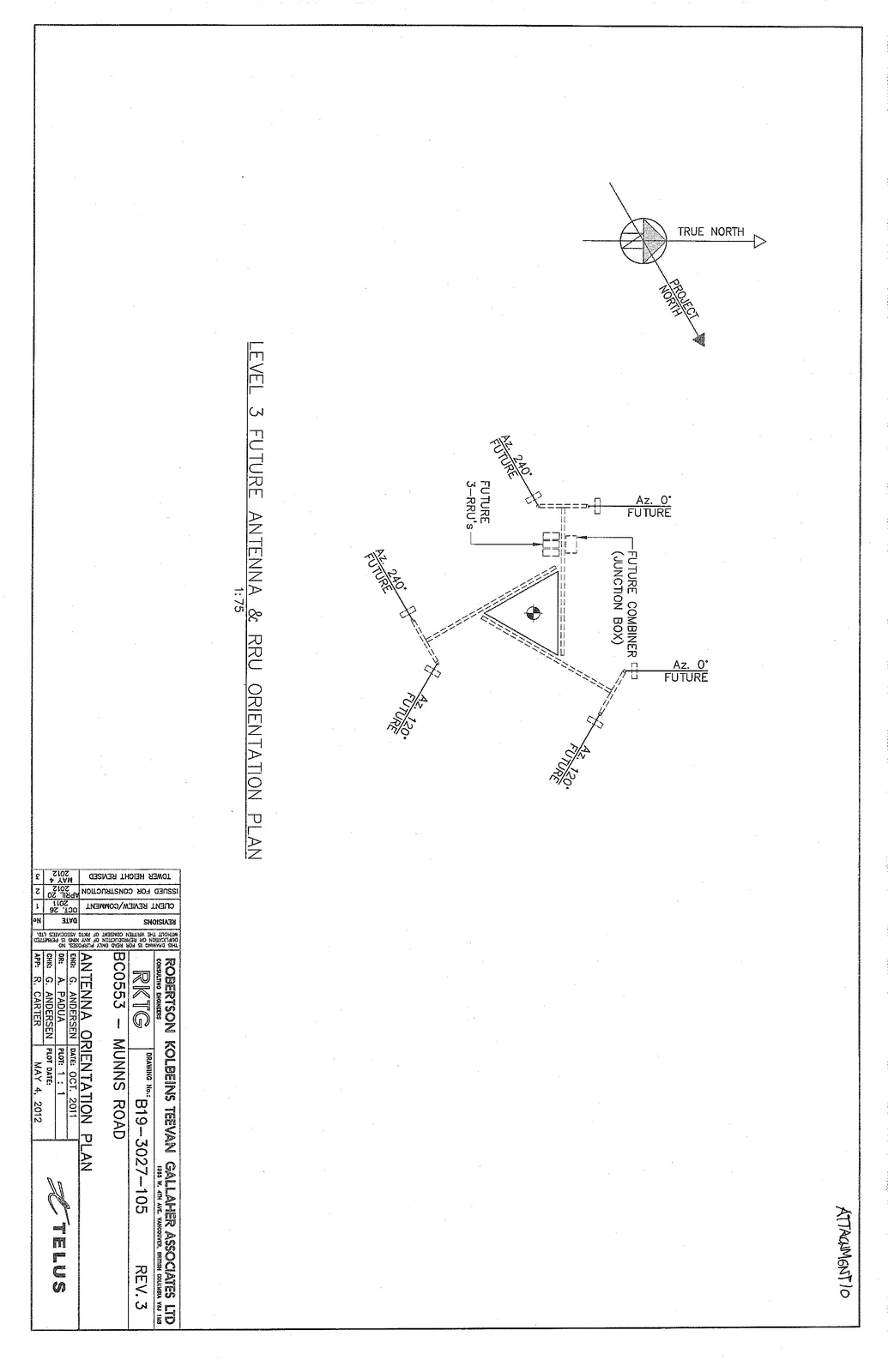

Engineering diagram detailing the orientation of future antennas and remote radio units (RRUs) for project BC0553 at Munns Road. The plan shows future antenna azimuths at 0°, 120°, and 240°, along with locations for a future combiner junction box and three future RRUs. Orientation is shown relative to both True North and Project North.
Engineering diagram detailing the orientation of future antennas and remote radio units (RRUs) for project BC0553 at Munns Road. The plan shows future antenna azimuths at 0°, 120°, and 240°, along with locations for a future combiner junction box and three future RRUs. Orientation is shown relative to both True North and Project North.

Project Information

Consulting Engineers: ROBERTSON KOLBEINS TEEVAN GALLAHER ASSOCIATES LTD 1255 W. 7TH AVE. VANCOUVER, BRITISH COLUMBIA V6J 1M8

Category Detail
Project BC0553 — MUNNS ROAD
Drawing Title ANTENNA ORIENTATION PLAN
Drawing No. B19-3027-105
Revision REV. 3
Date OCT. 2011
Plot Date MAY 4, 2012
Scale 1 : 1

Project Team

  • ENG.: G. ANDERSEN
  • DR.: A. PADUA
  • CHK.: G. ANDERSEN
  • APP.: R. CARTER

Revisions

No. Date Description
1 OCT. 26 2011 CLIENT REVIEW/COMMENT
2 APRIL 20 2012 ISSUED FOR CONSTRUCTION
3 MAY 4 2012 TOWER HEIGHT REVISED
