Appendix

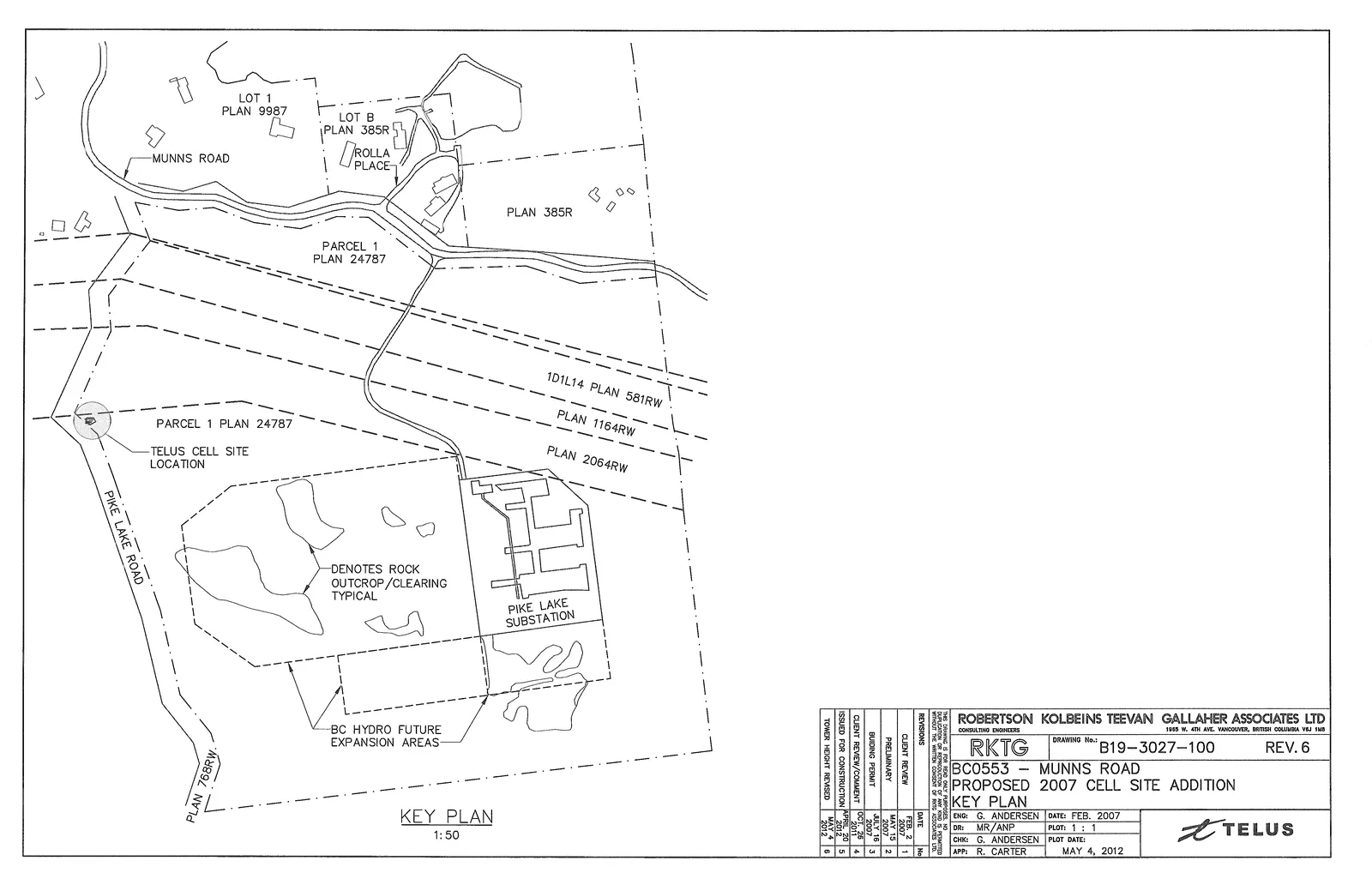

Key Plan - Drawing B19-3027-100
May 15, 2012Page 841 section
Key plan map showing the location of the tower site and surrounding BC Hydro features.
1:50 scale
BC0553 - MUNNS ROAD PROPOSED 2007 CELL SITE ADDITION - KEY PLAN
Map Details
- Roads and Property Identifiers:
- MUNNS ROAD
- ROLLA PLACE
- PIKE LAKE ROAD
- LOT 1 PLAN 9987
- LOT B PLAN 385R
- PLAN 385R
- PARCEL 1 PLAN 24787
- Site Specifics:
- TELUS CELL SITE LOCATION
- PIKE LAKE SUBSTATION
- BC HYDRO FUTURE EXPANSION AREAS
- DENOTES ROCK OUTCROP/CLEARING TYPICAL
- Right of Way and Plan References:
- 1D1L14 PLAN 581RW
- PLAN 1164RW
- PLAN 2064RW
- PLAN 768RW
- Scale: 1:50
Revision Table
| No. | REVISIONS | DATE |
|---|---|---|
| 1 | CLIENT REVIEW | FEB 2 2007 |
| 2 | PRELIMINARY | MAY 15 2007 |
| 3 | BUILDING PERMIT | JULY 16 2007 |
| 4 | CLIENT REVIEW/COMMENT | OCT 26 2007 |
| 5 | ISSUED FOR CONSTRUCTION | APRIL 20 2012 |
| 6 | TOWER HEIGHT REVISED | MAY 4 2012 |
Project Administration
- Consulting Engineers: ROBERTSON KOLBEINS TEEVAN GALLAHER ASSOCIATES LTD.
- 1885 W. 4TH AVE. VANCOUVER, BRITISH COLUMBIA V6J 1M8
- Project Name: BC0553 - MUNNS ROAD PROPOSED 2007 CELL SITE ADDITION
- Drawing Title: KEY PLAN
- Drawing No.: B19-3027-100
- Revision: REV. 6
- Engineering and Approval Details:
- ENG: G. ANDERSEN
- DATE: FEB. 2007
- DR: MR/ANP
- PLOT: 1 : 1
- CHK: G. ANDERSEN
- PLOT DATE: MAY 4, 2012
- APP: R. CARTER
Page 84
