Site Plan - Drawing B19-3027-101

May 15, 2012Page 851 section

Detailed engineering site plan showing access roads and property lines.

1. CALL TO ORDER
1:1000 scale

SITE PLAN

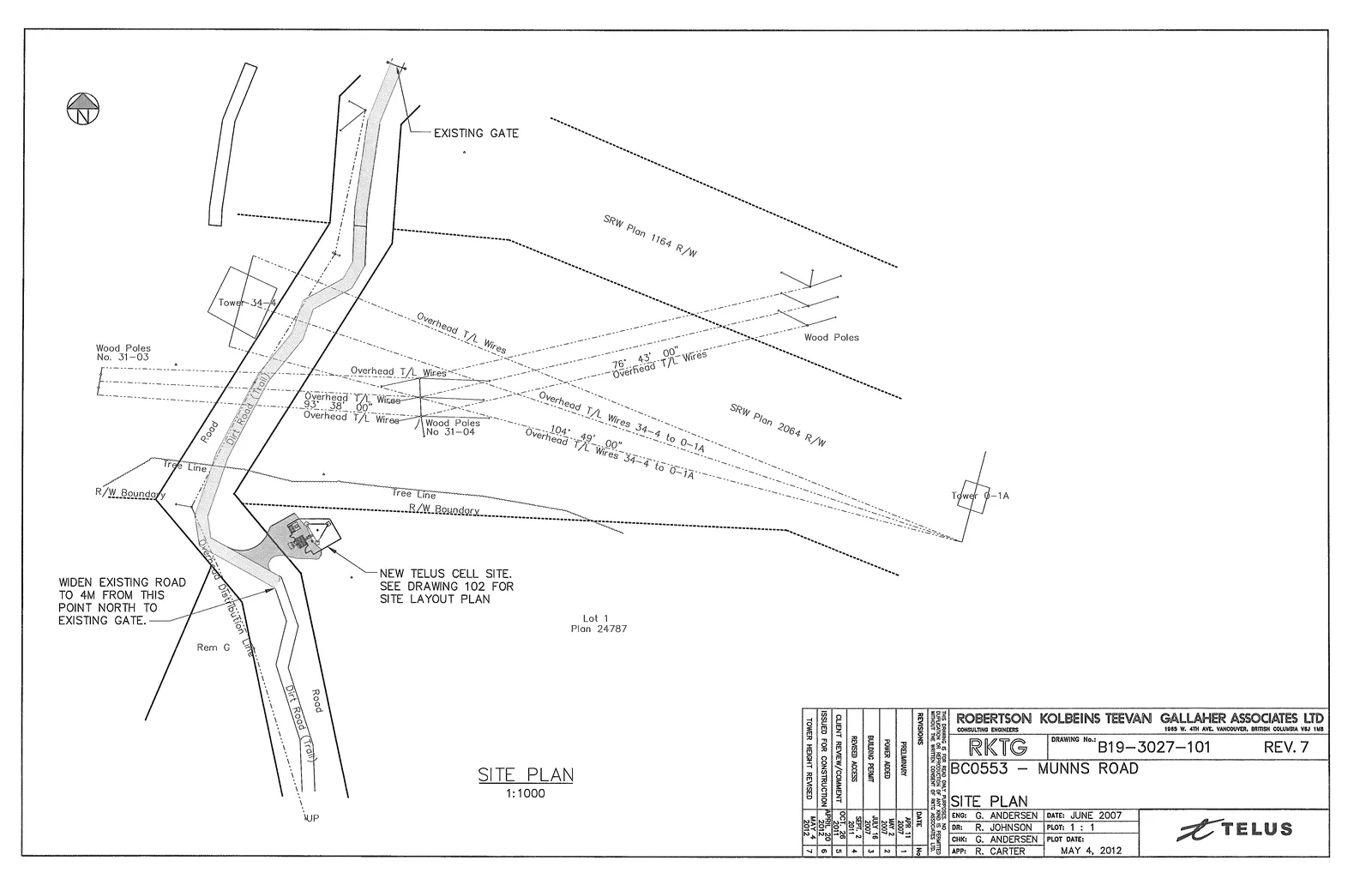

Site plan drawing for a Telus cell site (BC0553) located on Munns Road. The map details property boundaries, right-of-way (R/W) boundaries, existing infrastructure including gates, wood poles, towers, and overhead transmission lines with bearings. It highlights the location for a proposed new Telus cell site and specifies a section of the existing road to be widened to 4m.
Site plan drawing for a Telus cell site (BC0553) located on Munns Road. The map details property boundaries, right-of-way (R/W) boundaries, existing infrastructure including gates, wood poles, towers, and overhead transmission lines with bearings. It highlights the location for a proposed new Telus cell site and specifies a section of the existing road to be widened to 4m.

Plan Annotations

  • EXISTING GATE
  • SRW Plan 1164 R/W
  • SRW Plan 2064 R/W
  • Wood Poles
  • Tower 34-4
  • Tower 0-1A
  • Wood Poles No. 31-03
  • Wood Poles No. 31-04
  • Overhead T/L Wires
  • 76° 43' 00" Overhead T/L Wires
  • 93° 38' 00" Overhead T/L Wires
  • 104° 49' 00" Overhead T/L Wires 34-4 to 0-1A
  • Overhead T/L Wires 34-4 to 0-1A
  • Tree Line
  • R/W Boundary
  • Road
  • Dirt Road (Trail)
  • Overhead Distribution Line
  • Rem C
  • NEW TELUS CELL SITE. SEE DRAWING 102 FOR SITE LAYOUT PLAN
  • Lot 1 Plan 24787
  • WIDEN EXISTING ROAD TO 4M FROM THIS POINT NORTH TO EXISTING GATE.
  • UP

SITE PLAN 1:1000

Revision History

No. REVISIONS DATE
1 PRELIMINARY APR 11 2007
2 POWER ADDED MAY 2 2007
3 BUILDING PERMIT JULY 16 2007
4 REVISED ACCESS SEPT 2 2008
5 CLIENT REVIEW/COMMENT OCT 26 2010
6 ISSUED FOR CONSTRUCTION APRIL 20 2011
7 TOWER HEIGHT REVISED MAY 4 2012

Project Information

ROBERTSON KOLBEINS TEEVAN GALLAHER ASSOCIATES LTD. CONSULTING ENGINEERS 1065 W. 4TH AVE. VANCOUVER, BRITISH COLUMBIA V6J 1M8

THIS DRAWING IS FOR ROAD ONLY PURPOSES. DUPLICATION OR REPRODUCTION OF ANY KIND IS PROHIBITED WITHOUT THE WRITTEN CONSENT OF RKTG ASSOCIATES LTD.

RKTG BC0553 — MUNNS ROAD

Field Details
Drawing Title SITE PLAN
Drawing No. B19-3027-101
Revision REV. 7
ENG G. ANDERSEN
DR R. JOHNSON
CHK G. ANDERSEN
APP R. CARTER
Date JUNE 2007
Plot Date MAY 4, 2012
Plot 1 : 1
Page 85
Extracted from: 2012 05 15 Council Agenda
