Appendix

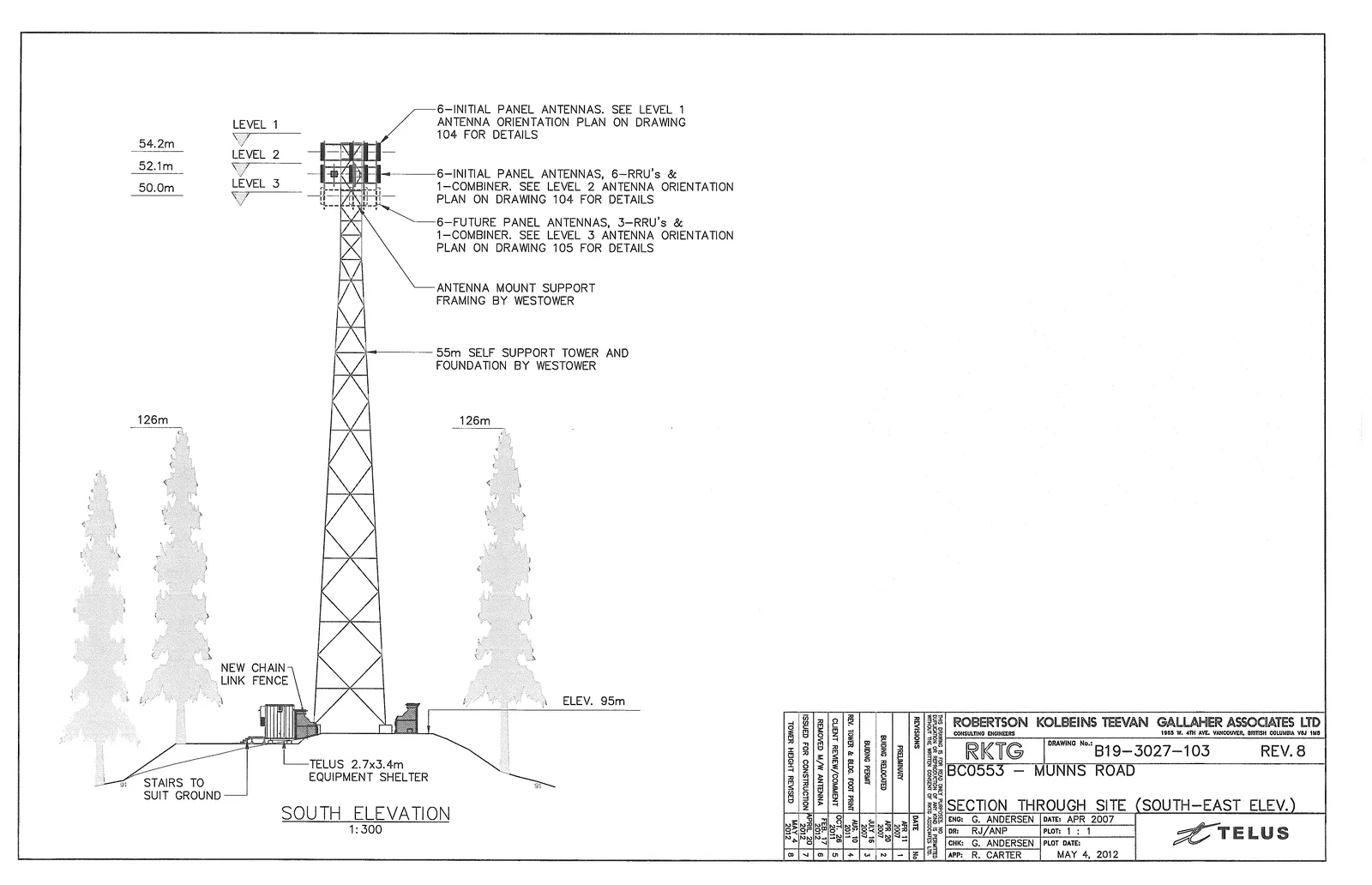

Section Through Site - Drawing B19-3027-103
May 15, 2012Page 881 section
Elevation view of the tower site showing the 55m structure height relative to ground level.
1:300 scale
RKTG BC0553 – MUNNS ROAD
South Elevation Details
- LEVEL 1 (54.2m): 6-INITIAL PANEL ANTENNAS. SEE LEVEL 1 ANTENNA ORIENTATION PLAN ON DRAWING 104 FOR DETAILS
- LEVEL 2 (52.1m): 6-INITIAL PANEL ANTENNAS, 6-RRU'S & 1-COMBINER. SEE LEVEL 2 ANTENNA ORIENTATION PLAN ON DRAWING 104 FOR DETAILS
- LEVEL 3 (50.0m): 6-FUTURE PANEL ANTENNAS, 3-RRU'S & 1-COMBINER. SEE LEVEL 3 ANTENNA ORIENTATION PLAN ON DRAWING 105 FOR DETAILS
- ANTENNA MOUNT SUPPORT FRAMING BY WESTOWER
- 55m SELF SUPPORT TOWER AND FOUNDATION BY WESTOWER
- TELUS 2.7x3.4m EQUIPMENT SHELTER
- NEW CHAIN LINK FENCE
- STAIRS TO SUIT GROUND
- ELEV. 95m
- SOUTH ELEVATION 1:300
Revisions
| No. | REVISIONS | DATE |
|---|---|---|
| 1 | PRELIMINARY | APR 11 07 |
| 2 | BUILDING RELOCATED | JUL 16 07 |
| 3 | BUILDING PERMIT | AUG 10 07 |
| 4 | REV TOWER & BLDG. FOOT PRINT | OCT 26 07 |
| 5 | CLIENT REVIEW/COMMENT | OCT 11 11 |
| 6 | REMOVED M/W ANTENNA | FEB 17 12 |
| 7 | ISSUED FOR CONSTRUCTION | APR 20 12 |
| 8 | TOWER HEIGHT REVISED | MAY 4 2012 |
Project Information
- Consulting Engineers: ROBERTSON KOLBEINS TEEVAN GALLAHER ASSOCIATES LTD, 1955 W. 4TH AVE. VANCOUVER, BRITISH COLUMBIA V6J 1M7
- Drawing Title: SECTION THROUGH SITE (SOUTH-EAST ELEV.)
- Drawing No.: B19-3027-103
- REV: 8
- ENG: G. ANDERSEN
- DATE: APR 2007
- DR: RJ/ANP
- PLOT: 1 : 1
- CHK: G. ANDERSEN
- APP: R. CARTER, MAY 4, 2012
Page 88
Extracted from: 2012 05 15 Council Agenda
