Level 3 Future Antenna & RRU Orientation Plan - Drawing B19-3027-105

May 15, 2012Page 901 section

Antenna orientation plan specifically for Level 3 future expansion.

1. CALL TO ORDER
1:75 scale

LEVEL 3 FUTURE ANTENNA & RRU ORIENTATION PLAN

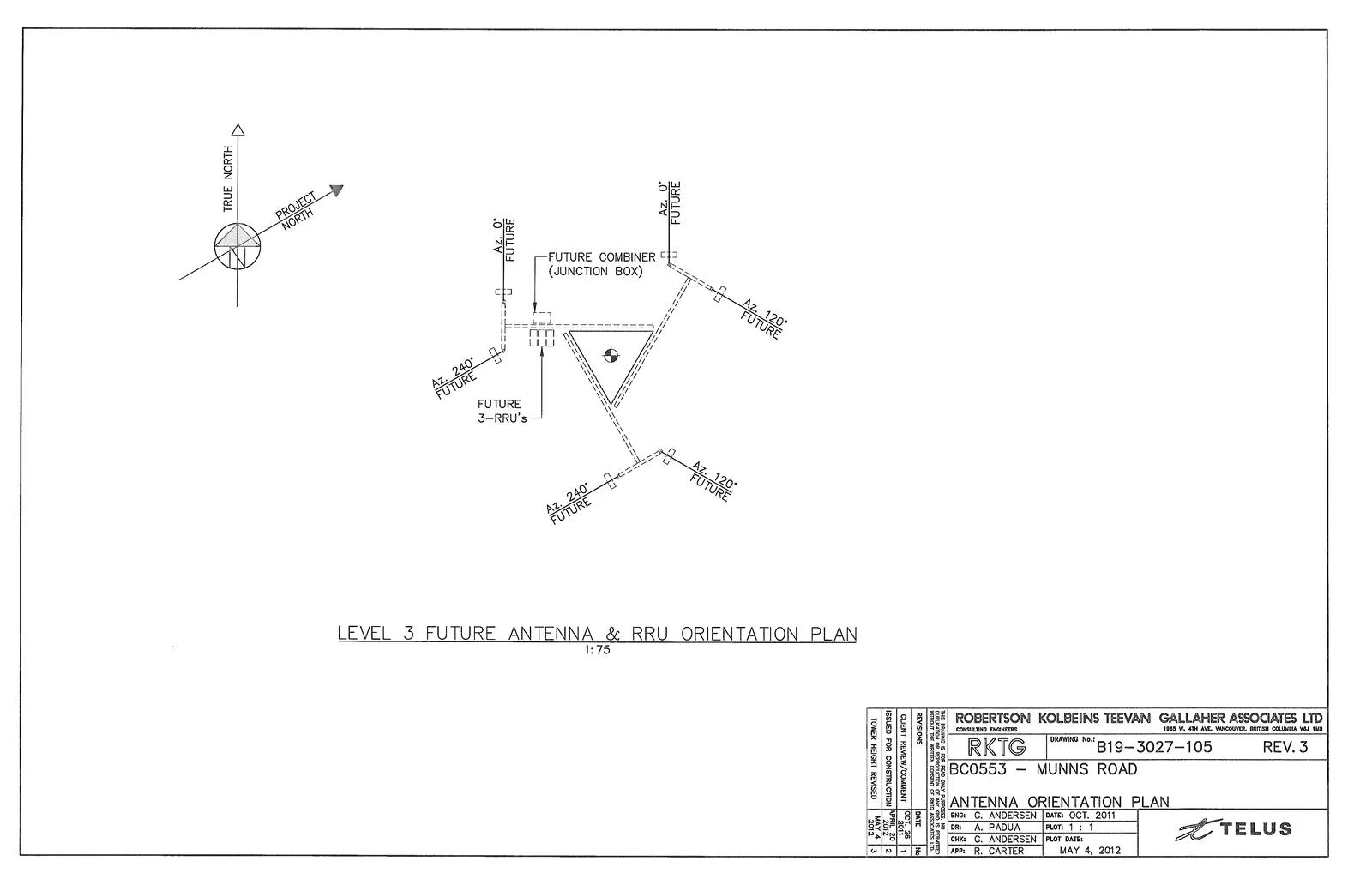

Engineering diagram titled "LEVEL 3 FUTURE ANTENNA & RRU ORIENTATION PLAN" showing a triangular tower platform with planned antenna azimuths at 0°, 120°, and 240°, along with locations for future combiners and RRUs. Includes True North and Project North orientation arrows.
Engineering diagram titled "LEVEL 3 FUTURE ANTENNA & RRU ORIENTATION PLAN" showing a triangular tower platform with planned antenna azimuths at 0°, 120°, and 240°, along with locations for future combiners and RRUs. Includes True North and Project North orientation arrows.

Plan Details

  • Scale: 1:75
  • Orientation:
    • True North
    • Project North
  • Azimuths:
    • Az. 0° FUTURE
    • Az. 120° FUTURE
    • Az. 240° FUTURE
  • Equipment Callouts:
    • FUTURE COMBINER (JUNCTION BOX)
    • FUTURE 3-RRU's

Revision History

No Date Revision / Comment
1 OCT 26, 2011 CLIENT REVIEW/COMMENT
2 APRIL 20, 2012 ISSUED FOR CONSTRUCTION
3 MAY 4, 2012 TOWER HEIGHT REVISED

Project Information

Field Value
Consulting Engineers ROBERTSON KOLBEINS TEEVAN GALLAHER ASSOCIATES LTD
1685 W. 4TH AVE. VANCOUVER, BRITISH COLUMBIA V6J 1M8
Project RKTG BC0553 — MUNNS ROAD
Drawing No. B19-3027-105
Revision REV. 3
Drawing Title ANTENNA ORIENTATION PLAN
ENG: G. ANDERSEN
DIS: A. PADUA
CHK: G. ANDERSEN
APP: R. CARTER
DATE: OCT. 2011
PLOT: 1 : 1
PLOT DATE: MAY 4, 2012
