Code Review, Window Schedule

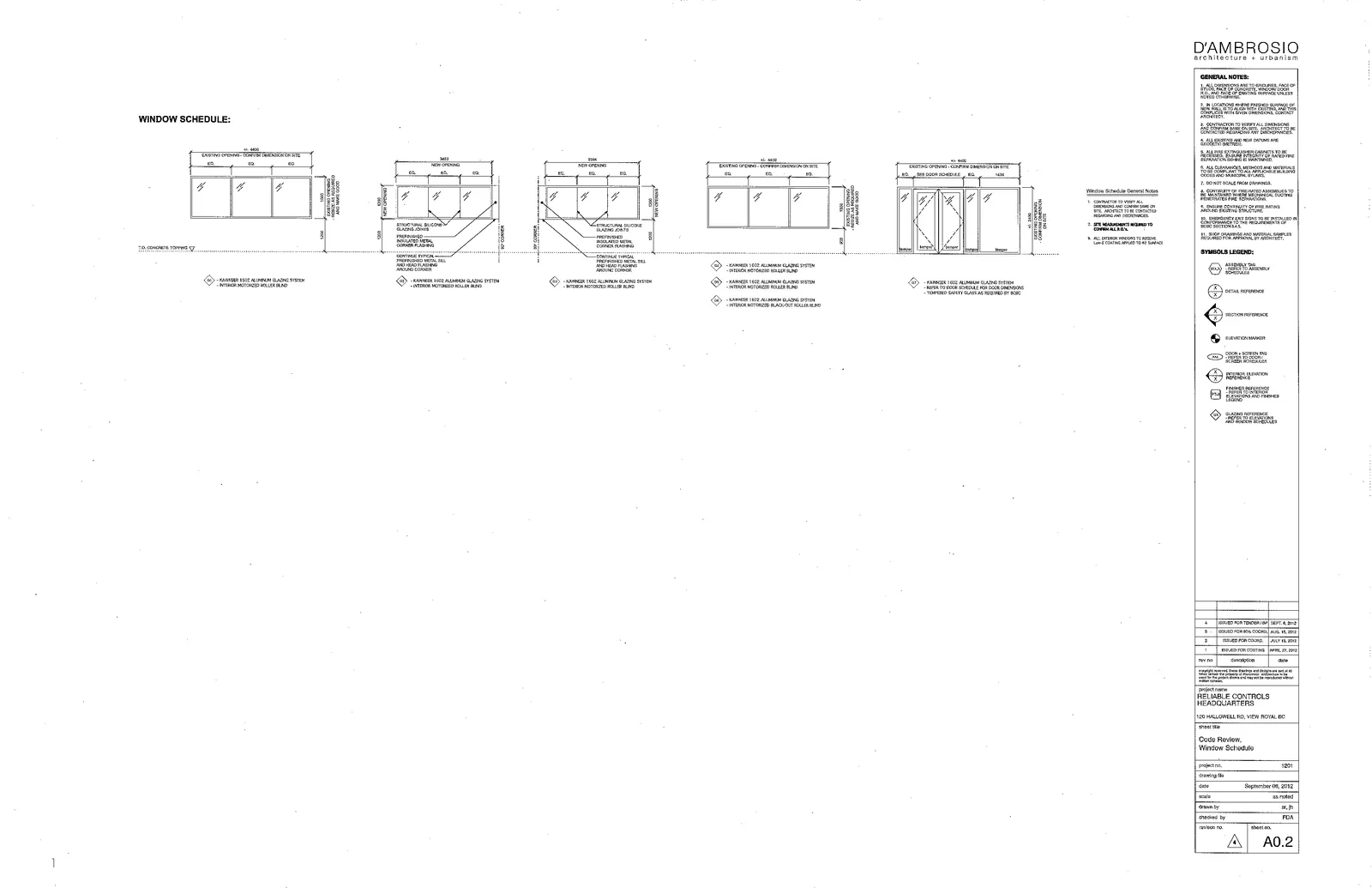

WINDOW SCHEDULE

Window Elevations

W1

• EXISTING OPENING - CONFIRM DIMENSION ON SITE
• KAWNEER 1602 ALUMINUM GLAZING SYSTEM
• INTERIOR MOTORIZED ROLLER BLIND

W2

• NEW OPENING
• STRUCTURAL SILICONE GLAZING JOINTS
• PREFINISHED INSULATED METAL CORNER FLASHING
• CONTINUE TYPICAL PREFINISHED METAL SILL AND HEAD FLASHING AROUND CORNER
• KAWNEER 1602 ALUMINUM GLAZING SYSTEM
• INTERIOR MOTORIZED ROLLER BLIND

W3

• NEW OPENING
• STRUCTURAL SILICONE GLAZING JOINTS
• PREFINISHED INSULATED METAL CORNER FLASHING
• CONTINUE TYPICAL PREFINISHED METAL SILL AND HEAD FLASHING AROUND CORNER
• KAWNEER 1602 ALUMINUM GLAZING SYSTEM
• INTERIOR MOTORIZED ROLLER BLIND

W4

• EXISTING OPENING - CONFIRM DIMENSION ON SITE
• KAWNEER 1602 ALUMINUM GLAZING SYSTEM
• INTERIOR MOTORIZED ROLLER BLIND

W5

• EXISTING OPENING - CONFIRM DIMENSION ON SITE
• KAWNEER 1602 ALUMINUM GLAZING SYSTEM
• INTERIOR MOTORIZED BLACK-OUT ROLLER BLIND

W7

• EXISTING OPENING - CONFIRM DIMENSION ON SITE
• SEE DOOR SCHEDULE
• KAWNEER 1602 ALUMINUM GLAZING SYSTEM
• REFER TO DOOR SCHEDULE FOR DOOR DIMENSIONS
• TEMPERED SAFETY GLASS AS REQUIRED BY BCBC

GENERAL NOTES:

1. ALL DIMENSIONS ARE TO FINISHED FACE OF FRAME, FACE OF CONCRETE, ROUGH DOOR OR WINDOW OPENING UNLESS NOTED OTHERWISE ON DRAWINGS.
2. IN LOCATIONS WHERE FINISHED SURFACES OF MATERIALS ARE ALSO FIRE RATED, AND FOR COMPLETE FIRE RATED DIMENSIONS, CONTACT ARCHITECT.
3. CONTRACTOR TO VERIFY ALL DIMENSIONS ON DRAWINGS AND ON SITE. ARCHITECT TO BE CONTACTED REGARDING ANY DISCREPANCIES.
4. ALL EXISTING AND NEW DOORS ARE OUTWARD SWINGING.
5. ALL FIRE EXTINGUISHER CABINETS TO BE RECESSED. MAINTAIN INTEGRITY OF FIRE FIRE RATED PARTITIONS AS PER NBCC.
6. ALL CLEARANCES, METHODS AND MATERIALS TO BE INSTALLED AS PER B.C. BUILDING CODE AND MUNICIPAL BYLAWS.
7. DO NOT SCALE FROM DRAWINGS.
8. INTEGRITY OF FIRE-RATED ASSEMBLIES TO BE MAINTAINED WHERE MECHANICAL DUCTING PENETRATES FIRE SEPARATION.
9. ENSURE CONTINUITY OF FIRE RATING AROUND EXISTING STRUCTURE.
10. SUPPORTS FOR PIPING TO BE INSTALLED IN ACCORDANCE WITH THE REQUIREMENTS OF BCBC SECTION 3.2.5.
11. FINISH HARDWARE AND MATERIAL SAMPLES REQUIRED FOR APPROVAL BY ARCHITECT.

Window Schedule General Notes

1. CONTRACTOR TO VERIFY ALL DIMENSIONS AND CONFIRM SAME ON SITE. ARCHITECT TO BE CONTACTED REGARDING ANY DISCREPANCIES.
2. SITE MEASUREMENTS REQUIRED TO CONFIRM ALL R.O.'s.
3. ALL EXTERIOR WINDOWS TO RECEIVE Low-E COATING APPLIED TO #2 SURFACE.

SYMBOLS LEGEND:

• REVISION TAG
• WALL TYPE / ASSEMBLY REFERENCE
• DETAIL REFERENCE
• SECTION REFERENCE
• ELEVATION MARKER
• DOOR + SCREEN TAG (REFER TO DOOR / SCREEN SCHEDULE)
• EXTERIOR ELEVATION REFERENCE
• FINISHES REFERENCE (REFER TO INTERIOR ELEVATIONS AND FINISHES LEGEND)
• GLAZING REFERENCE (REFER TO ELEVATIONS AND WINDOW SCHEDULE)

Project Information

RELIABLE CONTROLS HEADQUARTERS 120 HALLOWELL RD., VIEW ROYAL, BC

Sheet Title: Code Review, Window Schedule

• project no. 1201
• date September 06, 2012
• scale AS NOTED
• drawn by SL, JI
• checked by FDA
• sheet no. A0.2
