Proposed Foreshore Stabilization Section 2 - South of lower staircase

June 6, 2023Page 1771 section

Cross-section diagram illustrating the southern portion of the proposed stabilization works, including staircase details and wall heights.

1 CALL TO ORDER- Mayor Tobias called the meeting to order at 7:00 p.m.
297 View Royal AvenueMarch 28, 20231.2 m Max wall height

Proposed Foreshore Stabilization Section 2 - South of lower staircase

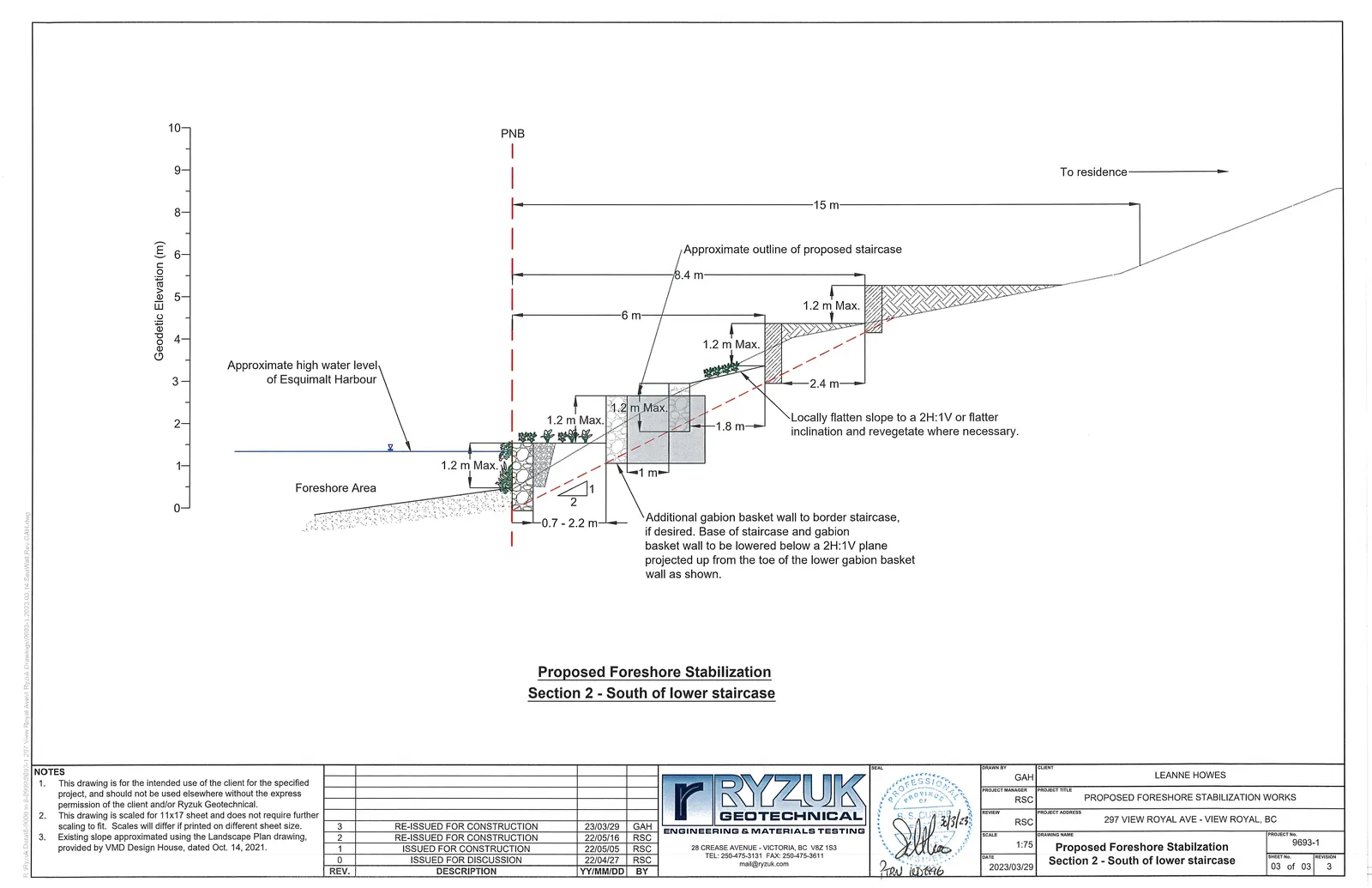

Technical cross-section diagram of proposed foreshore stabilization works, showing geodetic elevations, high water level of Esquimalt Harbour, and details for gabion baskets and a proposed staircase.
Technical cross-section diagram of proposed foreshore stabilization works, showing geodetic elevations, high water level of Esquimalt Harbour, and details for gabion baskets and a proposed staircase.

Notes

  1. This drawing is for the intended use of the client for the specified project, and should not be used elsewhere without the express permission of the client and/or Ryzuk Geotechnical.
  2. This drawing is scaled for 11x17 sheet and does not require further scaling to fit. Scales will differ if printed on different sheet size.
  3. Existing slope approximated using the Landscape Plan drawing, provided by VMD Design House, dated Oct. 14, 2021.

Revision History

REV. DESCRIPTION YY/MM/DD BY
3 RE-ISSUED FOR CONSTRUCTION 23/03/29 GAH
2 RE-ISSUED FOR CONSTRUCTION 22/05/16 RSC
1 ISSUED FOR CONSTRUCTION 22/05/05 RSC
0 ISSUED FOR DISCUSSION 22/04/27 RSC

Project Information

RYZUK GEOTECHNICAL ENGINEERING & MATERIALS TESTING 28 CREASE AVENUE - VICTORIA, BC V8Z 1S3 TEL: 250-475-3131 FAX: 250-475-3611 mail@ryzuk.com

Field Detail
DRAWN BY GAH
CLIENT LEANNE HOWES
PROJECT MANAGER RSC
PROJECT TITLE PROPOSED FORESHORE STABILIZATION WORKS
REVIEW RSC
PROJECT ADDRESS 297 VIEW ROYAL AVE - VIEW ROYAL, BC
SCALE 1:75
DRAWING NAME Proposed Foreshore Stablization Section 2 - South of lower staircase
DATE 2023/03/29
PROJECT No. 9693-1
SHEET No. 03 of 03
REVISION 3

Diagram Details and Annotations

  • Geodetic Elevation (m): Vertical scale from 0 to 10.
  • PNB: Property line marker.
  • Approximate high water level of Esquimalt Harbour: Indicated at approximately the 1.6m elevation.
  • Foreshore Area: Area below the high water mark.
  • Staircase Details:
    • Approximate outline of proposed staircase is shown.
    • Horizontal distances indicated: 6 m, 8.4 m, and 15 m to residence.
  • Stabilization Structures:
    • Gabion baskets labeled with "1.2 m Max." height.
    • Base widths and positioning noted as 0.7 - 2.2 m and 1 m.
    • "Additional gabion basket wall to border staircase, if desired. Base of staircase and gabion basket wall to be lowered below a 2H:1V plane projected up from the toe of the lower gabion basket wall as shown."
  • Slope and Vegetation:
    • "Locally flatten slope to a 2H:1V or flatter inclination and revegetate where necessary."
    • Dimensions of 1.8 m and 2.4 m related to slope tiers.
Page 177
