Appendix 1: March 28, 2023 Ryzuk Proposed Foreshore Stabilization Site Plan with +/-35cm diameter and CJF added decayed / fractured holding root details

June 6, 2023Page 1841 section

Annotated site plan detailing specific root locations and conditions relative to the proposed construction.

1 CALL TO ORDER- Mayor Tobias called the meeting to order at 7:00 p.m.
Douglas-fir No.491 decayed / fractured holding root

CONCRETE JUNGLE FORESTRY LTD. Urban & Wildland Forest Assessment & Mapping

Appendix 1: March 28, 2023 Ryzuk Proposed Foreshore Stabilization Site Plan with +/-35cm diameter and CJF added decayed / fractured holding root details.

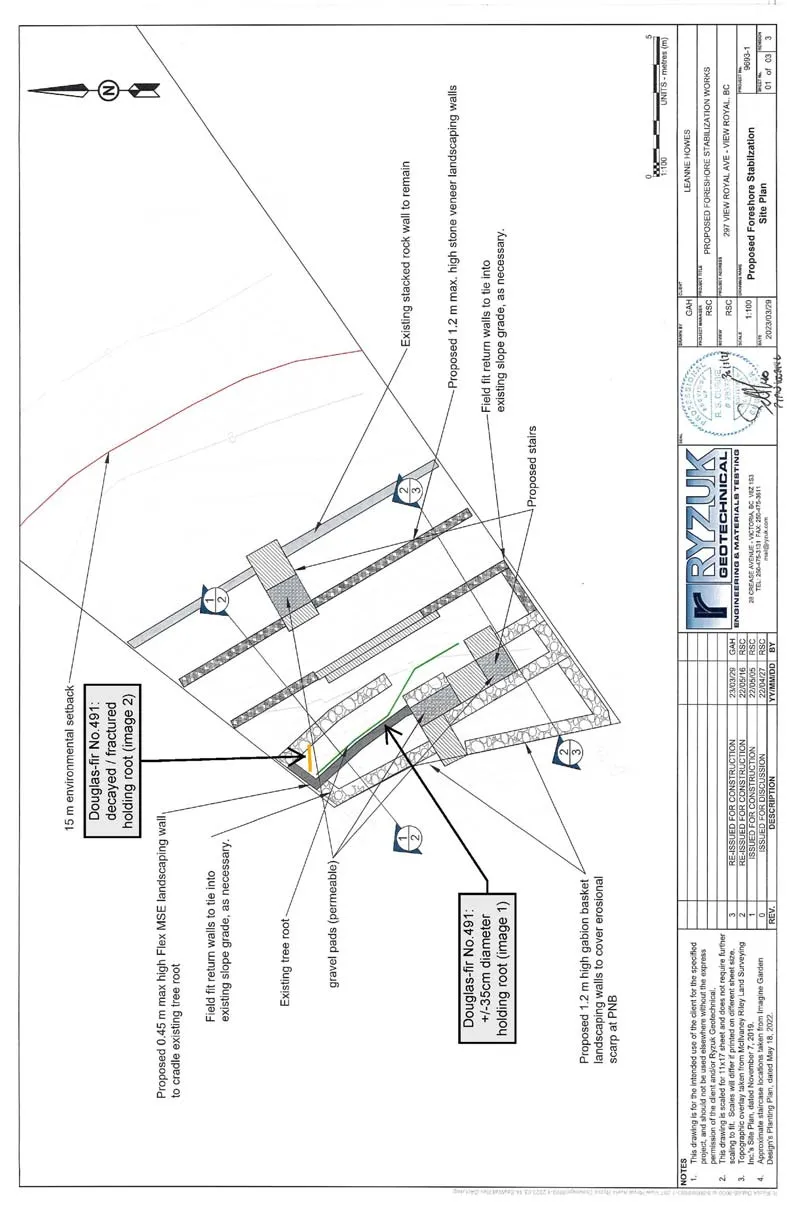

Engineering site plan by Ryzuk Geotechnical for proposed foreshore stabilization works at 297 View Royal Ave, showing landscaping walls, gabion baskets, and specific Douglas-fir tree root details.
Engineering site plan by Ryzuk Geotechnical for proposed foreshore stabilization works at 297 View Royal Ave, showing landscaping walls, gabion baskets, and specific Douglas-fir tree root details.

Drawing Annotations:

  • 15 m environmental setback
  • Douglas-fir No. 491: decayed / fractured holding root (image 2)
  • Proposed 0.45 m max high Flex MSE landscaping wall to cradle existing tree root
  • Field fit return walls to tie into existing slope grade, as necessary.
  • Existing tree root
  • gravel pads (permeable)
  • Douglas-fir No. 491: +/-35cm diameter holding root (image 1)
  • Proposed 1.2 m high gabion basket landscaping walls to cover erosional scarp at PNB
  • Existing stacked rock wall to remain
  • Proposed 1.2 m max. high stone veneer landscaping walls
  • Field fit return walls to tie into existing slope grade, as necessary.
  • Proposed stairs

Revision History

REV. DATE DESCRIPTION BY
3 23/03/28 RE-ISSUED FOR CONSTRUCTION GAH
2 22/05/16 RE-ISSUED FOR CONSTRUCTION RSC
1 22/04/27 RE-ISSUED FOR CONSTRUCTION RSC
0 18/05/18 ISSUED FOR DISCUSSION RSC

Project Information

Field Detail
PROJECT LEANNE HOWES
PROJECT NAME PROPOSED FORESHORE STABILIZATION WORKS
PROJECT ADDRESS 297 VIEW ROYAL AVE - VIEW ROYAL, BC
DRAWING TITLE Proposed Foreshore Stabilization Site Plan
PROJECT NUMBER 9093-1
DRAWN BY GAH
PROJECT MANAGER RSC
CHECKED BY RSC
DATE 2023/03/28
SCALE 1:100
SHEET 01 of 03

NOTES

  1. This drawing is for the intended use of the client for the specified project, and should not be used elsewhere without the express permission of the client and/or Ryzuk Geotechnical.
  2. This drawing is scaled for 11x17 sheet and does not require further scaling to fit. Scales will differ if printed on different sheet size.
  3. Topographic overlay taken from McIvaney Riley Land Surveying Inc.'s Site Plan, dated November 7, 2019.
  4. Approximate staircase locations taken from Imagine Garden Design's Planning Plan, dated May 18, 2022.
Page 184
