A4.1 – A6.1: Pacific Lakeside Architectural Plans (Building B and Sections)

Pacific Lakeside - Proposed Rental Apartment Development

450 Six Mile Road, View Royal, BC

Drawing A4.1: Building B Floor Plans

1. Building B - Parking / Main Entrance

• Scale: 1:100
• Total Floor Area: 45.4 m² | 489 sq.ft.
• Parking Details:
  • 9 x 1.5 = 13.5
  • 14 stalls required
  • 14 stalls provided (including 4 small cars)
  • 12 bicycle spaces in secure rooms
• Key Notes:
  • Main Entrance FFL = 30.1m
  • Electrical room
  • 5% slope down ramp
  • Visitor parking stalls (stalls 1-5)
  • Small car parking stalls (stalls 11-14)

2. Building B - First Floor Plan

• Scale: 1:100
• Total Floor Area: 342.3 m² | 3,684 sq.ft.
• Units:
  • Unit 101: Suite Type R
  • Unit 102: Suite Type R
  • Unit 103: Suite Type R
• Key Notes:
  • Lobby FFL = 32.84m
  • Elevator machine room
  • Storage room
  • Bikes (4) storage
  • Mechanical room

3. Building B - Second Floor Plan

• Scale: 1:100
• Total Floor Area: 342.3 m² | 3,684 sq.ft.
• Units:
  • Unit 201: Suite Type R
  • Unit 202: Suite Type R
  • Unit 203: Suite Type R
• Key Notes:
  • Lobby Elev. 35.65 m
  • Bikes (4) storage
  • Mechanical Room

4. Building B - Third Floor Plan

• Scale: 1:100
• Total Floor Area: 324.3 m² | 3,492 sq.ft.
• Units:
  • Unit 301: Suite Type S
  • Unit 302: Suite Type S
  • Unit 303: Suite Type S
• Key Notes:
  • Lobby Elev. 38.62 m
  • Bikes (4) storage
  • Mechanical Room

---

Drawing A4.2: Roof Plan & Suite Types

1. Roof Plan - Building B

• Scale: 1:100
• Features: Flat roof area, sloped sections (1.5:12 Slope).

2. Suite Type - R

• Scale: 1:100
• Total Floor Area: 88.6 m² | 954 sq.ft.
• Room Dimensions:
  • Living / dining: 19'-7" x 11'-6"
  • Kitchen: 8'-3" x 12'-1"
  • Bedroom: 13'-6" x 10'-0"
  • Bedroom: 10'-3" x 9'-6"
  • Bathroom: 8'-1" x 6'-2"
  • Ensuite: 7'-9" x 7'-8"
  • Deck: 9'-0" x 18'-9"
  • Other: Entry, walk-in closet, storage.

3. Suite Type - S

• Scale: 1:100
• Total Floor Area: 84.3 m² | 907.7 sq.ft.
• Room Dimensions:
  • Living / dining: 17'-6" x 11'-6"
  • Kitchen: 8'-3" x 12'-11"
  • Bedroom: 12'-5" x 11'-8"
  • Bedroom: 10'-2" x 9'-5"
  • Bathroom: 8'-0" x 7'-5"
  • Ensuite: 7'-4" x 7'-8"
  • Deck: 6'-0" x 21'-4"
  • Other: Entry, walk-in closet.

---

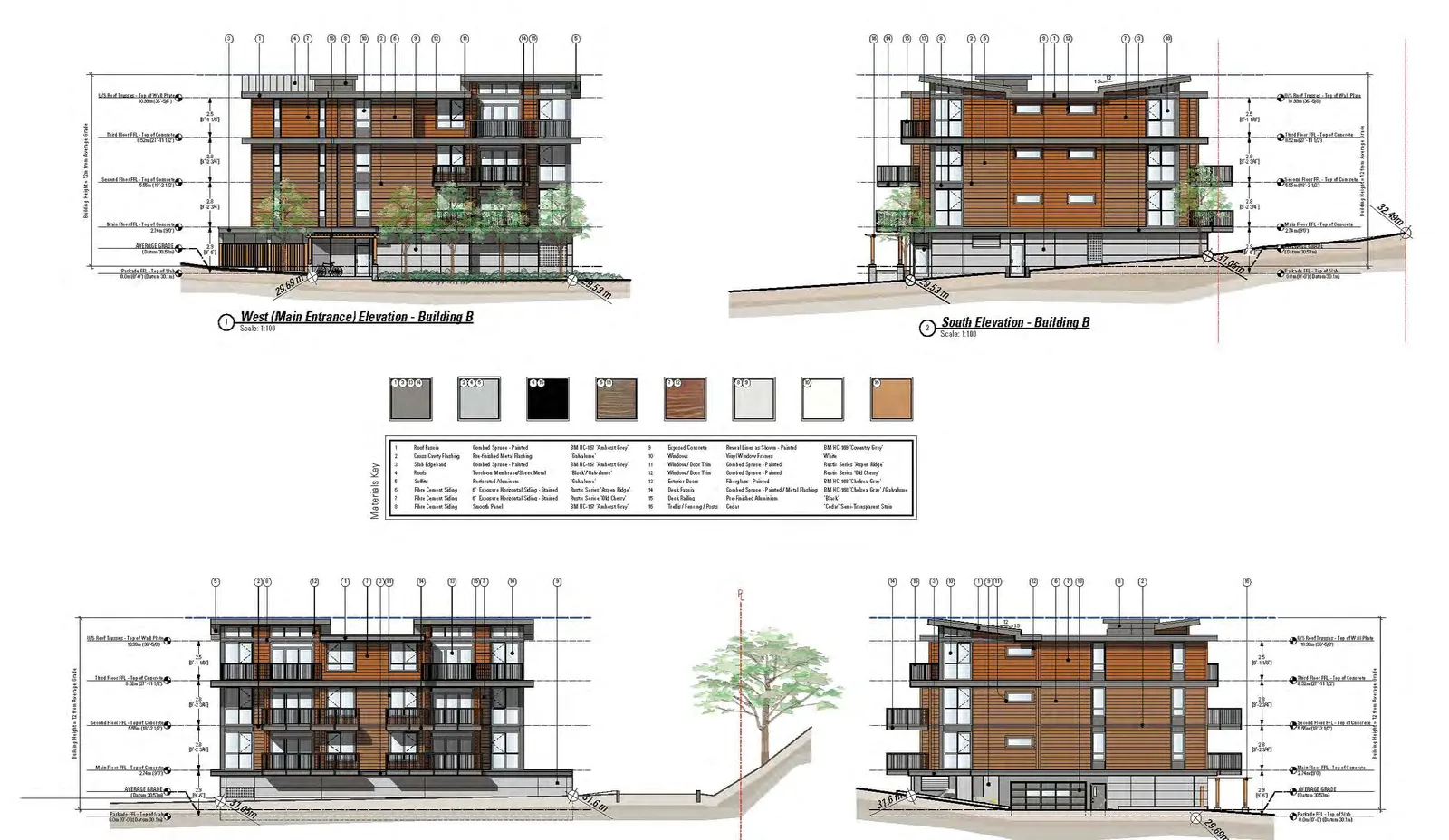

Drawing A5.1: Building B Elevations

1. West (Main Entrance) Elevation - Building B

• Scale: 1:100

2. South Elevation - Building B

• Scale: 1:100

3. East Elevation - Building B

• Scale: 1:100

4. North Elevation - Building B

• Scale: 1:100

Materials Key

Elevation Height Reference (Building B):

• U/S Roof Trusses - Top of Wall Plate: 10.39m (34' - 1.25")
• Third Floor FFL - Top of Concrete: 8.52m (27' - 11 1/2")
• Second Floor FFL - Top of Concrete: 5.55m (18' - 2 1/2")
• Main Floor FFL - Top of Concrete: 2.74m (9' - 0")
• AVERAGE GRADE (Datum 30.52m)
• Parkade FFL - Top of Slab: 0.0m (0' - 0") (Datum 30.1m)

---

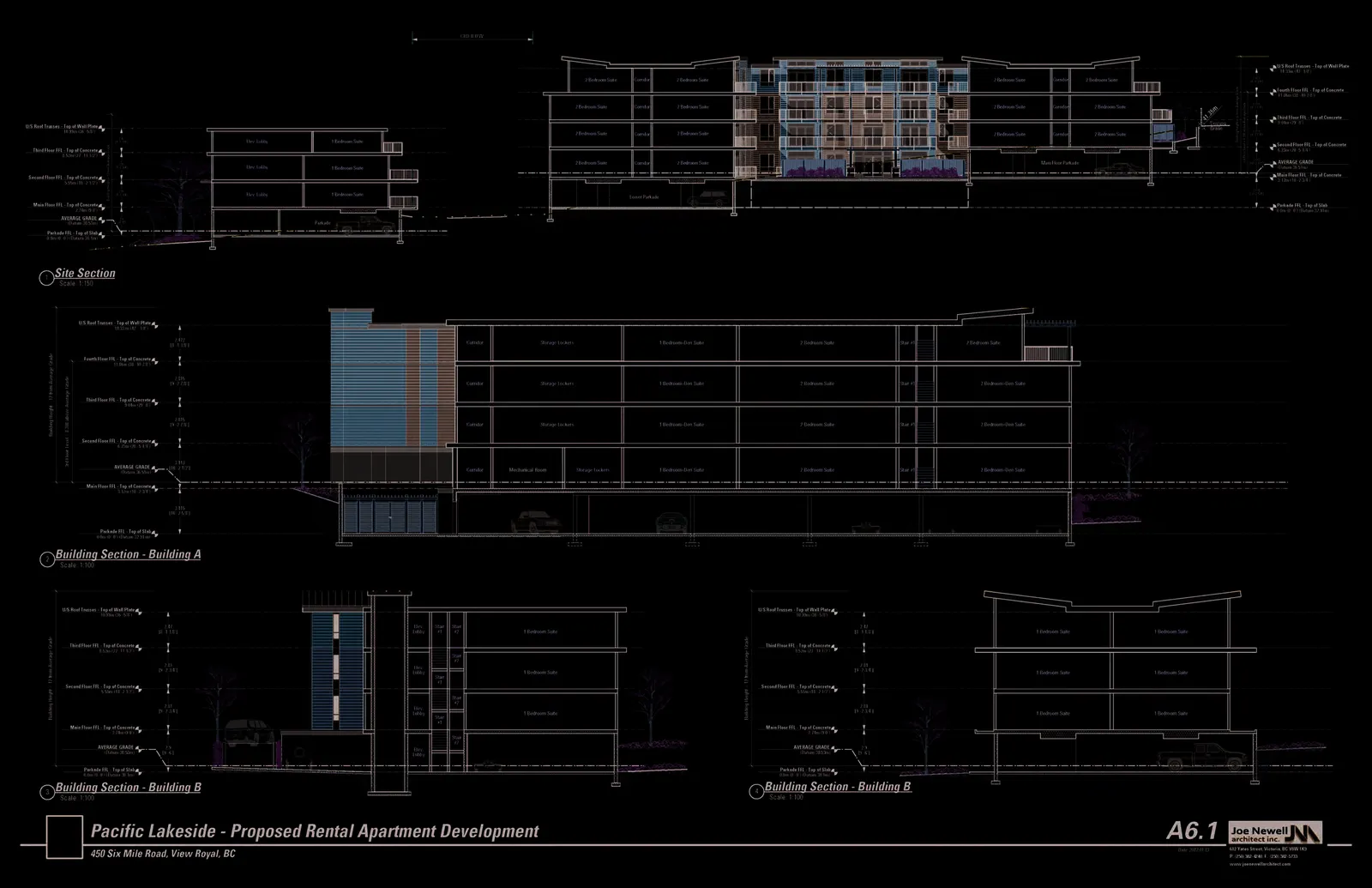

Drawing A6.1: Sections

1. Site Section

• Scale: 1:150
• Shows cross-section through Site showing Building A and Building B relative to site grades and property lines.

2. Building Section - Building A

• Scale: 1:100
• Shows vertical section through Building A detailing the Main Floor, Second Floor, Third Floor, and Fourth Floor with a Parkade below.
• Includes details for storage lockers, 1 Bedroom Suite, 2 Bedroom Suite, mechanical room, and stairwells.

3. Building Section - Building B

• Scale: 1:100
• Vertical section showing elevator lobby and unit layouts for floors 1 through 3.

4. Building Section - Building B

• Scale: 1:100
• Transverse vertical section through Building B showing 1 Bedroom Suite layouts across three floors and the parkade level.
