Technical calculations regarding average grade and building height for the various lots at 102 Atkins Road.
Average Grade = 27.05mLot 2 Building A1 Existing Average Grade: 27.21
102 atkins road AMENDED DEVELOPMENT PERMIT PRESENTATION
EN VIRO TEC GENERAL CONTRACTING LTD.
development permit
102 ATKINS ROAD VIEW ROYAL B.C.

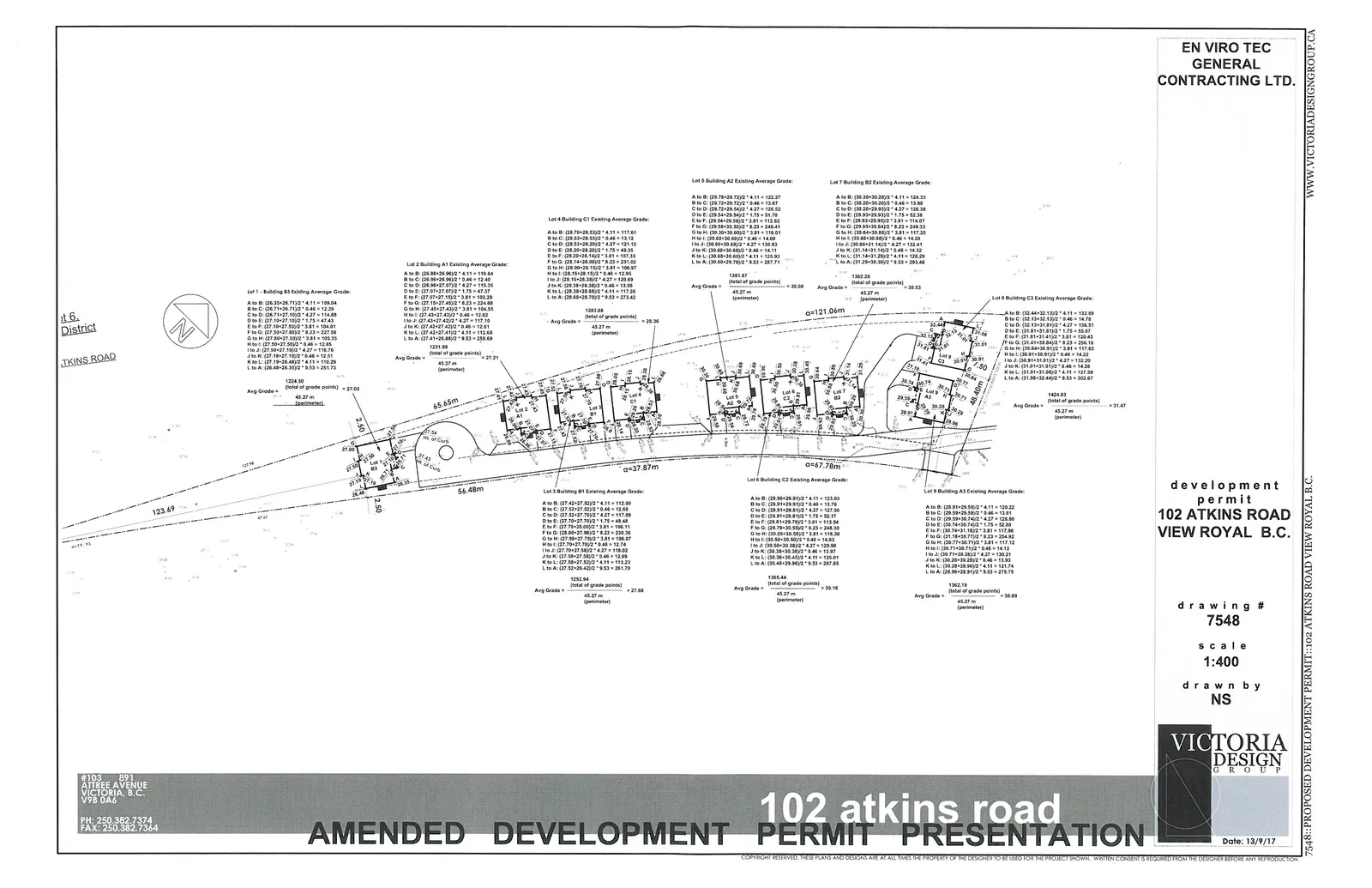

drawing # 7548 scale 1:400 drawn by NS Date: 13/9/17
Existing Average Grade Calculations
Lot 1 Building B3 Existing Average Grade
| Segment | Calculation | Result |
|---|---|---|
| A to B: | (26.35+26.71)/2 * 4.11 | 109.04 |
| B to C: | (26.71+26.71)/2 * 0.46 | 12.29 |
| C to D: | (26.71+27.10)/2 * 4.27 | 114.88 |
| D to E: | (27.10+27.10)/2 * 1.75 | 47.43 |
| E to F: | (27.10+27.50)/2 * 3.81 | 104.01 |
| F to G: | (27.50+27.50)/2 * 8.23 | 227.56 |
| G to H: | (27.50+27.50)/2 * 3.81 | 105.35 |
| H to I: | (27.50+27.50)/2 * 0.46 | 12.65 |
| I to J: | (27.50+27.19)/2 * 4.27 | 116.76 |
| J to K: | (27.19+27.19)/2 * 0.46 | 12.51 |
| K to L: | (27.19+26.48)/2 * 4.11 | 110.29 |
| L to A: | (26.48+26.35)/2 * 9.53 | 251.73 |
| Total | (total of grade points) | 1224.90 |
| Avg Grade = | 1224.90 / 45.27 m (perimeter) | = 27.05 |
Lot 2 Building A1 Existing Average Grade
| Segment | Calculation | Result |
|---|---|---|
| A to B: | (26.88+26.96)/2 * 4.11 | 110.64 |
| B to C: | (26.96+26.96)/2 * 0.46 | 12.40 |
| C to D: | (26.96+27.07)/2 * 4.27 | 115.35 |
| D to E: | (27.07+27.07)/2 * 1.75 | 47.37 |
| E to F: | (27.07+27.42)/2 * 3.81 | 103.82 |
| F to G: | (27.42+27.42)/2 * 8.23 | 224.68 |
| G to H: | (27.42+27.43)/2 * 3.81 | 104.55 |
| H to I: | (27.43+27.43)/2 * 0.46 | 12.62 |
| I to J: | (27.43+27.42)/2 * 4.27 | 117.10 |
| J to K: | (27.42+27.42)/2 * 0.46 | 12.61 |
| K to L: | (27.42+27.41)/2 * 4.11 | 112.68 |
| L to A: | (27.41+26.88)/2 * 9.53 | 258.69 |
| Total | (total of grade points) | 1231.99 |
| Avg Grade = | 1231.99 / 45.27 m (perimeter) | = 27.21 |
Lot 3 Building B1 Existing Average Grade
| Segment | Calculation | Result |
|---|---|---|
| A to B: | (27.45+27.52)/2 * 4.11 | 112.96 |
| B to C: | (27.52+27.52)/2 * 0.46 | 12.66 |
| C to D: | (27.52+27.70)/2 * 4.27 | 117.89 |
| D to E: | (27.70+27.70)/2 * 1.75 | 48.48 |
| E to F: | (27.70+28.08)/2 * 3.81 | 106.11 |
| F to G: | (28.08+27.96)/2 * 8.23 | 230.36 |
| G to H: | (27.96+27.70)/2 * 3.81 | 106.07 |
| H to I: | (27.70+27.70)/2 * 0.46 | 12.74 |
| I to J: | (27.70+27.59)/2 * 4.27 | 118.02 |
| J to K: | (27.59+27.59)/2 * 0.46 | 12.69 |
| K to L: | (27.59+27.52)/2 * 4.11 | 113.23 |
| L to A: | (27.52+26.42)/2 * 9.53 | 261.73 |
| Total | (total of grade points) | 1252.94 |
| Avg Grade = | 1252.94 / 45.27 m (perimeter) | = 27.68 |
Lot 4 Building C1 Existing Average Grade
| Segment | Calculation | Result |
|---|---|---|
| A to B: | (28.70+28.53)/2 * 4.11 | 117.61 |
| B to C: | (28.53+28.38)/2 * 0.46 | 13.10 |
| C to D: | (28.38+28.31)/2 * 4.27 | 121.12 |
| D to E: | (28.31+28.26)/2 * 1.75 | 49.35 |
| E to F: | (28.26+28.14)/2 * 3.81 | 107.33 |
| F to G: | (28.14+28.08)/2 * 8.23 | 231.28 |
| G to H: | (28.08+28.15)/2 * 3.81 | 106.97 |
| H to I: | (28.15+28.15)/2 * 0.46 | 12.95 |
| I to J: | (28.15+28.38)/2 * 4.27 | 120.69 |
| J to K: | (28.38+28.38)/2 * 0.46 | 13.05 |
| K to L: | (28.38+28.88)/2 * 4.11 | 117.26 |
| L to A: | (28.88+28.70)/2 * 9.53 | 273.42 |
| Total | (total of grade points) | 1283.88 |
| Avg Grade = | 1283.88 / 45.27 m (perimeter) | = 28.36 |
Lot 5 Building A2 Existing Average Grade
| Segment | Calculation | Result |
|---|---|---|
| A to B: | (29.72+29.72)/2 * 4.11 | 122.27 |
| B to C: | (29.72+29.72)/2 * 0.46 | 13.67 |
| C to D: | (29.72+29.54)/2 * 4.27 | 126.52 |
| D to E: | (29.54+29.54)/2 * 1.75 | 51.70 |
| E to F: | (29.54+29.58)/2 * 3.81 | 112.62 |
| F to G: | (29.58+30.30)/2 * 8.23 | 246.41 |
| G to H: | (30.30+30.30)/2 * 3.81 | 116.01 |
| H to I: | (30.30+30.68)/2 * 0.46 | 14.08 |
| I to J: | (30.68+30.68)/2 * 4.27 | 130.83 |
| J to K: | (30.68+30.68)/2 * 0.46 | 14.11 |
| K to L: | (30.68+30.69)/2 * 4.11 | 125.93 |
| L to A: | (30.69+29.72)/2 * 9.53 | 287.71 |
| Total | (total of grade points) | 1361.87 |
| Avg Grade = | 1361.87 / 45.27 m (perimeter) | = 30.08 |
Lot 6 Building C2 Existing Average Grade
| Segment | Calculation | Result |
|---|---|---|
| A to B: | (29.86+29.91)/2 * 4.11 | 123.03 |
| B to C: | (29.91+29.91)/2 * 0.46 | 13.76 |
| C to D: | (29.91+29.81)/2 * 4.27 | 127.50 |
| D to E: | (29.81+29.81)/2 * 1.75 | 52.17 |
| E to F: | (29.81+29.79)/2 * 3.81 | 113.54 |
| F to G: | (29.79+30.55)/2 * 8.23 | 248.30 |
| G to H: | (30.55+30.55)/2 * 3.81 | 116.30 |
| H to I: | (30.55+30.50)/2 * 0.46 | 14.03 |
| I to J: | (30.50+30.38)/2 * 4.27 | 129.86 |
| J to K: | (30.38+30.38)/2 * 0.46 | 13.97 |
| K to L: | (30.38+30.45)/2 * 4.11 | 125.01 |
| L to A: | (30.45+29.86)/2 * 9.53 | 287.65 |
| Total | (total of grade points) | 1365.44 |
| Avg Grade = | 1365.44 / 45.27 m (perimeter) | = 30.16 |
Lot 7 Building B2 Existing Average Grade
| Segment | Calculation | Result |
|---|---|---|
| A to B: | (30.30+30.30)/2 * 4.11 | 124.33 |
| B to C: | (30.30+30.35)/2 * 0.46 | 13.96 |
| C to D: | (30.35+29.72)/2 * 4.27 | 128.38 |
| D to E: | (29.72+29.91)/2 * 1.75 | 52.36 |
| E to F: | (29.91+29.93)/2 * 3.81 | 113.88 |
| F to G: | (29.93+30.64)/2 * 8.23 | 249.23 |
| G to H: | (30.64+30.88)/2 * 3.81 | 117.20 |
| H to I: | (30.88+30.88)/2 * 0.46 | 14.20 |
| I to J: | (30.88+31.34)/2 * 4.27 | 133.00 |
| J to K: | (31.34+31.34)/2 * 0.46 | 14.32 |
| K to L: | (31.34+31.14)/2 * 4.11 | 128.29 |
| L to A: | (31.14+30.30)/2 * 9.53 | 293.48 |
| Total | (total of grade points) | 1382.28 |
| Avg Grade = | 1382.28 / 45.27 m (perimeter) | = 30.53 |
Lot 8 Building C3 Existing Average Grade
| Segment | Calculation | Result |
|---|---|---|
| A to B: | (32.44+32.13)/2 * 4.11 | 132.69 |
| B to C: | (32.13+31.91)/2 * 0.46 | 14.76 |
| C to D: | (31.91+31.81)/2 * 4.27 | 136.01 |
| D to E: | (31.81+31.81)/2 * 1.75 | 55.67 |
| E to F: | (31.81+31.41)/2 * 3.81 | 120.43 |
| F to G: | (31.41+30.84)/2 * 8.23 | 256.16 |
| G to H: | (30.84+30.91)/2 * 3.81 | 117.63 |
| H to I: | (30.91+30.91)/2 * 0.46 | 14.22 |
| I to J: | (30.91+31.01)/2 * 4.27 | 132.23 |
| J to K: | (31.01+31.01)/2 * 0.46 | 14.26 |
| K to L: | (31.01+31.06)/2 * 4.11 | 127.59 |
| L to A: | (31.06+32.44)/2 * 9.53 | 302.67 |
| Total | (total of grade points) | 1424.83 |
| Avg Grade = | 1424.83 / 45.27 m (perimeter) | = 31.47 |
Lot 9 Building A3 Existing Average Grade
| Segment | Calculation | Result |
|---|---|---|
| A to B: | (28.91+28.59)/2 * 4.11 | 120.22 |
| B to C: | (28.59+28.59)/2 * 0.46 | 13.15 |
| C to D: | (28.59+30.74)/2 * 4.27 | 126.80 |
| D to E: | (30.74+30.74)/2 * 1.75 | 53.80 |
| E to F: | (30.74+28.71)/2 * 3.81 | 113.11 |
| F to G: | (28.71+33.18)/2 * 8.23 | 254.92 |
| G to H: | (33.18+30.77)/2 * 3.81 | 121.78 |
| H to I: | (30.77+30.77)/2 * 0.46 | 14.13 |
| I to J: | (30.77+30.38)/2 * 4.27 | 130.21 |
| J to K: | (30.38+30.38)/2 * 0.46 | 13.93 |
| K to L: | (30.38+28.96)/2 * 4.11 | 121.74 |
| L to A: | (28.96+28.91)/2 * 9.53 | 275.75 |
| Total | (total of grade points) | 1362.19 |
| Avg Grade = | 1362.19 / 45.27 m (perimeter) | = 30.09 |
