Attachment 6 - TYPE A HOMES Front Elevations & Floor Plans
October 17, 2017Page 211 section
Architectural floor plans and front elevation renderings for the Type A units in the 102 Atkins Road development.
Type A HomesIncludes Basement, Main, and Upper floor plans

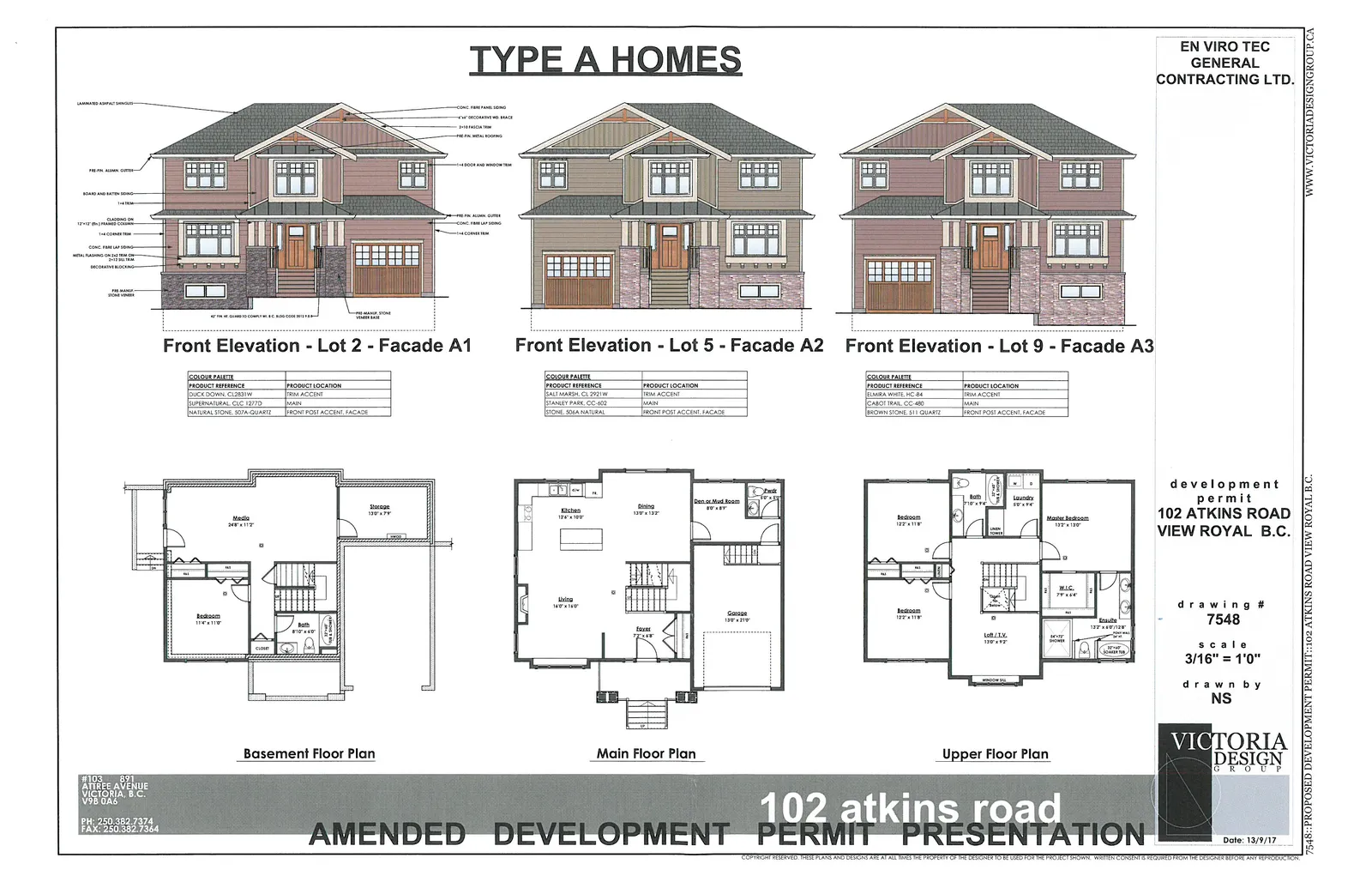

TYPE A HOMES
Front Elevation - Lot 2 - Facade A1
| COLOUR PALETTE PRODUCT REFERENCE | PRODUCT LOCATION |
|---|---|
| DUCK DOWN, CL2831W | TRIM ACCENT |
| SUPERNATURAL, CLC 1277D | MAIN |
| NATURAL STONE, 507A QUARTZ | FRONT POST ACCENT, FACADE |
Front Elevation - Lot 5 - Facade A2
| COLOUR PALETTE PRODUCT REFERENCE | PRODUCT LOCATION |
|---|---|
| SALT MARSH, CL 3121W | TRIM ACCENT |
| STANLEY PARK, CC-602 | MAIN |
| STONE, 506A NATURAL | FRONT POST ACCENT, FACADE |
Front Elevation - Lot 9 - Facade A3
| COLOUR PALETTE PRODUCT REFERENCE | PRODUCT LOCATION |
|---|---|
| ELMIRA WHITE, HC-84 | TRIM ACCENT |
| CABOT TRAIL, CC-480 | MAIN |
| BROWN STONE, 511 QUARTZ | FRONT POST ACCENT, FACADE |
Elevation Notes and Materials
- LAMINATED ASPHALT SHINGLES
- CONC. FIBRE PANEL SIDING
- 4"x4" DECORATIVE WD. BRACE
- 2x10 FASCIA TRIM
- PRE-FIN. METAL ROOFING
- 1x8 DOOR AND WINDOW TRIM
- PRE-FIN. ALUM. GUTTER
- BOARD AND BATTEN SIDING
- 1x6 TRIM
- 12"x12" (Sh.) FRAMED COLUMN
- 1x8 CORNER TRIM
- CONC. FIBRE LAP SIDING
- METAL FLASHING ON 2x2 TRIM ON 2x12 BIG TRIM
- DECORATIVE BLOCKING
- PRE-MANUF. STONE VENEER
- 40" FIN. HT. GUARD TO COMPLY W/ B.C. BLDG CODE 2012 9.8.8
- PRE-MANUF. STONE VENEER BASE
Basement Floor Plan
- Media: 24'8" x 11'3"
- Bedroom: 11'4" x 11'8"
- Bath: 8'10" x 6'0"
- Storage: 13'6" x 7'9"
Main Floor Plan
- Kitchen: 12'6" x 10'0"
- Dining: 13'8" x 13'3"
- Living: 16'0" x 14'0"
- Foyer: 7'3" x 4'8"
- Den or Mud Room: 8'0" x 8'1"
- Powder: 5'0" x 5'0"
- Garage: 13'0" x 21'0"
Upper Floor Plan
- Bedroom: 12'2" x 11'8"
- Bedroom: 12'2" x 11'8"
- Bath: 7'10" x 5'4"
- Laundry: 5'0" x 5'4"
- Loft / T.V.: 13'0" x 9'2"
- Master Bedroom: 13'2" x 13'0"
- W.I.C.: 7'9" x 6'4"
- Ensuite: 13'2" x 6'8" / 12'8" (64"x30" SHOWER)
Project Information
EN VIRO TEC GENERAL CONTRACTING LTD.
development permit 102 ATKINS ROAD VIEW ROYAL B.C.
drawing #: 7548 scale: 3/16" = 1'0" drawn by: NS Date: 13/9/17
VICTORIA DESIGN GROUP #103 891 ATTREE AVENUE VICTORIA, B.C. V9B 0A6 PH: 250.382.7374 FAX: 250.382.7364
102 atkins road AMENDED DEVELOPMENT PERMIT PRESENTATION
