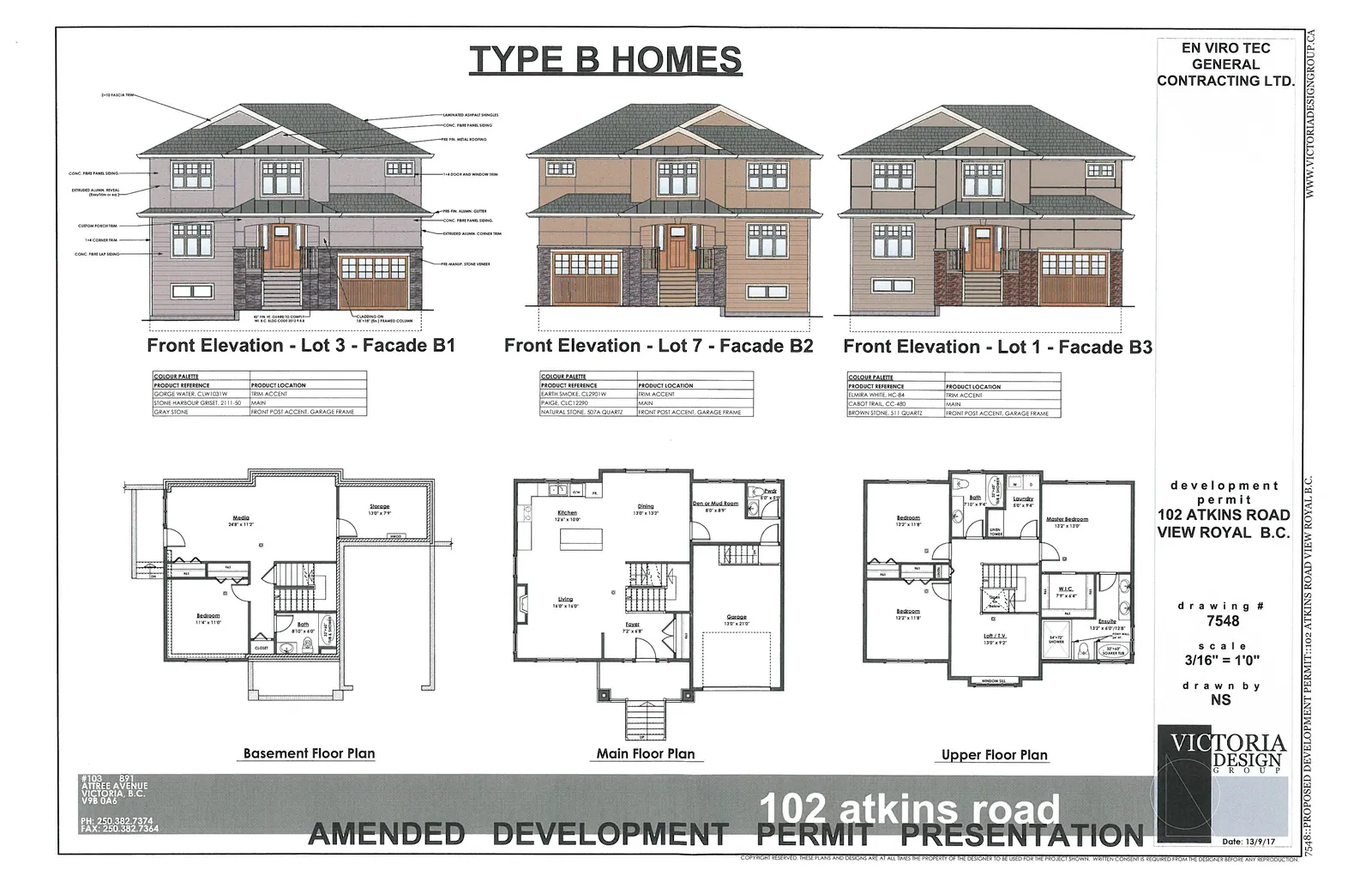

Architectural floor plans and front elevation renderings for the Type B units in the 102 Atkins Road development.
Type B Homes
TYPE B HOMES
Front Elevation - Lot 3 - Facade B1
COLOUR PALETTE
| PRODUCT REFERENCE | PRODUCT LOCATION |
|---|---|
| GORGE WATER, CLW 1031W | TRIM ACCENT |
| STONE HARBOUR GREY, 2111-50 | MAIN |
| GRAY STONE | FRONT POST ACCENT, GARAGE FRAME |
Front Elevation - Lot 7 - Facade B2
COLOUR PALETTE
| PRODUCT REFERENCE | PRODUCT LOCATION |
|---|---|
| EARTH SHORE, CL2901W | TRIM ACCENT |
| PAIGE, CLC 12290 | MAIN |
| NATURAL STONE, 507A QUARTZ | FRONT POST ACCENT, GARAGE FRAME |
Front Elevation - Lot 1 - Facade B3
COLOUR PALETTE
| PRODUCT REFERENCE | PRODUCT LOCATION |
|---|---|
| ELMIRA WHITE, HC-84 | TRIM ACCENT |
| CABOT TRAIL, CC-480 | MAIN |
| BROWN STONE, 511 QUARTZ | FRONT POST ACCENT, GARAGE FRAME |
Basement Floor Plan
- Media: 24'0" x 11'2"
- Storage: 13'0" x 7'9"
- Bedroom: 11'4" x 11'0"
- Bath: 8'10" x 5'0"
Main Floor Plan
- Kitchen: 12'4" x 10'0"
- Dining: 13'0" x 13'3"
- Den or Mud Room: 8'0" x 8'5"
- Pwdr: 5'0" x 5'0"
- Living: 14'4" x 14'0"
- Foyer: 7'2" x 6'8"
- Garage: 13'5" x 21'0"
Upper Floor Plan
- Bedroom: 13'2" x 11'8"
- Bath: 7'10" x 9'4"
- Laundry: 5'0" x 9'4"
- Master Bedroom: 12'2" x 13'0"
- W.I.C.: 7'0" x 6'4"
- Bedroom: 13'2" x 11'8"
- Loft / T.V.: 13'0" x 9'2"
- Ensuite: 13'2" x 6'0" / 12'8"
Project Information
EN VIRO TEC GENERAL CONTRACTING LTD. #103 891 ATTREE AVENUE VICTORIA, B.C. V9B 0A6 PH: 250.382.7374 FAX: 250.382.7364
development permit 102 ATKINS ROAD VIEW ROYAL B.C.
drawing # 7548 scale 3/16" = 1'0" drawn by NS Date: 13/9/17
102 atkins road AMENDED DEVELOPMENT PERMIT PRESENTATION
