Council Meeting/Documents/Attachment 9 - TYPICAL TYPE A ELEVATIONS
Appendix

Attachment 9 - TYPICAL TYPE A ELEVATIONS

October 17, 2017Page 241 section

Detailed technical architectural elevation views (Front, Rear, Right, Left) for the Type A houses.

Scale: 1/4" = 1'-0"

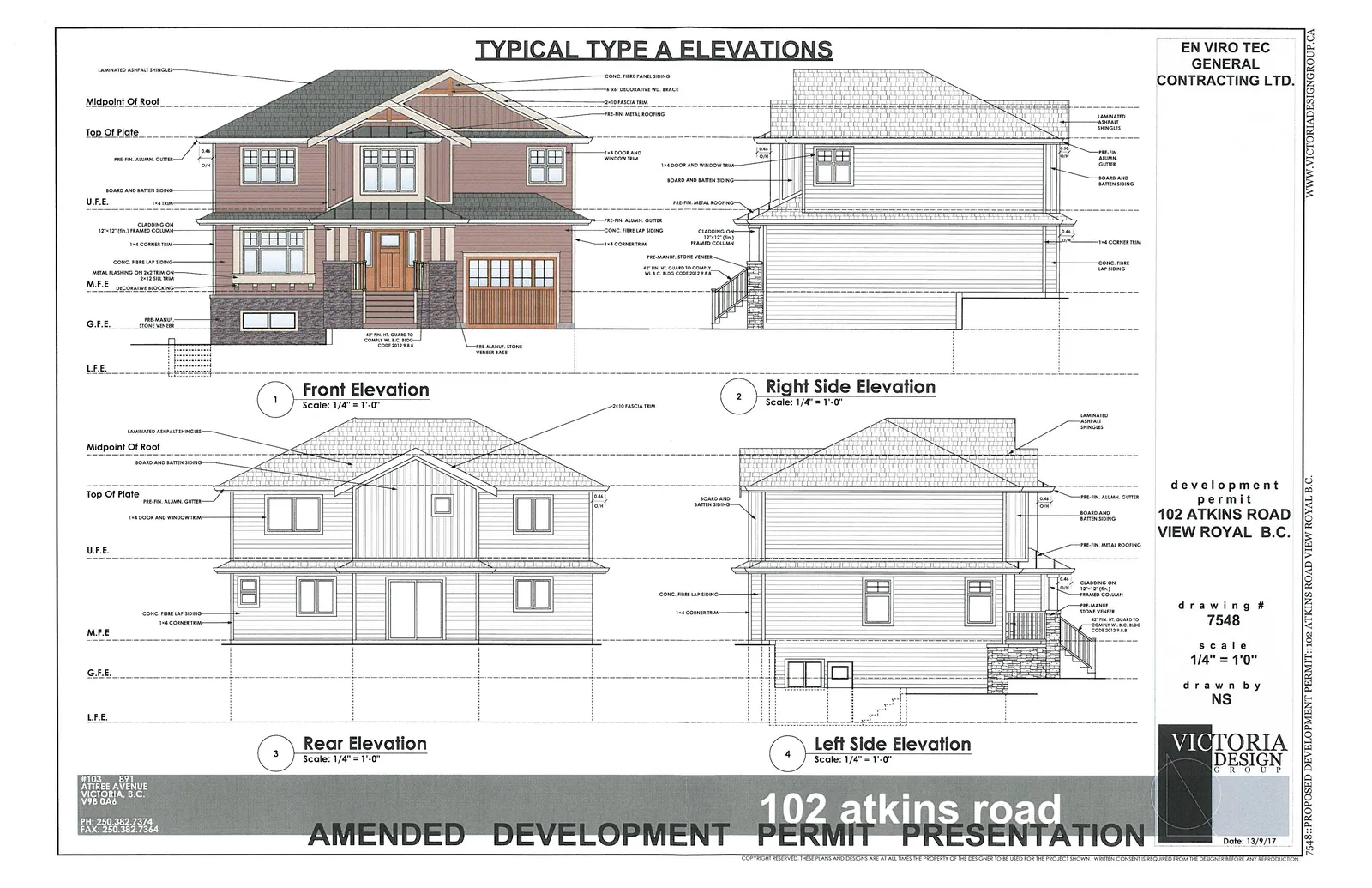

TYPICAL TYPE A ELEVATIONS

Architectural drawings of the Typical Type A Elevations for the 102 Atkins Road development, including Front, Right Side, Rear, and Left Side elevations.
Architectural drawings of the Typical Type A Elevations for the 102 Atkins Road development, including Front, Right Side, Rear, and Left Side elevations.

General Information

Project: 102 atkins road AMENDED DEVELOPMENT PERMIT PRESENTATION Contractor: EN VIRO TEC GENERAL CONTRACTING LTD. Location: 102 ATKINS ROAD, VIEW ROYAL B.C. Drawing Number: 7548 Scale: 1/4" = 1'0" Drawn By: NS Date: 13/9/17

Elevation Views

1. Front Elevation

Scale: 1/4" = 1'-0"

  • Material Callouts:
    • Laminated asphalt shingles
    • Conc. fibre panel siding
    • 4"x4" decorative wd. brace
    • 2x10 fascia trim
    • Pre-fin. metal roofing
    • Pre-fin. alum. gutter
    • Board and batten siding
    • 1x4 trim
    • Cladding on 12"x12" (fin.) framed column
    • 1x4 corner trim
    • Conc. fibre lap siding
    • Metal flashing on 2x2 trim on 2x12 sill trim
    • Decorative blocking
    • Pre-manuf. stone veneer
    • 42" fin. ht. guard to comply w/ B.C. Bldg. Code 2012 9.8.8
    • Pre-manuf. stone veneer base

2. Right Side Elevation

Scale: 1/4" = 1'-0"

  • Material Callouts:
    • Laminated asphalt shingles
    • Pre-fin. alum. gutter
    • Board and batten siding
    • 1x4 door and window trim
    • Pre-fin. metal roofing
    • Cladding on 12"x12" (fin.) framed column
    • 1x4 corner trim
    • Conc. fibre lap siding
    • Pre-manuf. stone veneer
    • 42" fin. ht. guard to comply w/ B.C. Bldg. Code 2012 9.8.8

3. Rear Elevation

Scale: 1/4" = 1'-0"

  • Material Callouts:
    • Laminated asphalt shingles
    • Board and batten siding
    • 2x10 fascia trim
    • 1x4 door and window trim
    • Conc. fibre lap siding
    • 1x4 corner trim

4. Left Side Elevation

Scale: 1/4" = 1'-0"

  • Material Callouts:
    • Laminated asphalt shingles
    • Pre-fin. alum. gutter
    • Board and batten siding
    • Pre-fin. metal roofing
    • Cladding on 12"x12" (fin.) framed column
    • Pre-manuf. stone veneer
    • 42" fin. ht. guard to comply w/ B.C. Bldg. Code 2012 9.8.8
    • Conc. fibre lap siding
    • 1x4 corner trim

Elevation Benchmarks

  • Midpoint Of Roof
  • Top Of Plate
  • U.F.E.
  • M.F.E.
  • G.F.E.
  • L.F.E.

Contact Information

#103 - 891 ATREE AVENUE VICTORIA, B.C. V9B 0A6 PH: 250.382.7374 FAX: 250.382.7364

Page 24
