Attachment 6. Foundation Plan - 18 Fenton Road
October 17, 2017Page 381 section
Structural plan detailing the foundation and crawl space for the proposed residential addition.

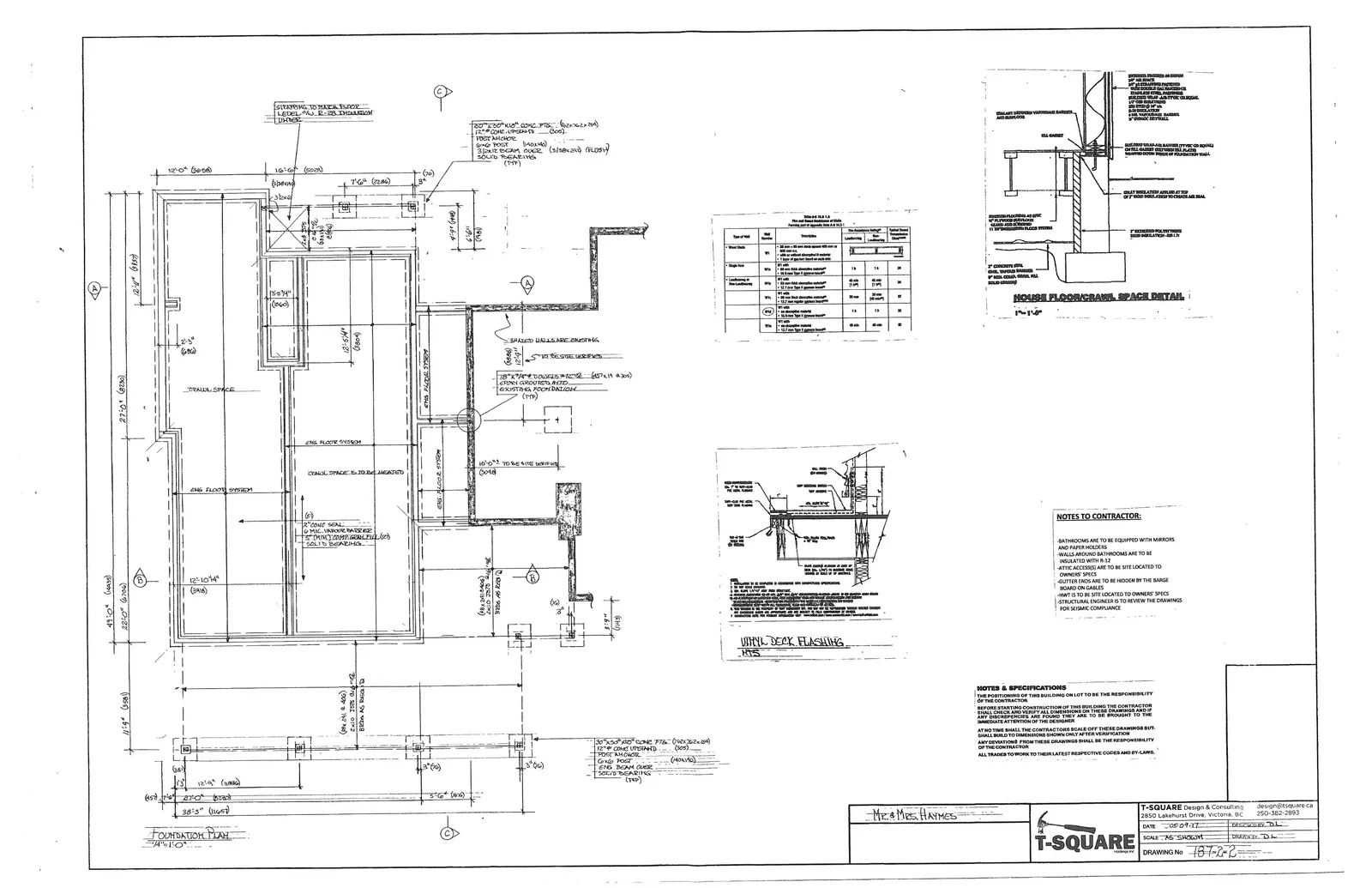

Foundation Plan
FOUNDATION PLAN
NOTES TO CONTRACTOR:
- BATHROOMS ARE TO BE EQUIPPED WITH MIRRORS AND PAPER HOLDERS
- WALLS AROUND BATHROOMS ARE TO BE INSULATED WITH R-12
- ATTIC ACCESS(S) ARE TO BE SITE LOCATED TO OWNERS' SPECS
- GUTTER ENDS ARE TO BE HIDDEN BY THE BARGE BOARD ON GABLES
- HWT IS TO BE SITE LOCATED TO OWNERS' SPECS
- STRUCTURAL ENGINEER IS TO REVIEW THE DRAWINGS FOR SEISMIC COMPLIANCE
NOTES & SPECIFICATIONS:
- THE POSITIONING OF THIS BUILDING ON LOT TO BE THE RESPONSIBILITY OF THE CONTRACTOR
- BEFORE STARTING CONSTRUCTION OF THIS BUILDING THE CONTRACTOR SHALL CHECK AND VERIFY ALL DIMENSIONS ON THESE DRAWINGS AND IF ANY DISCREPANCIES ARE FOUND THEY ARE TO BE BROUGHT TO THE IMMEDIATE ATTENTION OF THE DESIGNER.
- AT NO TIME SHALL THE CONTRACTOR SCALE OFF THESE DRAWINGS BUT SHALL BUILD TO DIMENSIONS SHOWN ONLY AFTER VERIFICATION
- ANY DEVIATIONS FROM THESE DRAWINGS SHALL BE THE RESPONSIBILITY OF THE CONTRACTOR.
- ALL TRADES TO WORK TO THEIR LATEST RESPECTIVE CODES AND BY-LAWS.
FIRE-RESISTANCE RATING TABLE
Table 9.10.3.1.A. Fire-resistance Rating of Walls Remaining part of Appendix A to B.C.B.C.
| Type of Wall | Description | Fire-Resistance Rating: Non-loadbearing | Fire-Resistance Rating: Loadbearing | Typical Sound Performance Diagrams |
|---|---|---|---|---|
| Wood Studs | - 38 mm x 89 mm studs spaced 400 mm or 600 mm o.c. - with or without absorptive material - 1 layer of gypsum board on each side |
|||
| Single Row | - 12.7 mm thick absorbent material* - 12.7 mm Type X gypsum board** |
1 h | 1 h | 34 |
| - 12.7 mm thick absorbent material* - 12.7 mm Type X gypsum board** |
45 min [1 h] | 45 min [1 h] | 34 | |
| - 12.7 mm thick absorbent material* - 12.7 mm regular gypsum board*** |
30 min | 30 min [20 min] | 33 | |
| - no absorptive material - 12.7 mm Type X gypsum board** |
1 h | 1 h | 33 | |
| - no absorptive material - 12.7 mm Type X gypsum board** |
45 min | 45 min | 32 |
HOUSE FLOOR/CRAWL SPACE DETAIL
- 1" RIGID INSULATION
- FLASHING
- POLY VAPOUR BARRIER
- 1/2" GYPSUM WALLBOARD
- R-28 BATT INSULATION
- SEALANT BETWEEN VAPOUR BARRIER AND SUBFLOOR
- FILL CAVITY
- 2x8 SILL PLATE CONTINUOUS (PRESSURE TREATED)
- 1/2" DIA ANCHOR BOLTS @ 6'-0" O.C.
- TOP OF CONC FOUNDATION
- 3" CONC SLAB
- 6 MIL VAPOR BARRIER
- 5" MIN COMP GRAVEL FILL
- SOLID GROUND
VINYL DECK FLASHING
FOUNDATION PLAN ANNOTATIONS
- Stepping to match floor level: (+/-) R-28 Insulation under
- Footing Details: 30"x30"x10" CONC. FTG. (762x762x254); 12" CONC. UPSTAND (305); Post Anchor (MSU 44); 6x6 Post (140x140); 3 ply beam CONC (3-38x235) (FLUSH); SOLID BEARING (TYP)
- Foundation Modifications: Existing walls are existing; 18"x74"x8" DOUBLE FOOTER (457x19x203) CONC. GROUTED INTO EXISTING FOUNDATION (TYP)
- Crawl Space Specifications: 3" CONC. SLAB; 6 MIL VAPOUR BARRIER; 5" (MIN) COMP. GRAV. FILL (127); SOLID BEARING; CRAWL SPACE IS TO BE HEATED
PROJECT INFORMATION
- Client: Mr. & Mrs. Haynes
- Firm: T-SQUARE design & consulting, 2850 Lakehurst Drive, Victoria, BC, 250-382-2893, design@tsquare.ca
- Date: 05.09.17
- Scale: AS SHOWN
- Drawing No: 187-2
- Drawn By: DL
- Checked By: DL
